Locinox Tiger hydraulic self-closing gate closer and hinge kit for 2"-2-3/8" square frame gates, 165 lb capacity.

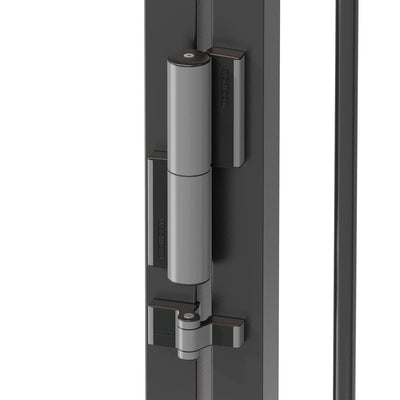

Hydraulic self-closing gate closer and hinge kit for 2"-2-3/8" square frame gates, supports up to 165 lbs.

Locinox Tiger hydraulic self-closing gate closer and hinge kit for residential gates with 2" to 2-3/8" square frames.

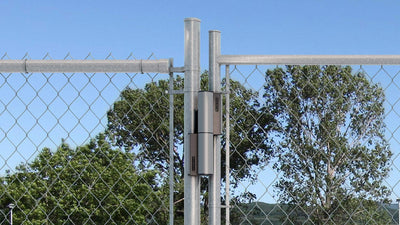

Locinox Tiger hydraulic self-closing gate closer and hinge kit installed on a chain-link fence with trees in the background.

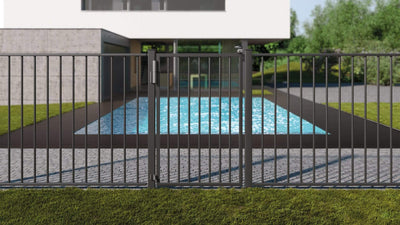

Locinox Tiger hydraulic self-closing gate closer and hinge kit for residential gates with a 165 lb capacity.

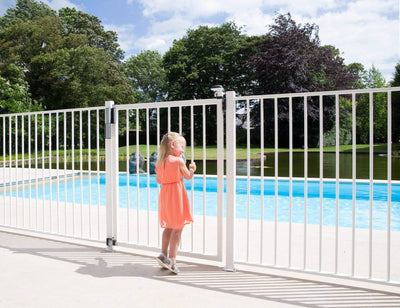

Child in a pink dress stands by a self-closing gate near a pool, showcasing the Locinox Tiger gate closer and hinge kit.

SKU: LOC-TIGER+LUKY50J5LGMAB+SAKLQF2-9005-KIT

Locinox Tiger Hydraulic Self-Closing Gate Closer & Hinge Kit – Residential Gate Hardware Bundle for 2"–2-3/8" Square Frame Gates (165 lb Capacity)

Name: Hinge Outlet
Address: 10769 Broadway #176, Crown Point, IN, IN, 46307, US
Telephone: 888-250-8133
Price range: $$

$544.01

See more details...

Details Returns Prop 65

Reliable Self-Closing Gate Performance for Residential Installations

The Locinox Tiger Residential Gate Closer & Lock Kit delivers smooth, controlled gate closing in a compact, installer-friendly system. Designed for new-fit manual residential gates, this bundle provides dependable hydraulic closing performance while maintaining a clean, professional installation.

Built for contractors and gate installers, the system ensures consistent closing speed, long-term durability, and quick installation, making it an ideal upgrade for residential access gates that require reliable self-closing functionality.

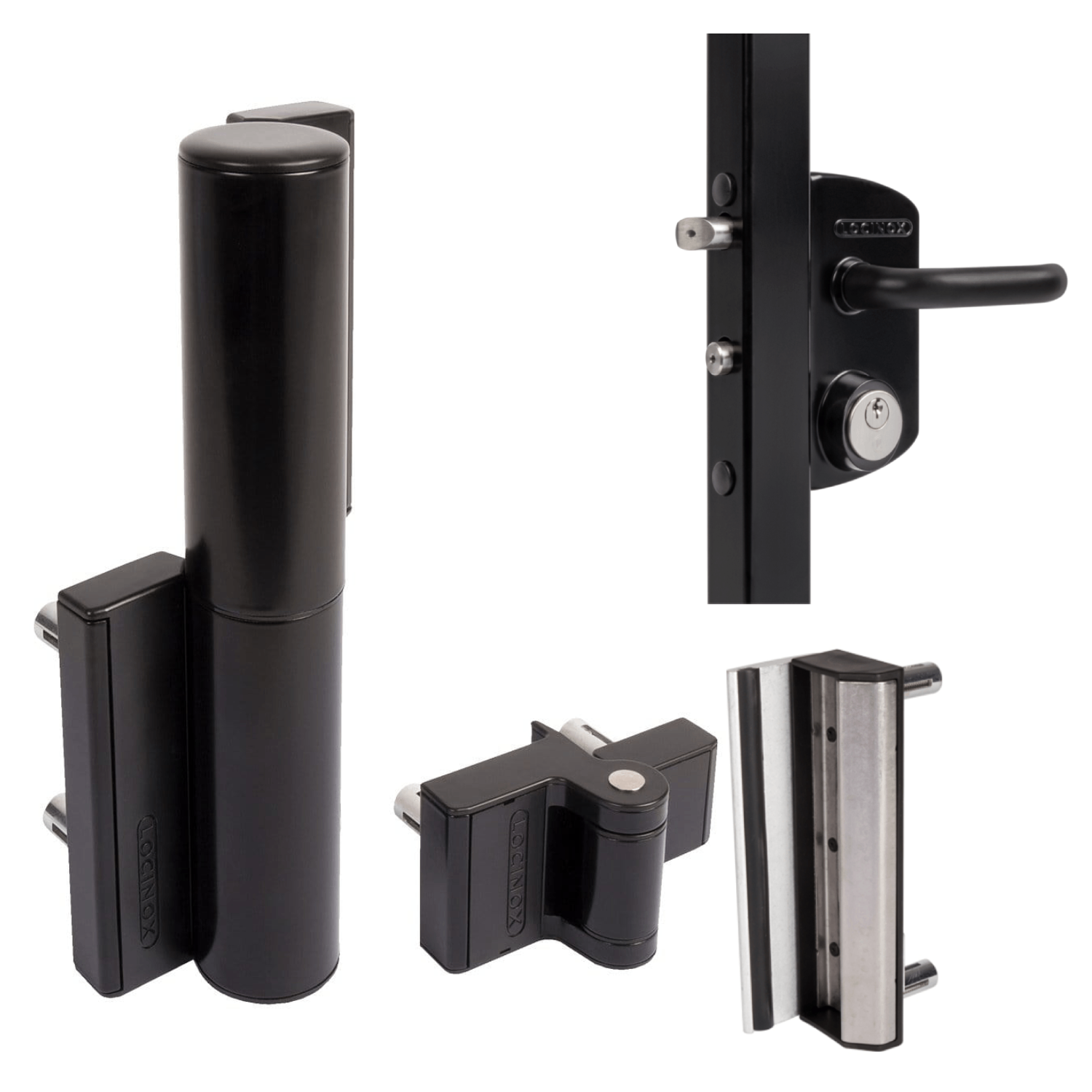

What's Included in the Kit

This complete bundle provides the core hardware needed for controlled automatic gate closing.

Save 15% when Purchasing the Bundle

(1) Locinox Tiger Hydraulic Gate Closer & Hinge
(1) Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
(1) Adjustable Stainless Steel Gate Keep

Gate Compatibility Summary

This bundle is designed specifically for residential square frame gates with light-to-moderate weight requirements.

Supported Gate Specifications

• Maximum Gate Weight: 165 lbs
• Maximum Gate Width: 3.5 ft
• Gate Frame Type: Square frame gates
• Compatible Gate Profiles: 2" – 2-3/8"
• Installation Gap: 7/16" – 1"

Compatible with left- or right-hand gate configurations.

Component Details

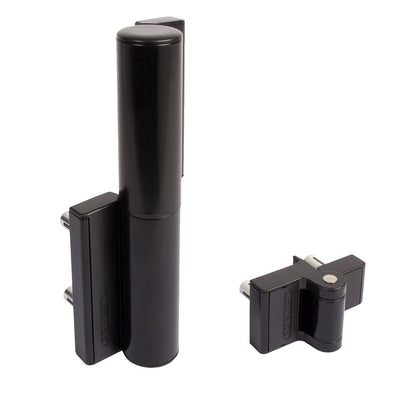

Locinox Tiger Hydraulic Gate Closer & Hinge

Locinox Tiger Hydraulic Gate Closer & Hinge is a compact 180° hydraulic hinge system that combines gate support and self-closing functionality into one professional-grade unit.

Designed for residential gates, it delivers controlled closing action and reliable performance in changing outdoor conditions.

Key Benefits

• Smooth hydraulic self-closing action
• Adjustable closing speed and final snap for secure latching
• Consistent closing performance in all weather conditions
• Vandal-resistant design for residential and light-duty environments
• Compact system that integrates hinge and closer

Features

Patented hydraulic damping system for temperature-stable closing performance
Weatherproof powder-coated aluminum housing for exterior durability
180° gate opening capability
Designed for left- or right-hand turning gates
Quick-Fix mounting system for fast installation

Specifications

• Finish: Black
• Gate Weight Capacity: Up to 165 lbs
• Maximum Gate Width: 3-1/2 ft
• Opening Angle: 180°
• Vertical Adjustment: 3/4" height adjustability
• Installation Gap: 7/16" – 1"

Installation Notes

• Fast fixation using Locinox Quick-Fix bolts
• Includes Puma hinge
• Installation Guide
• Catalog Page

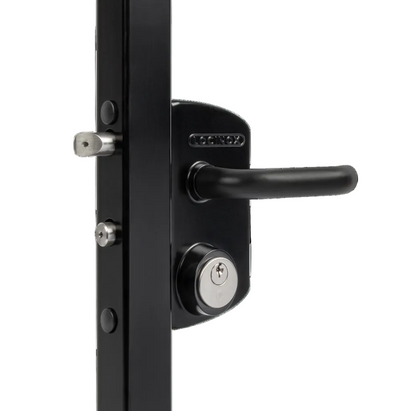

Locinox Surface Mounted Gate Lock (US Mortise Cylinder)

Secure your gate with a commercial-grade keyed locking system designed specifically for metal gate installations.

Specifications

Finish: Black
Compatible Gate Profiles: 2" – 2-3/8" square profiles
Cylinder Type: 1-1/8" mortise profile cylinder
Deadbolt Throw: 7/8" with one turn of the key

Features

Double cylinder deadbolt
Key-operated self-latching daybolt
Keyed alike
Easy left or right gate configuration
Continuous bolt adjustment up to 3/8"
Four-hole mounting system with hex socket screws
Interchangeable with all Locinox surface mounted locks

Installation Note

The lock box requires 3-3/8" spacing to the first picket, fitting most standard commercial gate designs. Installation Guide

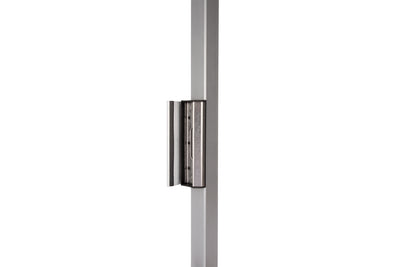

Adjustable Stainless Steel Gate Keep

This adjustable keep ensures precise lock alignment and secure gate closure.

Specifications

Finish: Black
Compatible Profiles: 1-1/2" – 2-1/2" square profiles

Features

Adjustable aluminum stop plate with rubber impact strip
Polyamide finished components
Durable extruded aluminum construction
Reversible for left or right gate installations
Quick-Fix mounting system for fast installation Installation Guide

Ideal Applications

This bundle is designed for residential and light-duty gate installations where controlled automatic closing is required.

Common uses include:

• Residential garden gates
• Side yard security gates
• Pool access gates
• HOA property entrances
• Light commercial property gates
• Apartment building access gates

Why Professionals Choose Locinox

Locinox is globally recognized for high-quality gate hardware engineered for professional installation.

Contractors rely on Locinox for:

• Precision-engineered gate hardware
• Weather-resistant materials built for outdoor environments
• Hydraulic technology for smooth closing performance
• Reliable long-term durability
• Installer-friendly mounting systems

The Tiger closer reflects Locinox’s commitment to performance, reliability, and professional installation efficiency.

Installer Friendly Design

The Tiger system is engineered to reduce installation time while ensuring accurate alignment and reliable operation.

Key installer benefits include:

• Quick-Fix bolt system speeds up mounting
• Integrated hinge and closer design reduces hardware complexity
• Vertical adjustability (¾") for precise gate alignment
• Wide installation gap tolerance (7/16" – 1")
• Compatible with standard square gate frames

This allows contractors to complete installations quickly, accurately, and with fewer adjustments.

Hardware Comparison

Feature	Locinox Tiger Bundle	Standard Gate Hardware
Automatic Self-Closing	✔ Hydraulic controlled closing	✖ Often requires separate closer
Temperature Stability	✔ Consistent hydraulic performance	✖ Closing speed changes with weather
Installation Speed	✔ Quick-Fix mounting system	✖ Multi-component installation
Gate Opening Range	✔ 180° opening	✖ Often limited opening angle
Adjustability	✔ Closing speed + final snap adjustment	✖ Limited adjustment
Professional Durability	✔ Commercial-grade components	✖ Basic residential hardware

Complete Self-Closing Gate Solution

The Locinox Tiger Residential Gate Closer & Lock Kit provides contractors and installers with a complete, reliable self-closing gate solution in one bundle.

With hydraulic closing control, durable exterior construction, and fast installation hardware, this kit simplifies residential gate installations while delivering the smooth, consistent performance professionals expect from Locinox hardware.

A practical choice for installers who want dependable self-closing performance without complicated installation or additional components.

Locinox Tiger - Compact 180° Hydraulic Gate Closer and Hinge Specs:

Surface Mounted US Mortise Cylinder Gate Lock (USA) Specs:

Adjustable Stainless Steel Keep for Gates Specs:

Installation:
