Controlled Closing, Secure Access, and Professional-Grade Performance

The Locinox TIGER Residential Electrified Gate Hardware Bundle delivers a complete access-ready solution for residential and light-duty commercial gates. Combining a hydraulic self-closing hinge, keyed surface-mounted lock, electrified strike, and push bar exit, this kit provides smooth controlled closing, reliable security, and seamless integration with access control systems.

Designed for contractors, installers, and property managers, this bundle simplifies installation while delivering long-term durability, consistent closing performance, and professional-grade security.

---

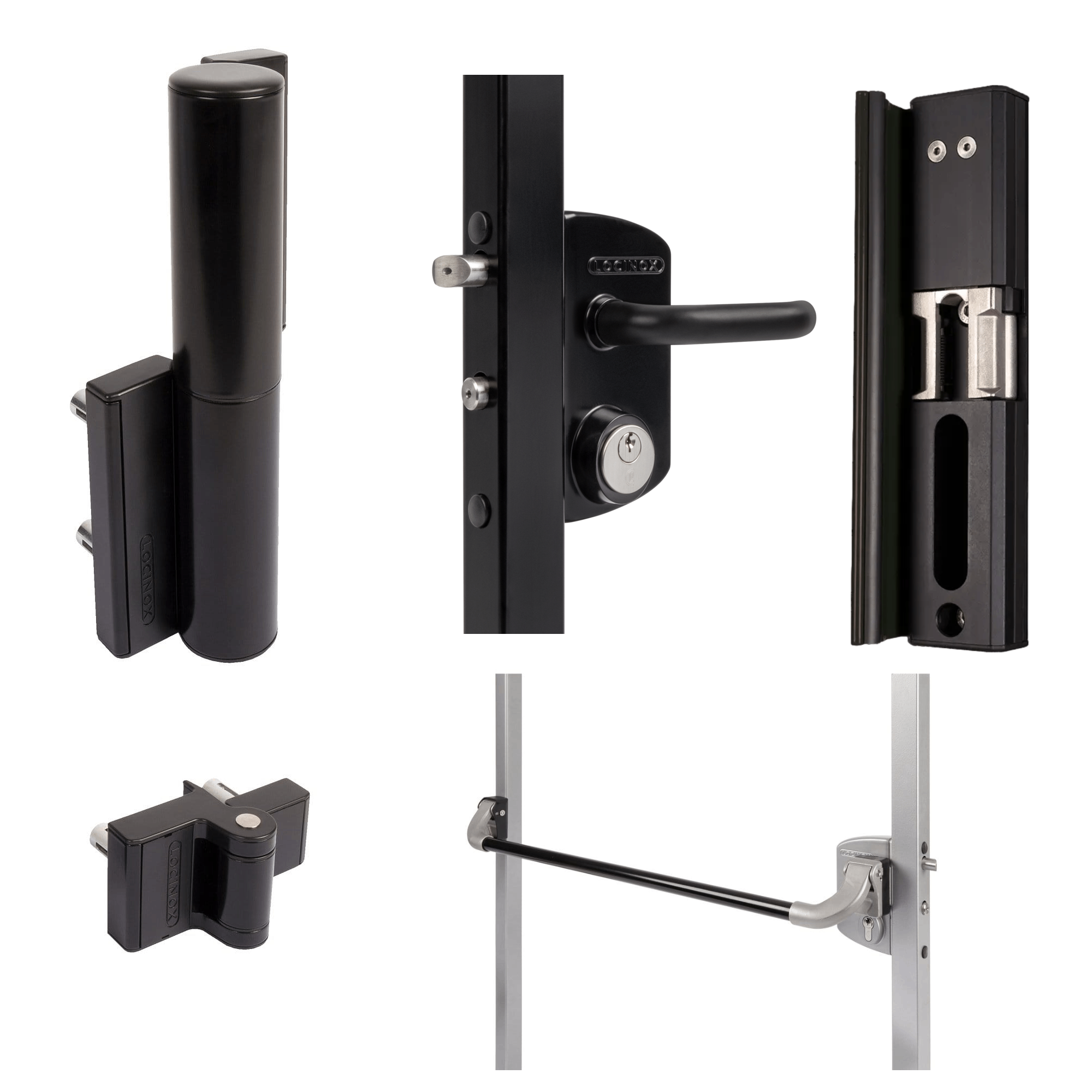

What's Included in the Kit

This complete hardware bundle includes all major components required for a controlled self-closing gate with electrified access control:

Save 15% when Purchasing the Bundle

• (1) Locinox TIGER Compact 180° Hydraulic Gate Closer & Hinge

• (1) Locinox Surface Mounted Gate Lock (US Mortise Cylinder)

• (1) Locinox MODULEC-SA Surface Mounted Electric Strike (Fail Close)

• (1) Locinox Aluminum Push Bar for Surface Mounted Locks

All components feature black commercial-grade finishes designed to match and perform together in exterior environments.

---

Gate Compatibility Summary

This kit is engineered for residential and light-duty metal gate installations.

Gate Requirements

• Maximum Gate Weight: 165 lbs

• Maximum Gate Width: 3.5 ft

• Gate Frame Type: Square frame gates

• Compatible Gate Profiles: 2" – 2-3/8"

• Installation Gap: 7/16" – 1"

Ideal for new installations requiring controlled closing and electrified access control integration.

---

Component Details

---

Locinox TIGER – Compact 180° Hydraulic Gate Closer & Hinge

A compact hydraulic self-closing hinge designed to provide smooth, consistent gate closing regardless of weather conditions. The TIGER combines hinge and closer functionality in a single durable unit, reducing hardware complexity while improving reliability.

Key Benefits

• Adjustable closing speed and final snap

• Hydraulic damping for smooth, controlled closing

• Compact design with high-performance internal components

• Reliable operation in all weather conditions

Features

• 180° self-closing hinge with patented hydraulic technology

• Powder coated aluminum housing for exterior durability

• Consistent closing speed regardless of temperature

• Vandal-resistant construction

• Compatible with left or right turning gates

• Includes Puma hinge

Specifications

• Maximum Gate Weight: 165 lbs

• Maximum Gate Width: 3.5 ft

• Finish: Black

• Housing: Powder-coated aluminum

Installation Notes

• Fast installation with Quick-Fix bolts

• Installation gap: 7/16" – 1"

• Vertical adjustability: 3/4"

• Adjustable closing force

• ADA compliant (< 5 lbs opening force) for gates 3 ft wide or larger

• Installation Guide

• Catalog Page

---

Locinox Surface Mounted Gate Lock (US Mortise Cylinder)

A commercial-grade keyed locking system designed specifically for metal gates. This surface-mounted lock delivers strong security with easy installation and reliable operation in residential and light commercial environments.

Key Benefits

• Secure double cylinder deadbolt system

• Self-latching daybolt for automatic gate latching

• Adjustable bolt alignment for perfect installation

Features

• Double cylinder deadbolt

• Key-operated self-latching daybolt

• Continuous bolt adjustment up to 3/8"

• Easy left or right gate configuration

• Four-hole mounting system with hex socket screws

• Compatible with all Locinox surface-mounted lock systems

• Keyed alike cylinders

Specifications

• Finish: Black

• Compatible Gate Profiles: 2" – 2-3/8" square

• Cylinder Type: 1-1/8" mortise cylinder

• Deadbolt Throw: 7/8" (single key turn)

Installation Notes

• Requires 3-3/8" spacing to first picket

• Fits most standard residential and commercial metal gate designs

• Installation Guide

---

Locinox MODULEC-SA Surface Mounted Electric Strike (Fail Close)

The MODULEC-SA electrified strike enables controlled entry through access control systems while maintaining strong mechanical security. The fail-close design ensures the gate remains locked during power outages.

Key Benefits

• Fail-secure operation for reliable security

• High holding force for access-controlled gates

• Compatible with most gate access control systems

Features

• Fail Close (Fail Secure) functionality

• Corrosion-resistant black anodized aluminum housing

• Tested for 500,000 movement cycles

• Compatible with 12V and 24V AC/DC power

• Same drilling pattern as SA, SH, and SM keeps

• Adjustable profile compatibility

Specifications

• Model: MODULEC-SA

• Holding Force: 660 lbs

• Voltage: 12V–24V AC/DC

• Power: 15W

• Consumption:

  • 12V – 1.25A

  • 24V – 0.62A

• Profile Range: 1-1/2" – 2-1/2"

Installation Notes

• Quick and secure installation with Quick-Fix bolts

• Installation Guide

---

Locinox Push Bar for Surface Mounted Gate Locks

The aluminum push bar exit device allows users to open the gate from the inside with a simple push, enabling free egress without unlocking the gate manually.

Key Benefits

• Simple push-to-exit operation

• Fast installation on new or existing Locinox locks

• Customizable length for different gate sizes

Features

• Powder-coated aluminum push bar

• Stainless steel internal mechanism

• Compatible with Locinox LA, LP, and LF lock chassis

• Can be shortened to fit gate width

• Works with left or right turning gates

Specifications

• Material: Aluminum

• Finish: Black

• Length: 55-1/8"

• Maximum Gate Width: 5 ft

• Includes blinded 5/16" follower

Installation Notes

• Installs easily with Quick-Fix mounting

• Installation Guide

---

Ideal Applications

This bundle is designed for residential and light-duty gate installations requiring controlled closing and secure access.

Common applications include:

• Residential garden gates

• Side yard security gates

• Pool access gates

• HOA community gates

• Apartment building access gates

• Light commercial property entrances

---

Why Professionals Choose Locinox

Contractors and installers rely on Locinox gate hardware because it is engineered specifically for metal gate applications.

Key advantages include:

• Commercial-grade durability

• Weather-resistant materials

• Hydraulic closing technology

• Reliable access control compatibility

• Consistent performance in outdoor environments

Locinox products are designed to reduce callbacks, simplify installations, and deliver long-term reliability.

---

Installer Friendly Design

This bundle is built to simplify installation and reduce adjustment time in the field.

Installer-focused features include:

• Quick-Fix bolt mounting system

• Adjustable hinges and strike alignment

• Universal left/right gate configuration

• Consistent drilling patterns across components

• Pre-matched components designed to work together

The result is faster installs and predictable performance for professional gate installers.

---

Bundle vs Standard Gate Hardware

Feature	Locinox TIGER Electrified Bundle	Standard Gate Hardware
Self-Closing Technology	Hydraulic controlled closing	Spring hinge or gravity
Closing Consistency	Temperature-stable hydraulic damping	Inconsistent closing
Access Control Ready	Yes – electric strike included	Requires additional hardware
Security	Commercial double cylinder lock	Basic latch or padlock
Weather Resistance	Powder-coated aluminum components	Often mixed materials
ADA Compliance	Supported for appropriate gate sizes	Typically not compliant
Installation	Quick-Fix installer system	Standard bolt mounting

---

Complete Residential Gate Access Solution

The Locinox TIGER Residential Electrified Gate Closer & Lock Kit provides a complete, professional-grade solution for controlled and secure gate installations. By combining a hydraulic self-closing hinge, commercial locking system, electrified strike, and push bar exit, this bundle simplifies installation while delivering reliable long-term performance.

For contractors and facility managers, it offers a fully integrated gate hardware package designed for durability, security, and easy installation.
