Concealed Door Spring Hinges - 9-1/64 Inch - For Min Thick Door 1-3/4 Inch - Multiple Finishes Available - Sold Individually

Soss

$ 227.32
SKU: 218ICFRUS10BL

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Details

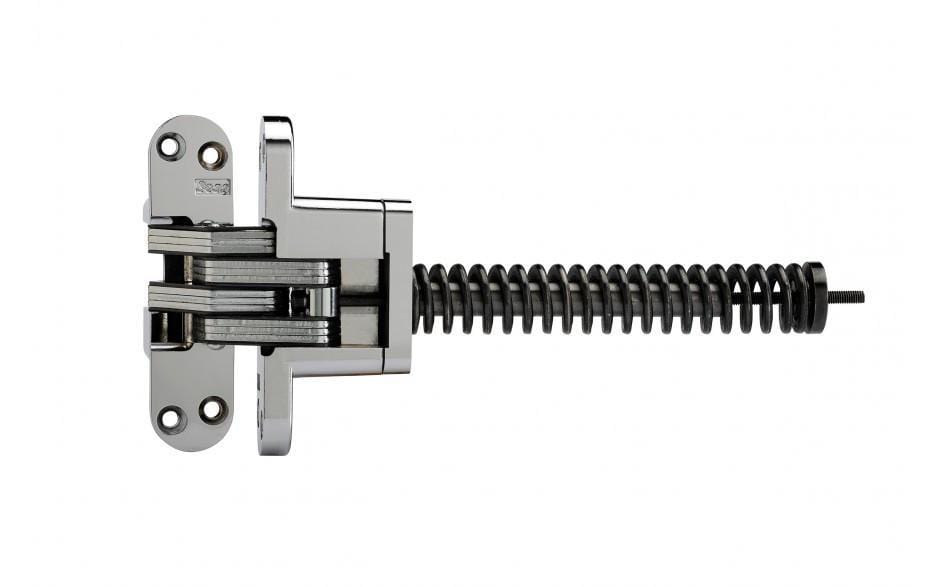

The SOSS® Invisible Spring Door Hinge model #218IC is ideally suited for most types of doors. It provides you a spring closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the spring closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.  Allow one spring closer for every 75 lbs of door weight.

Sold as Each(1 Individual Hinge)      Click to see Official Soss Hinges Video
How to install Concealed Hinges

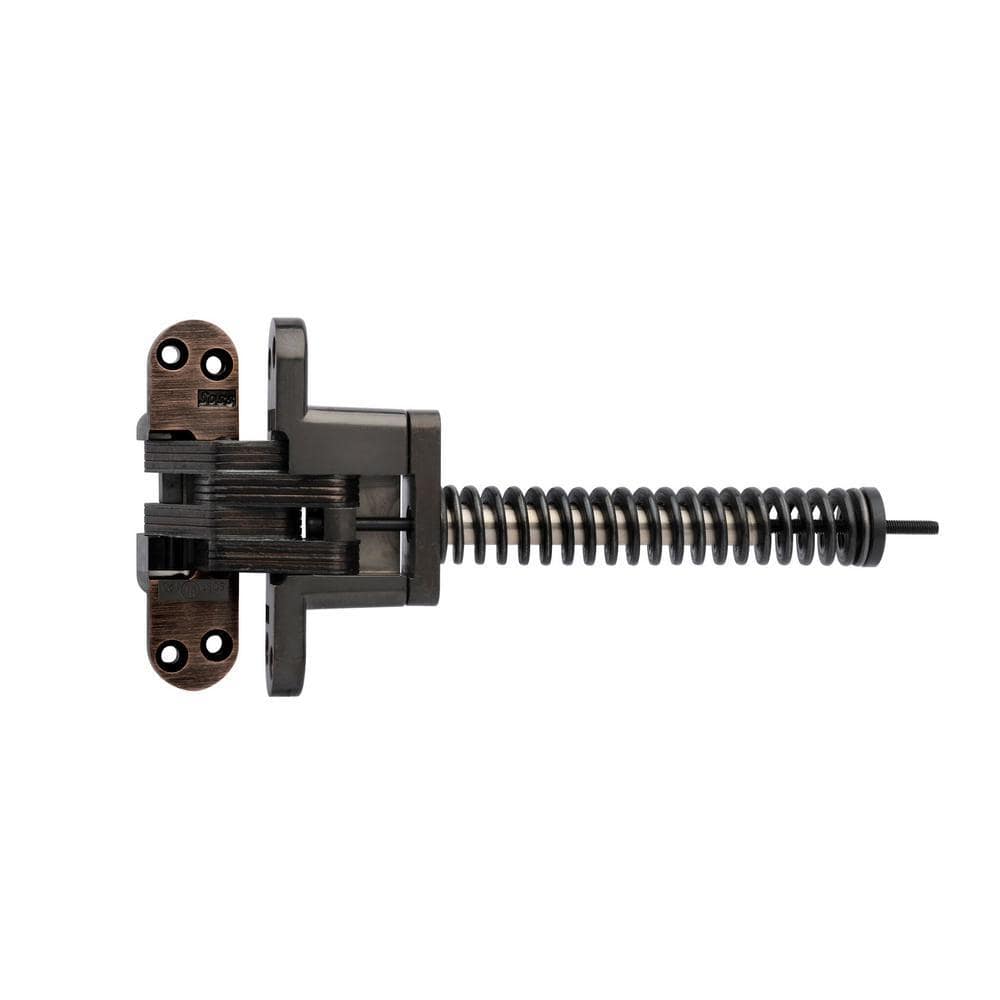

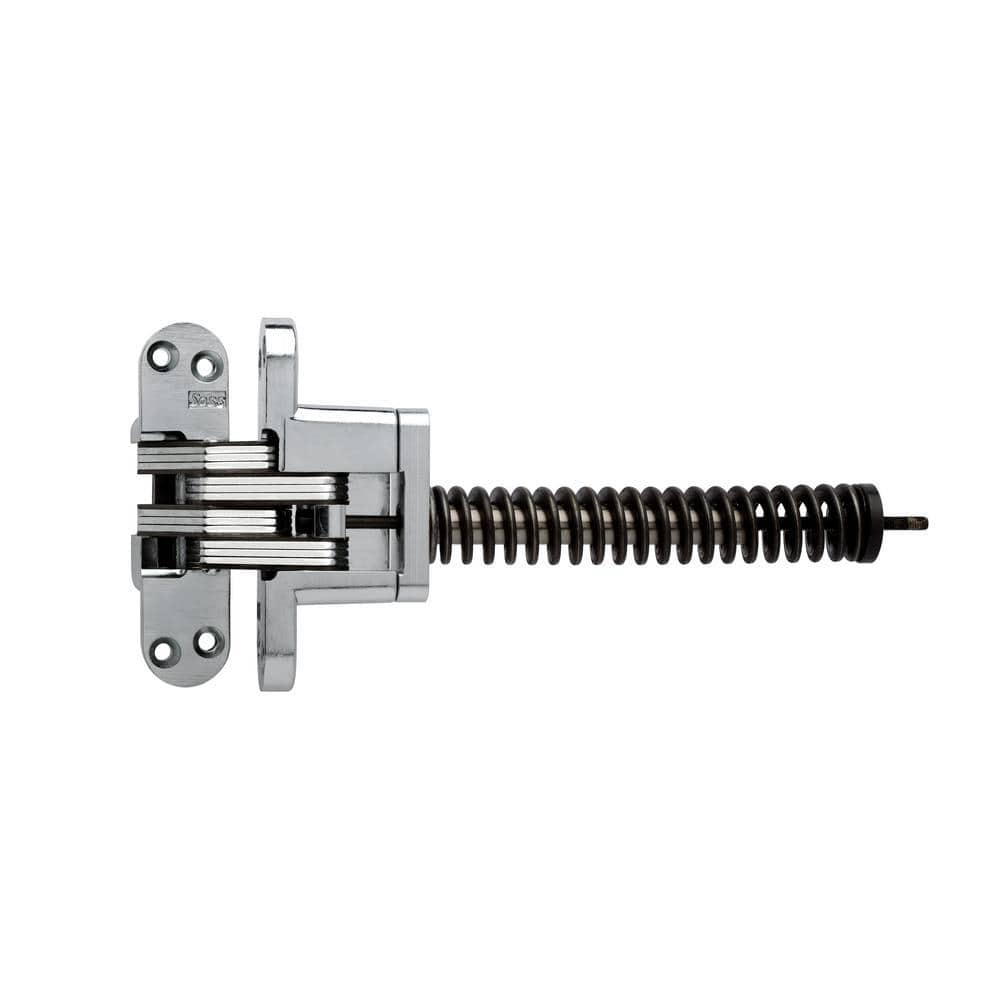

Available Finishes: Oil Rubbed Bronze, Satin Chrome

Additional Information

Application Full Sized Entry, Metal, Wood
Min. Material Thickness 1-3/4"
Fire Rating No
Power Transfer No
Spring Closer Yes
Counter Bored Screw Holes No
Screws Included Wood

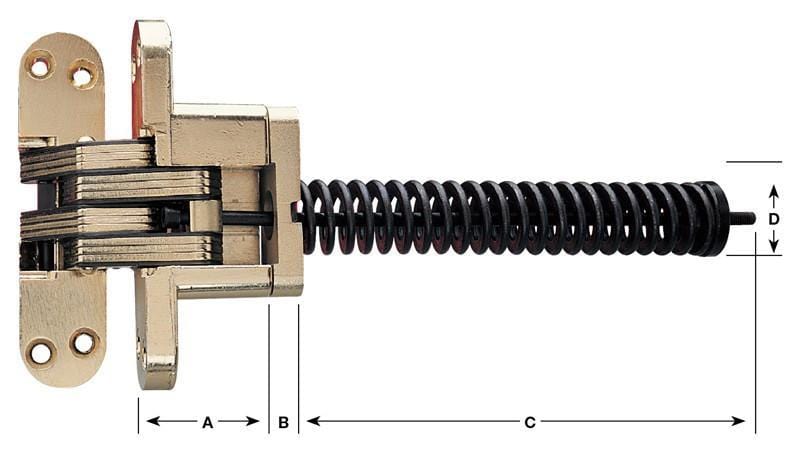

Dimensions

Door Thickness 1-3/4"
Spring Closer # 218IC
A 1-41/64"
B 3/8"
C 7"
D 1"
