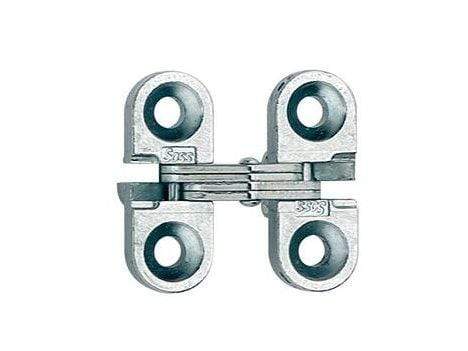

Concealed Cabinet Hinges - Model 100

Soss

$ 42.38
SKU: 100Gold

Share:

Concealed Hinge Details

Our High Quality SOSS® Concealed Cabinet Hinge model #100 is for use in wood or metal applications.  These hinges are used where compact size, smooth operation, and flush fit are necessary  SOSS® Concealed Hinges open a full 180° and are a single action hinge.

Sold as Each (1 Individual Hinge)       Click to see Official Soss Hinges Video

Available Finishes:

24 Karat Gold
Soss Gold Finish
Satin Brass
Soss Satin Brass Finish
Satin Chrome

Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 1/2"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood
Packaging No
Packages Per Container No
Price Per No

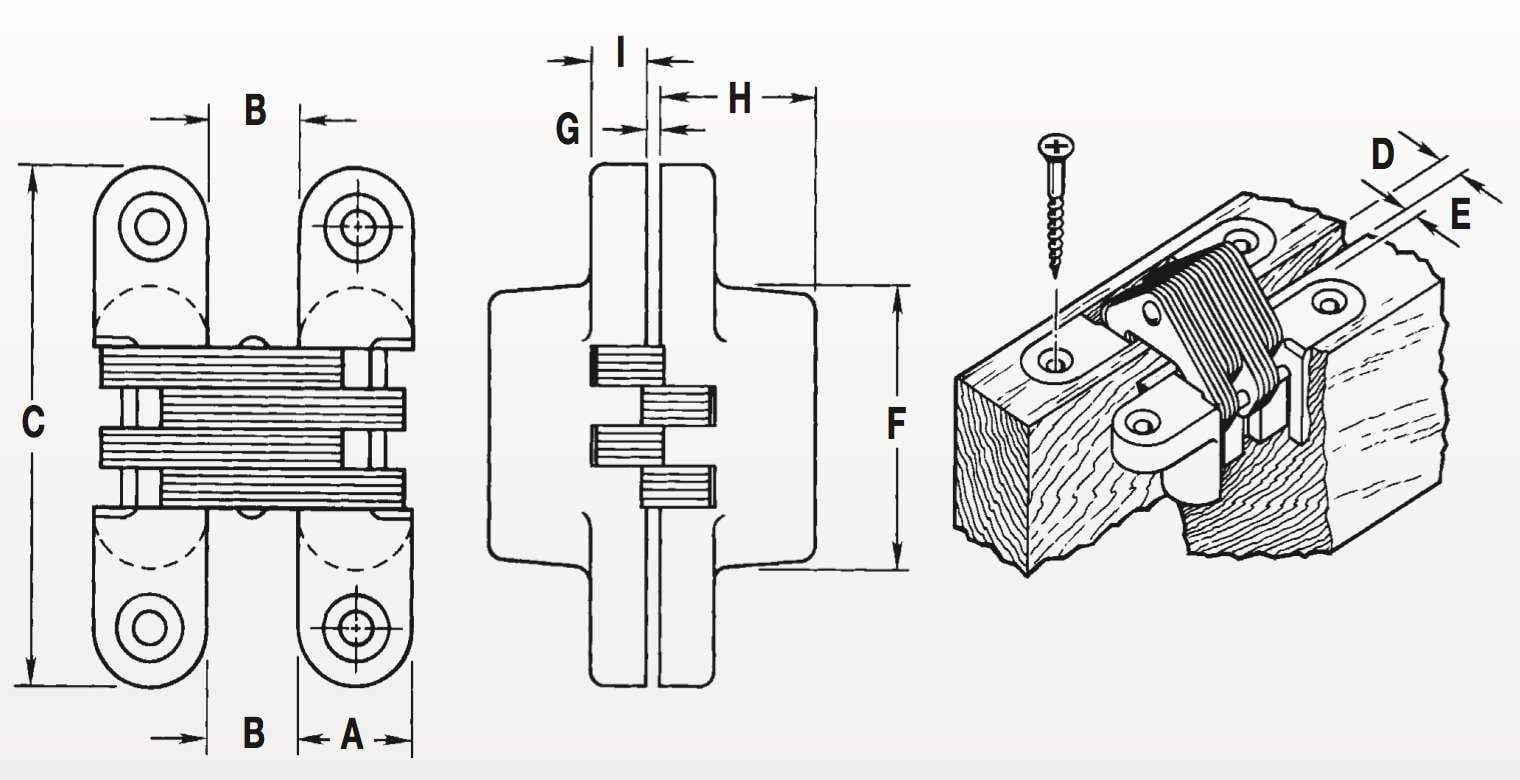

Dimensions

A 3/8” (9.53mm)
B 9/32" (7.14mm)
C 1" (25.40mm)
D 3/32" (2.38mm)
E 3/32" (2.38mm)
F 3/8" (9.53mm)
G 1/32" (0.79mm)
H 15/32" (11.91mm)
I 15/64" (5.96mm)
Min. Matl. Thickness 1/2" (12.70mm)
Wood Screw Sizes #5x3/4" (3.5x19mm)
Soft Wood Pilot Hole No. 53
Hard Wood Pilot Hole No. 47
Machine Screw Sizes #4-40x1/2"
Hinge Weight .04 lb.
