Continuous Piano Hinges
Save $7.74
Sold out
Sold out
Sold out
Sold out
Continuous piano hinges are long, narrow hinges that run the full height of a door, lid, or panel, distributing load evenly and supporting smoother movement. Originally used on piano lids, these hinges are now installed on cabinets, fold-down benches, tool chests, and doors where continuous support matters. Unlike standard butt hinges that support a door at two or three fixed points, a continuous hinge spans the full length of the panel, reducing stress concentration and keeping doors and lids properly aligned over time — even under heavy or frequent use. Most piano hinges can be cut to a custom length using a hacksaw or metal cutoff wheel, making them adaptable to a wide range of project sizes.
Subcategories

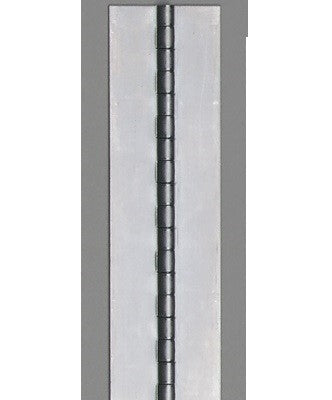

- Series 400: Standard-duty steel continuous piano hinges designed for general-purpose doors, cabinets, and utility applications.
- Series 1000: Lightweight aluminum hinges offering corrosion resistance for cabinets, furniture, and light-duty projects.

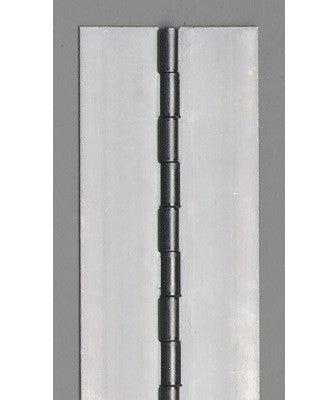

- Series 1100: Stainless steel hinges suited for environments where moisture resistance and durability are required.

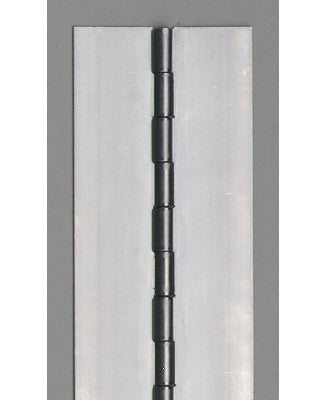

- Series 1150: Heavy-duty stainless steel hinges designed for higher load capacity and frequent use.

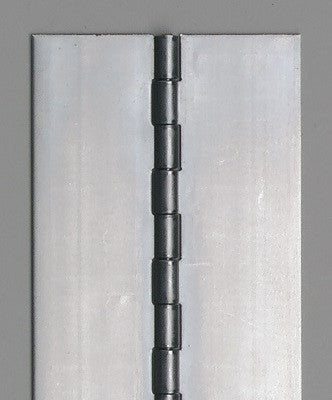

- Series 1200: Extra-heavy-duty hinges engineered for demanding applications requiring maximum strength and stability.
- Series 1300: Specialty continuous hinges built for high-cycle or industrial applications with increased performance requirements.
Series Comparison by Application
| Series | Material | Duty Level | Best For |
|---|---|---|---|
| 400 | Steel | Standard | Cabinets, utility doors, general interior use |
| 1000 | Aluminum | Light | Furniture, lightweight panels, corrosion-prone environments |
| 1100 | Stainless Steel | Moderate | Moisture-prone areas, marine, food service |
| 1150 | Stainless Steel | Heavy | High-frequency doors, benches, commercial applications |
| 1200 | Steel / SS | Extra Heavy | Industrial enclosures, demanding load applications |
| 1300 | Specialty | Industrial | High-cycle, heavy industrial, performance-critical applications |
Piano Hinge vs. Standard Butt Hinge
| Feature | Piano / Continuous Hinge | Standard Butt Hinge |
|---|---|---|
| Support points | Full length of panel | 2–3 fixed points |
| Best for | Heavy doors, lids, high-cycle use | Standard interior/exterior doors |
| Sag resistance | High | Moderate |
| Customizable length | Yes — cut to fit | No |
| Installation | Surface mount or weld-on | Mortised or surface mount |
| Common materials | Steel, aluminum, stainless steel | Steel, brass, stainless steel |
Buying Guide
- Material & Environment: Choose aluminum for lightweight, corrosion resistance; stainless steel for moisture-prone or high-use areas; and steel for general strength and economy. For marine or outdoor use, see our stainless steel hinges.
- Length & Coverage: Match the hinge length to the full height of the door, lid, or panel for even load distribution and to prevent sagging or misalignment. Piano hinges are easily cut to a shorter length when a custom size is needed.
- Load & Usage: Continuous piano hinges are well-suited for frequent use and heavy loads because they support the entire length of the opening rather than just at discrete hinge points.
- Duty Level & Series Selection: Continuous piano hinges are grouped by series to reflect material thickness, load capacity, and intended use. Lighter-duty series work well for cabinets and furniture hinges, while heavier-duty series are designed for doors, benches, and high-use or industrial applications.
- Mounting Style: Confirm whether you want surface-mount models with pre-drilled holes or non-drilled versions for welding or custom installations. For weld-on applications, also see our weld-on hinges.
- Finish & Aesthetics: Select a finish that complements your project and resists wear. Use shiny metals for decorative furniture pieces, or utilitarian finishes for industrial or cabinetry applications.
Further Reading
- What is a Piano Hinge?
- 6 Facts About Continuous Piano Hinges
- How to Use Continuous Piano Hinges
- What Are the Benefits of Using Continuous Piano Hinges?
- 7 Specialty Hinges and Their Uses
For more information about our continuous piano hinges, feel free to contact our expert team.
FAQs
Piano hinges distribute weight along the full length of the door or lid, reducing stress, improving alignment, and helping prevent sag over time.
Yes, continuous piano hinges are suitable for outdoor use as long as the hinge material is appropriate for the environment. Stainless steel or corrosion-resistant finishes are recommended for outdoor or high-moisture applications.
Most steel and aluminum piano hinges can be cut to a custom length using a hacksaw, angle grinder, or metal cutoff wheel. For the cleanest result, measure and mark your cut line with a marker, then clamp the hinge securely before cutting. Always cut from the end of the hinge rather than the middle, and file or deburr the cut edge afterward to remove any sharp burrs before installation. Stainless steel hinges (Series 1100 and 1150) are harder than standard steel and may require a carbide-tipped blade or grinding wheel. Pre-drilled hinges should be cut so that the outermost hole remains at least ½ inch from the cut end to maintain structural integrity.
Continuous piano hinges are used in any application where a standard two or three-point hinge would create excessive stress, sagging, or misalignment over time. Common applications include tool chests and workbenches, equipment enclosures and electrical panels, fold-down tables and Murphy beds, marine hatches and boat compartments, truck and trailer doors, lockers, and cabinetry requiring full-length support. Lighter-duty aluminum and steel series (400 and 1000) are well suited for furniture and cabinet projects, while heavy-duty stainless steel series (1150, 1200, 1300) are designed for commercial doors, industrial enclosures, and high-cycle applications.
