SKU: SS-1001-6-SS

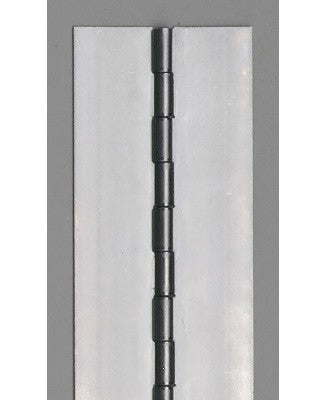

Stainless Steel Continuous Piano Hinges - Series 1000 - Multiple Lengths and Widths Available - Sold Individually

Material
Length
Width

Note: Due to Production Delays and Supply Chain Issues, please allow 2-3 Weeks for Delivery.

Continuous hinges, commonly known as “piano hinges,” are hinges that are at least five inches long. They are strong throughout entire length because each knuckle is a load bearing point and are easier and more precise to align than two or more butt hinges. These Stainless Steel Continuous Piano Hinges are available in 6' feet and 8' feet lengths and are available in 1-1/16" Inch, 1-1/4" Inch, 1-1/2" Inch, and 2" Inch widths.

Product Specifications:

  • Stainless Steel Continuous Piano Hinges
  • Series 1000
  • Lengths Available: 6' feet, 8' feet
  • Open Widths Available:
    • 1-1/16" Inch (26.99mm)
    • 1-1/4" Inch (31.75mm)
    • 1-1/2" Inch (38.10mm)
    • 2" Inch (50.80mm)
  • Thickness: 0.040" Inch (1.02mm)
  • Pin Diameter: 0.091" Inch (2.31mm)
  • Knuckle Length: 1/2" Inch (12.70mm)
  • Assembled with pins and leaves of the same metal
  • Leaves are equal width
  • Lay flat in the same plane in an open position and having 270° degrees of travel
  • Standard without holes
  • Attach them to your applications with spot welding, tack welding, or drilling holes at assembly
  • Strong throughout entire length because each knuckle is a load bearing point
  • Strengthen and increase product rigidity by supporting the full length of applications
  • Easier and more precise to align than two or more butt hinges
  • Attractive and uniform in appearance
  • Smooth in pivotal action, providing optimal axial rotation
  • Low-cost and economical, lasting through many swing cycles
  • Drawing
  • Sold individually
