Sugatsune Router Template Set for Concealed Hinges - SUG-HES3D-120 - 2 Pack

Templaco

$ 119.48
SKU: SUG-120-IT

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

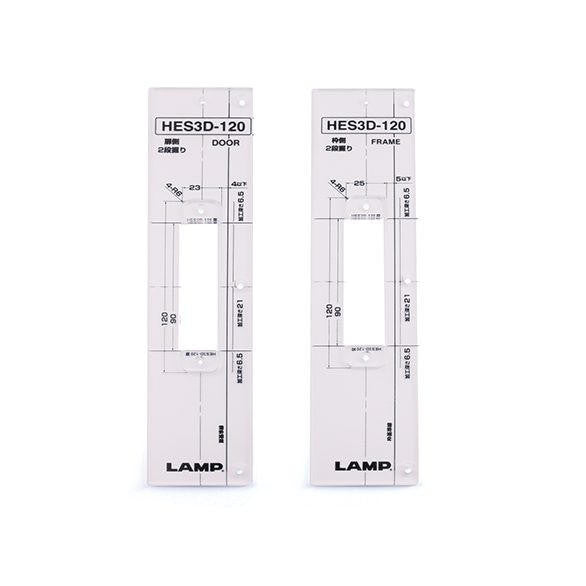

This Sugatsune Router Template Set is to be used with the Sugatsune Three-Way Adjustable Concealed Hinges. The set includes one pair for door & jamb hinge application. Door leaf finish size is: 23 mm x 120 mm. Jamb leaf dimension is 25 mm x 120 mm with an ABS plastic overlay to allow for the use on rabbited jambs or where the door stop has already been applied. Template also produces the deep mortise of 90 mm long (between the red tabs shown in the picture) on both templates.

Product Specifications:

  • Sugatsune Router Template Set for Concealed Hinges
  • Used with Sugatsune Three-Way Adjustable Concealed Hinges (SUG-HES3D-120)
  • Door Leaf Finish Size: 23 mm x 120 mm
  • Jamb Leaf Dimension: 25 mm x 120 mm, with an ABS plastic overlay to allow for the use on rabbited jambs or where the door stop has already been applied
  • Template produces deep mortise of 90 mm long between red tabs
  • When using a standard 1/2” mortising bit to produce your mortise, there will be a very small amount of hand work required on the mortise corners because the hardware has a 6 mm (.236”) radius and the 1/2” cutter produces a .250” radius in the corner of the mortise pocket
  • 2 Pack - one pair for door and jamb hinge application
