Three-Way Adjustable Concealed Hinge - Multiple Finishes Available - Sold Individually

Sugatsune

$ 69.95
SKU: SUG-HES3D-120DC

888-250-8133
  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

 Product Specifications:

  • 3-Way Adjustable Concealed Hinge
  • Materials: Zinc Alloy, 304 Stainless Steel, ABS
  • Finishes Available: Dull Chrome, Dull Nickel, Black
  • Consists of 2 piece assembly

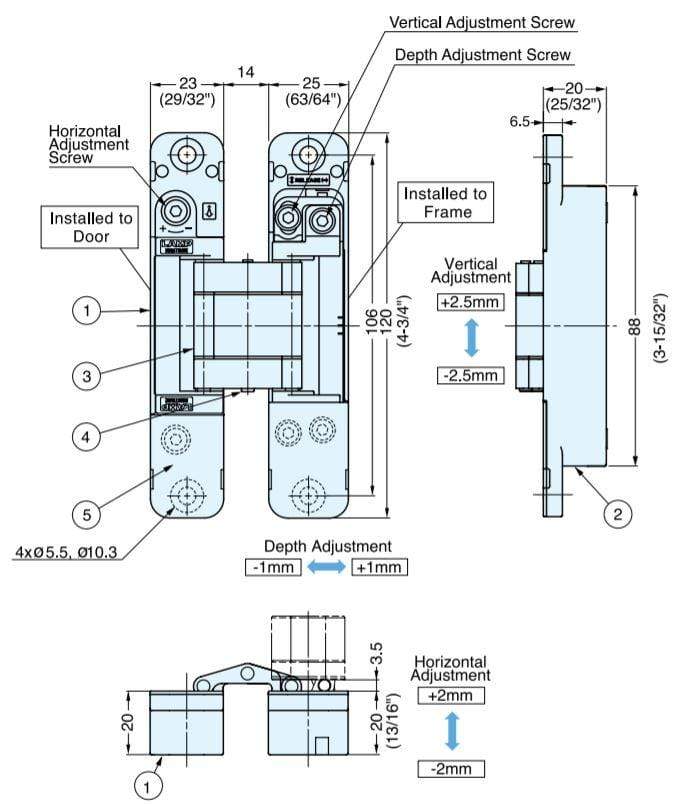

  • 3-Way adjustment function allows vertical, horizontal and depth adjustment after installation
  • Easy installation and adjustment
  • Successfully passed 300,000 open/close private cycle tests
  • Covers hide screw heads for clean appearance
  • Maximum Door Weight: 66 lbs (30 kg) per 2 pcs, 88 lbs (40 kg) per 3 pcs
  • Minimum Door Thickness: 1-1/8" Inch (29 mm)
  • Maximum Door Size: H 94-1/2" Inches × W 35-7/16" Inches (2400 mm x 900 mm)
  • Steel flat head screws included
  • Installation Manual
  • Sold Individually

Don't forget to order a Router Template for this hinge to make sure it is routed perfectly for installation.

Router Template for SUG-HES3D-120
