Overlay Cabinet Pocket Door System - Soft Close - Up to 3/8" Inch Overlay - Maximum Door Weight 44 lbs - Multiple Sizes Available - Nickel Finish - Sold Individually

Overlay Cabinet Pocket Door System – Soft Close, Adjustable, Up to 44 lb Capacity

Create seamless, space-saving cabinetry with this Overlay Cabinet Pocket Door System with Soft Close, engineered for smooth operation, door stability, and long-term durability.

Designed for overlay applications up to 3/8" (10mm), this system allows cabinet doors to slide inward and fully recess into the cabinet — maximizing access while maintaining a clean exterior appearance.

Ideal for kitchens, entertainment centers, storage cabinetry, and custom built-ins.

Why Choose This Pocket Door System?

• Smooth soft-close operation prevents slamming
• Adjustable door alignment helps eliminate sag
• Multiple slide lengths available (16", 19", 22", 24", 28")
• Supports doors up to 44 lbs
• Durable zinc alloy construction
• Passed 40,000 open/close cycles

The adjustable hanging system allows fine-tuning during installation and long-term correction if settling occurs. Doors can be lifted into five positions for proper alignment.

Designed for Real-World Cabinet Applications

This overlay cabinet pocket door system is built for doors:

• Maximum width: 24"

• Door thickness: 11/16" – 13/16" (18–20mm)

• Overlay: Up to 3/8" (10mm)

Available configurations:

• 19.8 lbs: 31-1/2" – 47-1/4" height (2 slides)

• 33 lbs: 47-1/4" – 63" height (3 slides)

• 44 lbs: 63" – 94-1/2" height (4 slides)

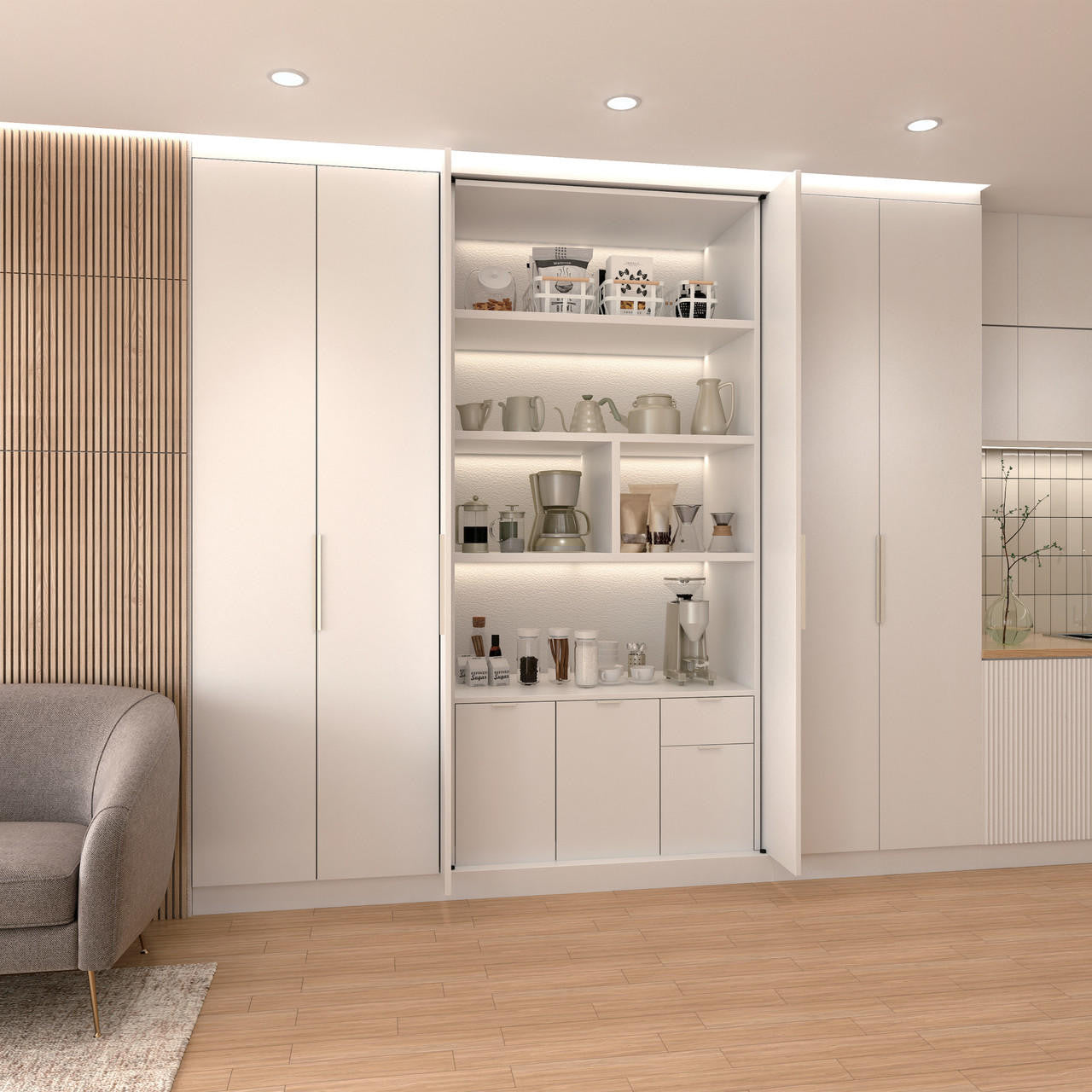

The sliding mechanism allows doors to retract smoothly into cabinets, occupying minimal space while providing full access.

What’s Included

• Overlay Pocket Door System

• Damper unit with adjustment screw

• Fasteners

• Installation Guide

• Parts Set

Note: Damper hinges can be replaced with hinges featuring catch function.

Product Specifications

General Information

• Overlay Cabinet Pocket Door System

• Soft Close

• Material: Zinc Alloy

• Finish: Nickel

• NSF Compliant: No

• Sold as: Set

• Includes: Fasteners

• Installation Guide Included

• Parts Set Details Included

Door Compatibility

• Maximum Door Width: 24" Inch

• Overlay: Up to 3/8" Inch (10mm)

• Door Thickness: 11/16" Inch - 13/16" Inch (18 - 20 mm)

Maximum Door Sizes Available

19.8 lbs (Weight)

• Height: 31-1/2" Inch - 47-1/4" Inch

• 2 slides

33 lbs (Weight)

• Height: 47-1/4" Inch - 63" Inch

• 3 slides

44 lbs (Weight)

• Height: 63" Inch - 78-3/4" Inch

• 4 slides

44 lbs (Weight)

• Height: 78-3/4" Inch - 94-1/2" Inch

• 4 slides

Slide Lengths Available

• 16" Inch

• 19" Inch

• 22" Inch

• 24" Inch

• 28" Inch

System Features

• Overlay Pocket Door System with door alignment adjustability

• Overlay damper unit with adjustment screw (included with package)

• The damper hinges can be replaced with hinges with catch function

• The hanging angle of the door can be easily adjusted to counteract and prevent door sag. When installing, the door can be lifted upward into 5 positions.

• The sliding system allows doors to recede inside cabinets. Doors will occupy minimal amount of space, providing full access to cabinet interior.

• Durability: successfully passed 40,000 open/close private cycles

Important Lead Time Notice

Due to manufacturer availability, please allow 4–6 weeks for delivery.
