Overlay Cabinet Pocket Door System - Soft Close - Up to 3/8" Inch Overlay - Maximum Door Weight 33 lbs - Multiple Sizes Available - Nickel Finish - Sold Individually

This Overlay Cabinet Pocket Door System features door alignment adjustability. The sets are available with 16", 19", 22", 24", or 28" slide lengths, with multiple door sizes.

Product Specifications:

• Overlay Cabinet Pocket Door System
• Soft Close
• Maximum Door Width: 24" Inch
• Overlay: Up to 3/8" Inch (10mm)
• Door Thickness: 11/16" Inch - 13/16" Inch (18 - 20 mm)
• Maximum Door Sizes Available:
  • 19.8 lbs (Weight) x 19-11/16" Inch - 27-9/16" Inch (Height)
    • 2 slides
  • 19.8 lbs (Weight) x 27-9/16" Inch - 35-7/16" Inch (Height)
    • 2 slides
  • 33 lbs (Weight) x 35-7/16" Inch - 47-1/4" Inch (Height)
    • 4 slides
  • 33 lbs (Weight) x 47-1/4" Inch - 63" Inch (Height)
    • 4 slides
• Slide Lengths Available: 16" Inch, 19" Inch, 22" Inch, 24" Inch, 28" Inch
• Material: Zinc Alloy
• Finish: Nickel
• Overlay Pocket Door System with door alignment adjustability
• Overlay damper unit with adjustment screw (included with package)
• The damper hinges can be replaced with hinges with catch function (included with package)
• The hanging angle of the door can be easily adjusted to counteract and prevent door sag. When installing, the door can be lifted upward into 5 positions.

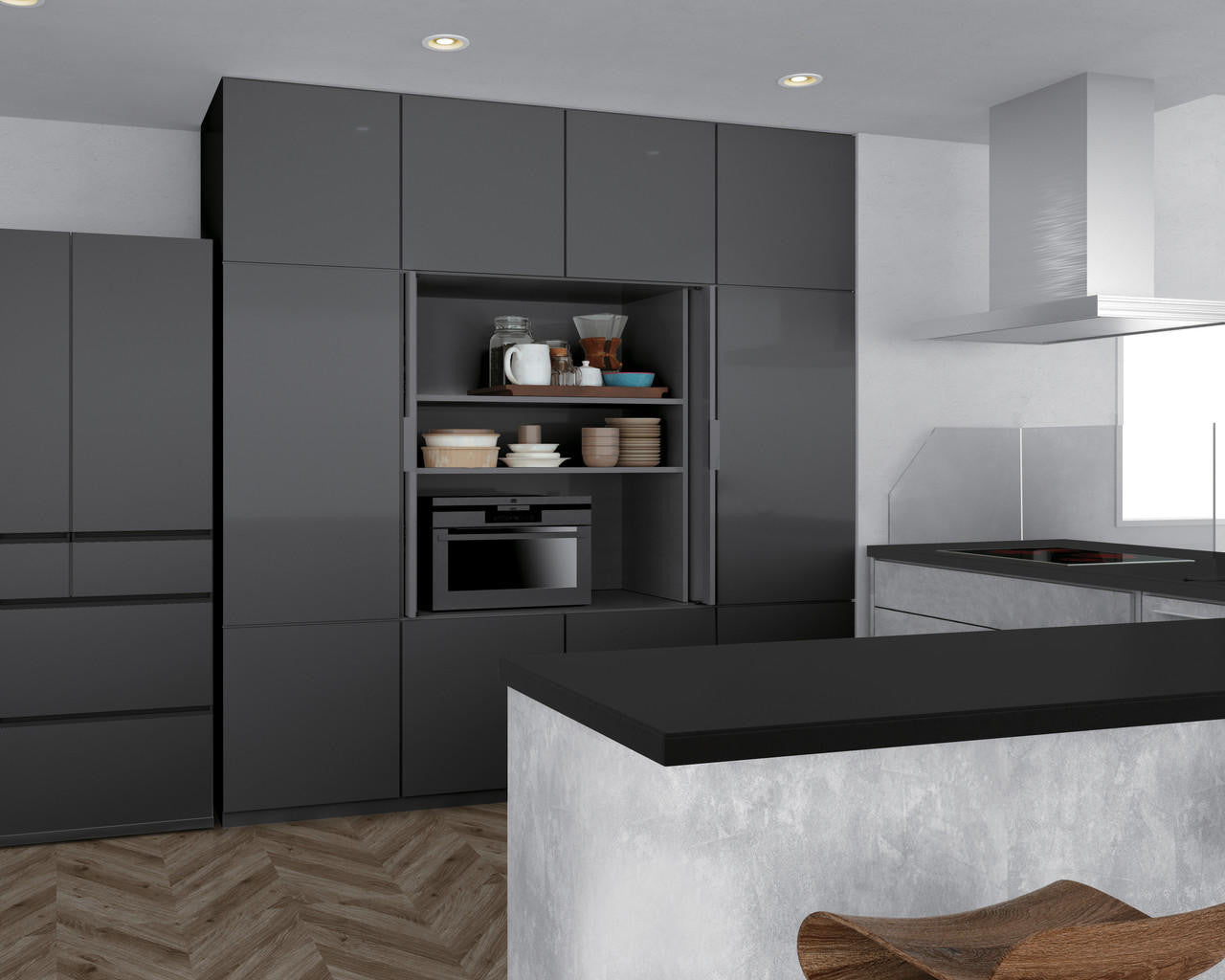

• The sliding system allows doors to recede inside cabinets. Doors will occupy minimal amount of space, providing full access to cabinet interior.
• Durability: successfully passed 40,000 open/close private cycles
• The fittings allow the door to retract further into the cabinet than the ALT-ST20-D10
• NSF Compliant: No
• CA Prop 65 Compliant: No
• Includes fasteners
• Sold as set
• Installation Guide
• Parts Set Details

3/8" Overlay Cabinet Pocket Door System Up to 44 lbs.	Inset Cabinet Pocket Door System Up to 33 lbs.	Inset Cabinet Pocket Door System Up to 44 lbs.
