Inset Cabinet Pocket Door System with Soft-Close
(Maximum Door Weight 44 lbs • Multiple Sizes Available • Nickel Finish • Sold as Set)

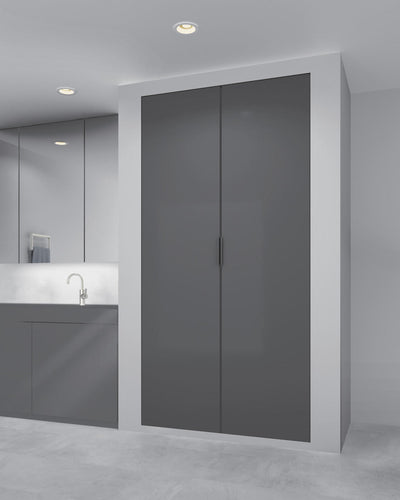

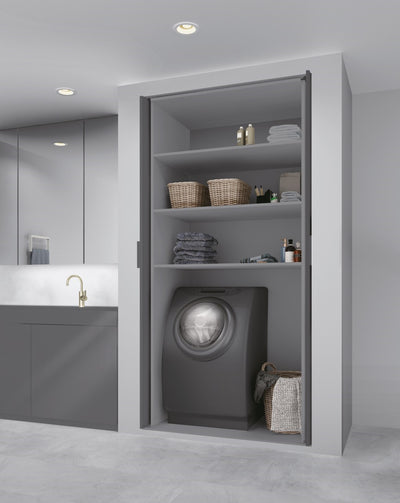

This Inset Cabinet Pocket Door System allows tall cabinet doors to slide smoothly into the cabinet interior, creating a clean, unobstructed opening while maintaining a refined, modern appearance.
The system features 5-speed adjustable soft-closing dampers and 5-stage angle adjustment, which work together to prevent door sagging and ensure long-term, smooth operation—even on tall doors.
Is This the Right Pocket Door System for Your Cabinet?
Use this checklist to confirm compatibility:
-
✔ Inset cabinet door applications
-
✔ Door width up to 24 inches
-
✔ Door thickness 11/16" to 1-3/16" (18–30 mm)
-
✔ Door height up to 94-1/2" (2400 mm) depending on configuration
-
✔ Door weight up to 44 lbs (20 kg)
-
✖ Not designed for face-frame cabinets without modification
If you’re unsure which configuration you need, contact our support team before ordering.
Key Features at a Glance
-
Soft-Close System: 5-speed adjustable dampers (uses 360 Olympia hinges)
-
Sag Prevention: 5-stage angle adjustment eliminates sagging doors
-
Structural Stability: L-shaped connecting plate minimizes racking
-
Smooth Operation: Designed for tall, pocketing cabinet doors
-
Durability Tested: Passed 40,000 open/close cycles
-
Finish: Nickel
-
Material: Zinc Alloy
-
Sold: As a complete set
-
Fasteners: Included
Product Overview
This inset cabinet pocket door system is engineered for high-end cabinetry where doors need to pocket fully away while maintaining stability, alignment, and a soft, controlled close.
The adjustable soft-close dampers gently pull doors closed at the end of travel, reducing noise and wear. Multiple adjustment points allow installers to fine-tune door positioning over time, preventing sag and maintaining consistent alignment—even on doors approaching 8 feet tall.
This system is ideal for kitchens, pantries, entertainment centers, closets, and custom cabinetry where clean design and full access are priorities.
Door Size & Slide Configuration Guide
Select the correct slide length and configuration based on door size and weight:
Maximum Door Configurations
-
19.8 lbs • Door height 31-1/2" – 47-1/4"
→ 2 slides -
33 lbs • Door height 47-1/4" – 63"
→ 3 slides -
44 lbs • Door height 63" – 78-3/4"
→ 4 slides -
44 lbs • Door height 78-3/4" – 94-1/2"
→ 4 slides
Slide Lengths Available
Choose from the following slide lengths to match your cabinet depth:
-
16"
-
19"
-
22"
-
24"
-
28"
Multiple door sizes and cabinet configurations are supported.
Detailed Product Specifications
-
System Type: Inset Cabinet Pocket Door System
-
Soft Close: Yes (5-speed adjustable dampers)
-
Maximum Door Width: 24"
-
Door Thickness: 11/16" – 1-3/16" (18–30 mm)
-
Maximum Door Height: 94-1/2" (2400 mm)
-
Maximum Door Weight: 44 lbs (20 kg)
-
Material: Zinc Alloy
-
Finish: Nickel
-
Adjustment:
-
5-stage angle adjustment
-
Vertical and alignment fine-tuning
-
-
Sag Prevention: L-shaped connecting plate
-
Durability: Tested to 40,000 cycles
-
NSF Compliant: No
-
Fasteners: Included
-
Sold As: Complete set
Installation Information
-
Designed for inset cabinet construction
-
Multiple slide configurations based on door height and weight
-
Installation guide included
Please review the Installation Guide and Parts Set Details prior to installation.
When to Choose This Pocket Door System
This system is ideal when:
-
Cabinet doors need to pocket fully away
-
Tall or heavy cabinet doors require sag control
-
A clean, minimalist cabinet design is desired
-
Quiet, controlled soft-close operation is important
Need Help Choosing the Right Configuration?
Pocket door systems are highly application-specific.
-
📞 Call or chat with a hardware specialist
-
📐 Get help confirming door size, weight, and slide length
-
🔁 Avoid ordering delays or returns by verifying compatibility
