Concealed Door Spring Hinges - Model 216IC

Soss

$ 175.12
SKU: 216ICFRUS5

Share:

Details

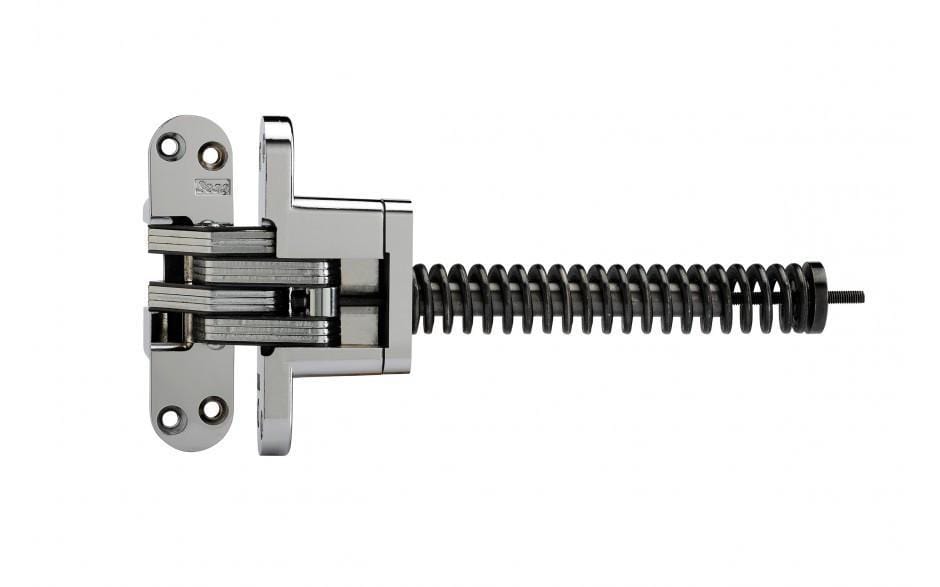

The SOSS® Invisible Spring Door Hinge model #216IC is ideally suited for most types of doors. It provides you a spring closer that is totally invisible from either side when the door is closed. The closure rate is completely adjustable with an allen wrench after installation, and does not require removal of the spring closer. Installation can be either inside the door itself or inside the door jamb. SOSS® Invisible Hinges open a full 180° and are a single action hinge.  Allow one spring closer for every 75 lbs of door weight.

Sold as Each(1 Individual Hinge)      Click to see Official Soss Hinges Video
How to install Concealed Hinges

Available Finishes

Satin Chrome
Satin Chrome

Antique Brass
Antique Brass

Black E-Coat
Black E-Coat

Bright Brass
Bright Brass

Bright Chrome
Bright Chrome

Bright Nickel
Bright Nickel

Oil Rubbed Bronze
ORB

Satin Brass
Satin Brass

Satin Nickel
Satin Nickel







Additional Information

Application Full Sized Entry, Metal, Wood
Min. Material Thickness 1-3/8"
Fire Rating No
Power Transfer No
Spring Closer Yes
Counter Bored Screw Holes No
Screws Included Wood
Packaging 1 / Box = 1 Each
Packages Per Container 1 Each
Price Per Each

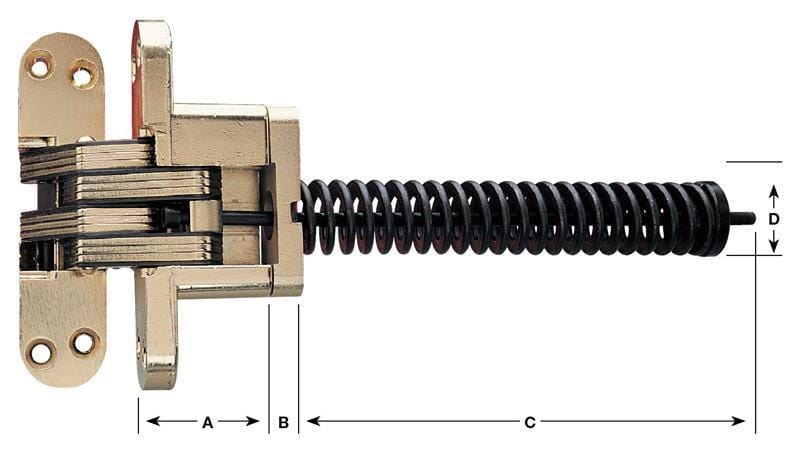

Dimensions

Door Thickness 1-3/8"
Spring Closer # 216IC
A 1-15/32"
B 3/8"
C 6-5/16"
D 3/4"
