SOSS Router Template for Concealed Hinges - Model 216 - Sold Individually

Templaco

$ 38.95
SKU: 216-IT

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

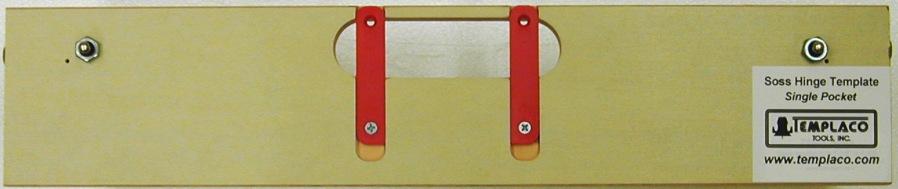

This SOSS Router Template for Concealed Hinges produces perfect mortise pockets for SOSS Concealed Cabinet Hinges - Model 216. The mortise size is 1” x 4 5/8”. Supplied with two nail assemblies as shown and there are two door and jamb thickness adjustment stops on the underside of the tool. This router template will work on both doors and jambs.

Product Specifications:

  • SOSS Router Template for Concealed Hinges
  • For use with SOSS Hinges - Model 216
  • Works on both doors and jambs, and has two thickness adjustment stops on the underside of the tool
  • Move the template to each position to complete your mortises on the jamb and door
  • Mortise Size: 1” x 4 5/8”
  • This hinge requires a two-step mortise: a deep mortise in the center and a shallow or finish mortise for the finish depth
    • Set your router for the deep center pocket and make your cut between the red tabs on the template
    • Remove the two red 'block-off' tabs that divide the pocket on the template, set your router for the shallow or finish cut, complete the mortise and you're finished
  • Supplied with two nail assemblies
  • Sold individually
