Concealed Door Hinges - 1 Inch X 4-5/8 Inch - For Min Thick Door 1-3/8 Inch - Multiple Finishes Available - Sold Individually
Family Owned
Excellent Customer Service
Easy 45 day returns
Typically ships in 1-2 business days
Choose options
Details
Our High Quality SOSS® Concealed Door Hinge model #216 is for use in metal or wood applications. This full size door hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!
Sold as Each (1 Individual Hinge) Click to see Official Soss Hinges Video
How to install Concealed Hinges

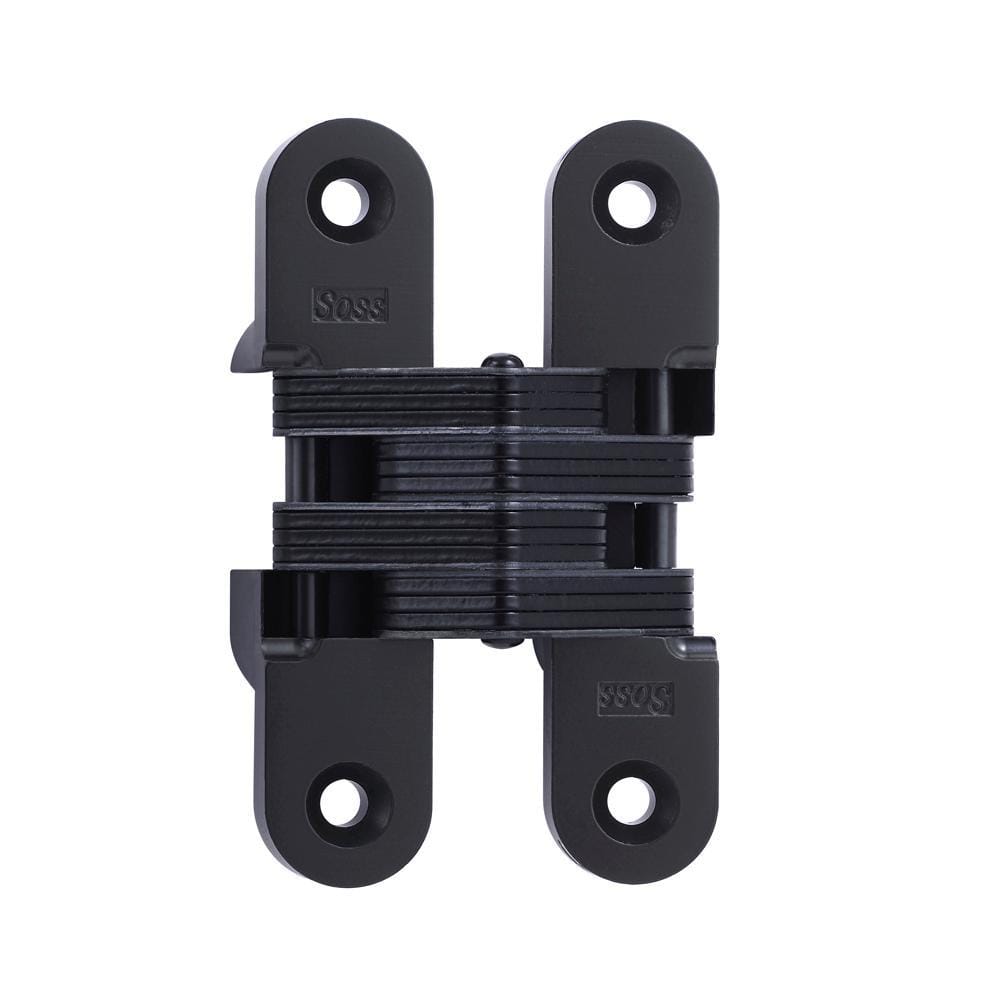

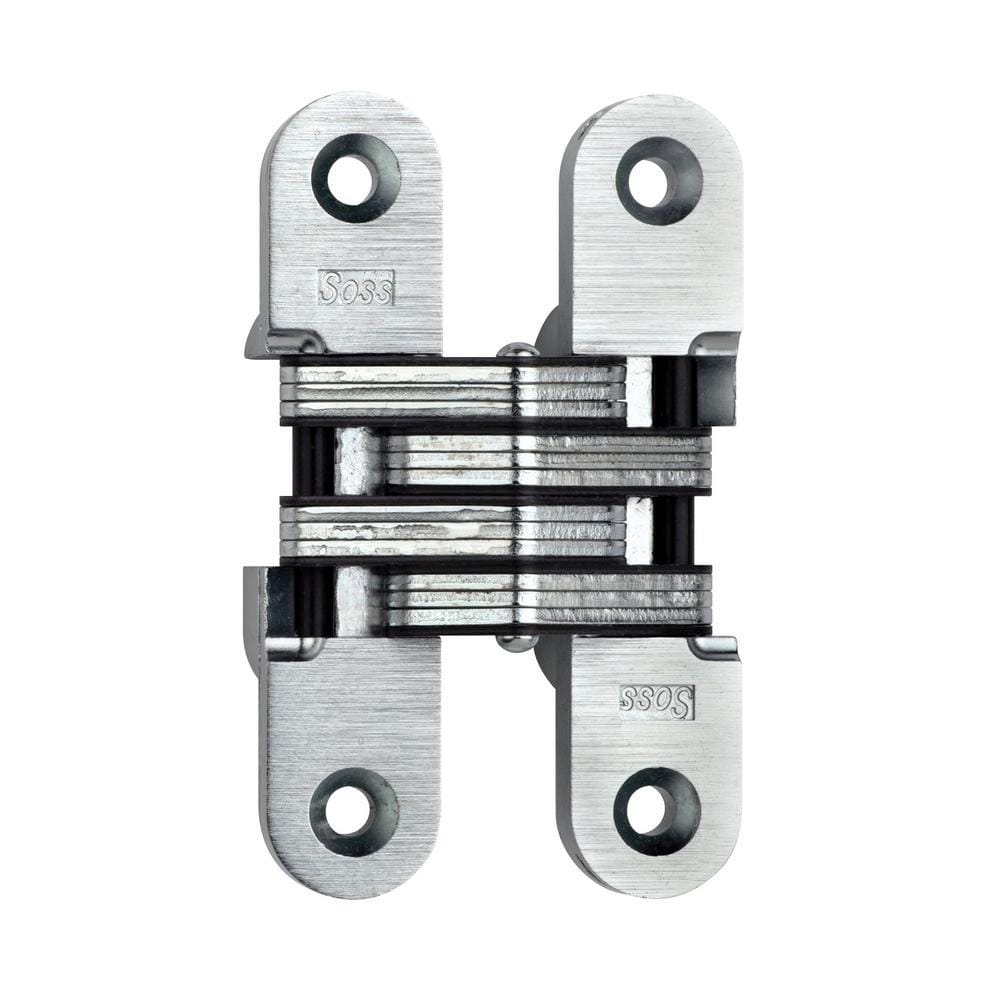

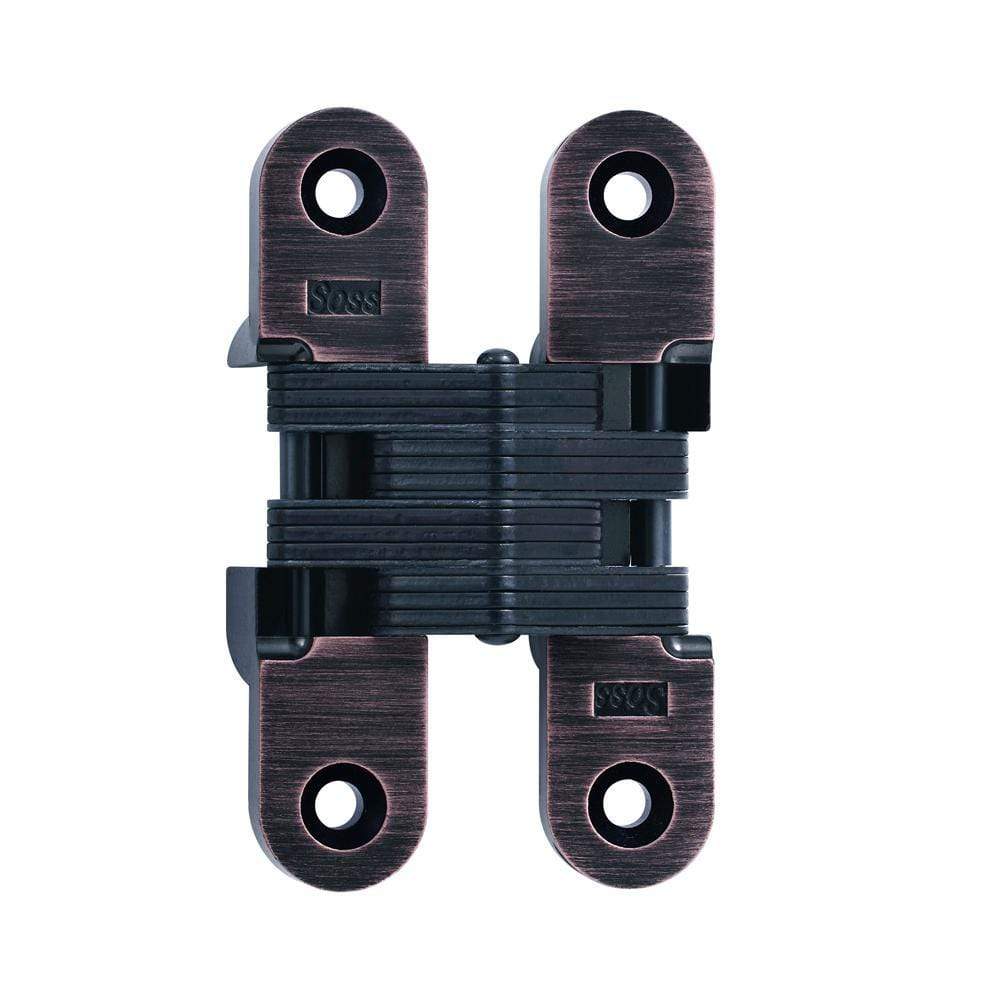

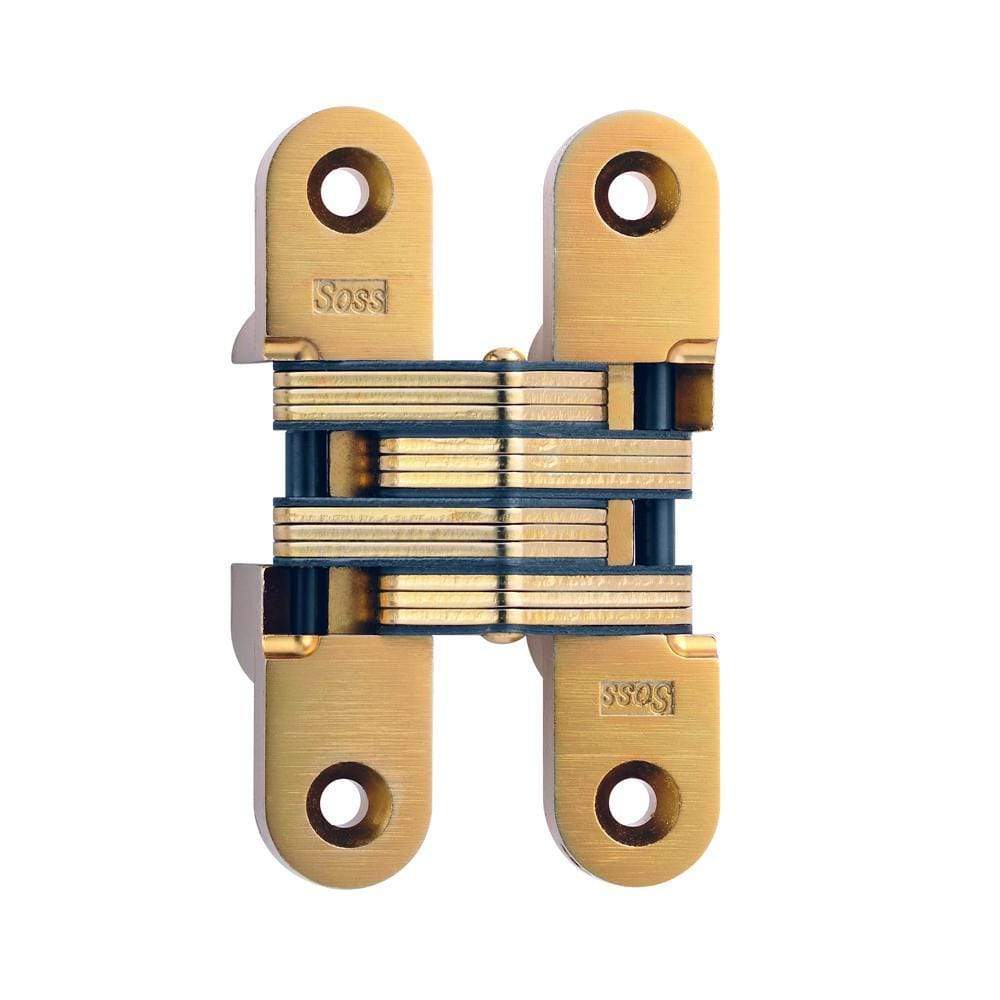

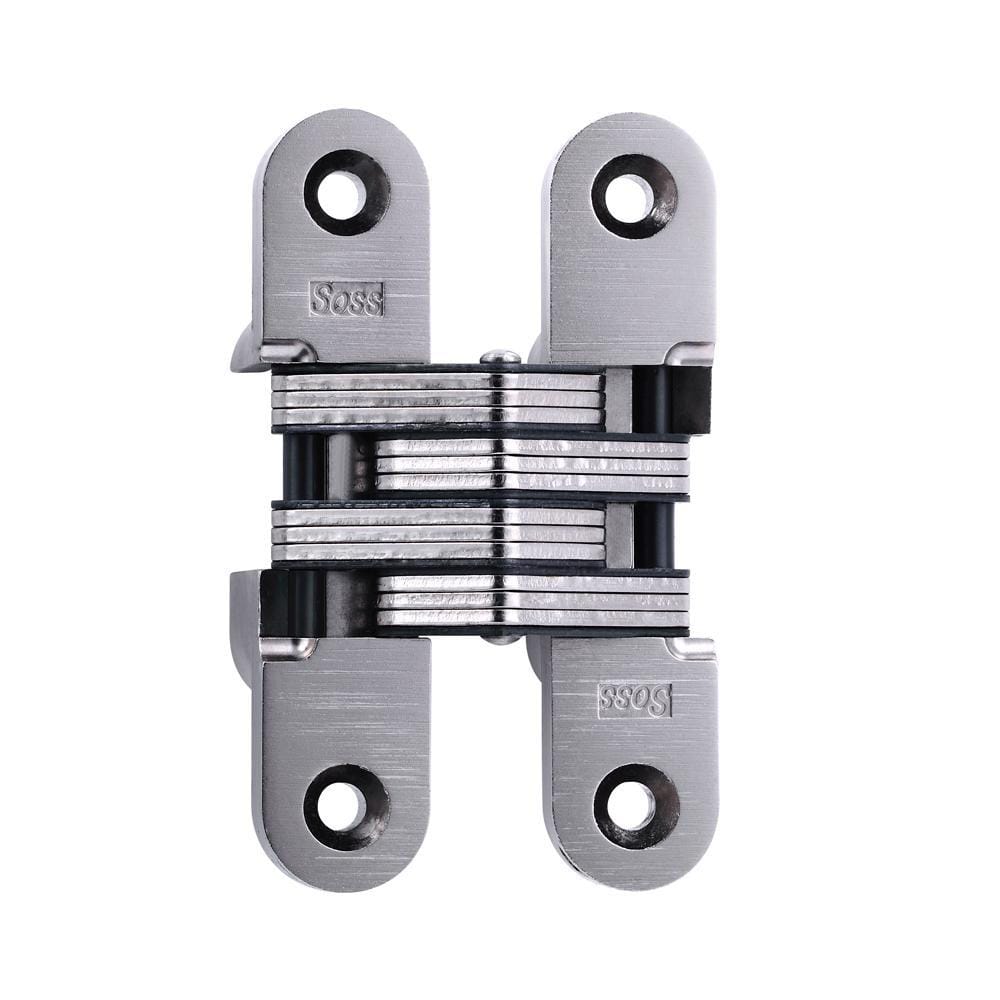

Available Finishes: Black, Oil Rubbed Bronze, Satin Brass, Satin Chrome, Satin Nickel
Additional Information
| Application | Full Sized Entry, Metal, Wood |
|---|---|
| Min. Material Thickness | 1-3/8" |
| Fire Rating | No |
| Power Transfer | No |
| Spring Closer | No |
| Counter Bored Screw Holes | No |
| Screws Included | Wood |

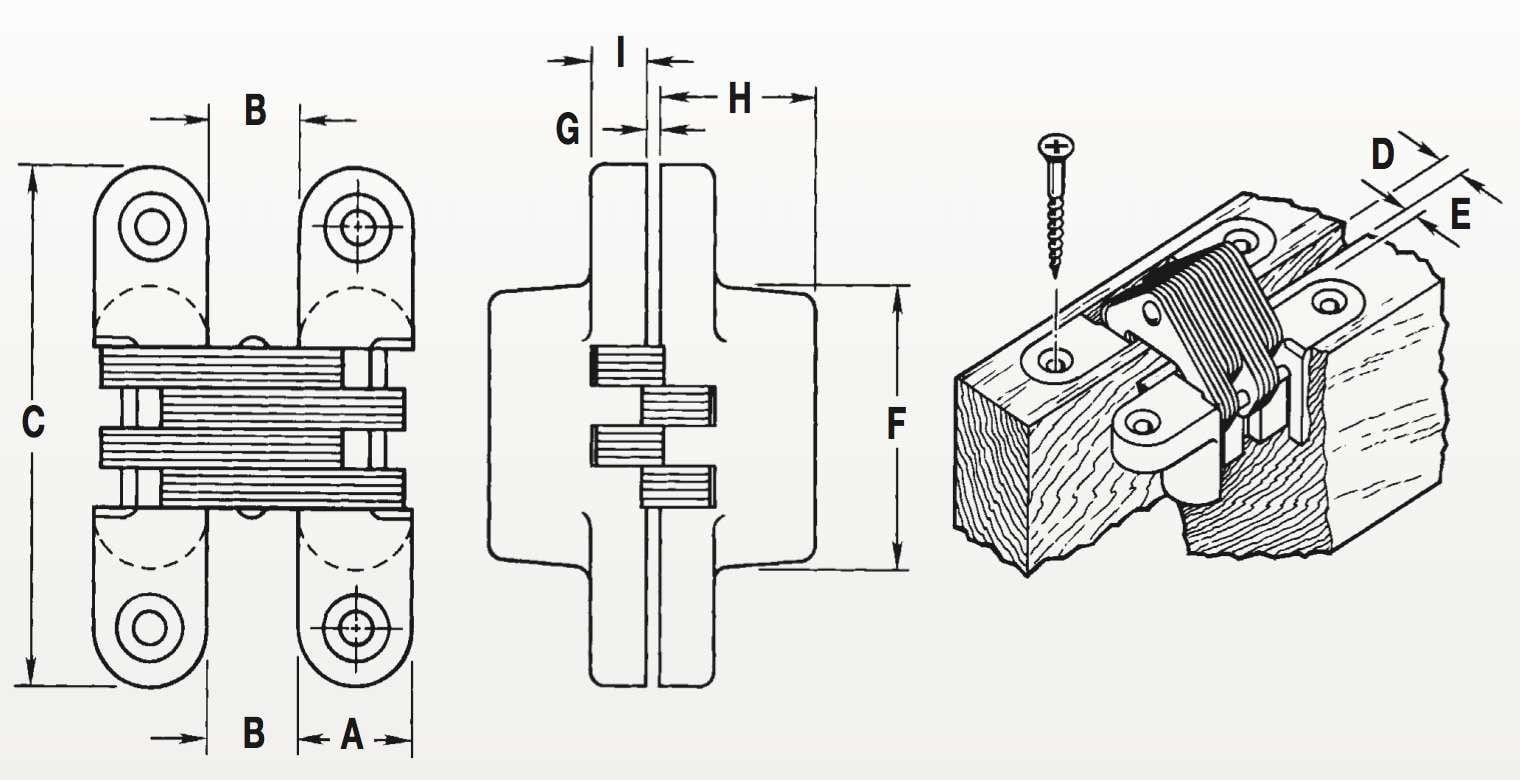

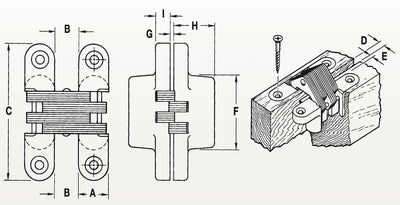

Dimensions
| A | 1" (25.40mm) |
| B | 47/64” (18.65mm) |
| C | 4-5/8" (117.48mm) |
| D | 15/64” (5.95mm) |
| E | 1/4" (6.35mm) |
| F | 2-19/32" (65.88mm) |
| G | 1/16" (1.59mm) |
| H | 1-15/32” (37.31mm) |
| I | 15/32" (11.91mm) |
| Min. Matl. Thickness | 1-3/8" (34.93mm) |
| Wood Screw Sizes | #14x1-1/2" (6.3x38mm) |
| Soft Wood Pilot Hole | No. 32 |
| Hard Wood Pilot Hole | No. 10 |
| Machine Screw Sizes | #1/4-20x1" |
| Hinge Weight | 1.65 lb. |
