Complete Self-Closing Hydraulic Gate System with Lock & Keep

Upgrade your commercial gate with a complete Locinox Gate Hardware Kit engineered for security, durability, and smooth self-closing performance.

This all-in-one commercial hardware bundle includes a heavy-duty hydraulic gate closer hinge, keyed gate lock, and adjustable gate keep, giving you everything needed to install a secure, self-closing gate system for high-traffic environments.

Designed for professional installers and contractors, this kit delivers reliable closing performance, long-term outdoor durability, and code-compliant operation using industry-trusted Locinox components.

✔ Complete commercial gate hardware kit
✔ Smooth hydraulic self-closing performance
✔ Lockable gate for controlled access
✔ Weather-resistant components built for outdoor use
✔ Professional-grade Locinox hardware trusted worldwide

---

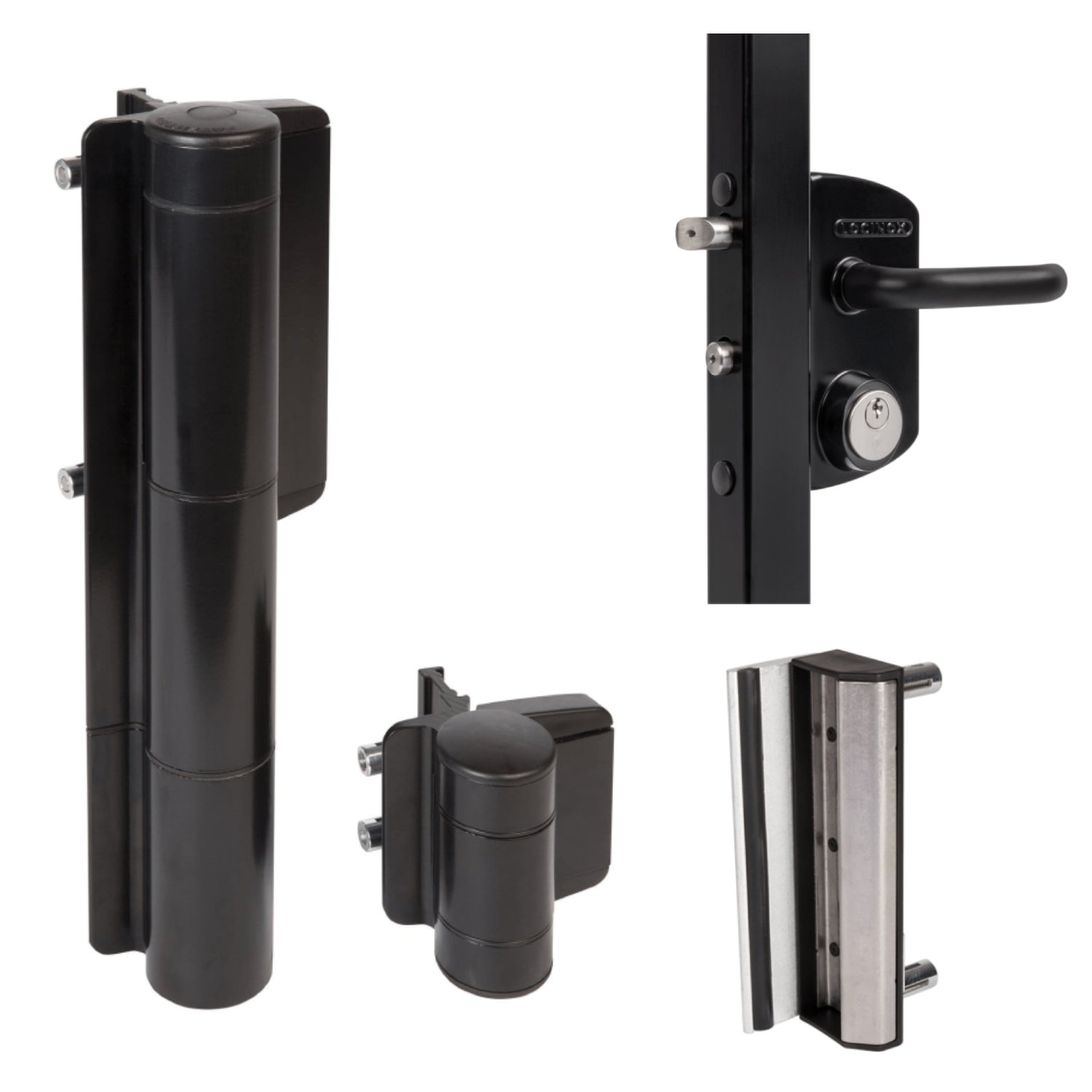

What's Included in the Kit

This kit for new-fit manual gates includes the following components:
Save 15% when Purchasing the Bundle

• (1) Locinox Mammoth Hydraulic Gate Closer & Hinge
• (1) Locinox Surface Mounted Gate Lock (US Mortise Cylinder)
• (1) Adjustable Stainless Steel Gate Keep

---

Gate Compatibility Summary

Before ordering, confirm your gate meets these requirements.

Gate Requirements

• Maximum Gate Weight: 300 lbs

• Maximum Gate Width: 5 ft

• Gate Frame: Square frame gates

• Gate Profiles: 2" – 2-3/8"

• Installation Gap: 9/16" – 1-3/8"

• Gate Type: Manual swing gates

Ideal for ornamental metal gates and commercial access gates.

---

Component Details

Locinox Mammoth Hydraulic Gate Closer & Hinge

The Locinox Mammoth is a heavy-duty 180° hydraulic hinge and closer system designed for reliable automatic gate closing in commercial environments.

Key Benefits

• Smooth and controlled self-closing action
• Adjustable closing speed and final snap
• Consistent closing performance in all weather conditions
• Tamper-resistant construction for public areas

Specifications

Finish: Black
Gate Weight Capacity: Up to 300 lbs
Maximum Gate Width: 5 ft
Opening Angle: 180°
Height Adjustment: 3/4" vertical adjustability
Installation Gap: 9/16" – 1-3/8"

Performance Features

• Weatherproof aluminum housing designed for exterior use

• Active Thermal System maintains constant closing speed regardless of weather conditions

• Patented hydraulic damping ensures smooth closing action

• Double-bearing hinge design

• Vandal and tamper resistant construction

• Compatible with left and right opening gates

Installation

• Fast installation with Quick-Fix mounting system

• Dino hinge included

• Installation Guide
• Catalog Page

---

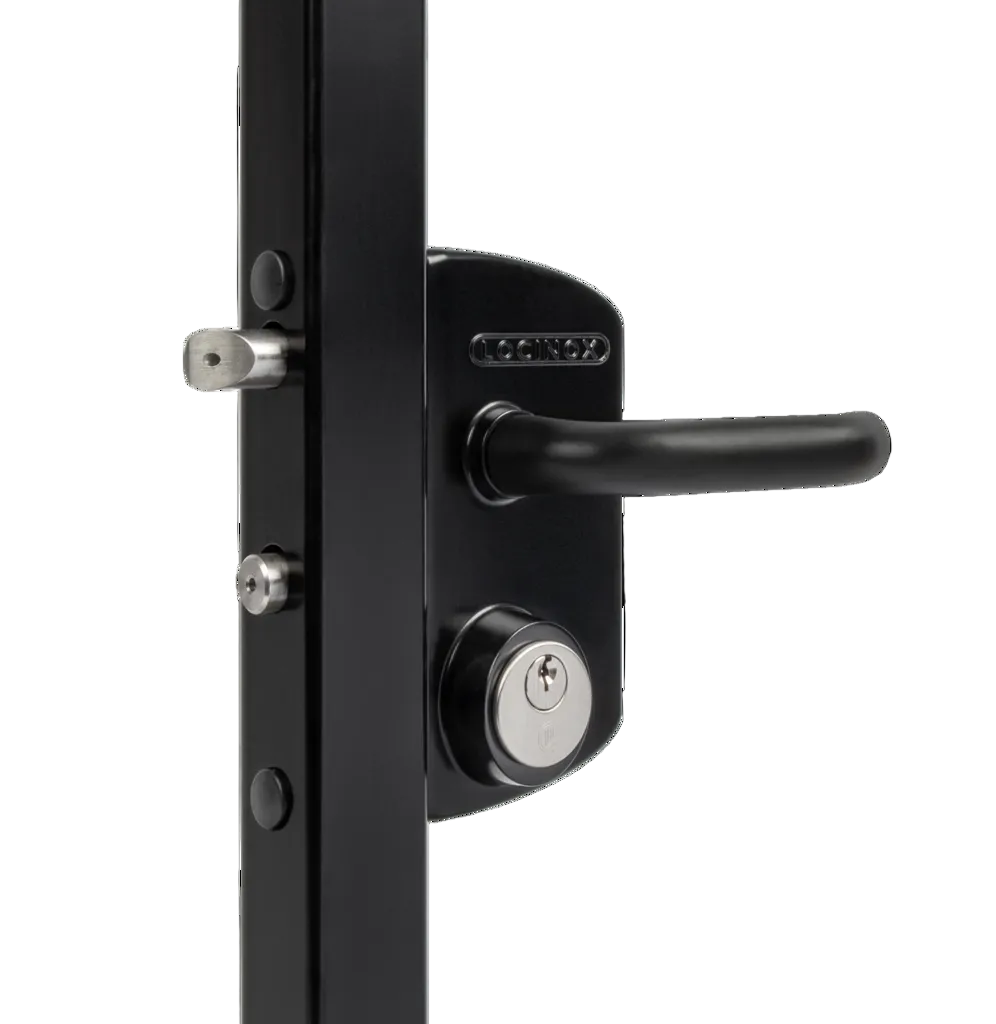

Locinox Surface Mounted Gate Lock (US Mortise Cylinder)

Secure your gate with a commercial-grade keyed locking system designed specifically for metal gate installations.

Specifications

Finish: Black
Compatible Gate Profiles: 2" – 2-3/8" square profiles
Cylinder Type: 1-1/8" mortise profile cylinder
Deadbolt Throw: 7/8" with one turn of the key

Features

• Double cylinder deadbolt

• Key-operated self-latching daybolt


• Keyed alike


• Easy left or right gate configuration

• Continuous bolt adjustment up to 3/8"

• Four-hole mounting system with hex socket screws

• Interchangeable with all Locinox surface mounted locks

Installation Note

The lock box requires 3-3/8" spacing to the first picket, fitting most standard commercial gate designs.  Installation Guide

---

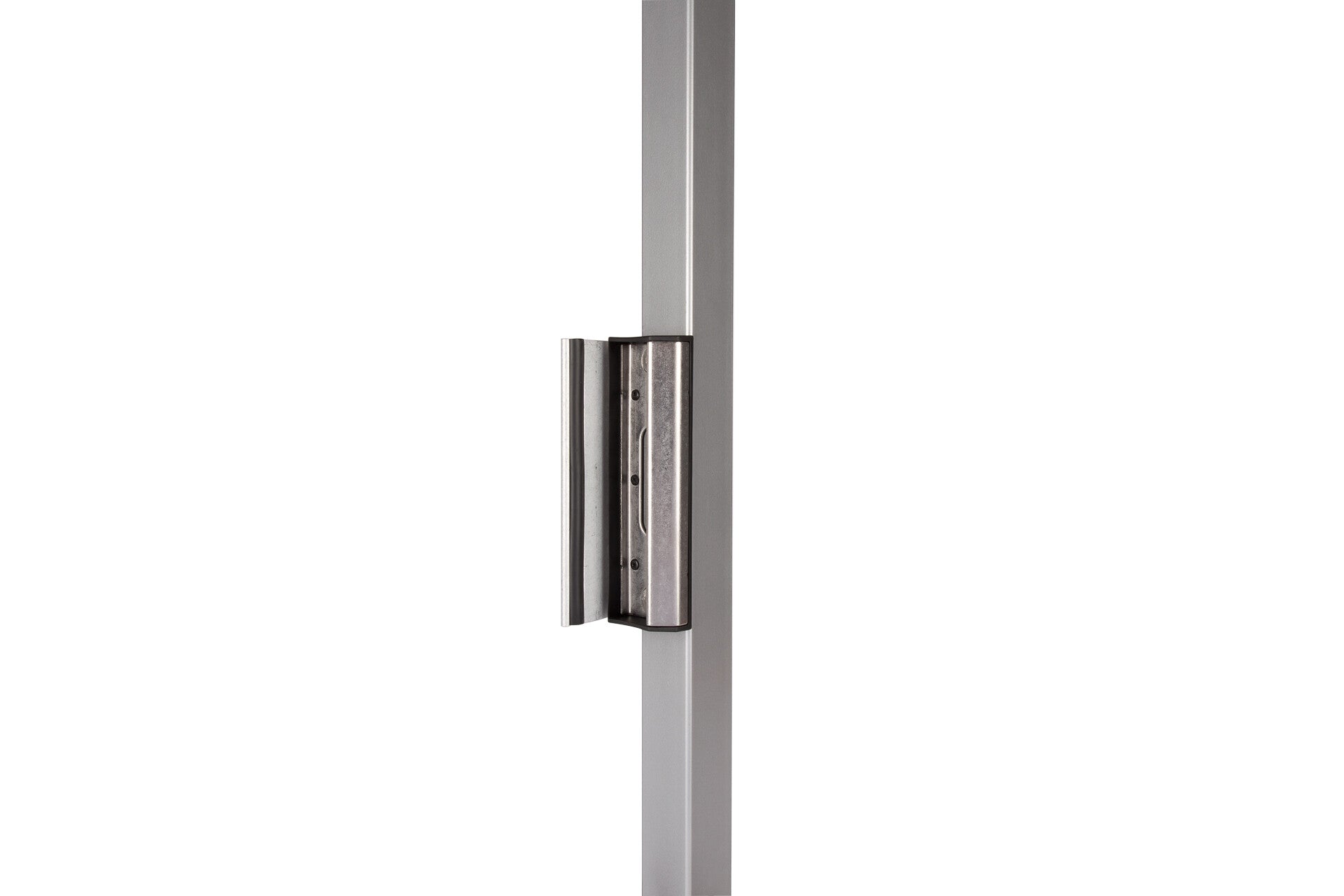

Adjustable Stainless Steel Gate Keep

This adjustable keep ensures precise lock alignment and secure gate closure.

Specifications

Finish: Black
Compatible Profiles: 1-1/2" – 2-1/2" square profiles

Features

• Adjustable aluminum stop plate with rubber impact strip

• Polyamide finished components

• Durable extruded aluminum construction

• Reversible for left or right gate installations

• Quick-Fix mounting system for fast installation  Installation Guide

---

Ideal Applications

This commercial gate hardware kit is designed for high-traffic gates, including:

• Commercial properties

• Apartment complexes

• Industrial facilities

• Schools and universities

• HOA and community gates

• Pool safety gates

• Security and controlled access gates

---

Why Professionals Choose Locinox

Locinox is a global leader in premium gate hardware engineering. Their products are trusted by installers and contractors worldwide for:

✔ Precision hydraulic technology
✔ Long-lasting outdoor durability
✔ Secure commercial-grade locking systems
✔ Reliable self-closing performance

---

Installer Friendly Design

This kit is designed to simplify installation and long-term maintenance.

✔ Quick-Fix mounting system speeds up installation
✔ Adjustable hardware allows precise gate alignment
✔ Compatible with common ornamental gate profiles
✔ Weather-resistant materials for long outdoor lifespan

---

Locinox Kit vs Standard Gate Hardware

---

Complete Commercial Gate Solution

Instead of sourcing multiple components separately, this Locinox hardware bundle provides everything needed to install a durable, self-closing, secure gate system in one kit.

✔ Professional-grade components
✔ Reliable performance in all weather conditions
✔ Designed for long-term commercial use

Locinox Mammoth - Heavy Duty 180° Hydraulic Gate Closer and Hinge Specs:



Surface Mounted US Mortise Cylinder Gate Lock (USA) Specs:



Adjustable Stainless Steel Keep for Gates Specs:



Installation:
