Reliable Gate Security with Controlled Closing and Electrified Access

The Locinox Lion Residential Electrified Compact Retrofit Gate Closer & Lock Kit delivers a complete, contractor-ready solution for secure residential and light-duty access control gates.

Designed for retrofit installations, this bundle combines hydraulic gate closing, commercial-grade locking, electrified access control, and push-bar exit functionality into one streamlined package.

Installers benefit from fast mounting, flexible gate compatibility, and long-term durability, while property owners gain secure, controlled gate access with consistent closing performance in all weather conditions.

---

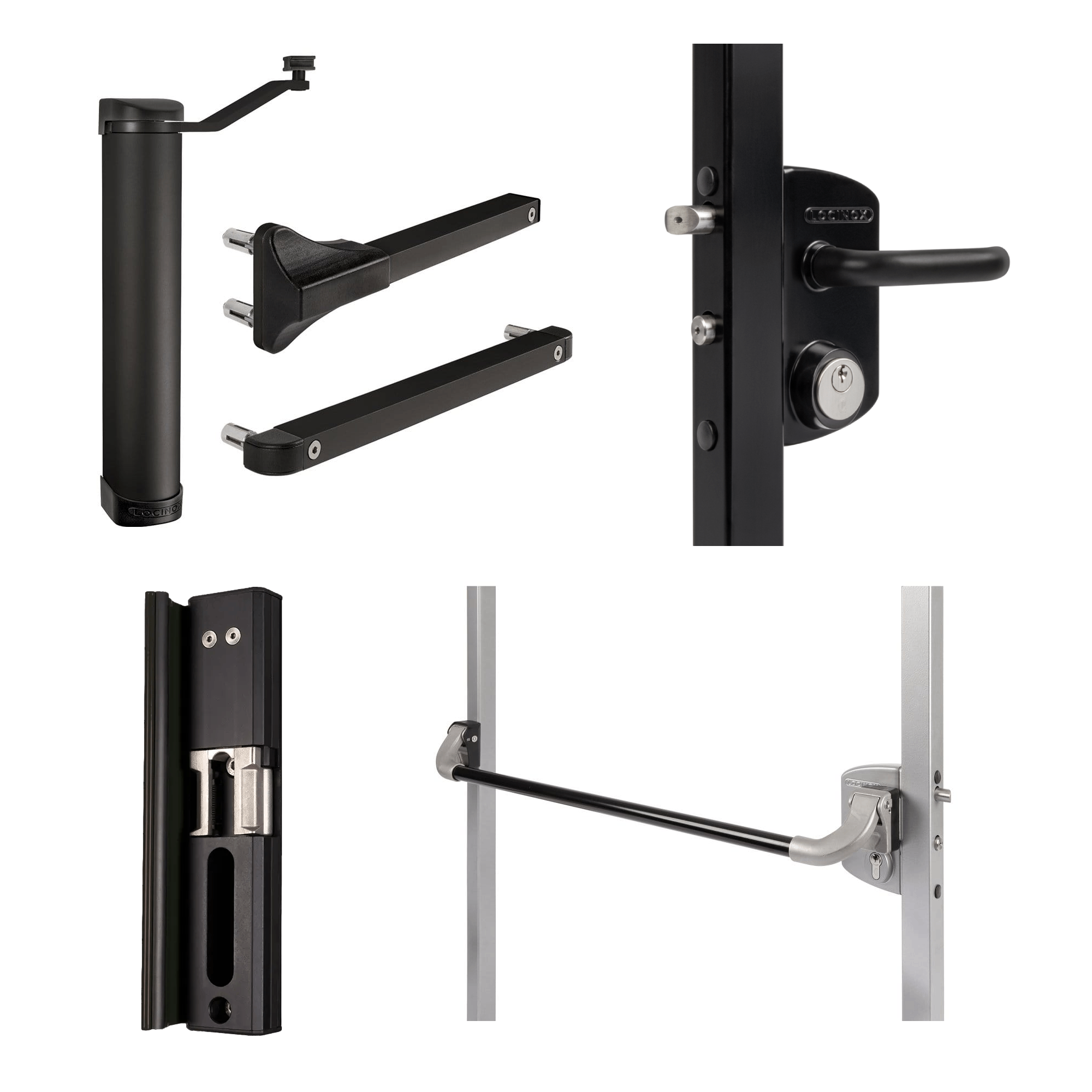

What's Included in the Kit

Save 15% when Purchasing the Bundle

This professionally matched hardware bundle includes:

• (1) Locinox Lion Compact Hydraulic Gate Closer
• (1) Locinox Surface Mounted Gate Lock (Mortise Cylinder Compatible)
• (1) Locinox Modulec-SA Surface Mounted Electric Strike (Fail Close)
• (1) Push Bar for Surface Mounted Gate Locks

All components are designed to work together for smooth closing, secure locking, and convenient exit operation.

---

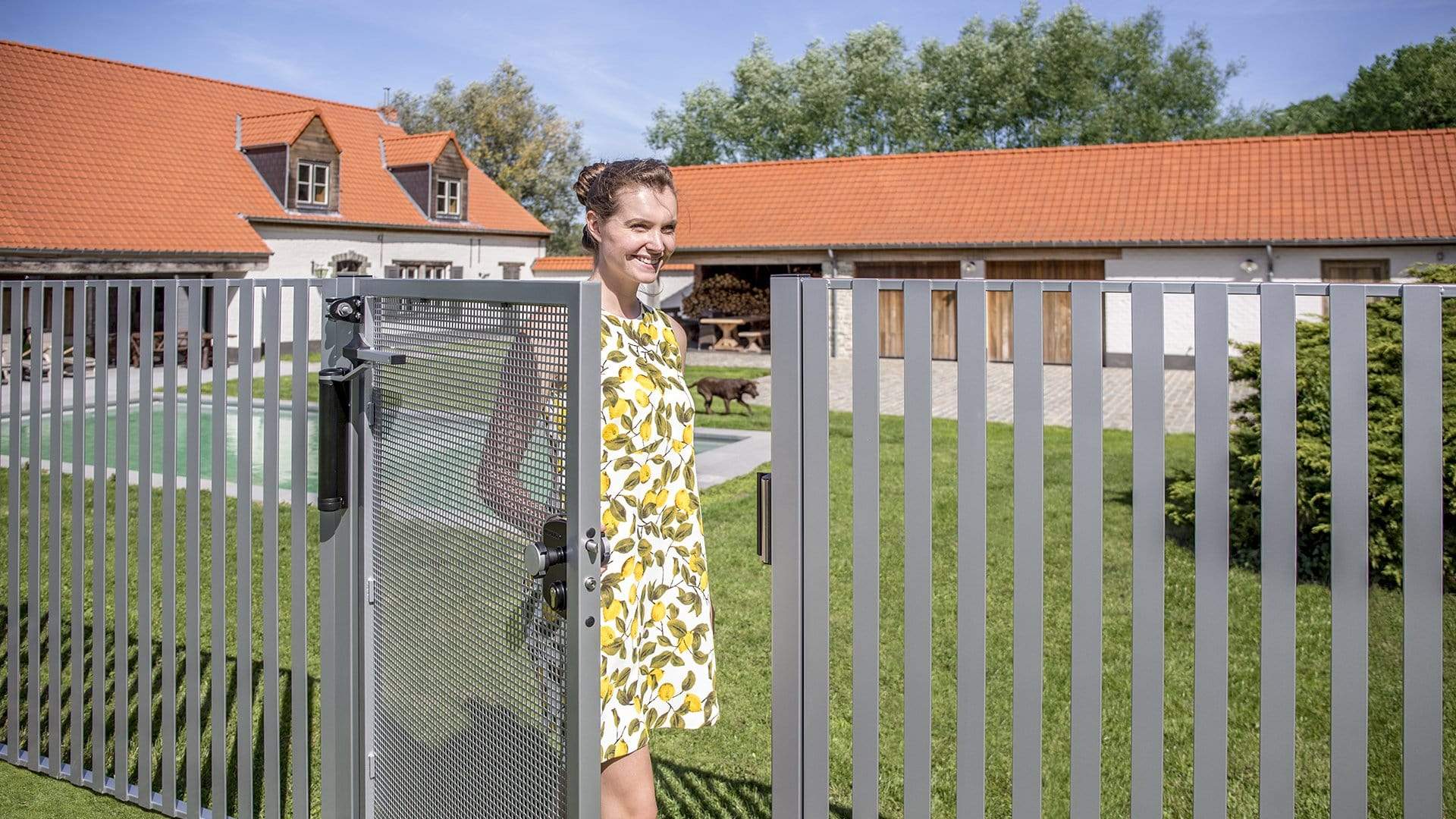

Gate Compatibility Summary

This kit is engineered for common residential and light-duty metal gate installations.

Compatible Gate Types

• Square frame metal gates
• Retrofit access control gates
• Residential security gates

Gate Size Limits

• Maximum Gate Weight: 165 lbs
• Maximum Gate Width: 3.5 ft

Compatible Gate Profiles

• 2" – 2-3/8" square gate frames

---

Component Details

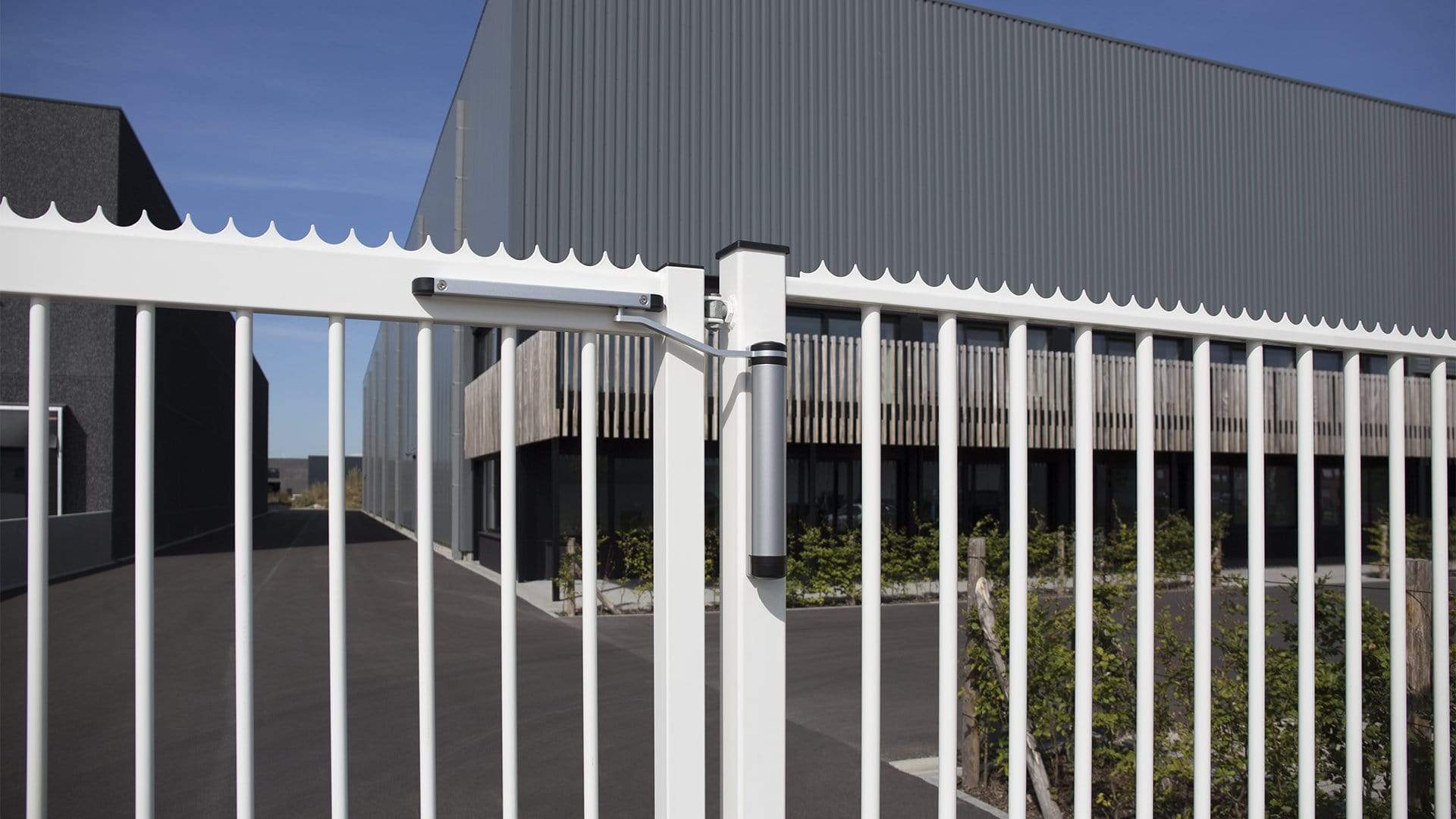

Locinox Lion – Compact 90° or 180° Retrofit Gate Closer

A compact hydraulic gate closer designed to deliver smooth, reliable gate closing in residential and light-duty installations.

Key Advantages

• Adjustable closing speed and final action
• Includes railsets for both 90° and 180° gate openings
• Hydraulic damping ensures consistent closing regardless of temperature
• Compact low-profile design for clean installations
• Weatherproof anodized aluminum housing

Specifications

• Maximum Gate Weight: 165 lbs
• Maximum Gate Width: 3.5 ft
• Finish: Black
• Gate Opening Options: 90° or 180° -- 90° / 180° railsets included

Features

• Scratch-resistant, corrosion-free anodized aluminum housing
• Works with left or right-hand gate configurations
• ADA compliant (<5 lbs opening force on gates 3 ft or wider)
• Durable internal hydraulic system for long service life

Installation Notes

• Integrated pre-tension system allows extremely smooth installation
• Quick-Fix mounting bolts simplify attachment to square frames
• Retrofit-friendly installation design
• Installation Guide
• Catalog Page

---

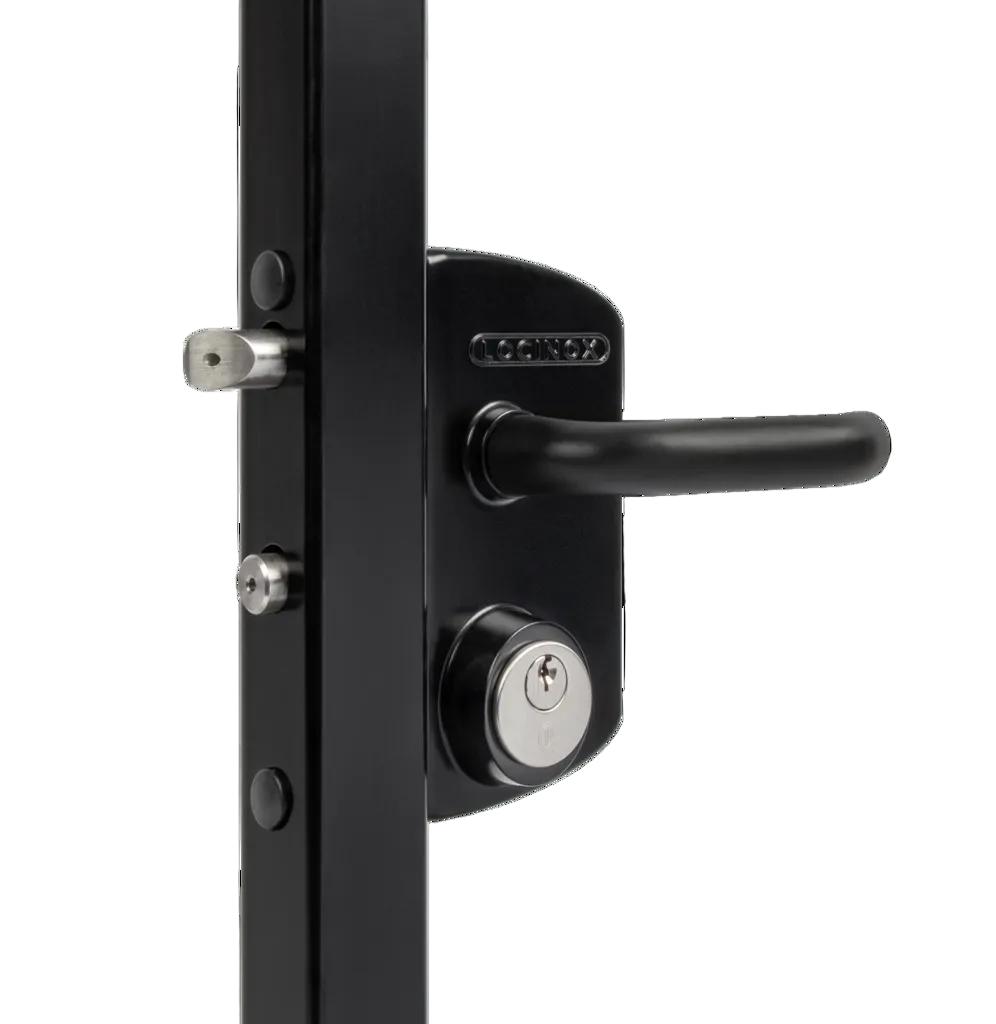

Locinox Surface Mounted Gate Lock (US Mortise Cylinder)

A commercial-grade surface mounted lock engineered specifically for metal gate security.

Key Advantages

• Double cylinder deadbolt for enhanced security
• Self-latching daybolt for convenient daily access
• Compatible with standard 1-1/8" mortise profile cylinders
• Adjustable bolt alignment for precise installation

Specifications

• Finish: Black
• Compatible Gate Profiles: 2" – 2-3/8"
• Cylinder Type: 1-1/8" Mortise Cylinder
• Deadbolt Throw: 7/8" (one key turn)

Features

• Key-operated self-latching daybolt
• Continuous bolt adjustment up to 3/8"
• Reversible for left or right gate configurations
• Four-hole mounting system with hex socket screws
• Interchangeable with other Locinox surface-mounted lock systems

Installation Notes

• Lock box requires 3-3/8" spacing to first picket
• Fits most standard gate designs
• Installation Guide

---

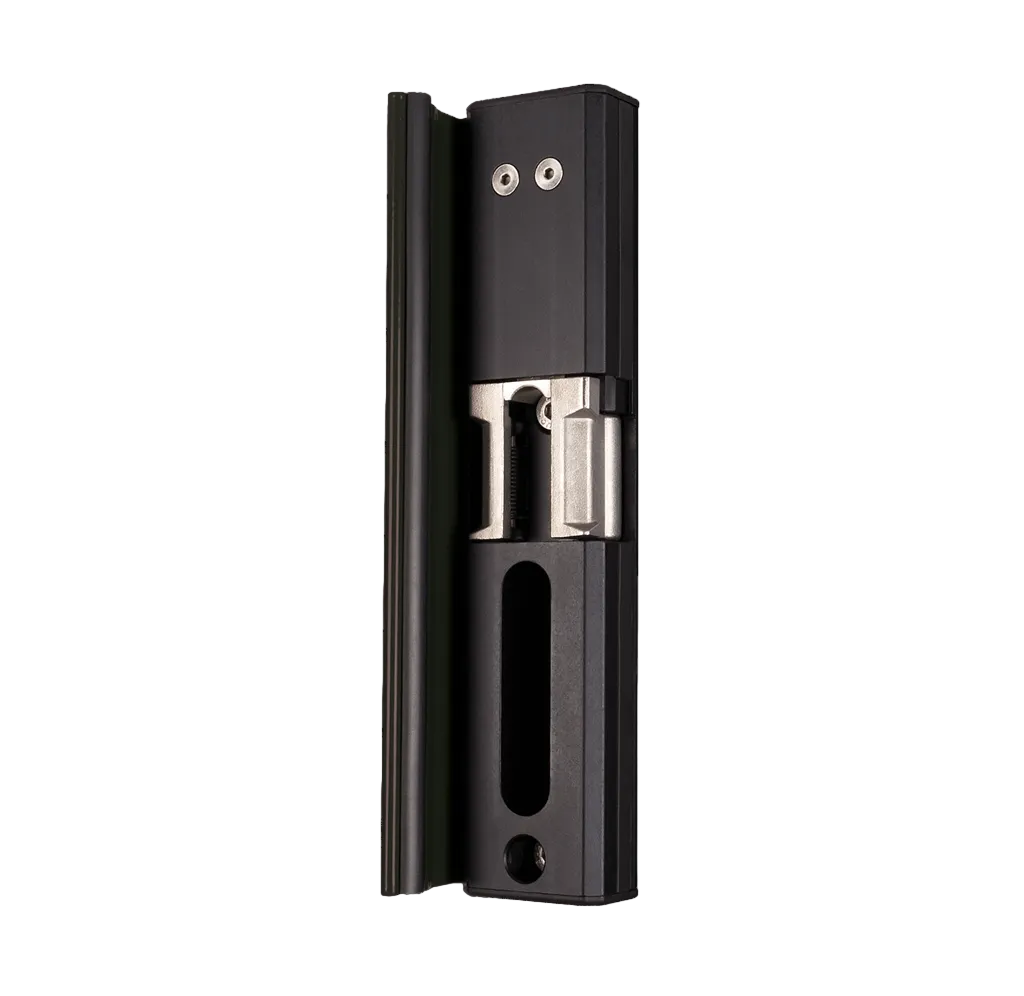

Locinox Modulec-SA Surface Mounted Electric Strike – Fail Close

Designed for access control integration, the Modulec-SA electric strike allows controlled gate entry while maintaining security during power loss.

Key Advantages

• Fail Close (Fail Secure) – gate remains locked during power outages
• Compatible with 12V–24V AC/DC access control systems
• High holding force for reliable gate security

Specifications

• Model: Modulec-SA
• Type: Fail Close / Fail Secure
• Holding Force: 660 lbs on latch bolt
• Voltage: 12V–24V AC/DC
• Power Consumption:
• 12V – 1.25A
• 24V – 0.62A
• Power: 15W
• Adjustable Profiles: 1-1/2" – 2-1/2"

Features

• Corrosion-resistant black anodized aluminum housing
• Tested to 500,000 movements
• Same drilling pattern as other Locinox keeps (SA, SH, SM)

Installation Notes

• Quick-Fix mounting system enables fast installation
• Easy left or right hand configuration
•Installation Guide



---

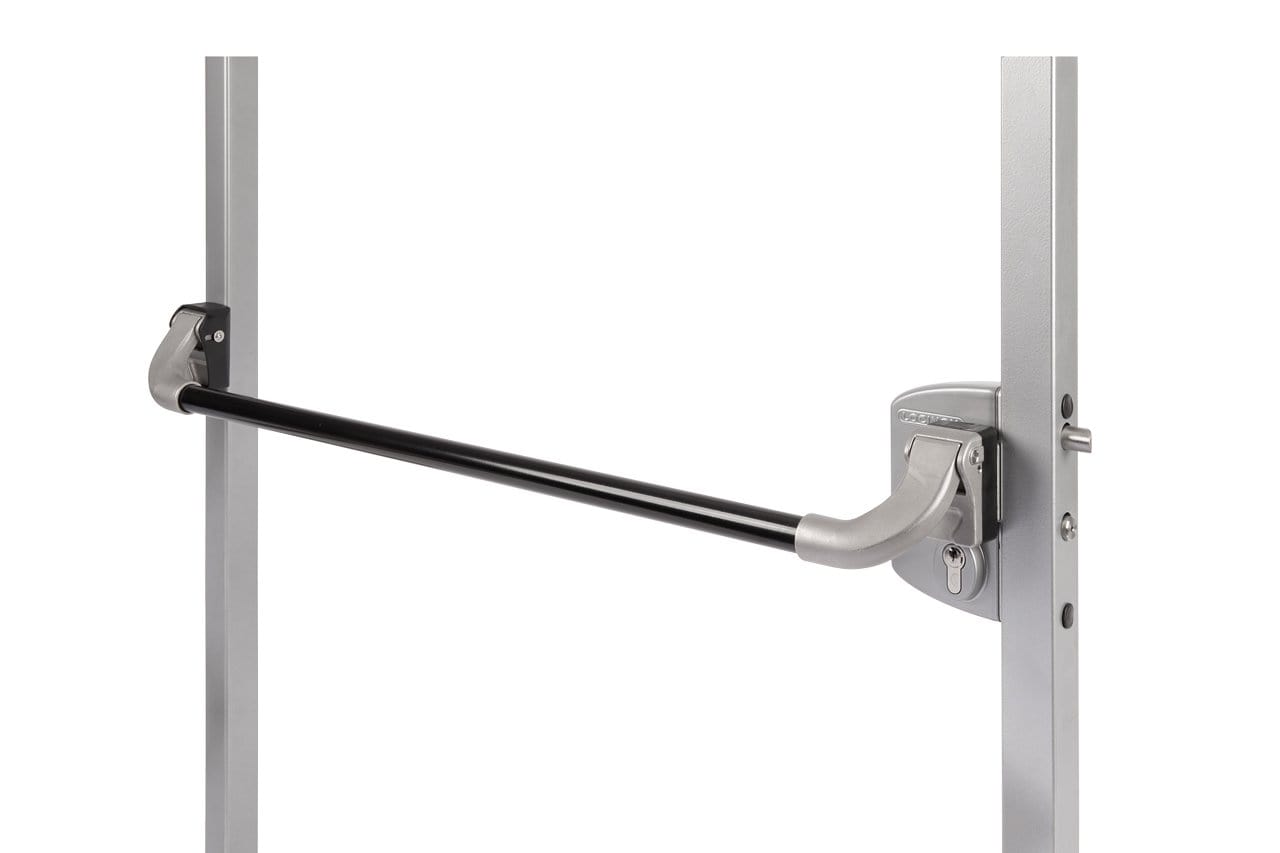

Push Bar for Surface Mounted Gate Locks

This push bar enables simple, code-friendly exit from the secure side of the gate with a single push.

Key Advantages

• Hands-free exit operation
• Installs directly on existing Locinox surface mounted locks
• Can be cut to size for custom gate widths

Specifications

• Material: Aluminum
• Finish: Black powder-coated
• Length: 55-1/8"
• Maximum Gate Width: 5 ft

Features

• Stainless steel internal mechanism
• Operates the lock’s daybolt for immediate exit
• Compatible with half-handle sets using 5/16" follower

Installation Notes

• Installs easily using Quick-Fix mounting hardware
• Suitable for new or retrofit installations
• Installation Guide

---

Ideal Applications

This bundle is designed for residential and light-duty controlled gate access where automatic closing and secure locking are required.

Common installations include:

• Residential garden gates
• Side yard security gates
• Pool access gates
• HOA community entrances
• Apartment building access gates
• Light commercial property gates

---

Why Professionals Choose Locinox

Contractors and installers trust Locinox for durable, gate-specific hardware engineered for long-term outdoor performance.

Key advantages include:

• Commercial-grade construction built for outdoor environments
• Weather-resistant anodized aluminum components
• Precision European engineering
• Components designed specifically for metal gates
• Interchangeable hardware ecosystem

This results in fewer callbacks, easier installs, and reliable long-term performance.

---

Installer Friendly Design

Every component in this kit is engineered to simplify installation.

Contractor-focused features include:

• Quick-Fix bolt mounting system for faster installation
• Retrofit-ready hardware designed for existing gates
• Reversible components for left or right gate swing
• Adjustable locking and alignment features
• Pre-tension hydraulic closer system

These design elements help installers reduce installation time while ensuring professional results.

---

Bundle vs Standard Gate Hardware

Feature	Locinox Lion Electrified Bundle	Standard Gate Hardware
Automatic Gate Closing	Hydraulic closer with adjustable speed	Often spring hinges or none
Weather Resistance	Anodized aluminum construction	Basic steel hardware
Access Control Integration	Electric strike compatible with 12–24V systems	Typically not supported
Locking Security	Commercial double-cylinder gate lock	Basic latch or padlock
ADA Friendly Operation	ADA compliant closer	Usually non-compliant
Installation Efficiency	Quick-Fix mounting system	Traditional drilling & mounting
Exit Operation	Integrated push-bar exit	Handle or manual latch

---

Complete Electrified Gate Hardware in One Professional Bundle

The Locinox Lion Residential Electrified Compact Retrofit Gate Closer & Lock Kit provides a complete, integrated gate hardware solution for residential and light-duty security installations.

By combining a hydraulic gate closer, commercial locking system, electric strike access control, and push-bar exit, this bundle delivers the security, reliability, and installation efficiency professionals expect—all in one coordinated package designed specifically for metal gate systems.



Locinox Lion - Compact 90° Or 180° Retrofit Gate Closer Specs:

Surface Mounted US Mortise Cylinder Gate Lock (USA) Specs:

Locinox MODULEC-SA Surface Mounted Electric Strike (Fail Close) Specs:

Locinox Push Bar for Surface Mounted Gate Locks Specs:

Installation:
