Hoppe Horizontal Vertical Adjustable Set Hinges - 4" Wide x 3 5/8" Tall - Non-Removable Pin for Security - Oil Rubbed Brass Finish


$ 57.63
SKU: HOP-2972401

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Hoppe Adjustable Set Hinges adjust vertically by +/- 1/8” (+/- 3mm) for a perfect swing without costly repairs or carpentry work. Large 3/16” hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws. All set hinges are equipped with non-removable pins for security, making Hoppe hinges the ideal solution for both inswing and outswing doors. They feature single pass routing for quick and easy installation.

Product Description:

  • Hoppe Adjustable Set Hinges
  • Set for vertical adjustment

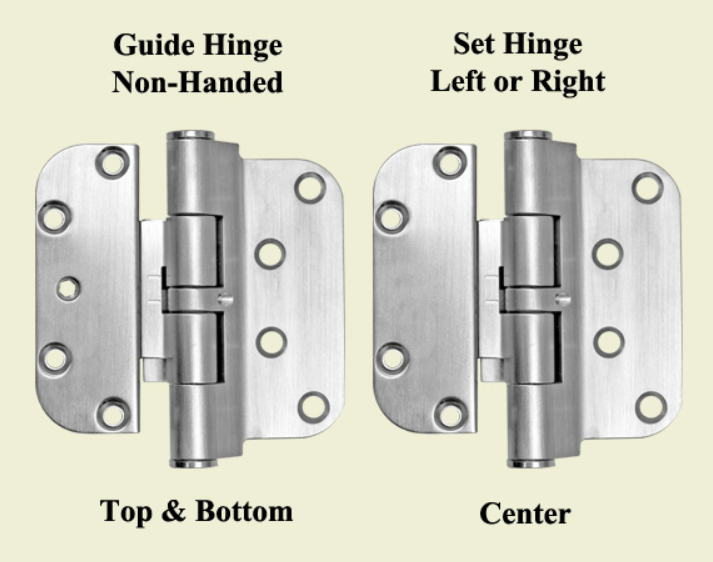

  • For use with Hoppe Adjustable Guide Hinges
  • Vertical adjustment: ± 3 mm (1/8")
  • Size: 4" Wide x 3 5/8" Tall
  • Material: Brass
  • Finish: Oil Rubbed Brass
  • Handing Available:

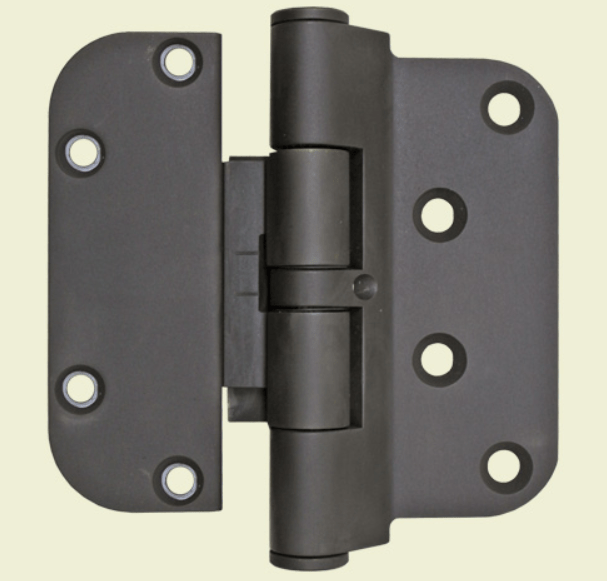

    • RHI (right hand inswing) / LHO (left hand outswing)

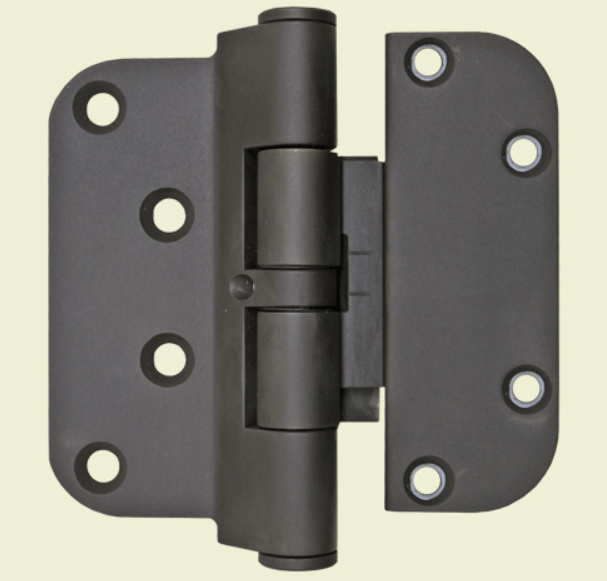

    • LHI (left hand inswing) / RHO (right hand outswing)
  • Non-Removable Pin for Security
  • Weight capacity: 330 lbs (150 kg)
  • Adjustment screw: 3/16" hex
  • Door preparation: single pass routing
  • Tested to 2.5 million cycles
  • Sold individually
  • Instruction Guide

Recommended Installation:

Screws are NOT included with hinges.
