Hoppe Horizontal Vertical Adjustable Guide Hinges - 4" Wide x 3 5/8" Tall - Non-Removable Pin for Security - Oil Rubbed Brass Finish

Hoppe

$ 56.60
SKU: HOP-2664599

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

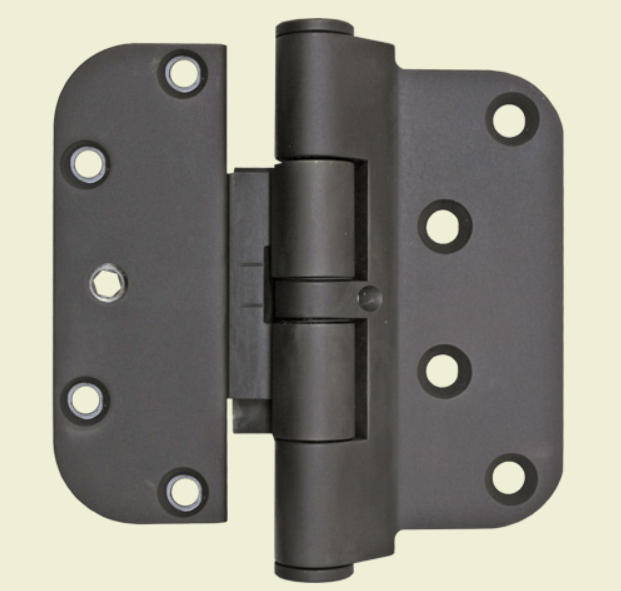

Hoppe Adjustable Guide Hinges adjust horizontally by +/- 1/8” (+/- 3mm) for a perfect swing without costly repairs or carpentry work. Large 3/16” hex head screws make adjustments effortless, and prevent the stripping that can occur on comparable products with Phillips head or smaller hex head adjustment screws. All set hinges are equipped with non-removable pins for security, making Hoppe hinges the ideal solution for both inswing and outswing doors. They feature single pass routing for quick and easy installation.

Product Specifications:

  • Hoppe Adjustable Guide Hinges
  • Guide for horizontal adjustment
  • For use with Hoppe Adjustable Set Hinges
  • Horizontal adjustment: ± 3 mm (1/8")
  • Size: 4" Wide x 3 5/8" Tall
  • Material: Brass
  • Finish: Oil Rubbed Brass
  • Non-handed
  • Non-Removable Pin for Security
  • Weight capacity: 330 lbs (150 kg)
  • Adjustment screw: 3/16" hex
  • Door preparation: single pass routing
  • Tested to 2.5 million cycles
  • Sold individually
  • Instruction Guide

Recommended Installation:

Screws are NOT included with hinges.
