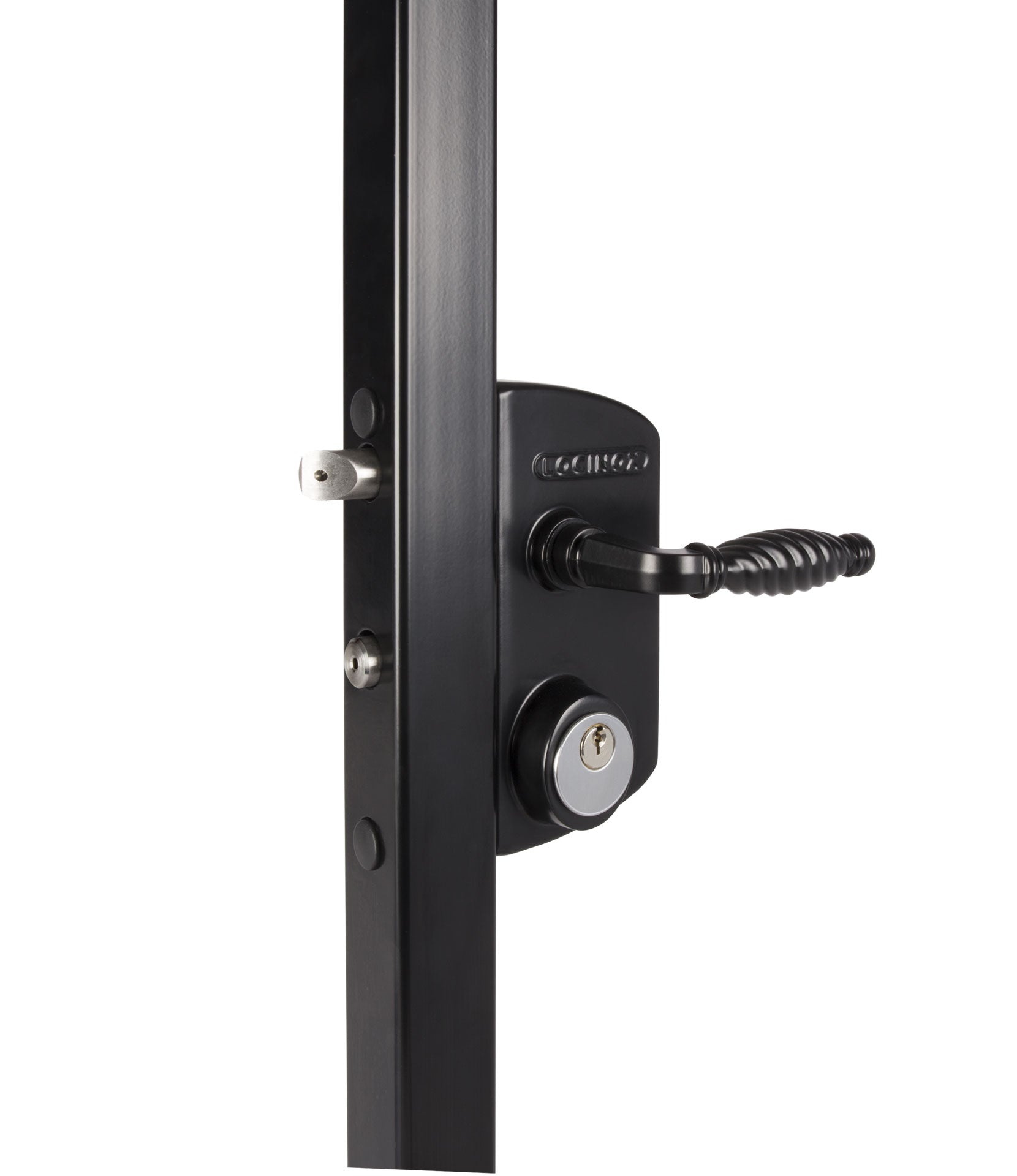

US Mortise Cylinder Gate Lock - For Square or Flat Profiles 3/8" to 2-3/4" - Black Finish - Sold Individually

This US Mortise Cylinder Gate Lock is used for square profiles. It is an excellent gate lock with aluminum housing and stainless steel mechanism. Specially developed to use with a standard 1-1/8" Mortise cylinder. Comes standard with 5-pin keyed alike or keyed different (drilled 6-pin). The latch and dead bolt have 3/8" continuous adjustment to allow perfect alignment of the locking mechanism. A stainless steel throw of 7/8" guarantees secure locking. Black lock standard provided with 3006B handle (black anodized aluminum).

Product Specifications:

• US Mortise Cylinder Gate Lock
• Profile Shape: Square, Flat
• Finish: Black
• Profile Sizes:
• 3/8" to 7/8"
• 7/8" to 1-1/4"
• 1-1/4" Inch to 1-1/2" Inch
• 1-1/2" Inch to 2" Inch
• 2" Inch to 2-3/8" Inch
• 2-1/2" Inch to 2-3/4" Inch
• Cylinders Available:
• GMA, ZCZ, VMZ
• ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
• Gate Lock with double cylinder dead bolt. Designed for 1-1/8" Mortise profile cylinder
• Fixing cylinder inch thread 8/32'
• Easy left or right changing of the self-latching daybolt
• Throw of the dead bolt, 7/8" in 1 turn of the key
• Key-operated self-latching bolt, allows Free Exit application

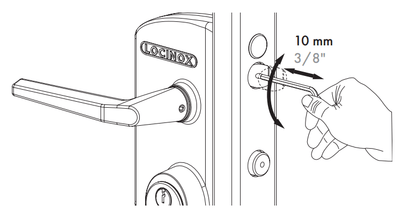

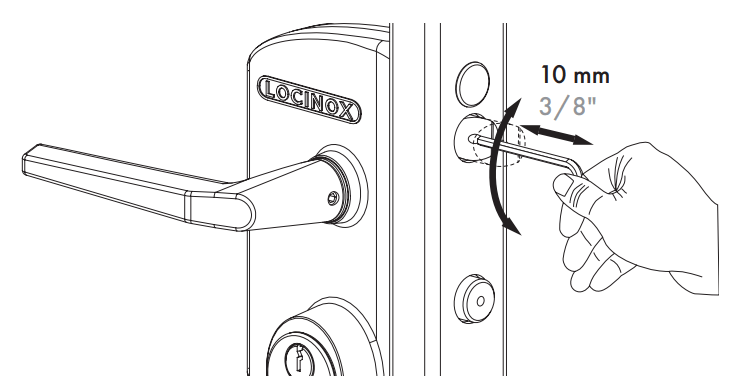

• Adjustment of the bolts up to 3/8" continuous without removing the lock
• 4-hole mounting with two hex head socket screws
• Interchangeable with all Locinox locks
• The lock box requires a 3-3/8" spacing to the first picket, fitting nicely into most gates
• Sold individually
• Installation Guide

Locinox Tool Case with Drilling Jig for Surface Mounted Locks and Corresponding Keeps
