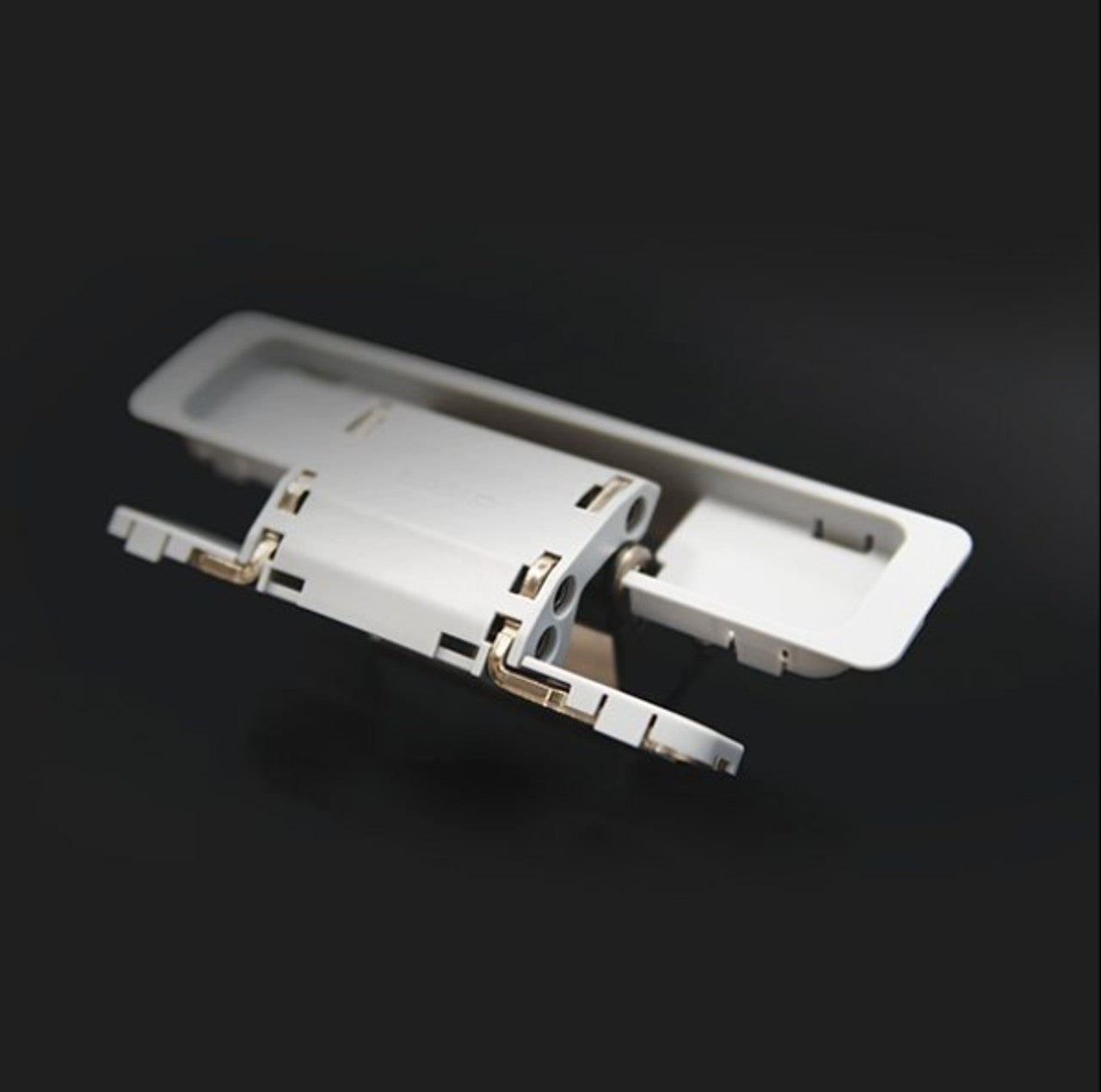

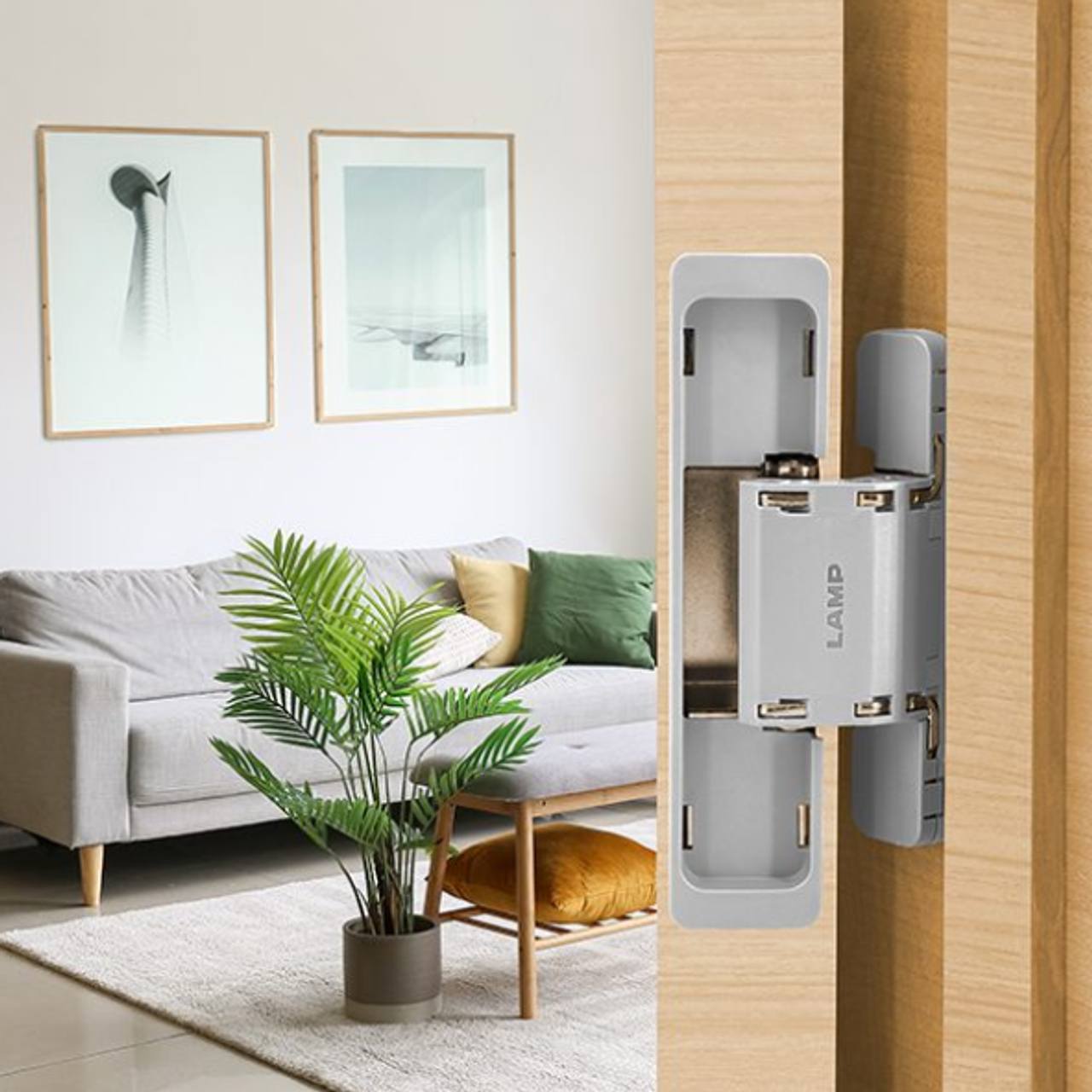

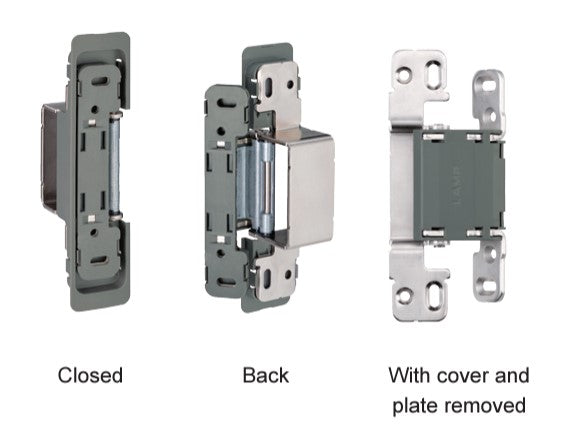

Three-Way Adjustable Concealed Door Hinge - Surface Mount - Multiple Finishes Available - Sold Individually

These Three-Way Adjustable Surface Mount Concealed Door Hinges allow vertical, horizontal, and depth adjustment. They have an opening angle of 125° and require a door thickness of at least 1-1/2". They are available in Matte Black, Dark Grey, and Light Grey finishes.

Product Specifications:

• Three-Way Adjustable Concealed Hinge
• Surface Mount

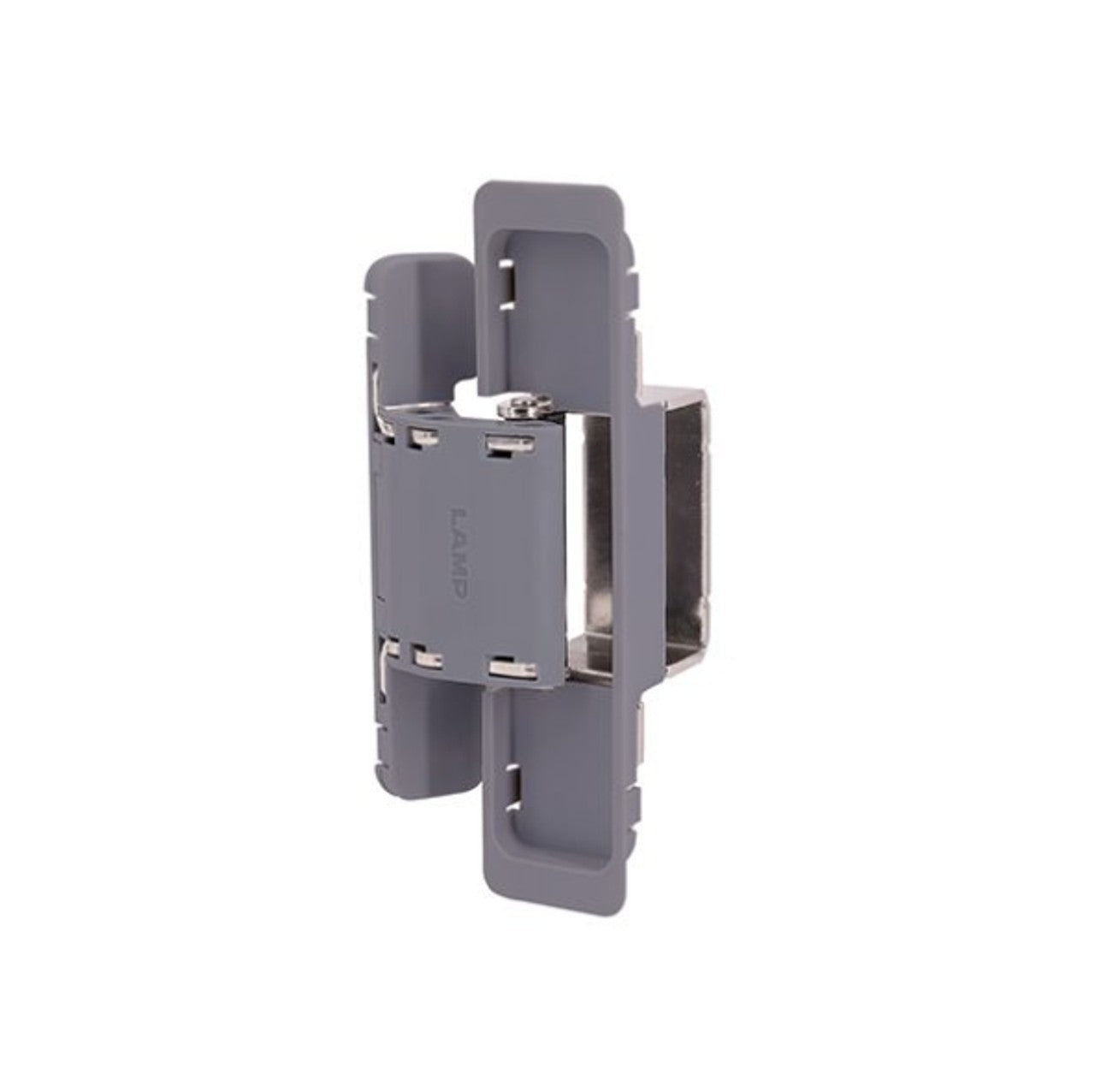

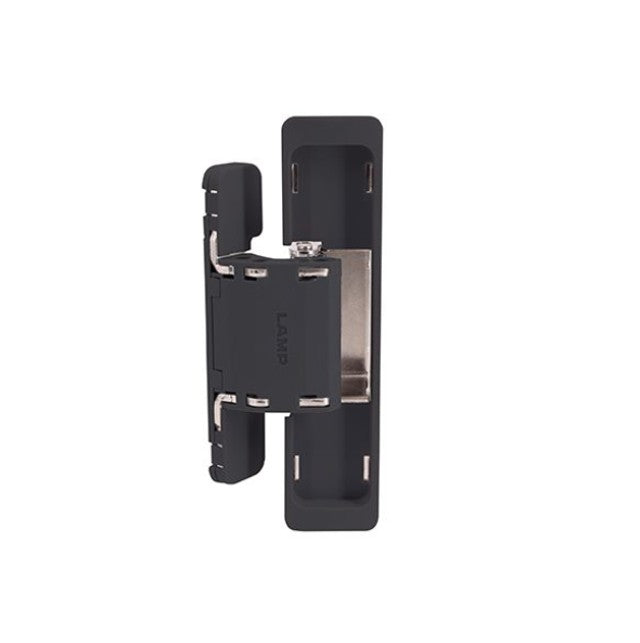

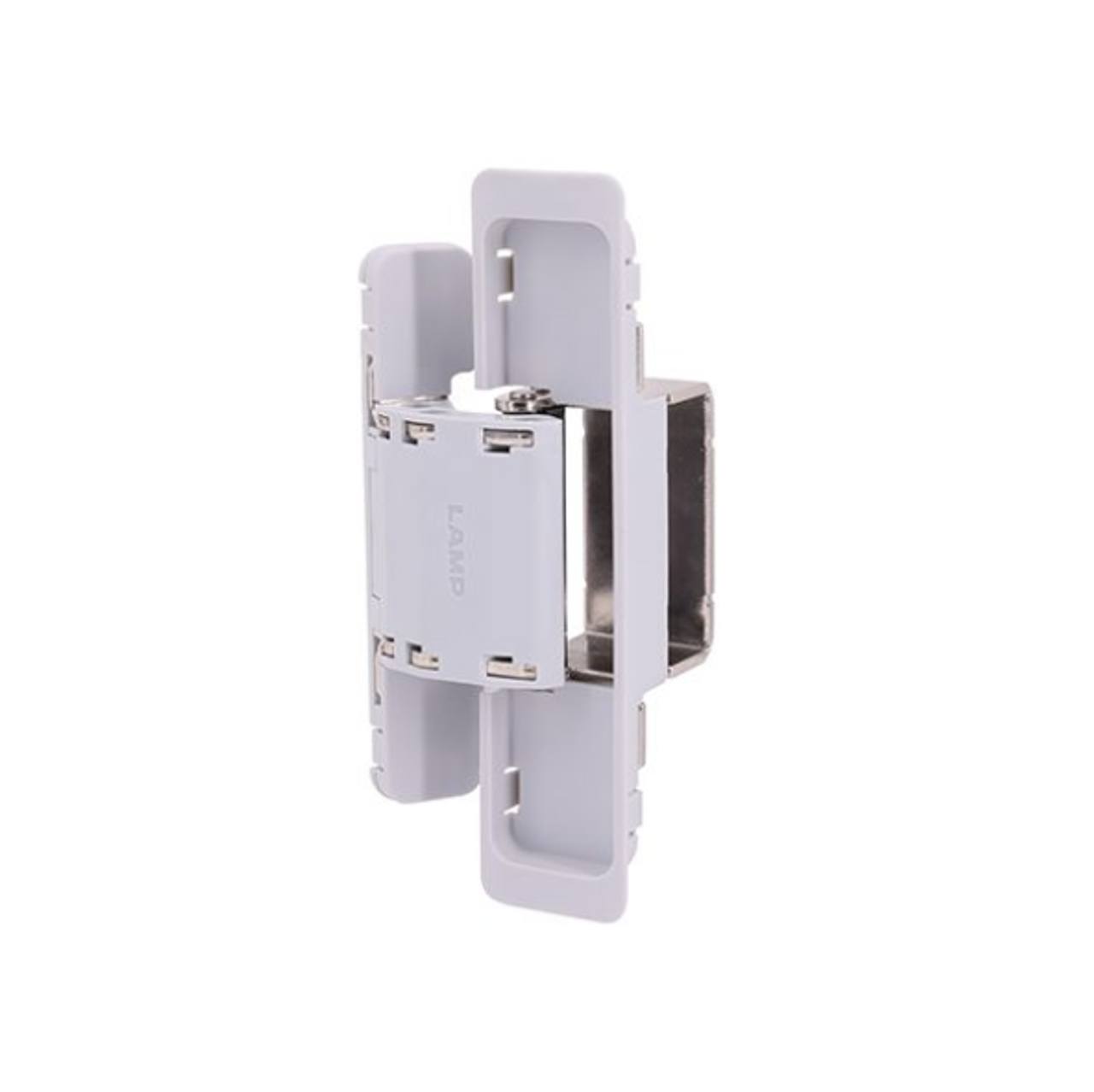

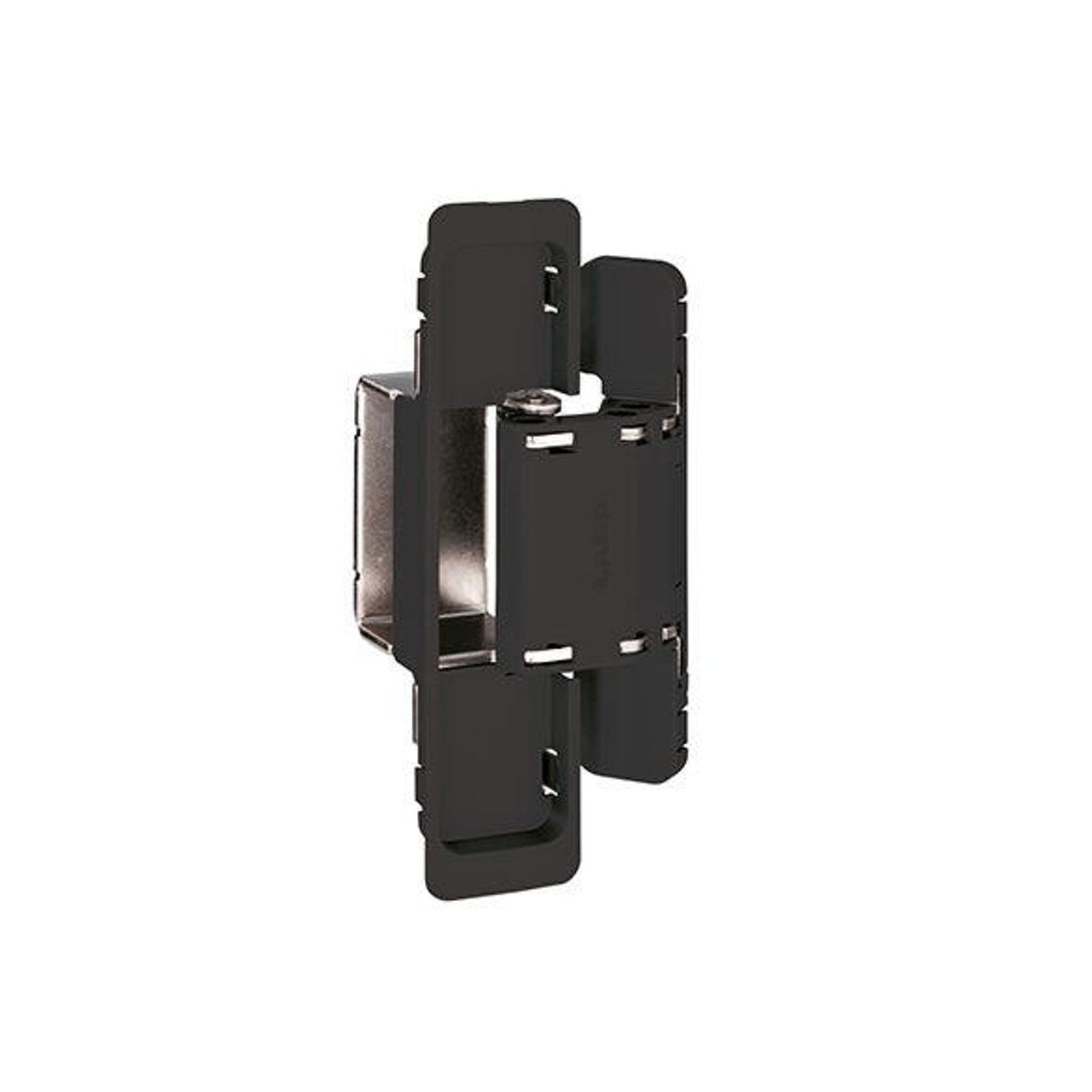

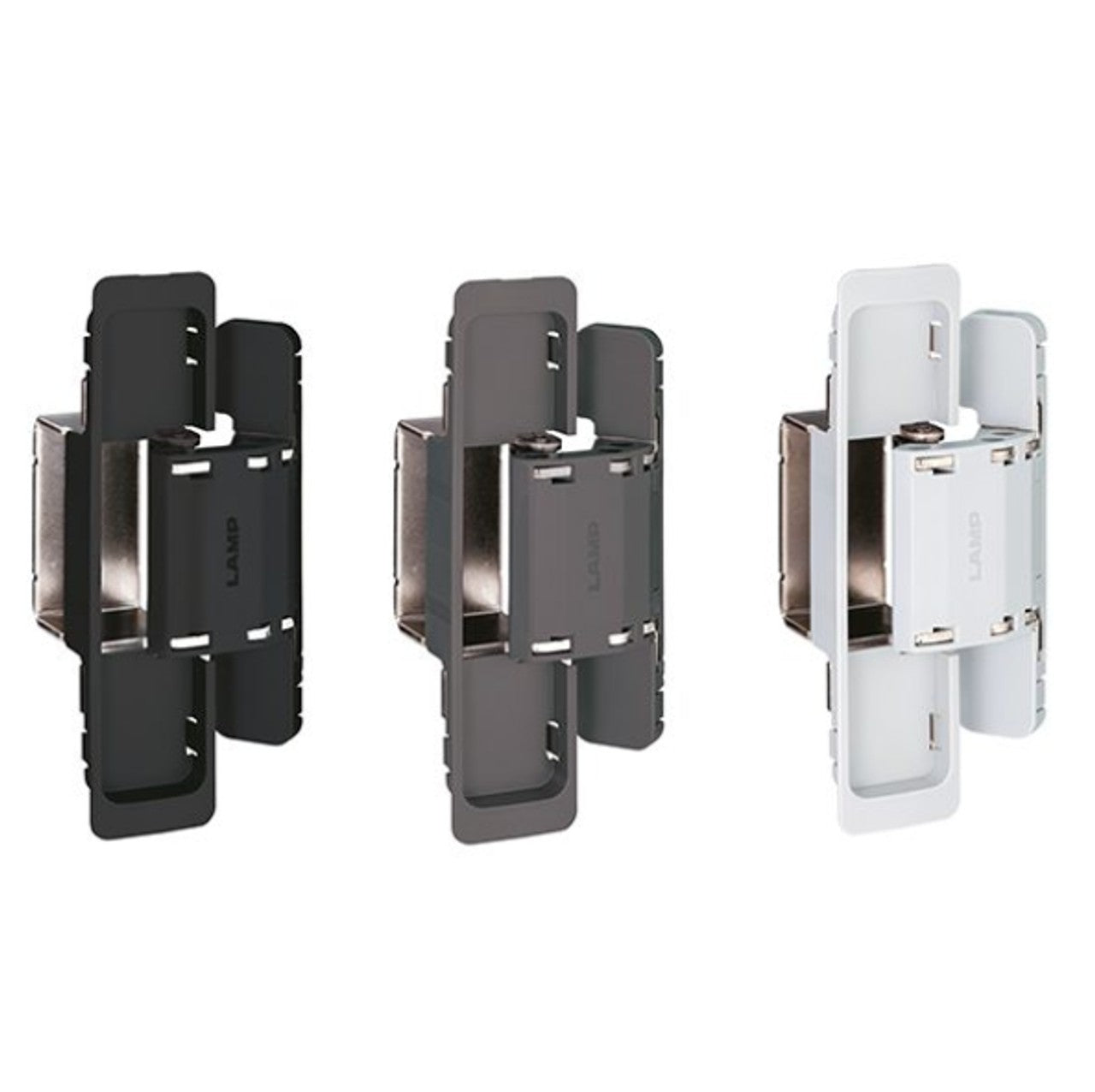

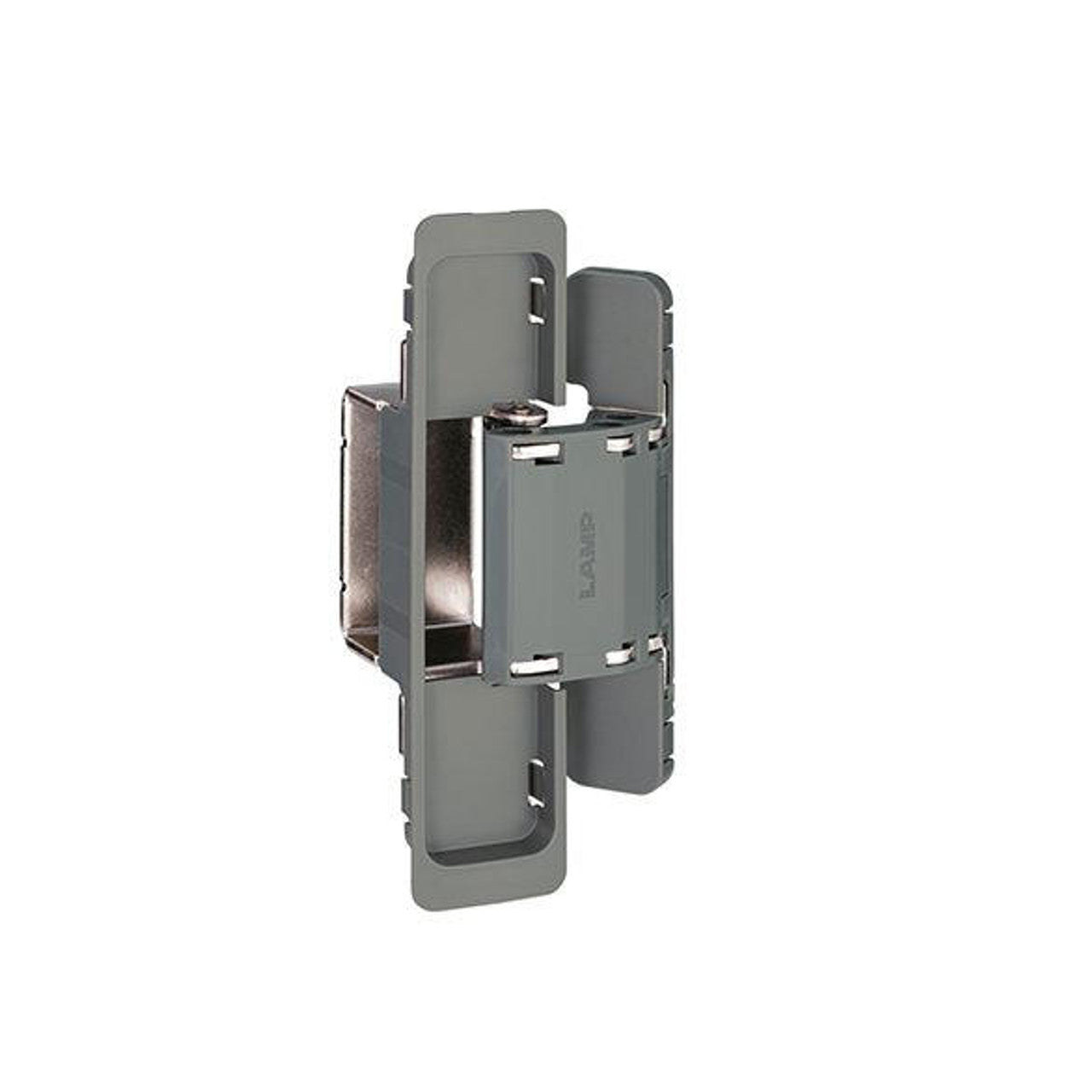

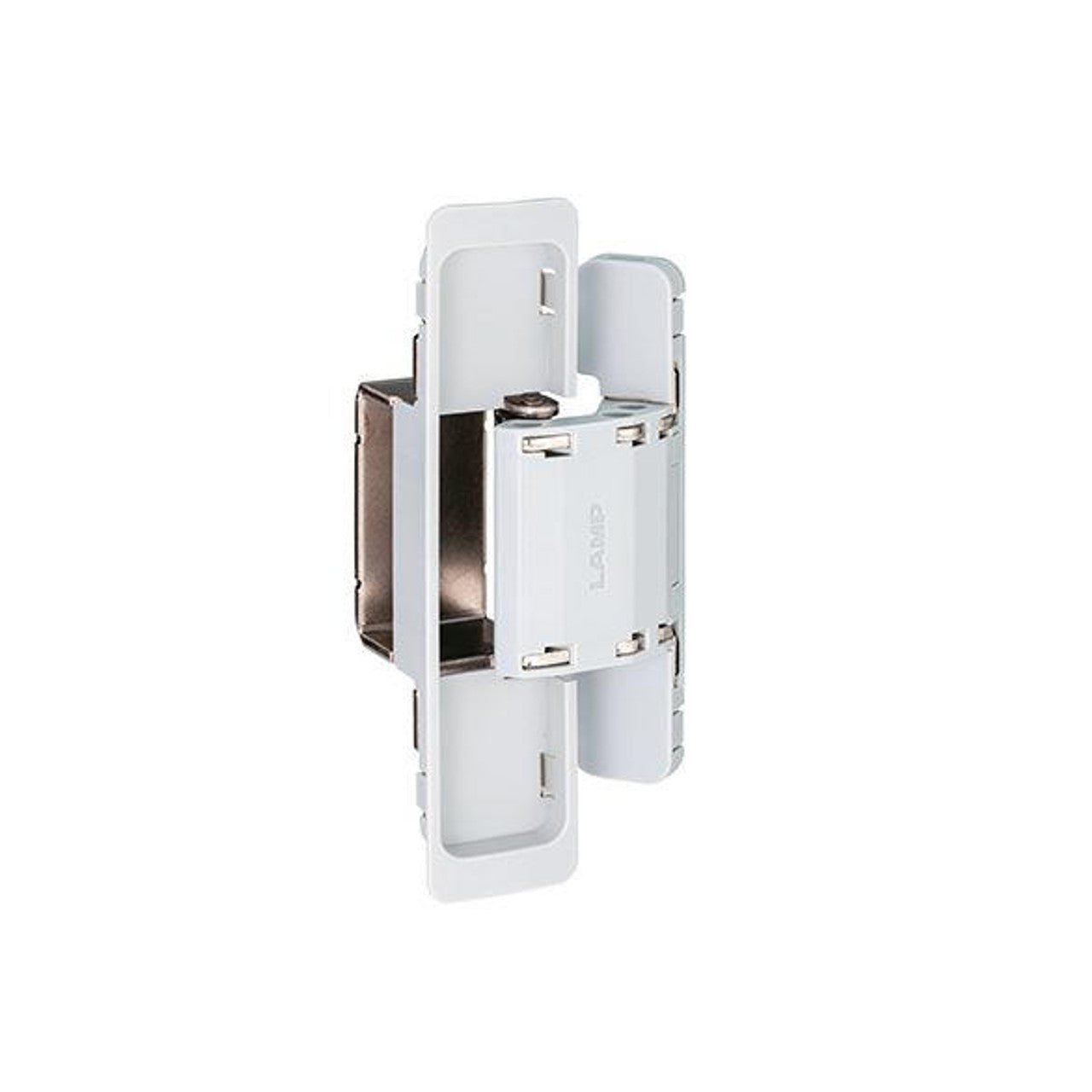

• Finishes Available: Matte Black, Dark Grey, Light Grey
• Adjustable depth ±1/8" (3 mm), vertical ±1/8" (3 mm), horizontal with spacer ±1/16" (1 mm)
• Material: Steel (see chart below for more details)
• Maximum Door Width: 35-7/16" Inch
• Maximum Door Height: 106-5/16" Inch
• Minimum Door Thickness: 1-1/2" Inch
• Maximum Door Weight:
  • 110 lbs/2 pieces
  • 143 lbs/3 pieces
• Opening Angle: 125° (Door stopper or angle limiter is required to prevent breakage of the hinges and failure of the door)
• Hinge Height: 5.875" Inch

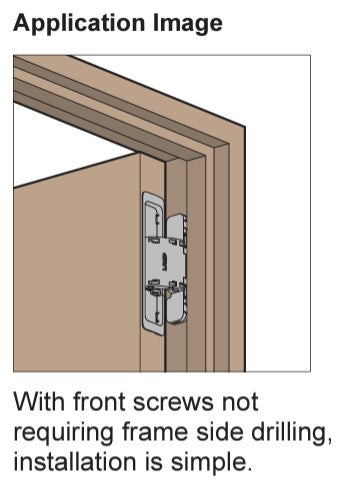

• Surface mount on the door frame enables easy installation (no frame side mortising)
• The hinge cannot be divided between the door and the frame
• Successfully passed 300,000 open/close private cycles
• Compact and sturdy design combined with an exceptionally simple install
• NSF Complaint: No
• ROHS Compliant: ROHS 3
• Includes fasteners - Countersunk Head Tapping Screw 4x20 (8pcs/hinge)
• Sold individually
• Installation Guide
