Three-Way Adjustable Compact Concealed Cabinet Hinge - Multiple Finishes Available - Sold Individually

Sugatsune

$ 65.95
SKU: SUG-HES3D-90DC

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

These high quality small concealed hinges are perfect for the inside of your cabinets such as media console and cabinets for sleek and modern style. HES3D-90 hinges, also called compact invisible hinges, consist of 2 piece assembly:one that connects to the door and one inside the cabinet wall. In addition, the hinges allow for holding glass door like gravity or clamp hinge when installed with new Sugatsune HES3D-G90BKT glass door bracket.

Product Specifications:

  • 3-Way Adjustable Compact Concealed Cabinet Hinge
  • Also called Compact Invisible Hinges
  • Install small concealed hinges on the inside of your cabinets such as media console and cabinets for sleek and modern style
  • Materials: Zinc Alloy, Stainless Steel, ABS
  • Finishes Available: Dull Chrome, Dull Nickel, Black
  • Consist of 2 piece assembly: one that connects to the door, and one inside the cabinet wall

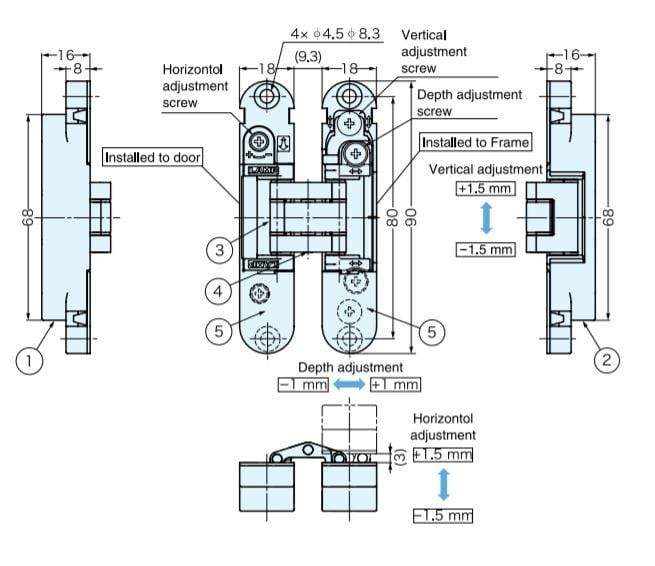

  • 3-Way adjustment function allows vertical, horizontal and depth adjustment after installation
  • Hinge leaves separate for easy installation and adjustment
  • Covers hide screw heads for clean appearance
  • Maximum Door Weight: 26 lbs (12 kg) per 2 pcs, 35 lbs (16 kg) per 3 pcs
  • Minimum Door Thickness: 15/16" Inch (23 mm)

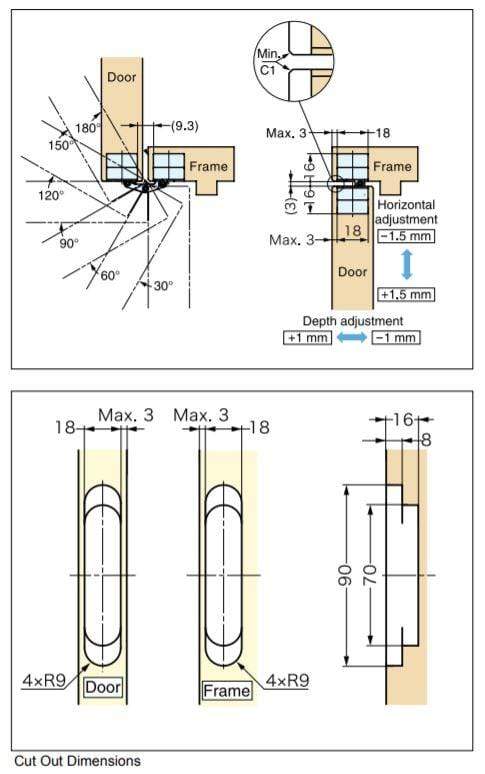

  • Maximum Door Size: H 59-1/16" Inches × W 23-5/8" Inches (1500 mm x 600 mm)
  • Steel countersunk wood screws included
  • Sold Individually
