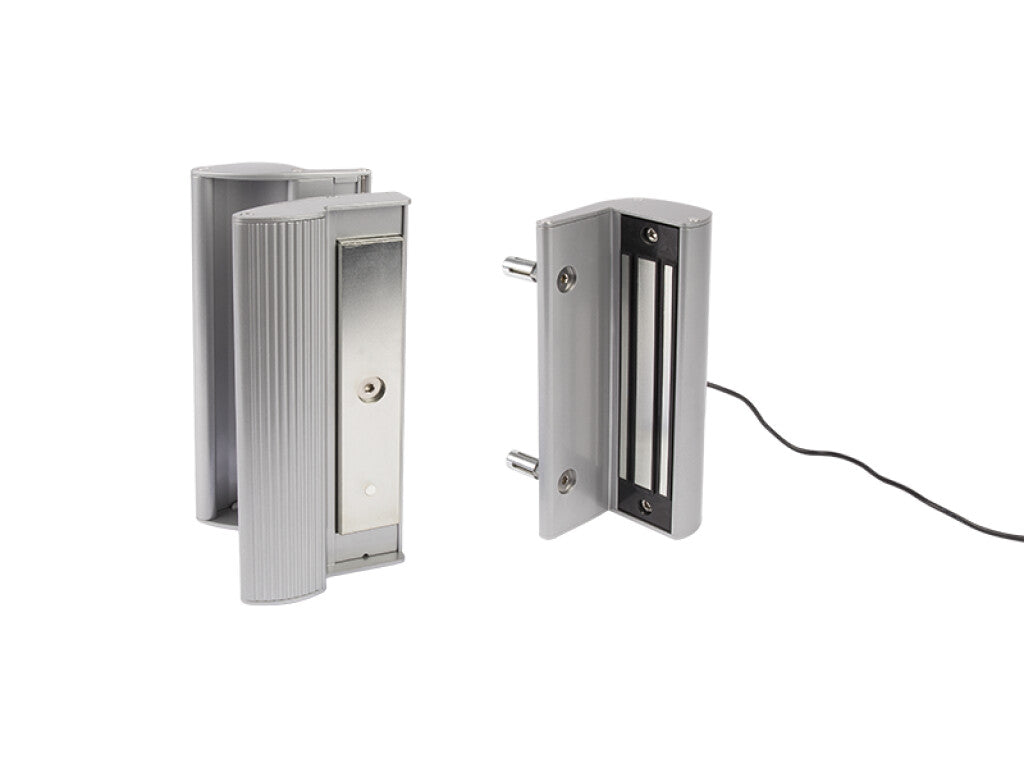

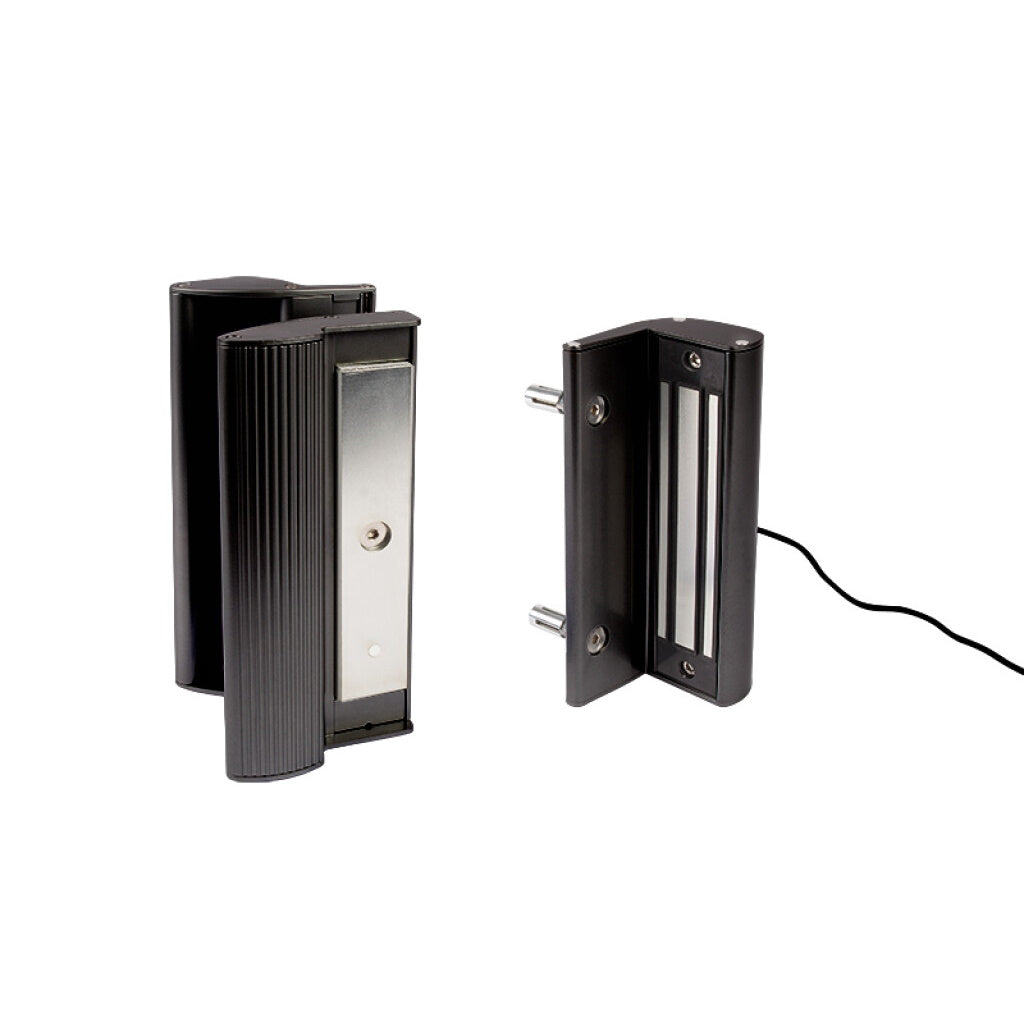

Surface Mounted Electromagnetic Gate Lock with Integrated Pull/Push Handles - For Square Posts 1-9/16" Inch till 3-1/8" Inch - Multiple Finishes - Sold Individually

The Surface Mounted Electromagnetic Gate Lock with Integrated Pull/Push Handles is a bolt-on electromagnetic lock for powered access control. Available in 2 versions; the MAG3000 has up to 660 lbs. and the MAG6000 which has up to 1320 lbs. of pull force resistance. The aluminum powder coated housing with integrated design handles gives your access control gate that extra elegant touch. Stop losing precious time with welding boxes; drilling just 7 holes does the job – our patented Quick-Fix bolts help you install quickly and easily. A two-layer, protective coating guarantees that our electromagnetic locks are ready for years of worry-free use in the outside elements. It is available in a black or silver finish.

Product Specifications:

• Surface Mounted Electromagnetic Gate Lock with Integrated Pull/Push Handles
• For square posts and gate profiles of 1-9/16" Inch till 3-1/8" Inch
• Finishes Available: Black, Silver
• Pulling Force Available: 660 lbs., 1320 lbs.
• Guaranteed holding force tested on every magnetic lock
• 500h salt spray resistant! SGS Certified (ISO 9227)
• Tested according to ISO 9227
• Special two-layer protective coating developed for outdoor use
• Weatherproof aluminum housing designed for exterior use
• Anti-residual magnetism kick-off system
• Raised edge on the magnet housing makes it impossible to put a crowbar between the magnet and the armature plate
• Fail open
• Fast and easy fixing by means of 5 holes with Quick-Fix
• Voltage: 12V / 24V DC
• MAG3000: Minimal pulling force: 3000N (660 lbs)
• MAG6000: Minimal pulling force: 6000N (1300 lbs)
• Current MAG3000: 500 mA / 12 V or 250 mA / 24 V
• Current MAG6000: 460 mA /12 V or 230 mA / 24 V
• With 3006PULL handle
• Sold individually
• Installation Guide
