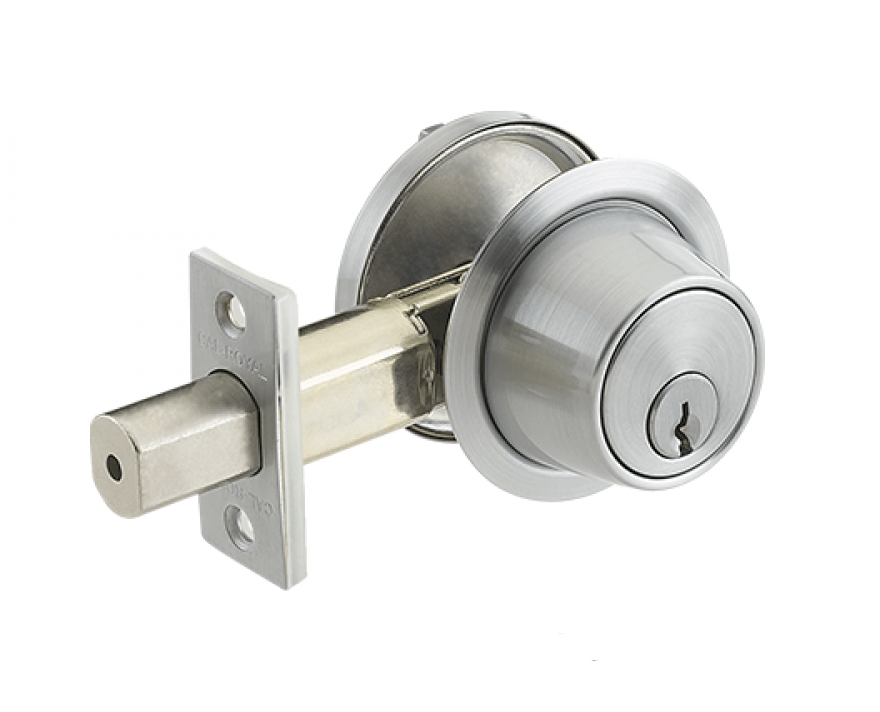

Standard Duty Single Cylinder Deadbolt - Cb160 Grade 2 - Multiple Finishes Available

Product Specifications:

• Standard Duty Single Cylinder Deadbolt
• CB160 Series Grade 2
• Deadbolt thrown or retracted by key from outside or by inside turn unit. Bolt automatically deadlocks when fully thrown
• For standard commercial and residential applications
• ANSI Standards: Conforms with ANSI A156.5 Series 4000, Grade 2 Exceeds 20,000 cycles
• Cylinder & Keyway:  6 pin solid brass “C” keyway, Schlage E, Schlage C-K
• Interchangeable Core: Not Available

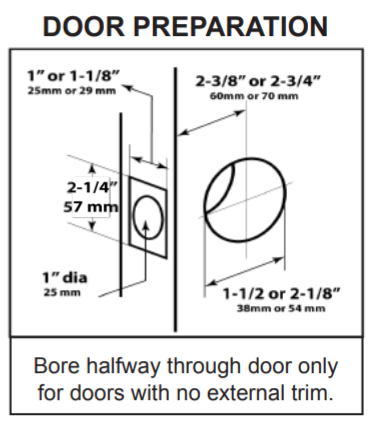

• Door Range: Adjustable 1 ⅜” (35mm) to 1 ¾” (45mm) door thickness
• Deadbolt Face Plate: Latch bolt - Standard 2 ¼” x 1” packed with ⅛” plastic filler to convert 1” face plate to 1 ⅛” wide door preparations
• Bore Diameter: 1” for latch, 1 ½” or 2 ⅛” for lock housing
• Backset: Adjustable 2 ⅜” or 2 ¾”
• Strike: 1 ⅛” x 2 ¾” square corner
• Trim: Wrought Brass or Stainless Steel
• Template

Product Options:

• Finishes Available: Satin Chrome, Polished Brass, Oil Rubbed Bronze, Satin Nickel
