Soft-Close Easy Lift-Up Lid Stay - Left Position - Sold Individually

Sugatsune

$ 72.70
SKU: SUG-SLS-ELAN-ML

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

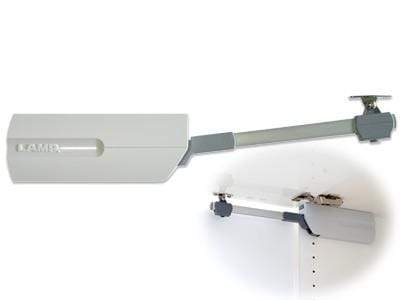

This Soft-Close Easy-Lift Up Lid Stay is for upward-opening flap doors used with concealed, piano, butt, or drop hinges. It is designed to provide effortless opening and hold door in closed and opened position. Single or pair use allows wide range of door sizes/weights.

Product Specifications:
  • Soft-Close Easy Lift-Up Lid Stay
  • For upward-opening flap doors
  • Left position
  • Soft Close: Yes
  • Medium Duty
  • Compatible Hinge Types: Concealed/Piano/Butt/Drop
  • Equipped with damper for soft and silent closing
  • Materials: Aluminum, Steel, ABS
  • Finish: Anodized, Galvanized, Light Grey
  • Door Max. Height: 28"
  • Door Min. Height: 12"
  • Door Max. Torque (kg-cm): 100
  • Door Max. Torque (lb-in): 75
  • Door Min. Torque (kg-cm): 55
  • Door Min. Torque (lb-in): 48
  • Sold Individually

Torque Calculation: Torque = Door Height × 1/2 × Door Weight

Torque per Piece: 55~75 kg·cm (48~65 lbs·in)
