Shut It Hardcore V-Groove Wheels - 4" Inches - For 1 1/2" or 2" Gate Frame - Zinc Finish - Sold Individually

D&D

$ 35.50
SKU: CI2415

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

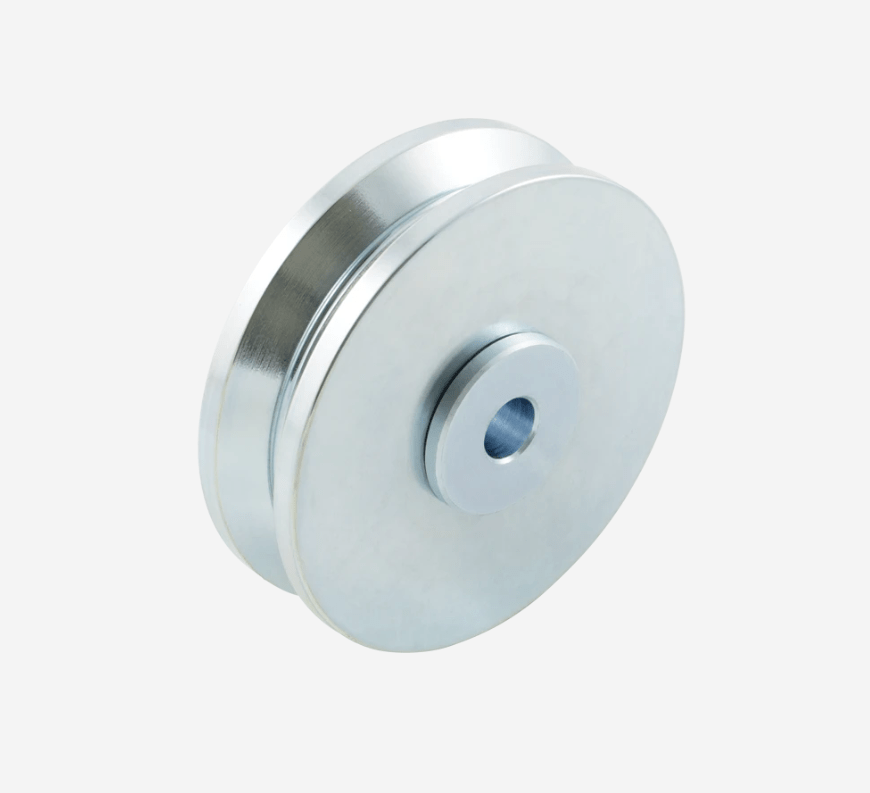

The Shut It Hardcore V-Groove Wheel measures 4" in diameter and is used with a 1 1/2" or 2" gate frame/bottom rail width.  All HardCORE wheels use SHUT IT’s unique bushing design, which fully utilizes the roller bearings.

Features:

  • Shut It Hardcore V-Groove Wheel
  • Size: 4" Inches
  • Gate Frame Size: 1 1/2" Inches, 2" Inches
  • Designed to be used on a gate with a bottom rail
  • Two maintenance-free sealed bearings (no greasing)
  • Only 1 ⅛" (29 mm) wide to reduce friction and debris issues
  • Super-hard cold rolled steel (30RC rating)
  • Maximum Gate Weight: 1,500 lb (680 kg)
  • Maximum Gate Load: 3,000 lb (1,360 kg)
  • Carriage plate and carriage cap available separately
  • All wheels include axle bolt, washers, and locknuts

Specifications:

  • Diameter Size: 4"
  • Gate Frame Size: 1 1/2" Inches (38 mm), 2" Inches (51 mm)
  • Finish: Zinc
  • Fixing Method: Bolt-on
  • Gate Application: Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Material: Aluminum, Steel/Ornamental Iron
  • Approximate Gate Size: 6ft W x 8ft H (1.5m x 2m)
  • Gate Frame/Post Shape: Square-to-Square
  • Sold individually
