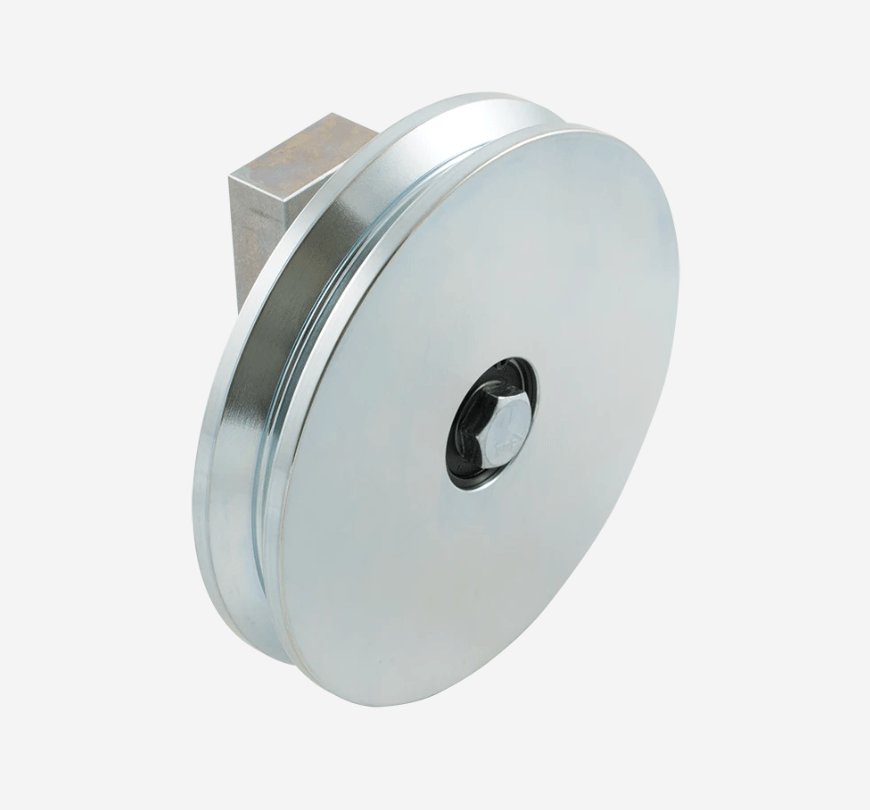

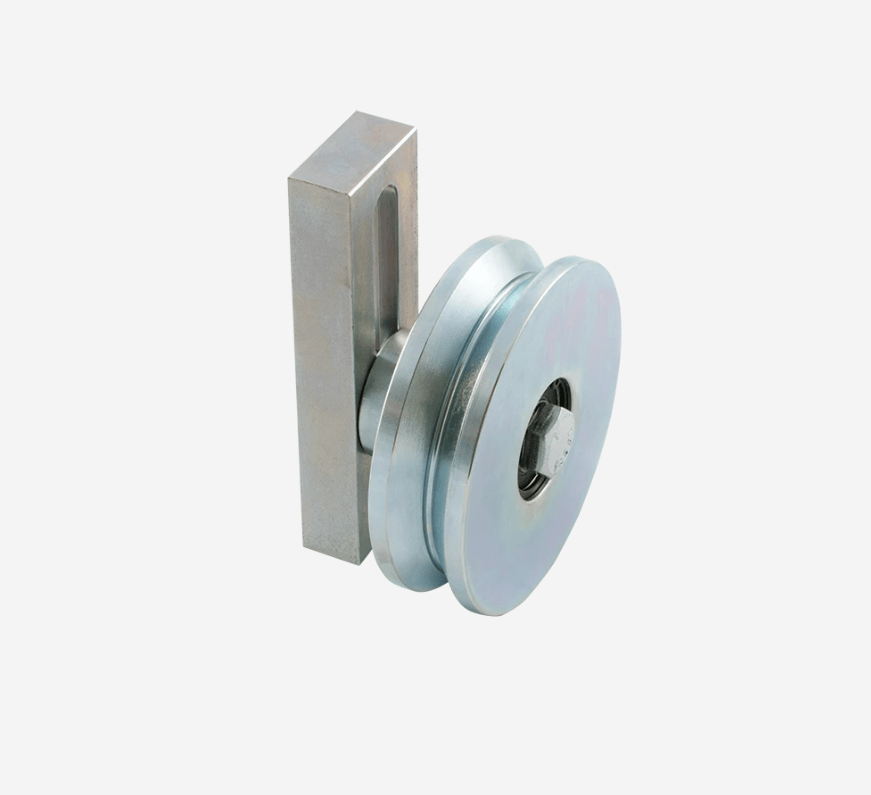

Shut It Hardcore Cantilever Wheel Assembly for Gates - 4" Inches or 6" Inches - Zinc Finish - Sold Individually

D&D

$ 59.53
SKU: CI2240

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

With this Shut It Hardcore Cantilever Wheel Assembly for Gates, a wheel can be installed on a rail rather than on a v-track on the ground surface. These installations are ideal when installing a track on the ground is not feasible. Whether it is on a full cantilever gate system or the SHUT IT designed semi and quarter cantilever system, the HardCORE Cantilever Wheel Assembly is a perfect solution for the odd job.

Features:

  • Shut It Hardcore Cantilever Wheel Assembly for Gates
  • Wheel Diameters Available: 4" Inches, 6" Inches
  • Installed on a rail rather than on a v-track
  • Ideal when installing a track on the ground is not feasible
  • Adjustable plates for perfect installations
  • Only 1 1/8" (29mm) wide to reduce friction and debris
  • Narrow width reduces friction and debris
  • Super-hard cold rolled steel (30RC rating)
  • Two sealed bearings

Specifications:

  • Wheel Diameter: 4", 6"
  • Finish: Zinc
  • Fixing Method: Weld-on
  • Load rating per gate: 3,000 lb (1,360kg)
  • Maximum gate weight: 1,500 lb (680kg)
  • Material: Steel
  • Gate Application: Driveway Gate - Double, Driveway Gate - Single, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Material: Steel/Ornamental Iron
  • Approximate Gate Size: 6ft W x 8ft H (1.5m x 2m)
  • Gate Frame/Post Shape: Square-to-Square
  • Sold individually



4" Technical Drawing:



6" Technical Drawing:
