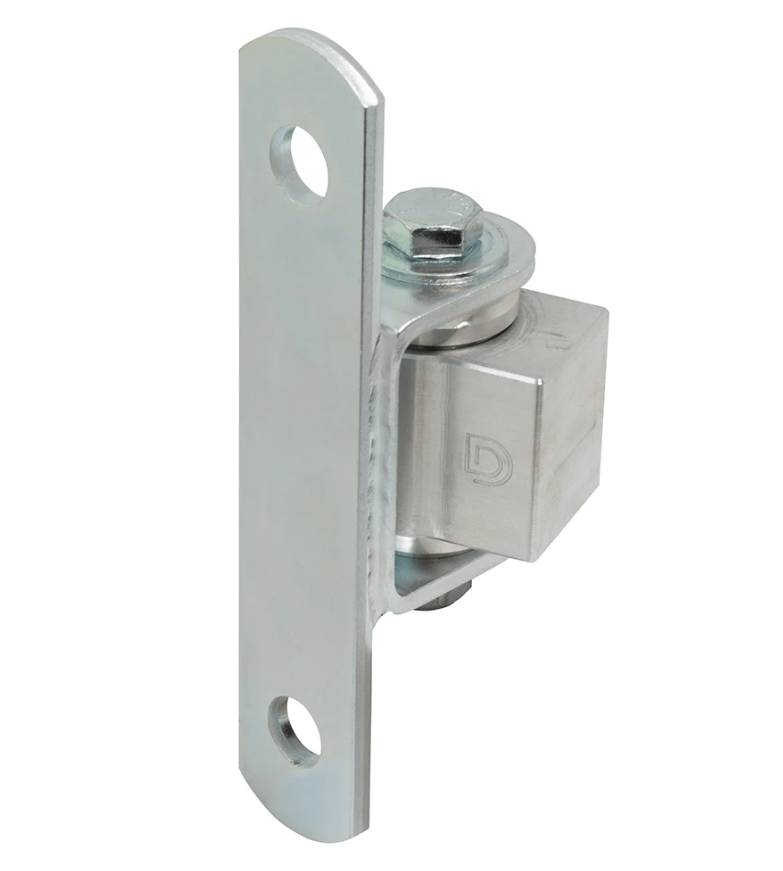

Shut It Half Bolt-On Gate Hinge - 1 1/2" Inches - Fence Post Under 4" - For Gate Gap (2 1/2" - 3")

D&D

$ 90.59
SKU: CI3780

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

All bolt-on gate hinges by SHUT IT are CNC machined to the tightest tolerances in the industry. The Half Bolt-On was designed to be used on gates where welding the hinges to the end post is not an option (no field welder). The Half Bolt-On produce near frictionless movement with maintenance free usage.

Features:

  • Shut It Half Bolt-On Gate Hinge - 1 1/2" Inches
  • Made to bolt or weld to fence posts under 4"
  • Designed to bolt on to an end post
  • Materials: Aluminum Body, Steel Yoke
  • High-temperature sealed bearings – safe to powder coat with hinges installed on gate
  • No greasing, no maintenance. EVER!
  • Horizontal adjustability for perfect installations
  • Flat, bolt-on bracket for through bolting
  • Zinc plated
  • Load rating per gate: 2,000 lb (900kg)
  • Maximum gate weight: 1,000 lb (450kg)

Specifications:

  • Finish: Zinc
  • Gate Type: Non self-closing, Non-safety
  • Gate Applications: Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
  • Gate Material: Steel/Ornamental Iron
  • Gate Frame/Post Shape: Square-to-Square, Square-to-Round
  • Minimum Post Size: 1½"+ (38mm)
  • Approximate Gate Size: 6ft W x 8ft H (1.5m x 2m)
  • Ideal Gate Gap: 2½ - 3" (67-80mm)
  • Fixing Method: Bolt-On, Weld-On
