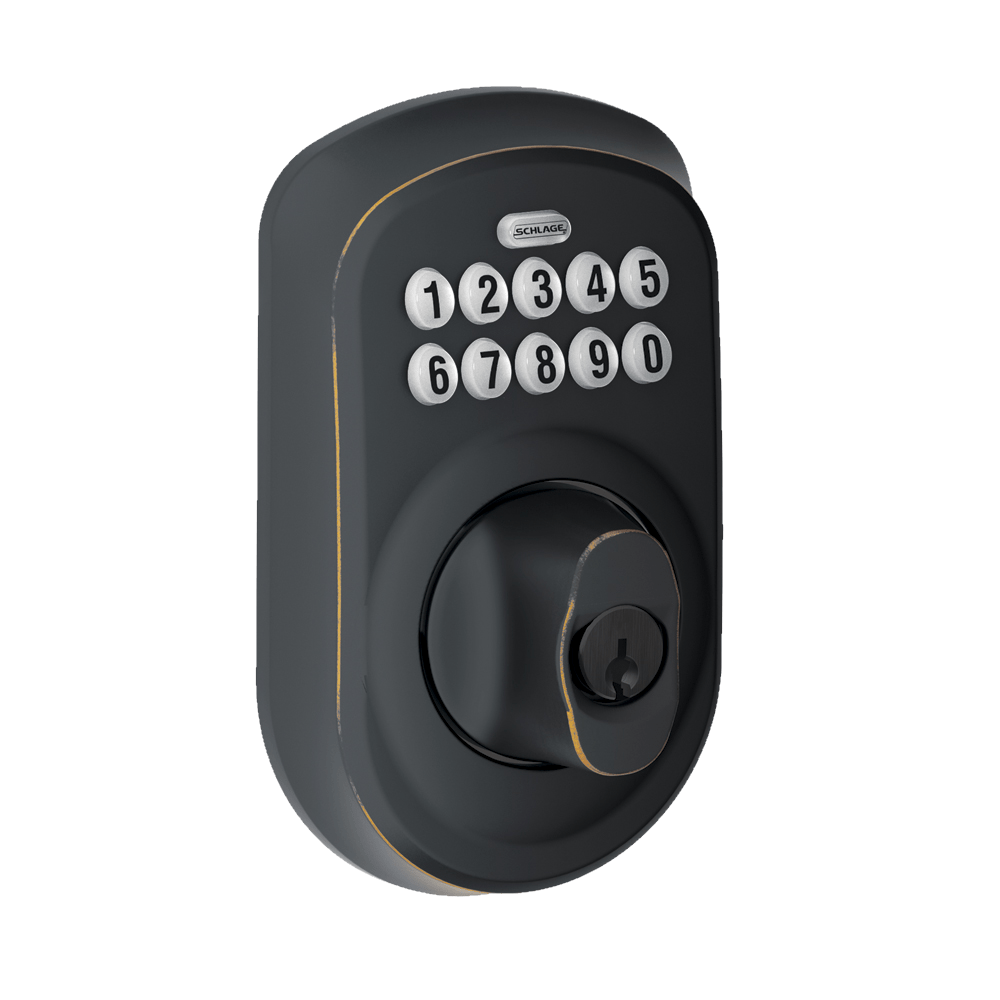

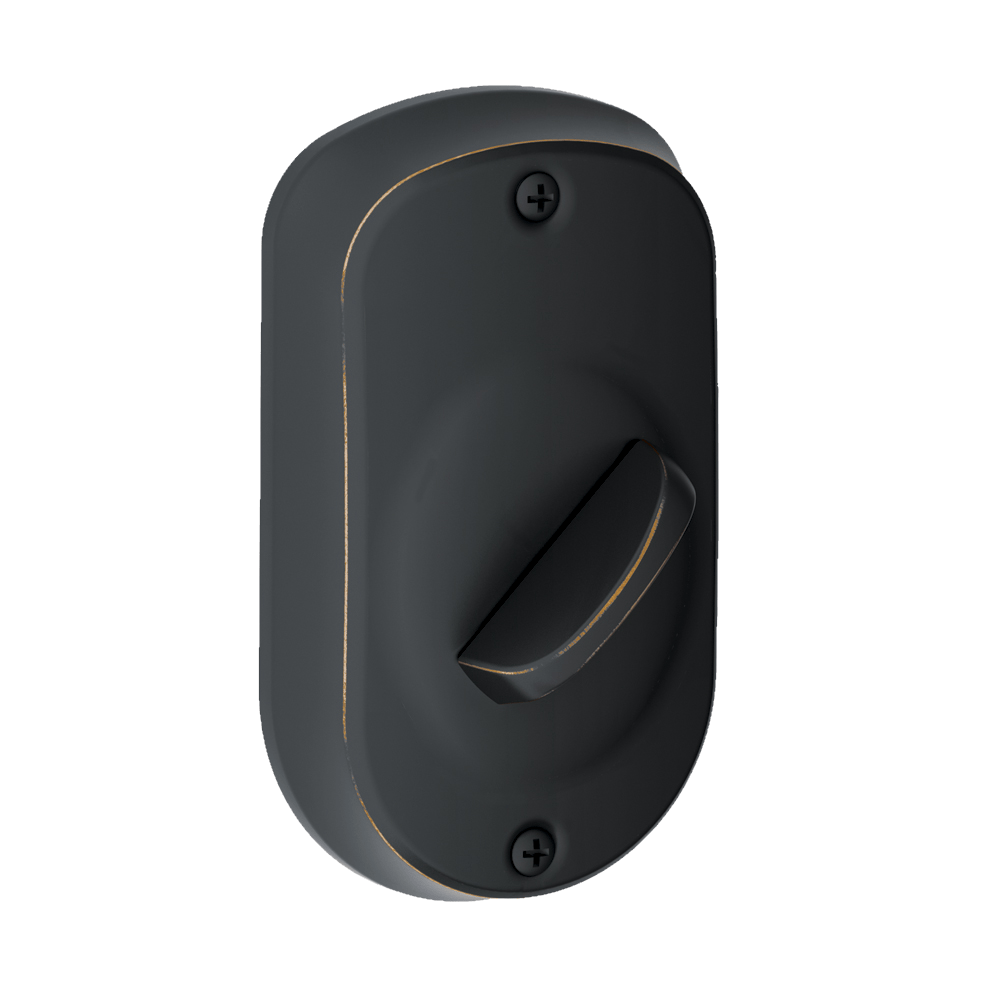

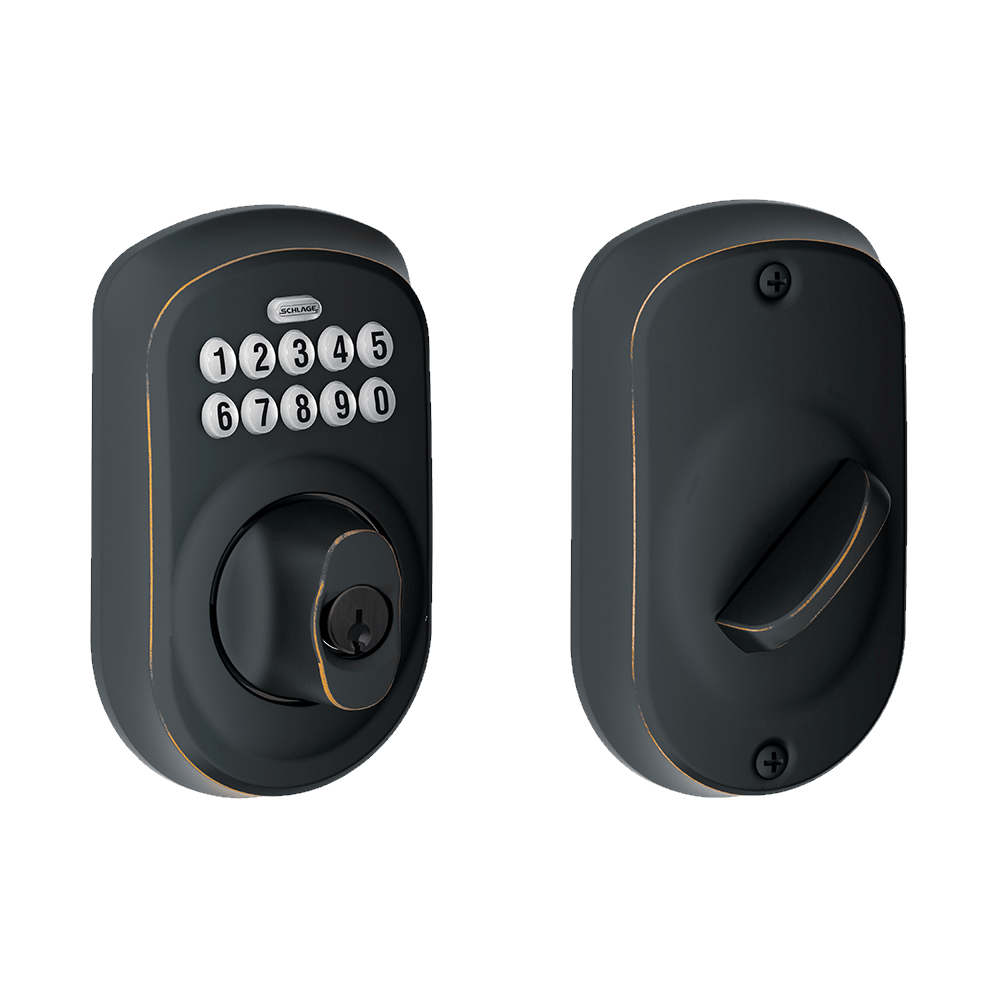

Schlage Residential Electronic Keypad Deadbolt Lockset - Plymouth Style - Aged Bronze Finish - Sold Individually

Top Notch

$ 283.75
SKU: TN-BE365PLY716

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Schlage Residential Electronic Keypad Deadbolt Lockset is guaranteed to fit on existing, standard pre-drilled doors. It features easy installation with just a Phillips screwdriver, and no wiring is needed. It's ideal for front doors, side & back doors, garage entry doors, etc., and has storage of up to 19 access codes. It is available in an Aged Bronze finish.

Product Specifications:

  • Schlage Residential Electronic Keypad Deadbolt Lockset
    • With 12287 Latch and 10116 Strike
  • Plymouth style
  • Finish: Aged Bronze
  • Applications: Residential single- and multi-family doors
    • Ideal for front doors, side & back doors, garage entry doors, etc.
  • Battery: Uses 1 9V battery
  • Door thickness range: 1-3/8" (35 mm) to 1-3/4" (44 mm)
  • Backset: Universal latches and deadbolts fit 2-3/8" (60mm) or 2-3/4" (70mm) backsets
  • Strike: Round Corner 1-1/8" X 2-3/4" Deadbolt Strike
  • Exterior Dimensions: 6.77" x 4.22" x 8.39"
  • Keying: 5-pin tumbler C keyway with one nickel silver key
  • Operating Temperatures: Outside escutcheon: -35C to 66C; Inside escutcheon: -10C to 50C
  • Codes: 2 pre-set unique 4-digit access codes, storage of up to 19 access codes
  • Guaranteed to fit on existing, standard pre-drilled doors
  • Deadbolt thrown from outside by keyway turn after pressing Schlage button or by inside thumbturn
  • Deadbolt retracted from outside by entering valid user code then rotating keyway turn or by inside thumbturn
  • No wiring needed
  • Easy installation with Phillips screwdriver
  • Self-aligning screw holes make installation easy and hassle-free
  • Universal latches slide easily into place and require no tools or manual adjustments
  • Fingerprint resistant
  • Graded Best in Security, Durability, and Finish
  • Certifications:
    • Commercial Standard Certification:ANSI/BHMA A156.36-2010
    • Residential Standard Certification:ANSI/BHMA A156.40-2015
  • Warranty: 3-Year Electronics Warranty; Limited Lifetime Mechanical and Finish Warranty
  • Sold individually
  • Installation Guide
  • Programming Guide
  • Door Prep Template (with holes)
  • Door Prep Template (no holes)
  • Rekeying Manual
