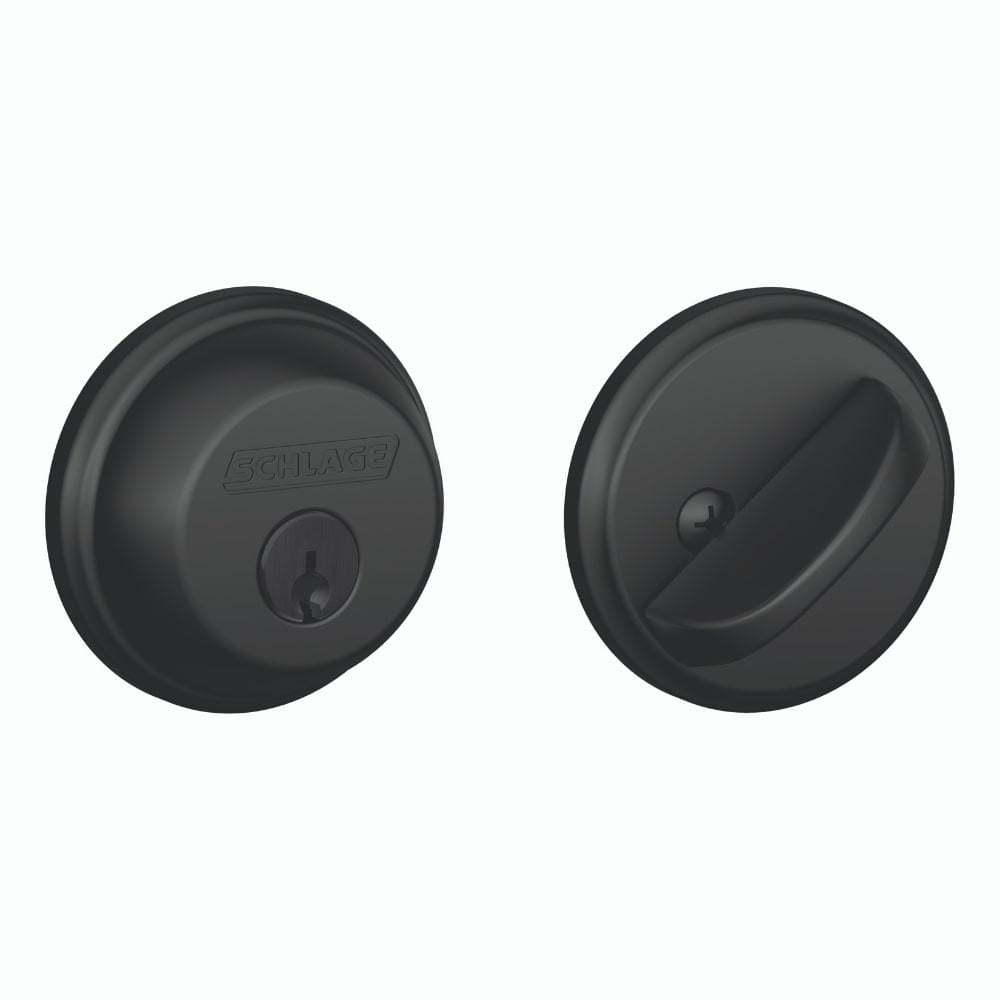

Schlage Residential Deadbolt - Single Cylinder - Matte Black Finish - Sold Individually

Top Notch

SKU: TN-B60622

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

The Schlage Residential Deadbolt is a single cylinder deadbolt with a 5-pin tumbler C keyway. It features easy installation with a Phillips screwdriver and is guaranteed to fit on existing standard pre-drilled doors. The deadbolt is thrown or retracted by key from outside or by inside turn unit, and is pick and bump resistant. It is available in a Matte Black finish.

Product Specifications:

  • Schlage Residential Deadbolt
    • With 12287 Latch and 10116 Strike
  • Single cylinder
  • Applications: Residential single- and multi-family doors
  • Finish: Matte Black
  • Material: Zinc
  • Door Thickness: 1-3/8" to 1-3/4" (5mm-51mm) standard
  • Backset: Universal deadbolts fit 2-3/8" or 2-3/4" backset
  • Strike: Round Corner Deadbolt Strike
  • Keying: 5-pin tumbler C keyway standard, with two brass keys
  • Handing: Reversible
  • Guaranteed to fit on existing, standard pre-drilled doors
  • Deadbolt thrown or retracted by key from outside or by inside turn unit
  • Bolt automatically deadlocks when fully thrown
  • Easy installation with Phillips screwdriver
  • Unique Snap & Stay design holds deadbolt in place while tightening screws
  • Universal latches slide easily into place and require no tools or manual adjustments
  • Pick and bump resistant
  • Graded Best in Residential Security, Durability, and Finish
  • Certifications:
    • Commercial Standard Certification:ANSI/BHMA A156.36-2010 Grade 1
    • Residential Standard Certification:ANSI/BHMA A156.40-2015 Grade AAA in Security, Durability and Finish
  • UL Listed: Locks for up to three-hour fire doors available
  • Warranty: Limited Lifetime Mechanical and Finish Warranty
  • Sold individually
  • Installation Guide
  • Door Prep Template
  • Rekeying Manual
