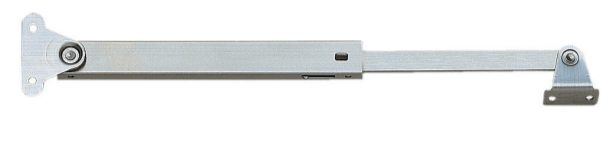

Vertical Lift Up Lid Stay - 10 5/8" Inches - 120° Opening - 304 Stainless Steel - Sold Individually

Sugatsune

$ 67.83
SKU: SUG-L-270

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

This Vertical Lift Up Lid Stay holds the lid or panel in fully opened position, and you simply lift up lid to release. It can be installed individually or in pairs, and is non-handed, which means it can be installed on the left or right side.

Product Specifications:

  • Vertical Lift-Up Lid Stay
  • Hold Open Angle: 120°
  • Material: 304 Stainless Steel
  • Finish: Satin
  • Non-Handed
  • Length from Hole-to-Hole: 10 5/8" Inches (270 mm)
  • Overall Length: 13 3/100" (331 mm)
  • Width: 1 1/25" (26.5 mm)
  • Height: 1 22/25" (48 mm)
  • Compatible Hinge Types: Concealed/Piano/Butt
  • Door Max. Height: 13 25/32" (350 mm)
  • Door Min. Height: 9 27/32" (250 mm)
  • Load Capacity: 33 lbs (15 kg)/each
  • Sold Individually
