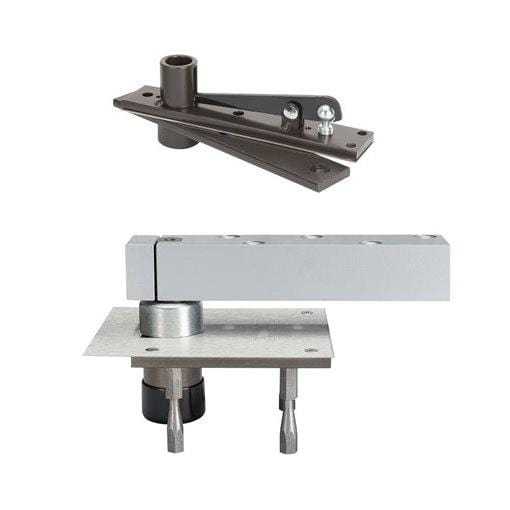

Rixson Center Hung Pivot Door Hinge Set - Includes H340 Top Pivot - Up to 1,000 lbs - 2" Inch Minimum Door Thickness - Oil Rubbed Bronze Finish


SKU: RIX-H11734613

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

The Rixson Center Hung Pivot Door Hinge Set includes standard H340 Top Pivot. It can be used for interior or exterior doors with a minimum thickness of 2", weighing up to 1,000 lbs., and measuring up to 4'0" x 8'6".  It is non-handed and is available in an Oil Rubbed Bronze finish.

Product Specifications:

  • Rixson Center Hung Pivot Door Hinge Set
  • Standard top pivot H340 included
  • Door weight up to 1,000 lbs.
  • End load arm for minimum 2" thick doors
  • Finish: Oil Rubbed Bronze
  • Exterior or Interior Doors
  • Door Sizes up to 4'0" x 8'6"
  • Non-handed
  • Heavy Weight/High Traffic
  • Center hung pivots are door hanging means only
  • Bottom pivot is mortised into floor
  • Pivot point centered in thickness of door
  • Additional surface applied thrust bearing
  • Door must have radius on pivot edge
  • Pivot point remains constant at 2-3/4 from the edge of the door
  • Pivot set features sealed bearings for protection against weather and debris
  • Not allowed for use on labeled doors and frames
  • Includes wood and machine screws
  • Installation Guide
  • Template
