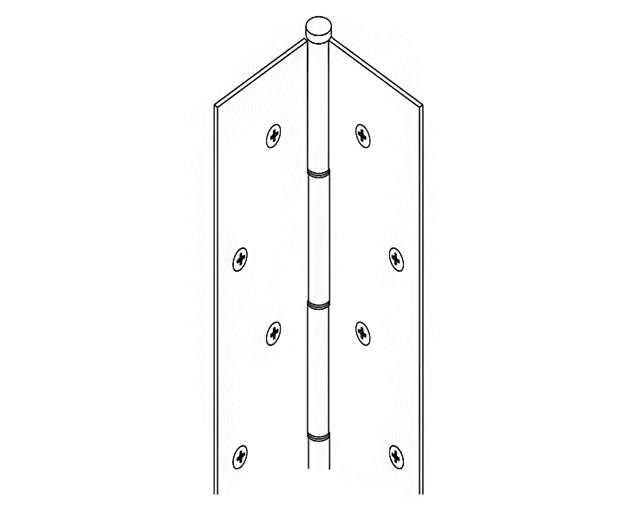

Pin And Barrel Continuous Hinge - Edge Mount - Full Mortise - 7' Feet - Stainless Steel - Sold Individually

This edge-mounted pin and barrel type hinge is used with high traffic, high abuse doors and saves on special door and frame preparation charges and makes the installer’s job easier. They are full mortise and are for use with applications that require wrapped frame and door edges. They are made of Stainless Steel and measure 7'.

Product Specifications:

• Pin and Barrel Continuous Hinge
• Edge mount
• Full mortise
• Size: 7' feet (83 1/8")
• Material: Heavy-duty 14 gauge Stainless Steel
• For applications that require wrapped frame and door edges
• Weight Capacity: 600 lbs.
• Maximum Door Width: 48"
• Ideal for a wide range of applications, including but not limited to high traffic areas, offices, public buildings, hospitals, institutions, educational facilities, and retail spaces
• 3/16" diameter Stainless Steel pin (rod)
• 7/16" diameter exterior barrel
• Medical bearings
• Each knuckle 2", including nylon bearing at each separation for a quiet, smooth, self-lubricating operation
• Standards: ANSI/BHMA Standard A156.26 Grade 1
• Symmetrically templated hole pattern
• Mounting Hardware: Fasteners concealed when door is closed; Custom 12-24 x 11/16" S.S Phillips Flat Head Undercut TEK Screws
• Rating: 3 hours- hollow metal doors; 90 minutes- hollow metal and composite core wood fire doors; 20 minutes- wood doors
• Used on many of today’s high traffic, high abuse doors. The hinge works well in locations that would normally call out for anchor hinges, pivot reinforcement hinges or thrust pivot unit and hinge sets
• Saves on special door and frame preparation charges and makes the installer’s job easier. It can be used on both fire labeled and non-labeled openings
• Template
• Installation Guide
• Sold individually
