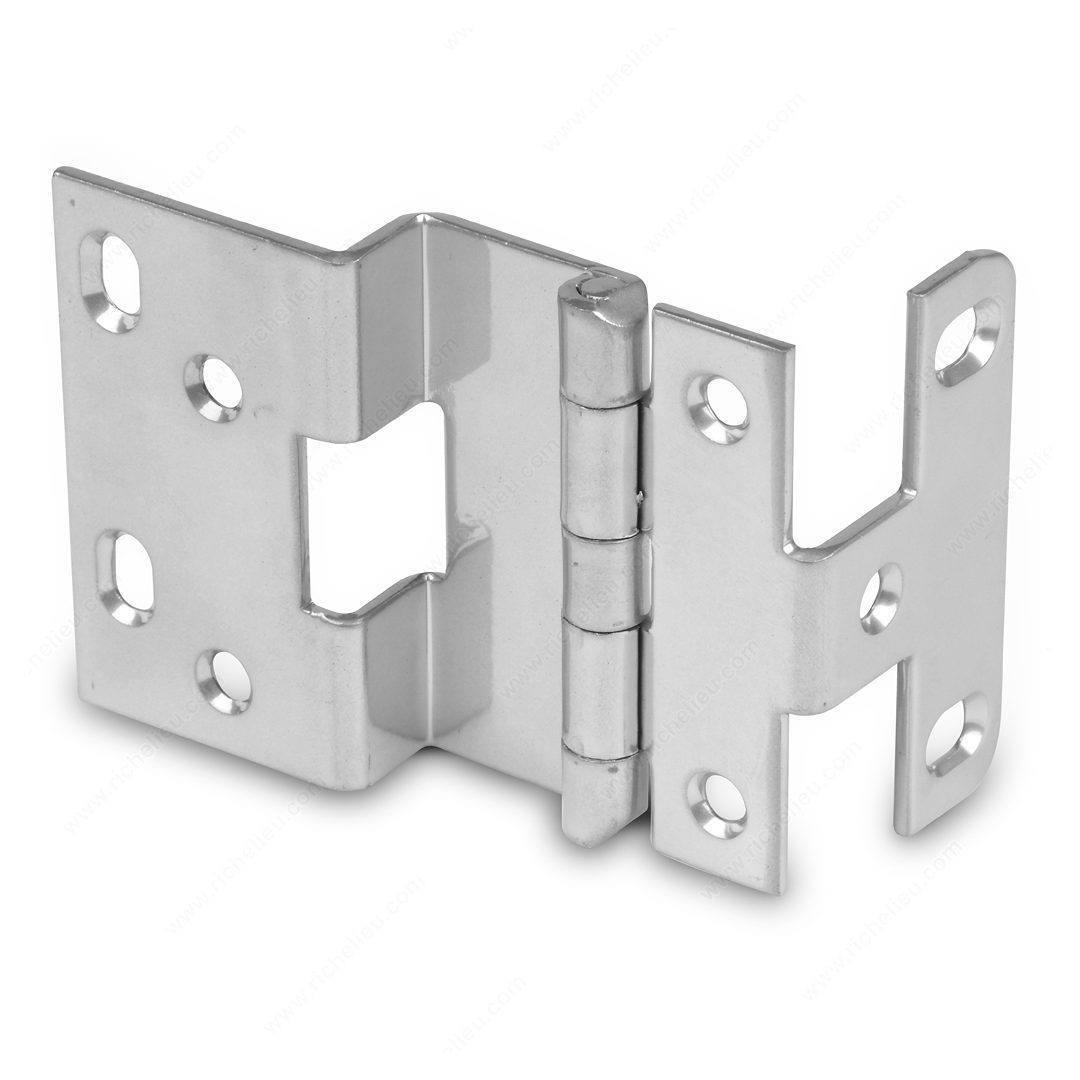

Offset Hinges - 5/8" Overlay Institutional Hinge - Multiple Finishes Available - 2 Pack

We carry a large variety of high quality offset overlay hinges. This offset hinge is available in Satin Chrome and Black finishes, and is used for a door with 13/16" thickness.

Product Specifications:

• Offset Hinges - 5/8" Overlay Institutional Hinge
• Wraparound hinge
• Staggered side panel mounting holes

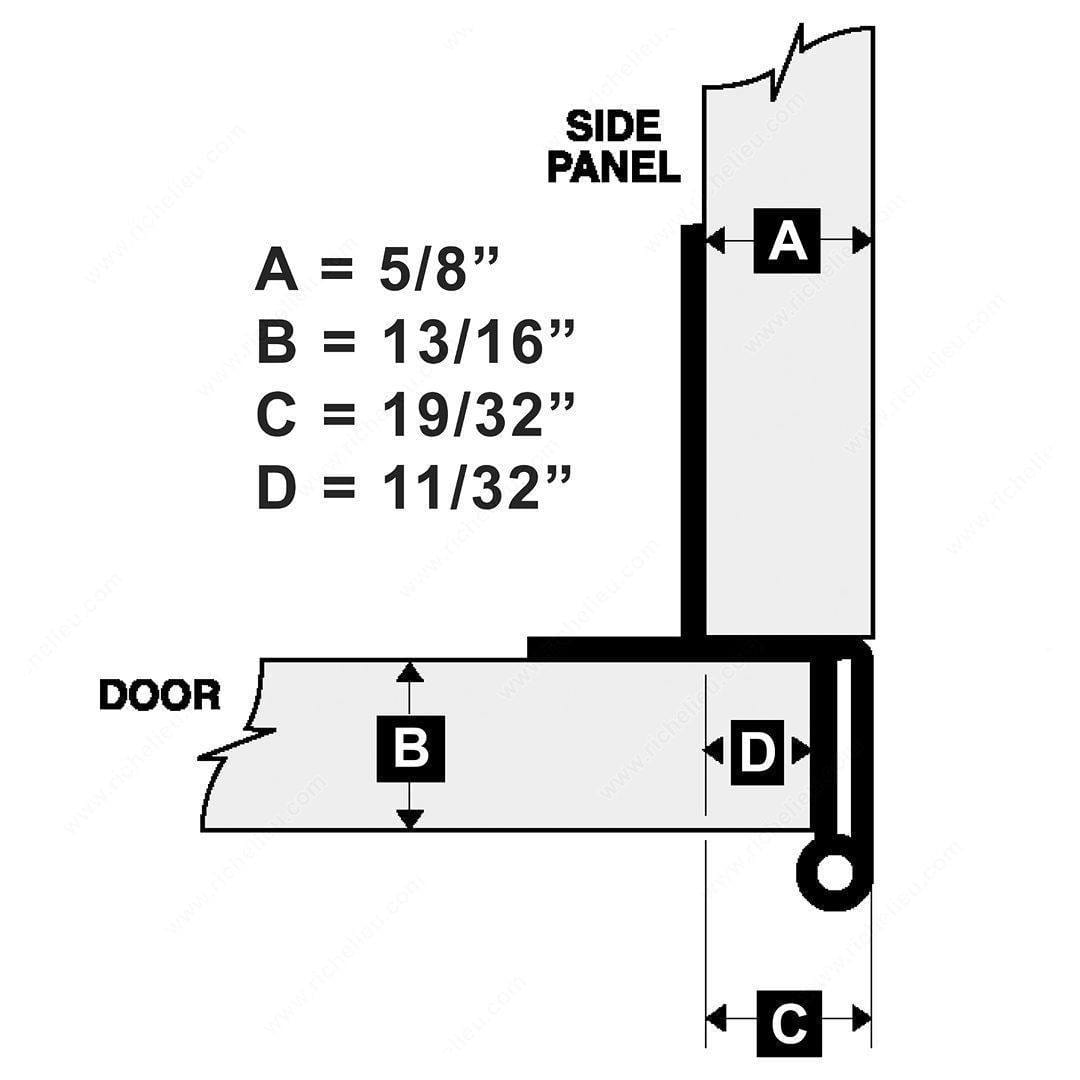

• 9/32" (7.1 mm) reveal (A-D)
• Finishes: Satin Chrome, Black
• Height: 2 3/4" Inches
• Gauge: 2.4 mm
• Door Thickness: 13/16" Inches
• Offset: 5/8" Inch
• Hinge Opening Angle: +270°
• Standards and Certifications: ANSI/BHMA 156.9 Grade 1
• Screws not included (uses #8, Flat Head)
• 2 Pack
