Offset Hinges - 3/4" Overlay Institutional Hinge - Multiple Sizes & Finishes Available - 2 Pack

Richelieu

$ 28.11
SKU: RI-BP91454145

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

We carry a large variety of high quality offset overlay hinges. This offset hinge is available in Satin Chrome and Black finishes, with a choice of 3/4" or 13/16" door thickness.

Product Specifications:

  • Offset Hinges - 3/4" Overlay Institutional Hinge
  • Wraparound hinge
  • Designed for both 32 mm side panel line boring systems and 45 mm door wing insertion systems

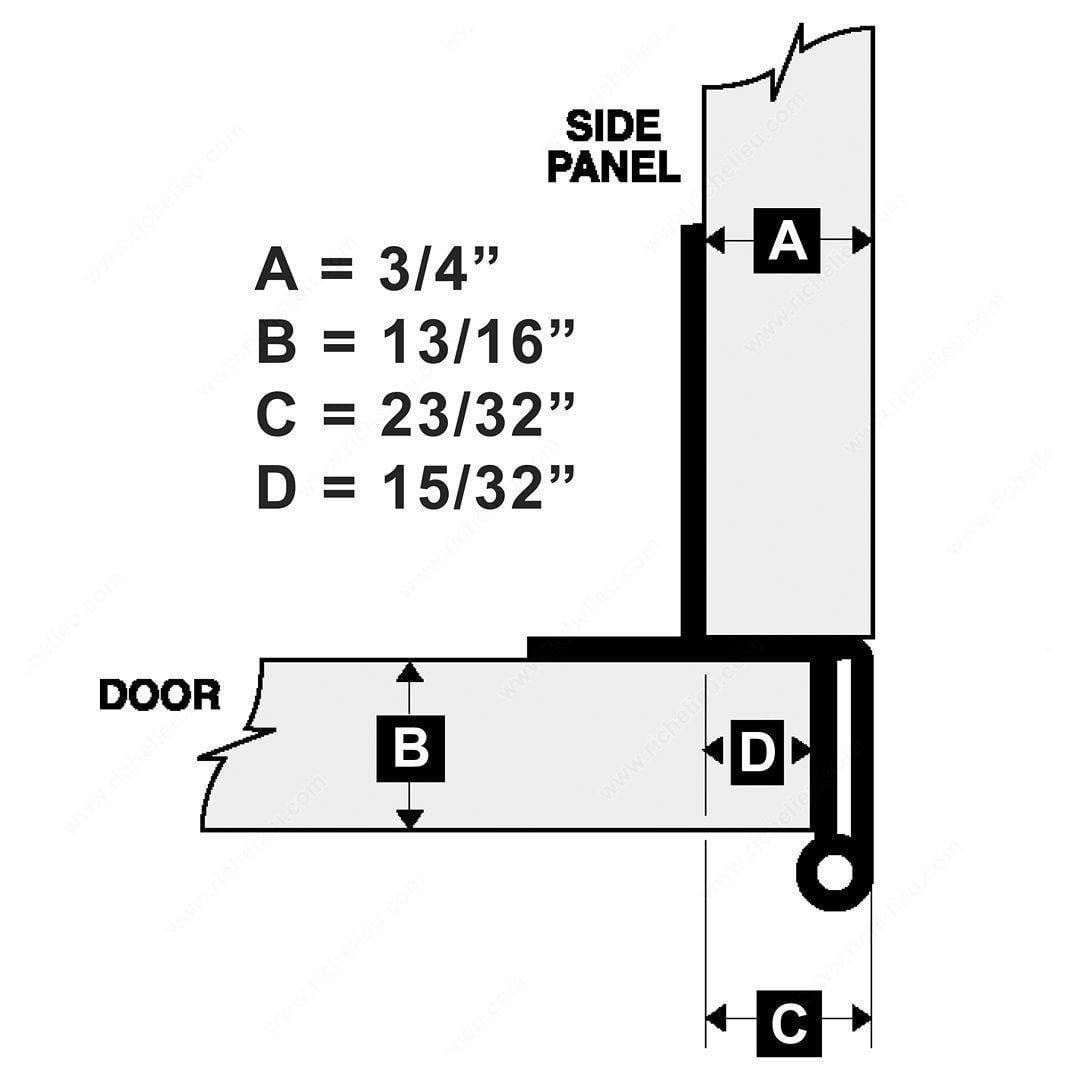

  • 9/32" (7.1 mm) reveal (A-D)

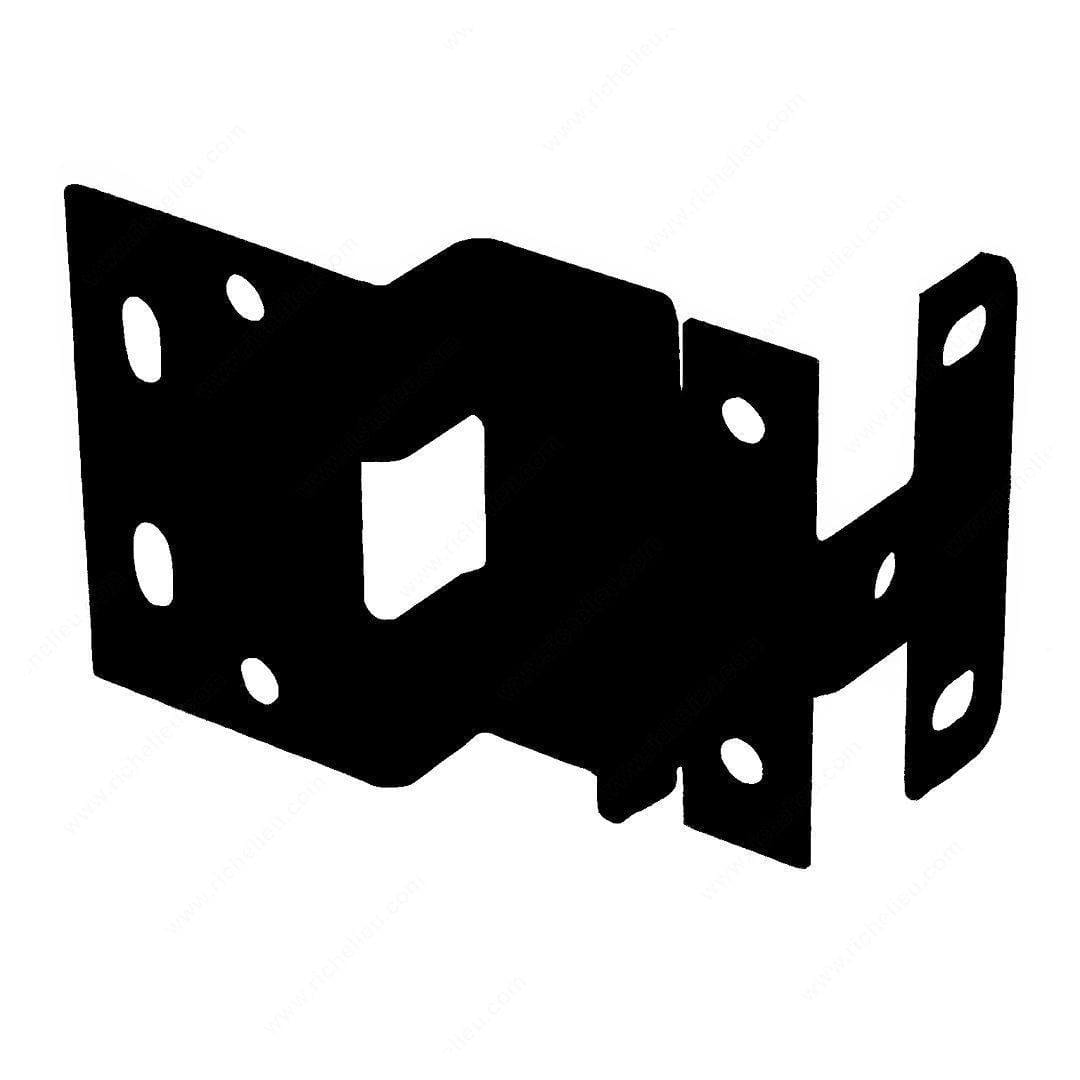

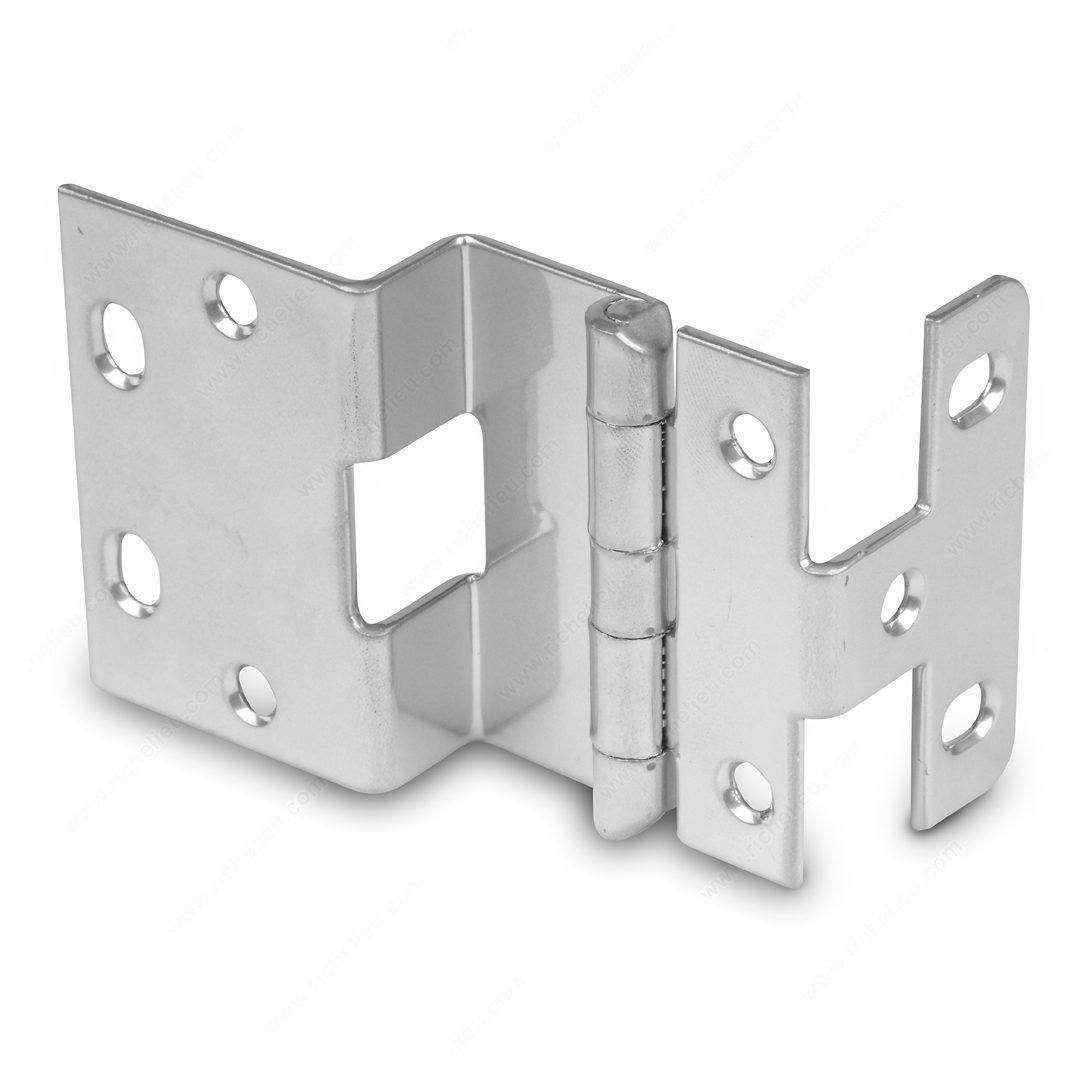

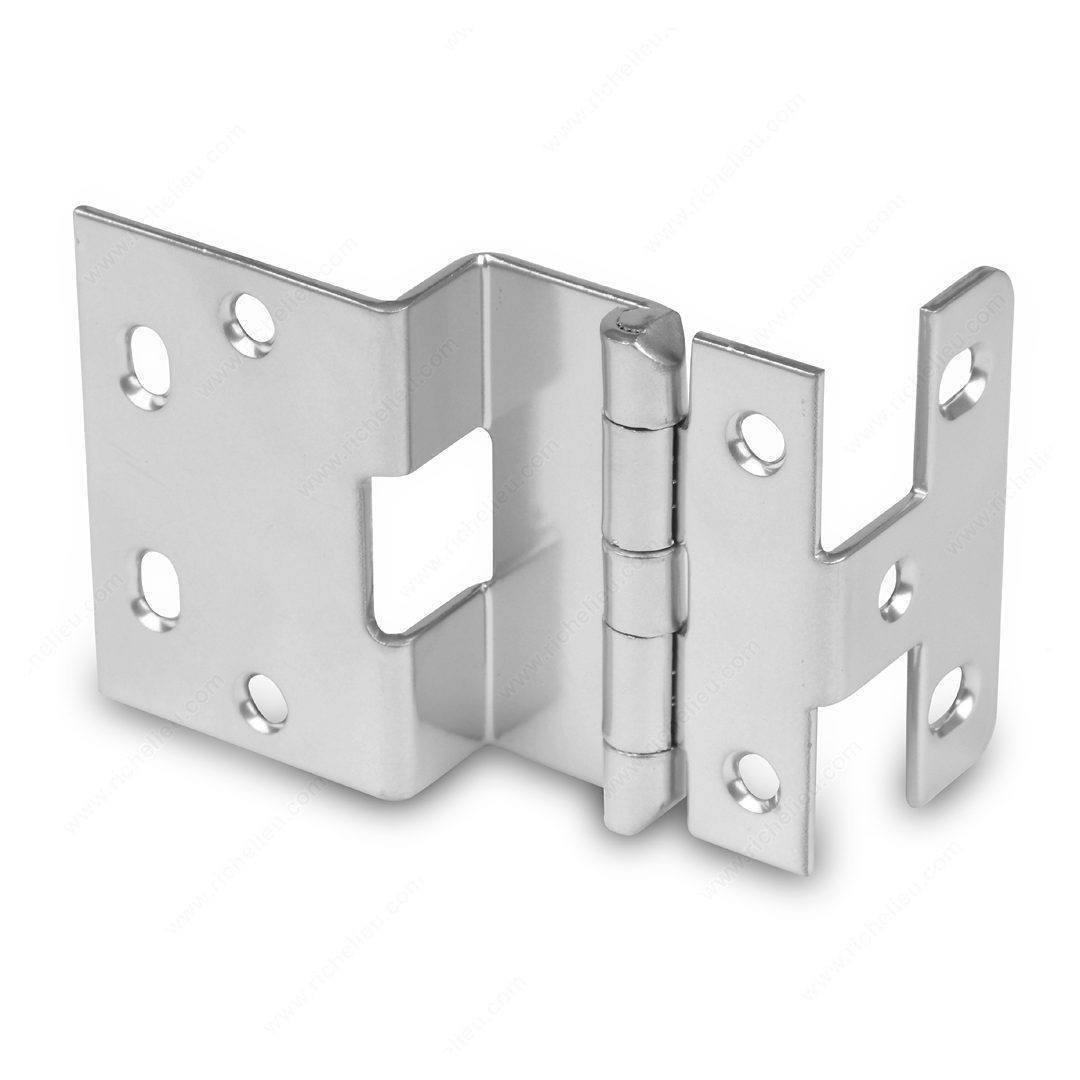

  • Finishes: Satin Chrome, Black
  • Door Thickness: 3/4" Inch, 13/16" Inch
  • Gauge: 0.095" Inch (2.4 mm)
  • Height: 2 3/4" Inches
  • Hinge Overlay: 23/32" Inches
  • Door Overlay: 15/32" Inches
  • Offset: 3/4" Inch
  • Hinge Opening Angle: +270°
  • Standards and Certifications: ANSI/BHMA 156.9 Grade 1
  • Screws not included (uses #8, Flat Head)
  • 2 pack
