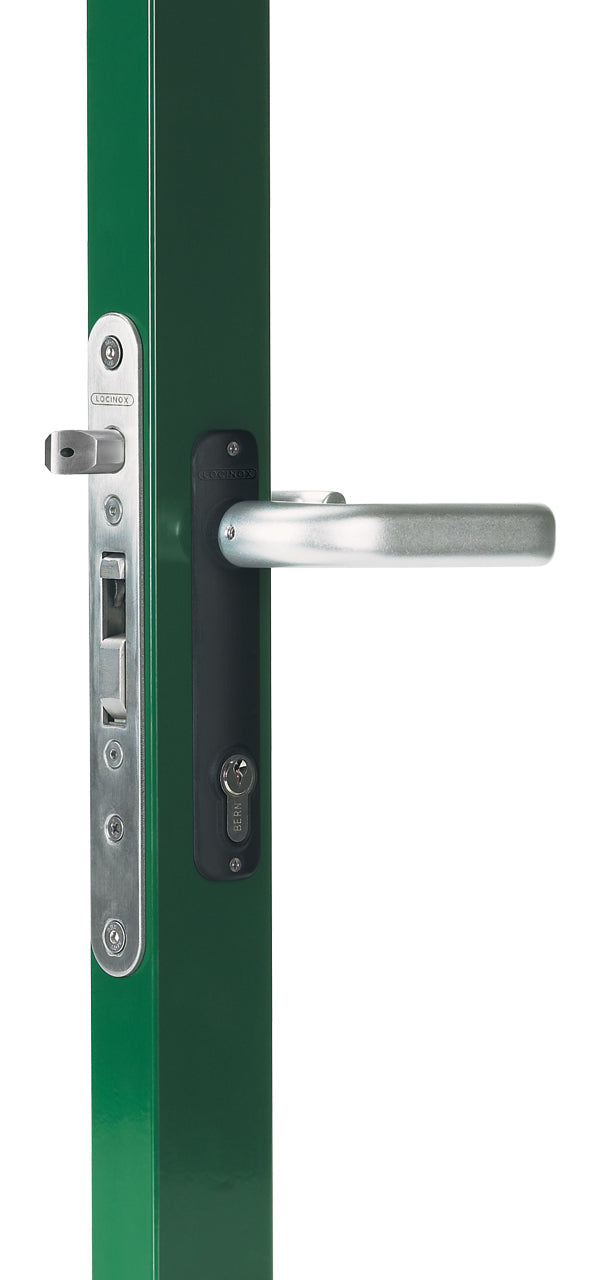

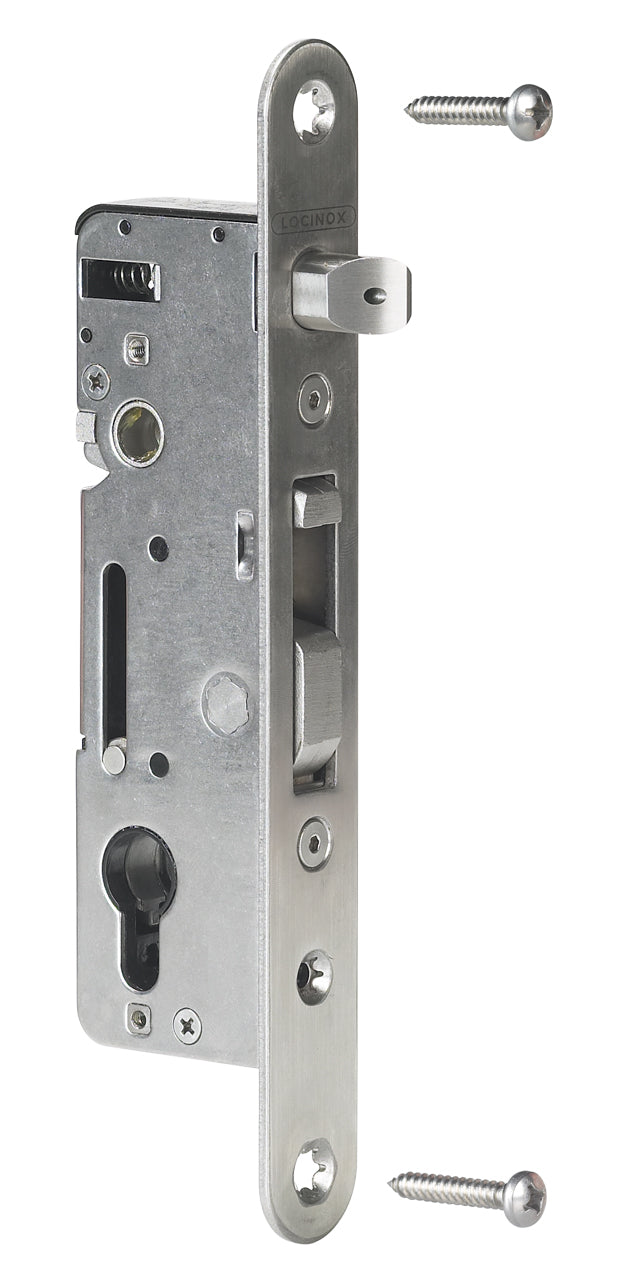

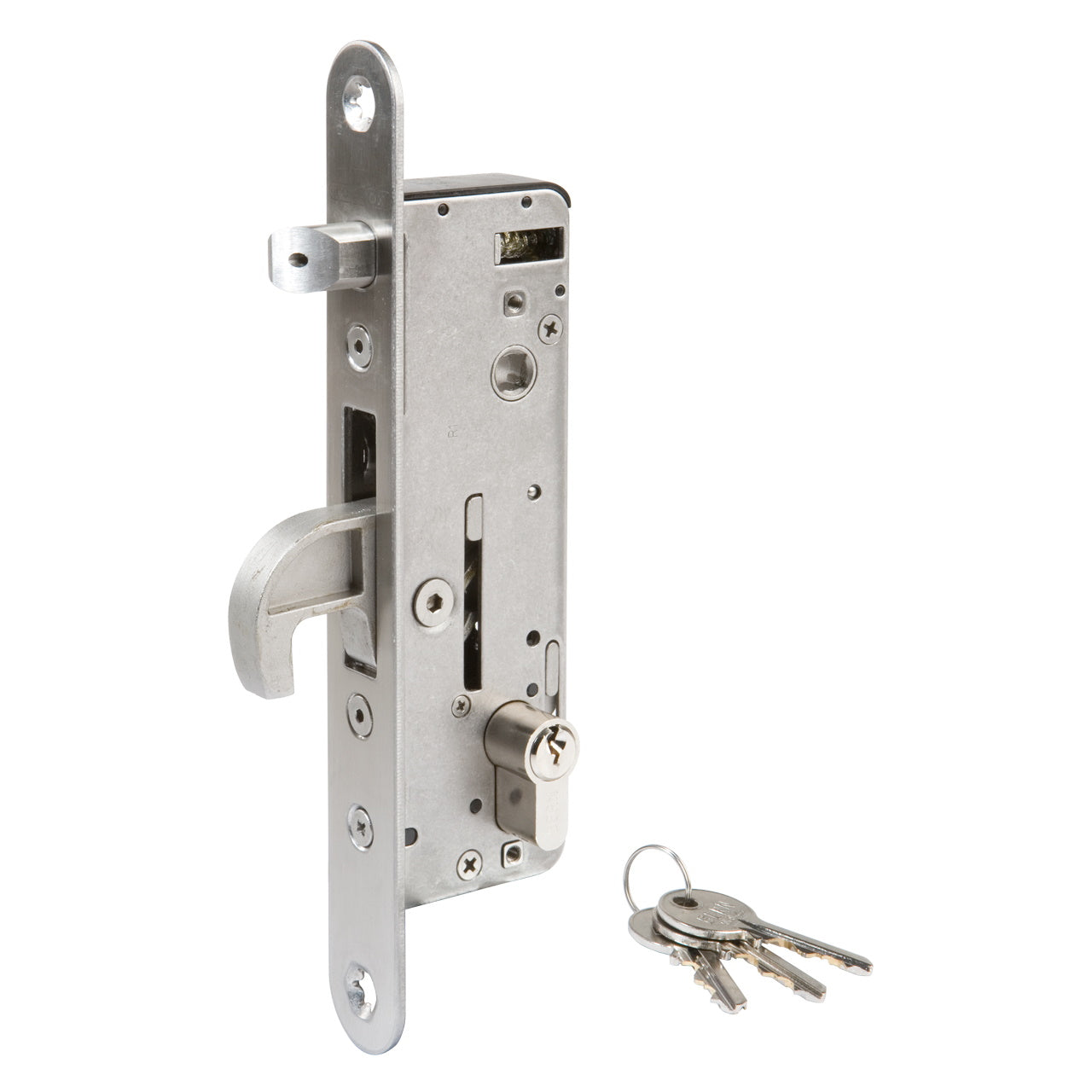

Mortise Lock for Ornamental Gates - Sold Individually

This mortise lock for ornamental gates has a 100% stainless steel mechanism. This model can be installed on steel, aluminum, or wood gates. The massive stainless steel hook and adjustable latch bolt makes this a one of a kind lock. The combination of the hook (dead bolt) with the SHKM or SHKW keep provides a secure anchoring of your gate while preventing the gate from being pried open as the dead bolt's "hook" locks into the keep's anchoring plate. These locks can be used on metal, wood or aluminum gates or even with our fully prepared profiles. The latch gap required is keep dependent, but the SHKM Hybrid keep requires a 7/8" latch gap.

Product Specifications:

• Mortise Lock for Ornamental Gates
• Can be installed on steel, aluminum, or wood gates
• Easy left or right changing of the self-latching daybolt
• Key-operated self-latching bolt, allows Free Exit application
• Adjustment of the latch bolt up to 3/4" continuous without removing the lock
• Stainless steel mechanism, hook, front plate and latch bolt
• Throw of the hook: 1-1/4"
• Center-distance cylinder <=> handles = 3-5/8"
• Hook in combination with the keep provides secure anchoring
• With coverplate for lock mechanism protection against dirt penetration inside the posts
• Available with 2-1/8", 2-3/8", and 3-1/8" cylinder
• Cover shield for handle & cylinder holes to be ordered separately
• Handles to be ordered separately
• Sold individually
• Installation Guide

Specs - Metal/Aluminum:

Specs - Wood:
