Concealed Cabinet Hinges - 1/2 Inch x 1-3/4 Inch - For Min Thick Door 3/4 Inch - Stainless Steel - Sold Individually

Soss

$ 88.45
SKU: 203SSUS32D
Finish:  Satin Stainless Steel

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Details

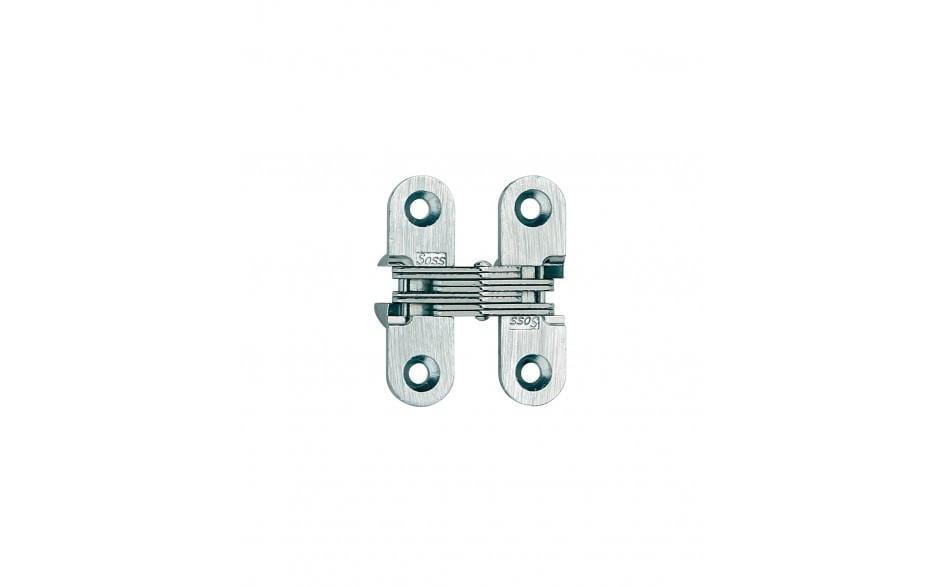

Our High Quality SOSS® Concealed Cabinet Hinge model #203 is for use in wood or metal applications. Made of complete 316 Stainless Steel. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge.


Sold as Each (1 Individual Hinge)      Click to see Official Soss Hinges Video

Finish: Stainless Steel

Additional Information

Application Cabinet, Exterior, Metal, Wood
Min. Material Thickness 3/4"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood

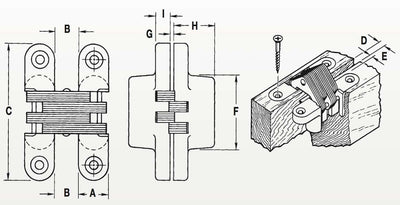

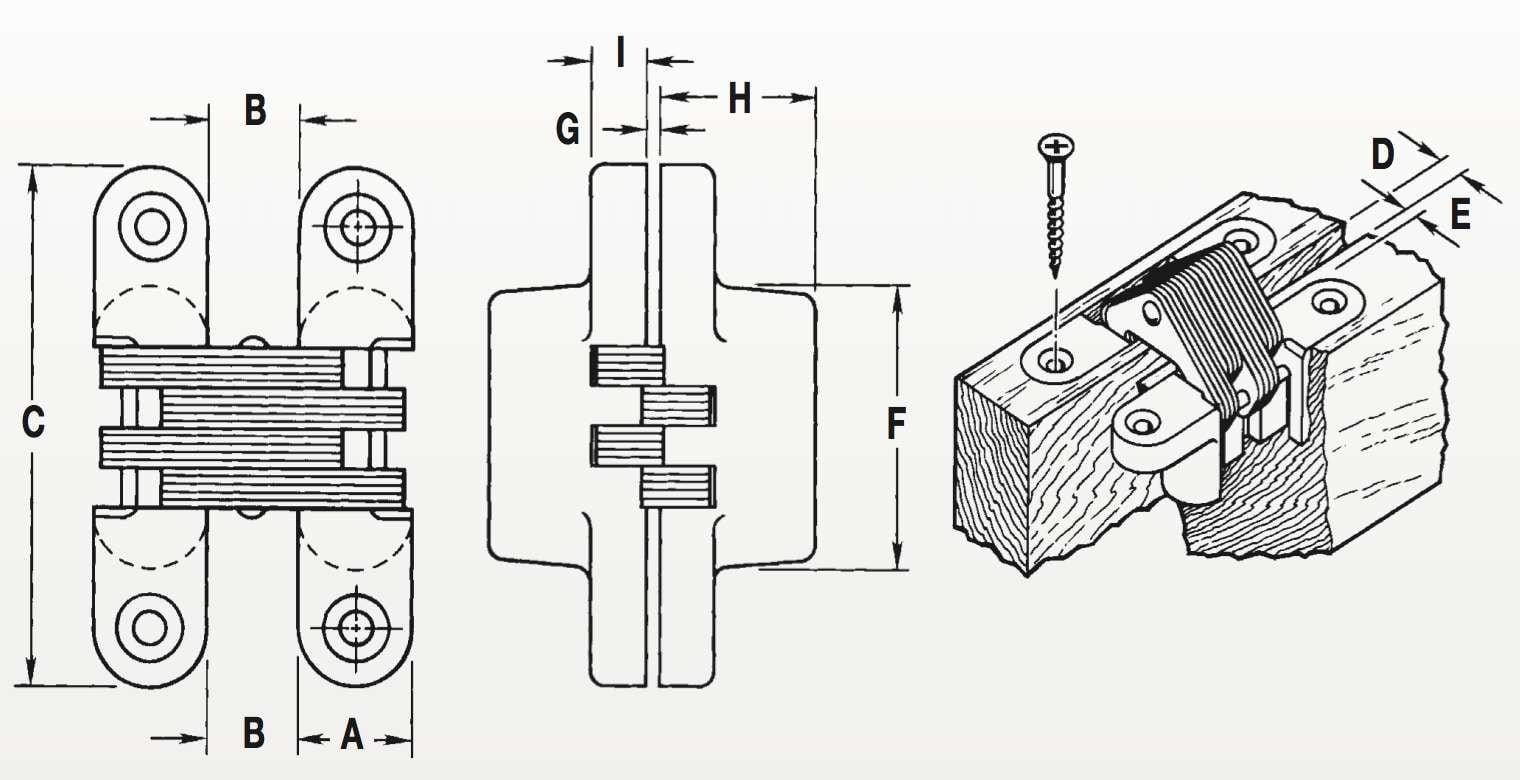

Dimensions

A 1/2" (12.70mm)
B 23/64" (9.13mm)
C 1-3/4" (44.45mm)
D 7/64" (2.78mm)
E 1/8" (3.18mm)
F 3/4" (19.05mm)
G 1/32" (0.79mm)
H 23/32" (18.26mm)
I 3/16" (4.76mm)
Min. Matl. Thickness 3/4" (19.05mm)
Wood Screw Sizes #6x1" (3.5x25mm)
Soft Wood Pilot Hole No. 52
Hard Wood Pilot Hole No. 44
Machine Screw Size #6-40x1/2"
Hinge Weight .11 lb.
