Concealed Hinges - 1/2 Inch x 1-33/64 Inch - Multiple Finishes Available - 2 Pack

Soss

$ 18.47
SKU: 314US26D

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Details

SOSS® Invisible Hinge model #314 is for use in metal applications. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

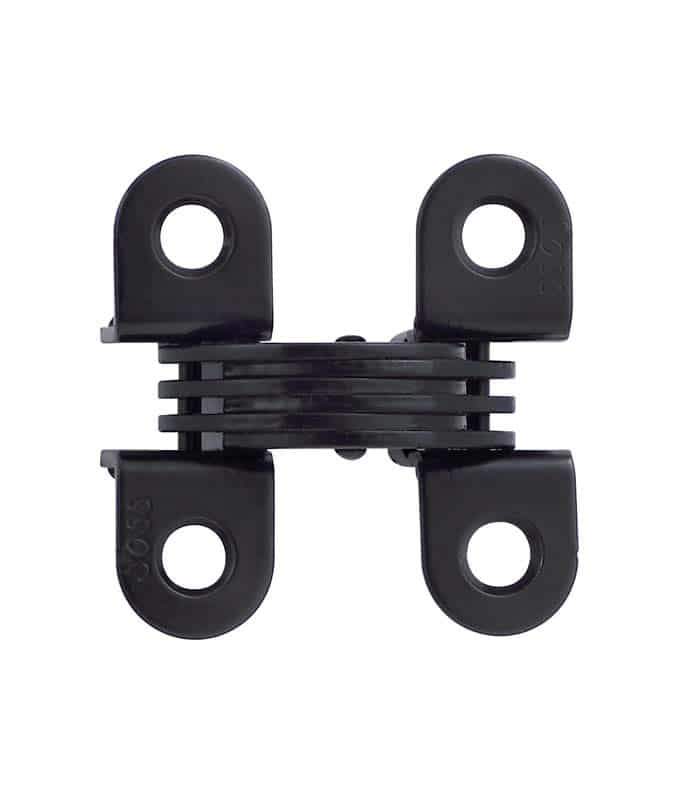

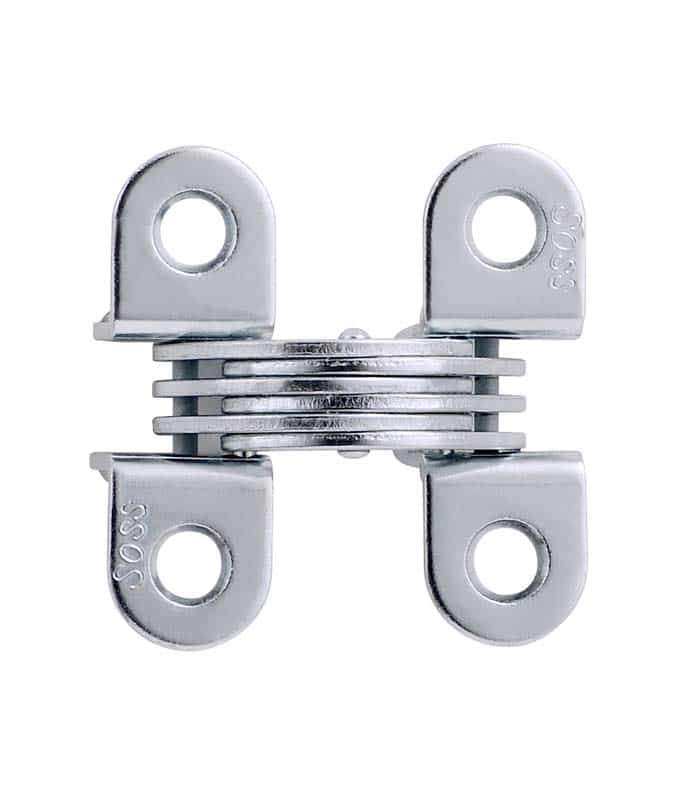

Finishes Available: Satin Chrome, Black E-Coat

Additional Information

Application Cabinet, Metal
Min. Material Thickness No
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included No

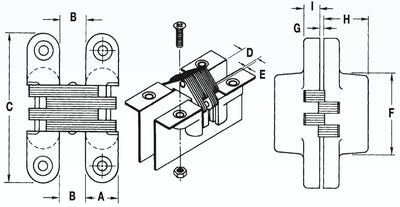

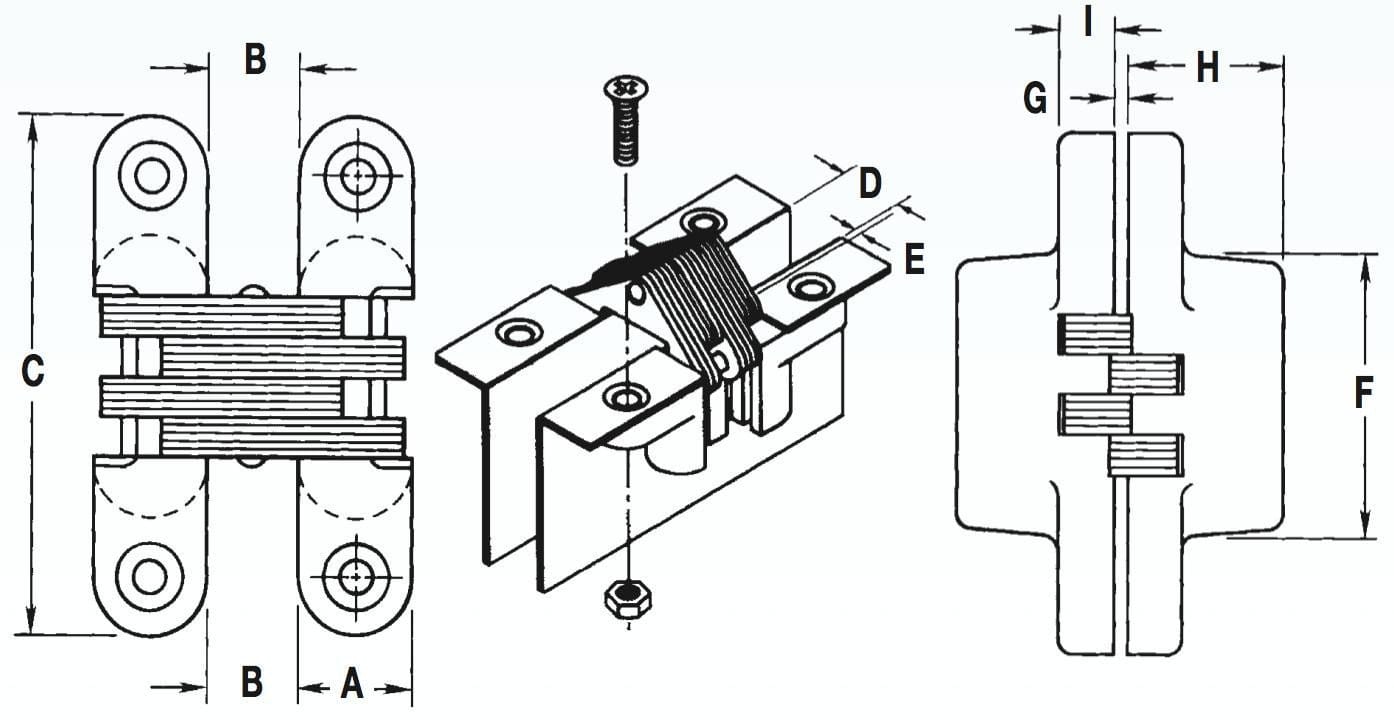

Dimensions

A 1/2" (12.70mm)
B 29/64" (11.51mm)
C 1-33/64" (38.50mm)
D 13/64" (5.16mm)
E 1/8" (3.18mm)
F 19/32” (15.08mm)
G 3/32" (2.38mm)
H 41/64" (16.27mm)
I 1/16” (1.59mm)
Min. Matl. Thickness N/A
Machine Screw Sizes #5-40x1/2"
Hinge Weight .06 lb.
