Concealed Hinges - Model 303 Invisible

Soss

$ 17.71
SKU: 303US19

Share:

Details

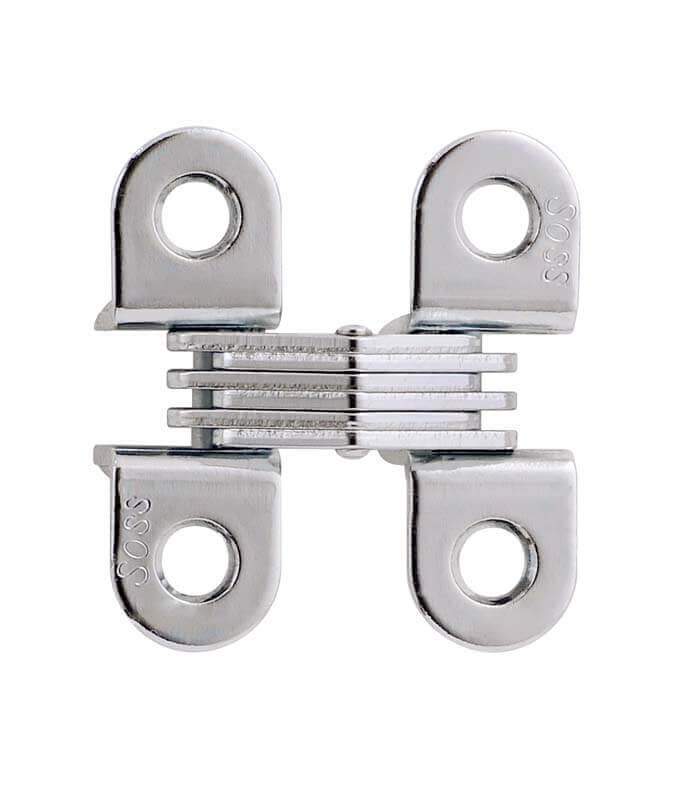

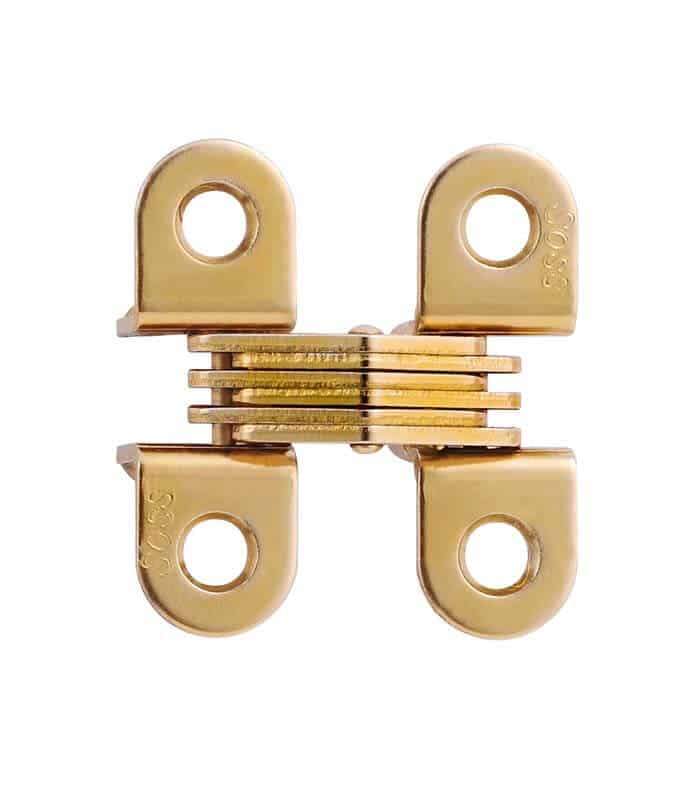

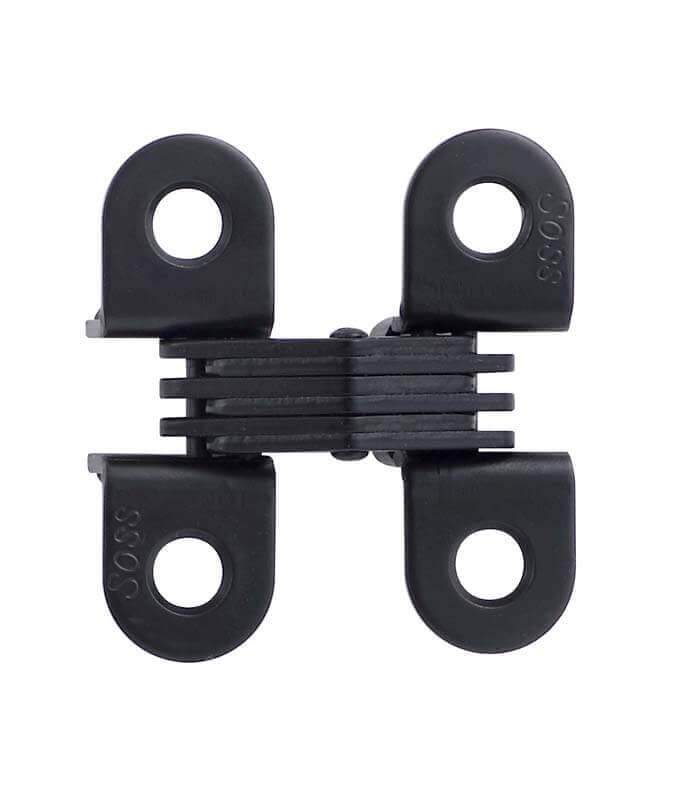

SOSS® Invisible Hinge model #303 is for use in wood or metal applications. This cabinet style hinge will provide superior appearance and durability. Our Hinges are found in many applications where flush fit, compact size and smooth operation are necessary features. SOSS® Invisible Hinges open a full 180° and are a single action hinge.

Machine screws are available for an additional charge.

Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 11/16"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood
Packaging 2 / Card = 1 Pair
Packages Per Container 10 Pair
Price Per Pair

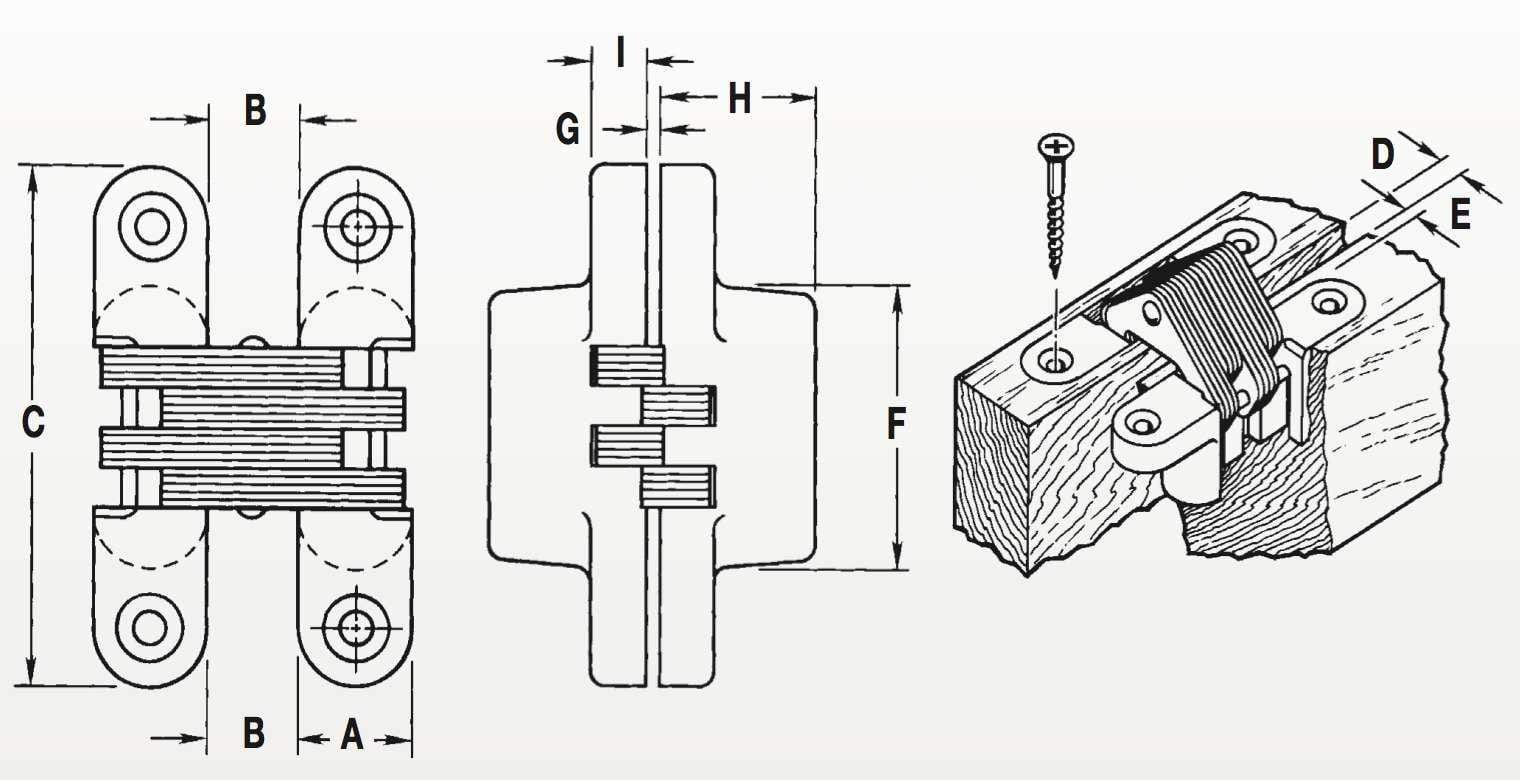

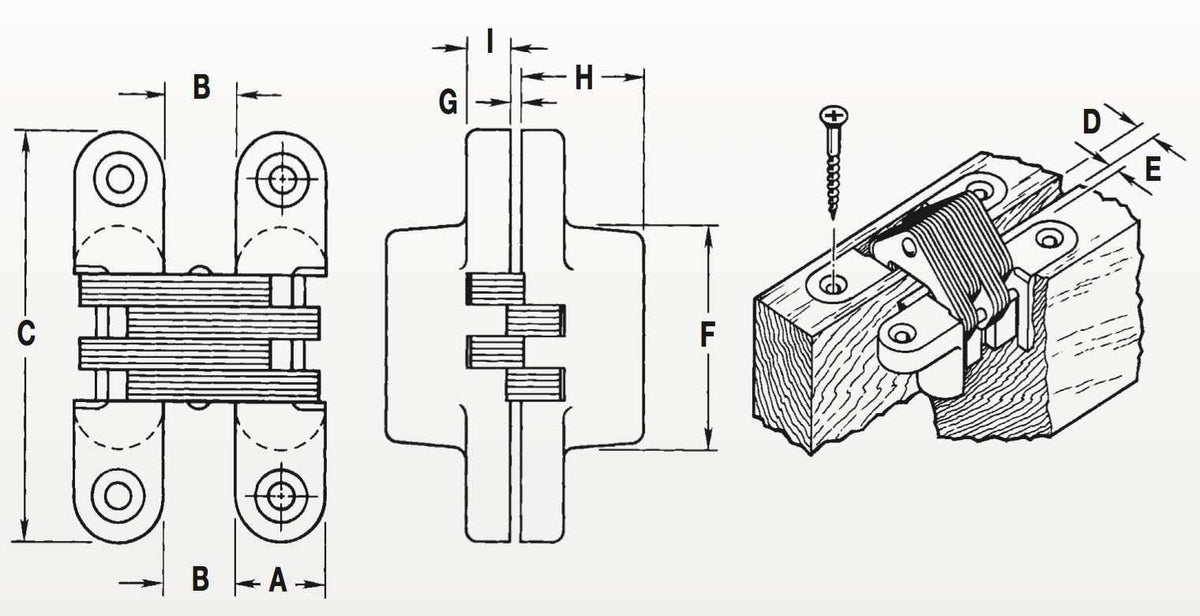

Dimensions

A 1/2" (12.70mm)
B 3/8" (9.53mm)
C 1-33/64" (38.50mm)
D 1/8" (3.18mm)
E 1/8" (3.18mm)
F 19/32” (15.08mm)
G 1/32" (0.79mm)
H 41/64" (16.27mm)
I .054” (1.37mm)
Min. Matl. Thickness 11/16" (17.46mm)
Wood Screw Sizes #5x3/4" (3.5x19mm)
Soft Wood Pilot Hole No. 53
Hard Wood Pilot Hole No. 47
Machine Screw Sizes #5-40x1/ 2”
Hinge Weight .05 lb.
