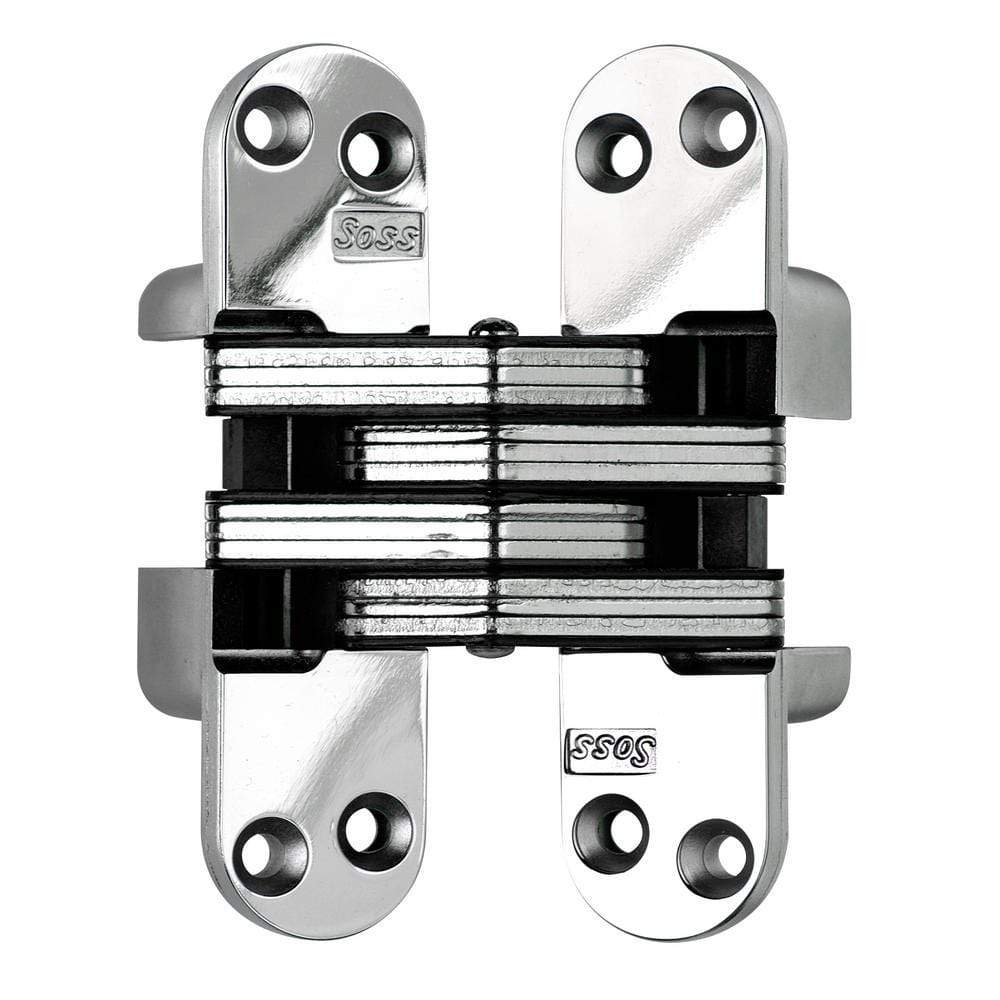

Concealed Door Hinges - 1-1/8 Inch x 4-5/8 Inch - For Min Thick Door 1 3/4 Inch - SOSS 218 - Multiple Finishes Available - Sold Individually



  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Our High Quality SOSS® Concealed Door Hinge model #218 is for use in metal or wood applications. This full size door hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!

Sold as Each (1 Individual Hinge)
Click to see Official Soss Hinges Video
How to install Concealed Hinges

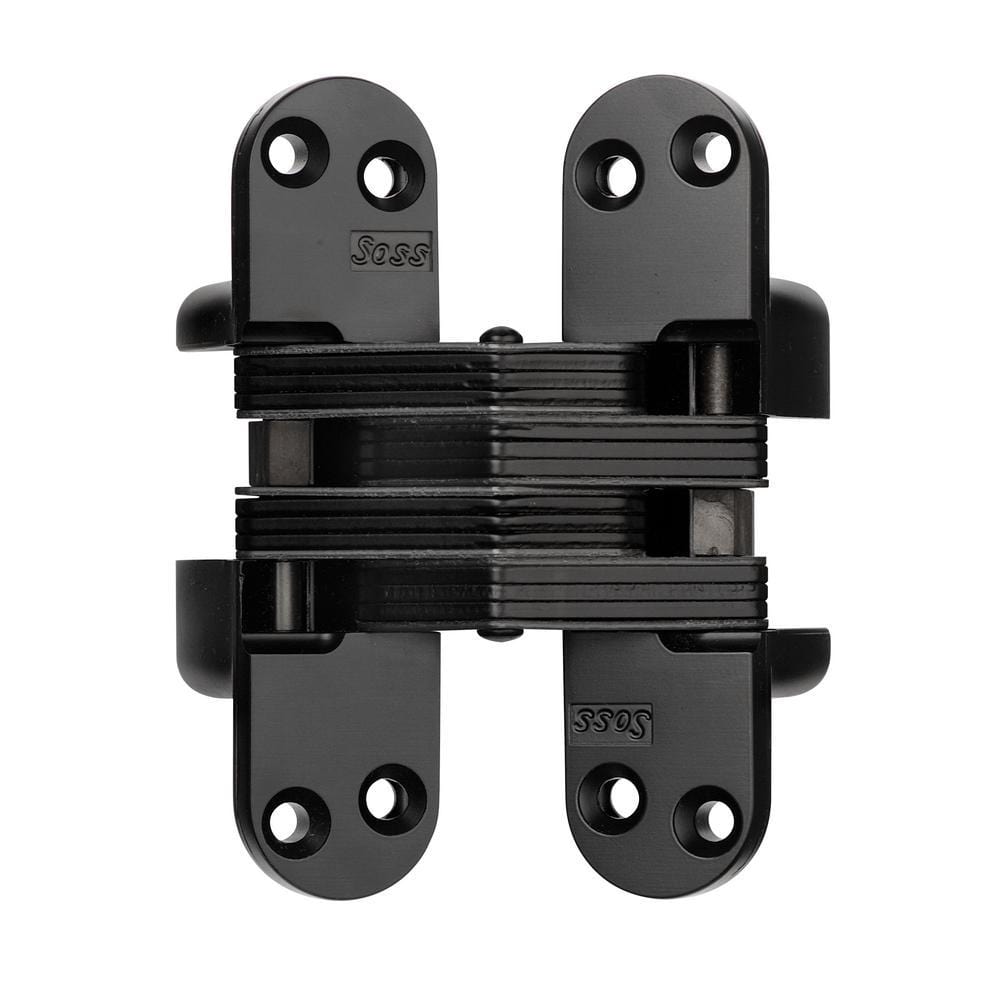

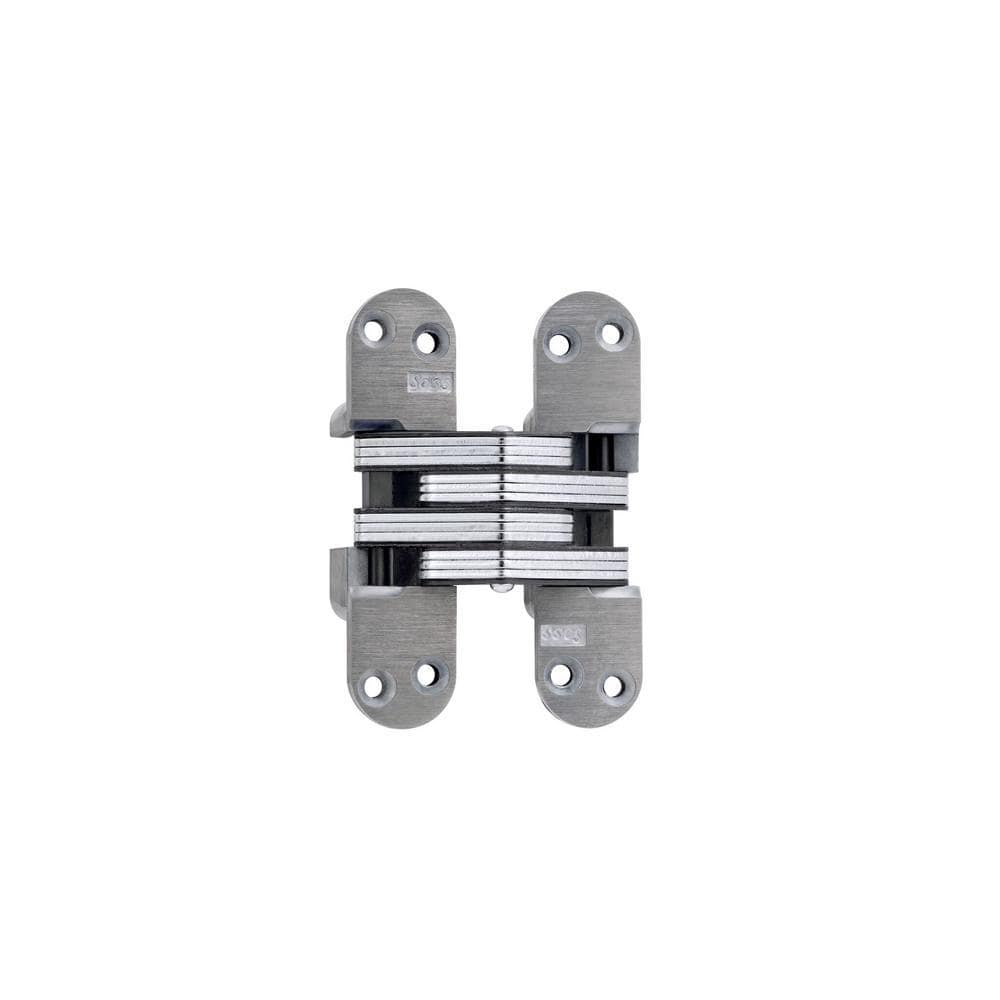

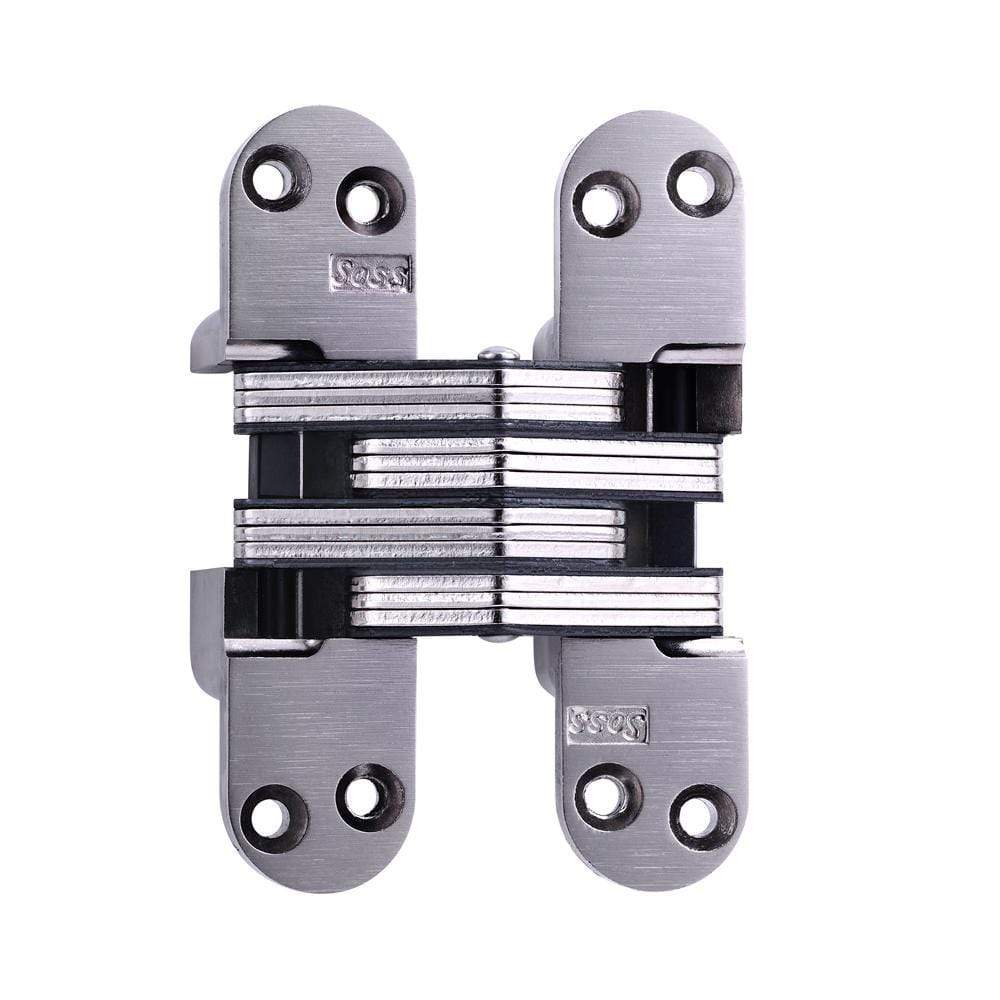

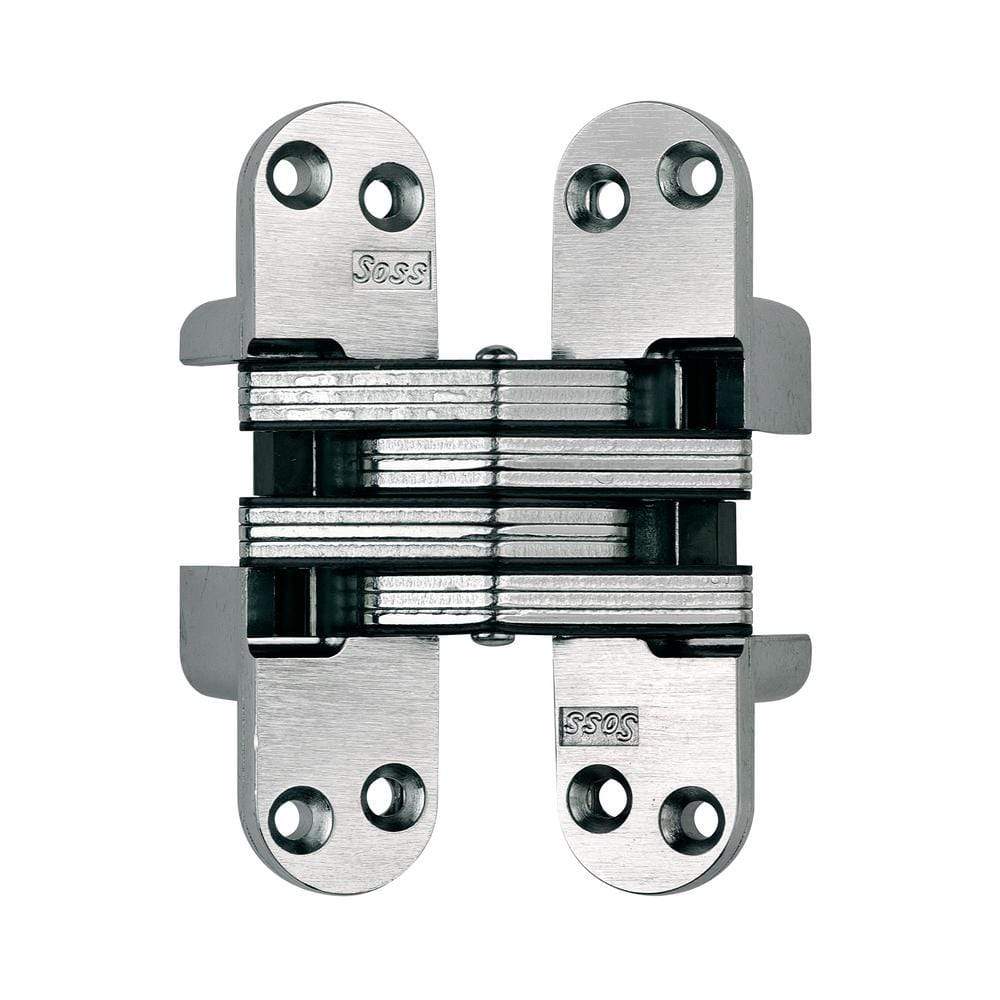

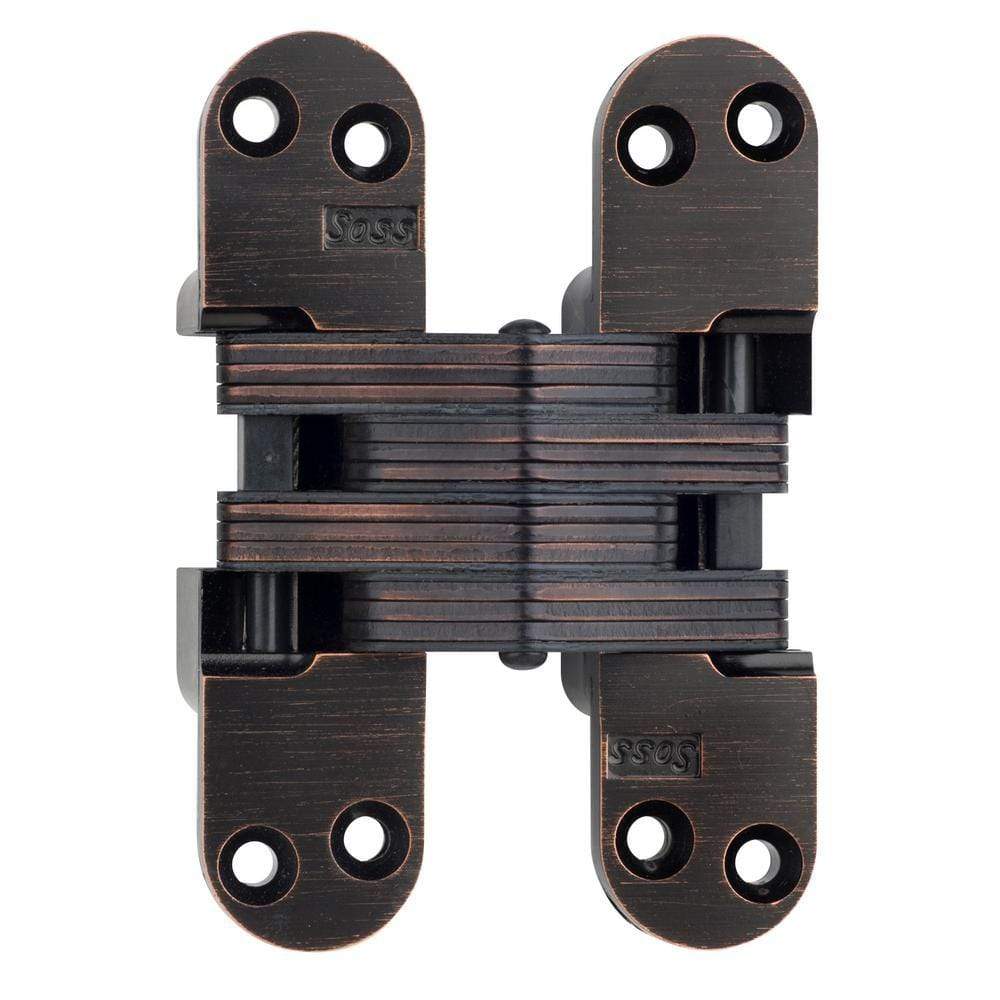

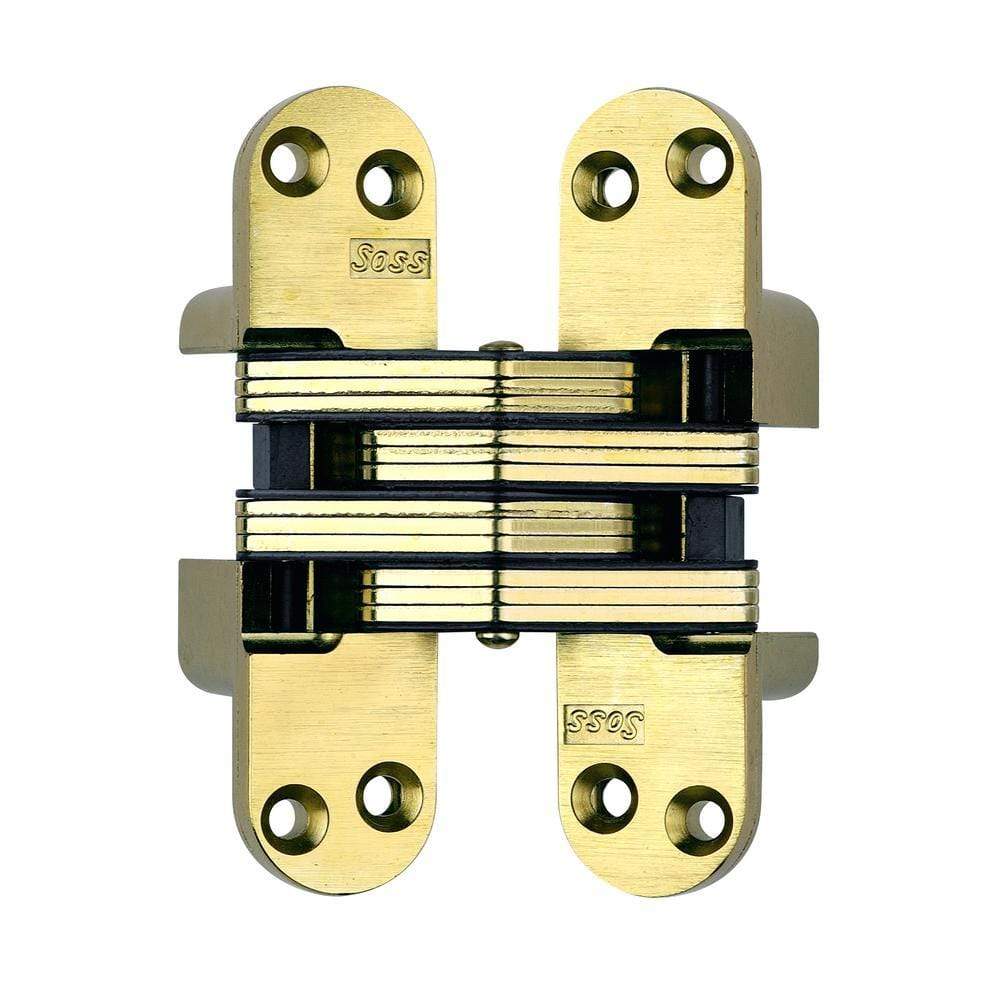

Available Finishes: Black, Bright Chrome, Oil Rubbed Bronze, Satin Brass, Satin Chrome, Satin Nickel, Unplated

Additional Information

Application Full Sized Entry, Metal, Wood
Min. Material Thickness 1-3/4"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood


A 1-1/8" (28.58mm)
B 7/8" (22.23mm)
C 4-5/8" (117.48mm)
D 3/8" (9.53mm)
E 1/4" (6.35mm)
F 2-15/32" (62.71mm)
G 1/16" (1.59mm)
H 1-41/64" (41.67mm)
I 13/32" (10.32mm)
Min. Matl. Thickness 1-3/4" (44.45mm)
Wood Screw Sizes #10x1-1/2" (4.8x38mm)
Soft Wood Pilot Hole No. 43
Hard Wood Pilot Hole No. 31
Machine Screw Sizes #10-24x1"
Hinge Weight 1.86 lb.
