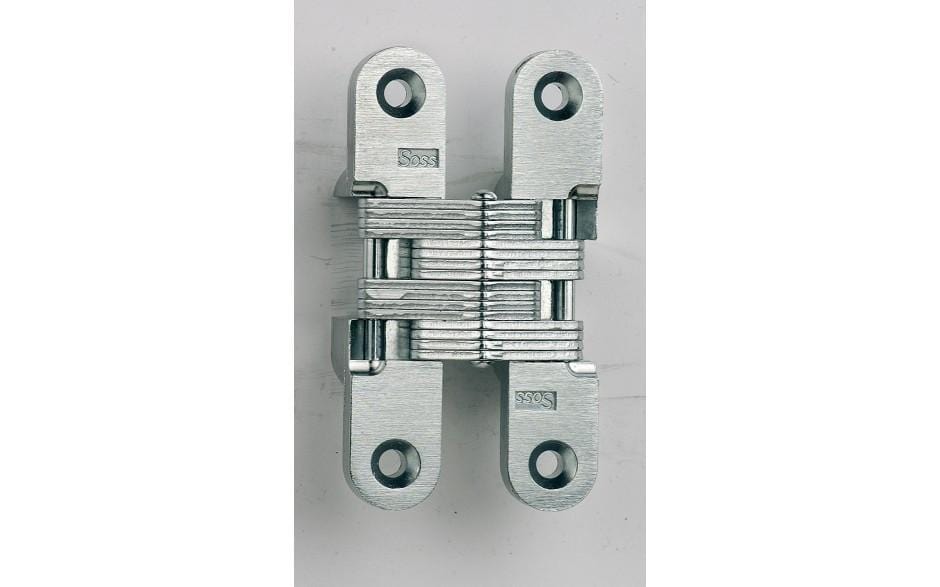

Concealed Closet Hinges - Model 212SS Stainless Steel Invisible

Soss

$ 317.88
SKU: 212SSUS32

Share:

Details

Our High Quality SOSS® Concealed Closet Hinge model #212 is for use in wood or metal applications. Made of complete 316 Stainless Steel. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!
Sold as Each (1 Individual Hinge)      Click to see Official SOSS Hinges Video
How to install Concealed Hinges

Available Finishes

Satin 316 Stainless Steel
Satin Stainless Steel
Bright 316 Stainless Steel
Bright Stainless Steel

Additional Information

Application Exterior, Metal, Wood
Min. Material Thickness 1-1/8"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included No
Packaging 1 / Box = 1 Each
Packages Per Container 1 Each
Price Per Each

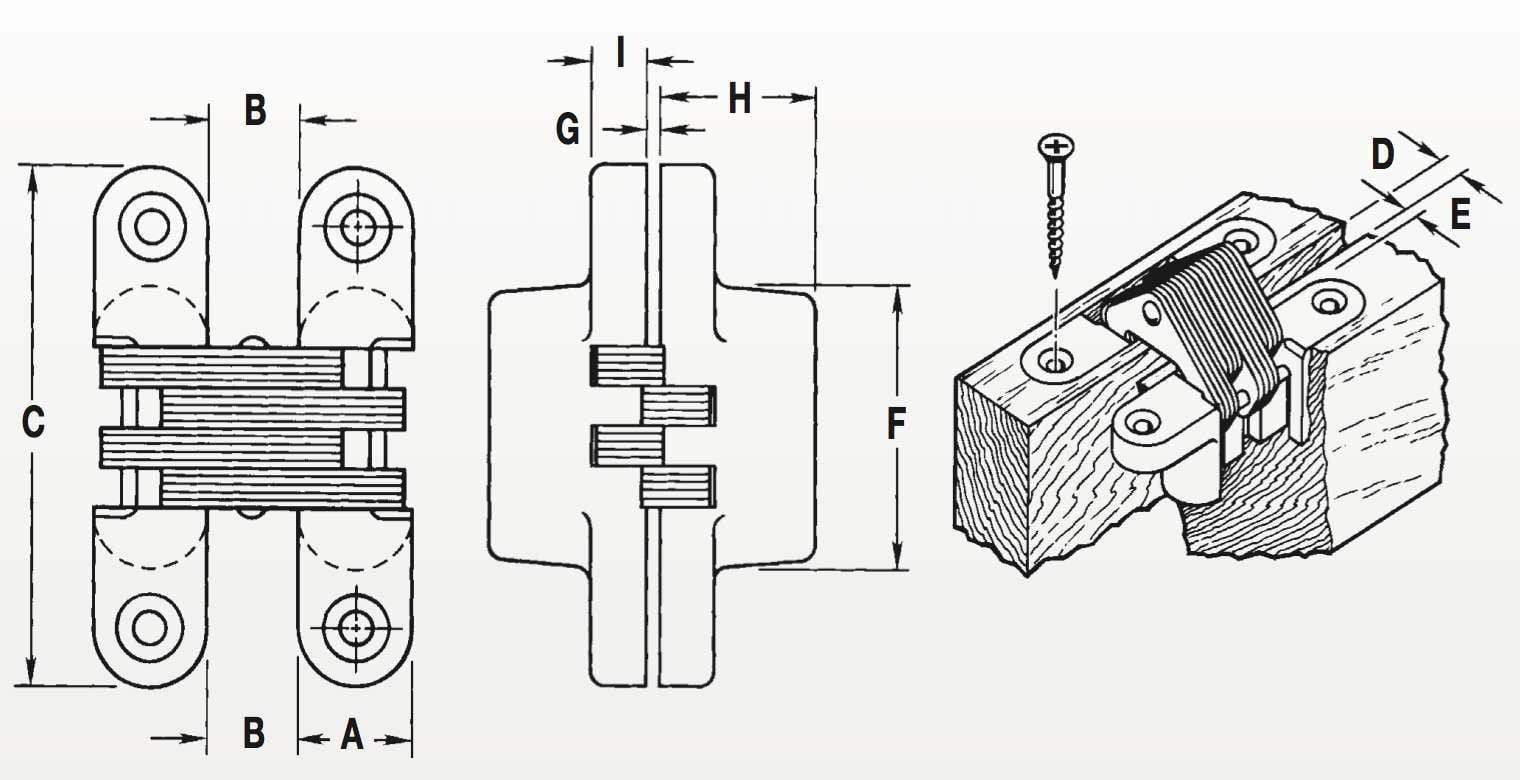

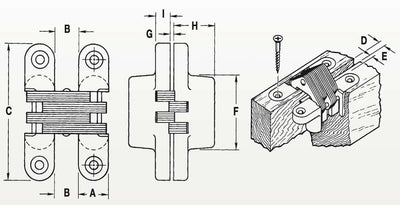

Dimensions

A 3/4" (19.05mm)
B 35/64" (13.49mm)
C 3-3/4" (95.25mm)
D 11/64" (4.37mm)
E 3/16" (4.76mm)
F 2-1/16" (52.39mm)
G 3/64" (1.19mm)
H 1-5/64" (27.38mm)
I 3/8" (9.53mm)
Min. Matl. Thickness 1-1/8" (28.58mm)
Wood Screw Sizes #10x1-1/4" (4.8x32mm)
Soft Wood Pilot Hole No. 43
Hard Wood Pilot Hole No. 31
Machine Screw Sizes #10-24x3/4"
Hinge Weight .75 lb.
