Concealed Cabinet Hinges - Model 203 Invisible

Soss

$ 66.75
SKU: 203Gold

Share:

Details

Our High Quality SOSS® Concealed Cabinet Hinge model #203 is for use in metal  or wood applications. This cabinet style hinge will provide superior appearance and durability. These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge. Multiple Finishes Available!

Sold as Each (1 Individual Hinge)

Available Finishes

24 Karat Gold
24 Karat Gold

Antique Brass
Antique Brass

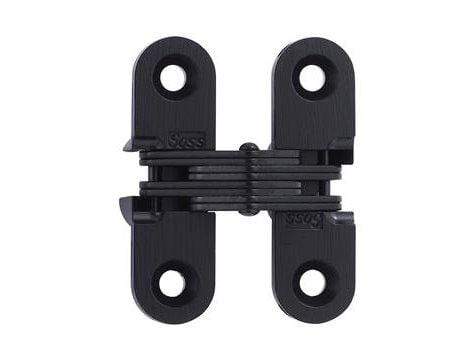

Black E-Coat
Black E-Coat

Bright Brass
Bright Brass

Bright Chrome
Bright Chrome

Bright Nickel
Bright Nickel

Oil Rubbed Bronze
ORB

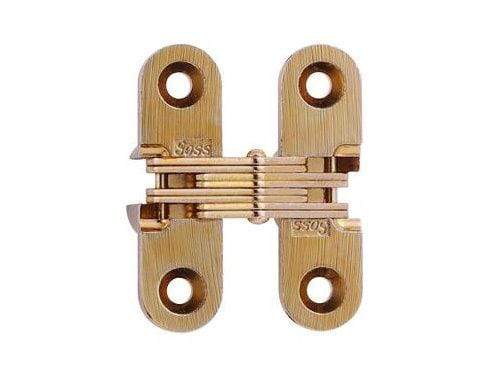

Satin Brass
Satin Brass

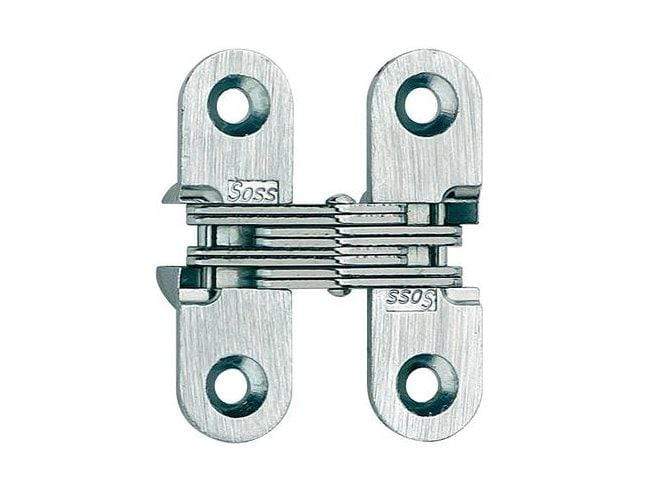

Satin Chrome
Satin Chrome

Satin Nickel
Satin Nickel

Unplated
Unplated

White E-Coat
White



Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 3/4"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood
Packaging No
Packages Per Container No
Price Per No

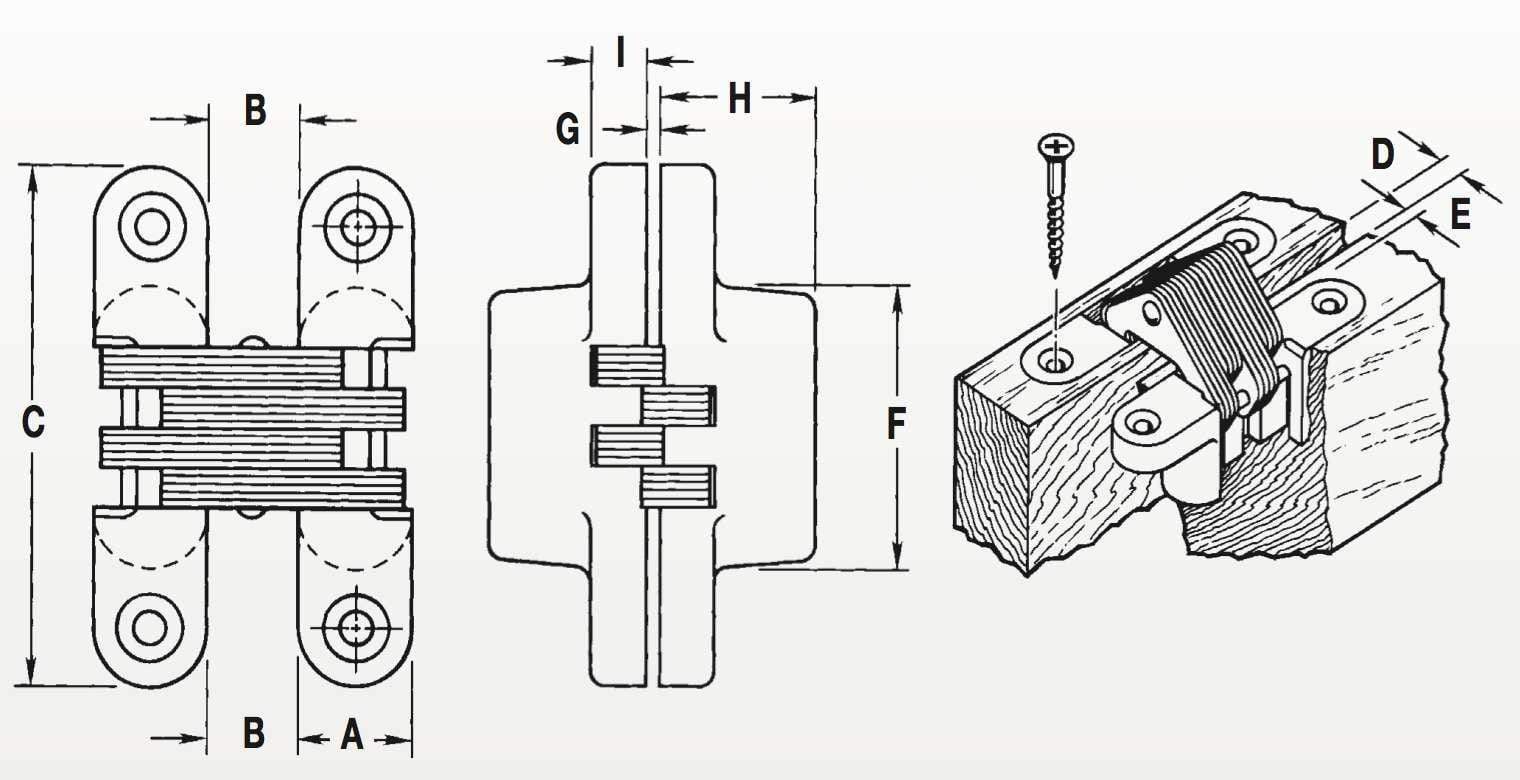

Dimensions

A 1/2" (12.70mm)
B 23/64" (9.13mm)
C 1-3/4" (44.45mm)
D 7/64" (2.78mm)
E 1/8" (3.18mm)
F 3/4" (19.05mm)
G 1/32" (0.79mm)
H 23/32" (18.26mm)
I 3/16" (4.76mm)
Min. Matl. Thickness 3/4" (19.05mm)
Wood Screw Sizes #6x1" (3.5x25mm)
Soft Wood Pilot Hole No. 52
Hard Wood Pilot Hole No. 44
Machine Screw Sizes #6-40x1/2"
Hinge Weight .11 lb.
