Concealed Cabinet Hinges - Model 103 Invisible

Soss

$ 25.25
SKU: 103US19

Share:

Details

Our High Quality SOSS® Concealed Cabinet Hinge model #103 is for use in wood or metal applications.  These hinges are used where compact size, smooth operation, and flush fit are necessary SOSS® Concealed Hinges open a full 180° and are a single action hinge.  Multiple Finishes Available!

Sold as Each (1 Individual Hinge)      Click to see Official Soss Hinges Video

Available Finishes

Black E-Coat

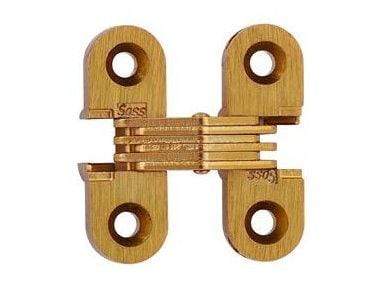

Satin Brass

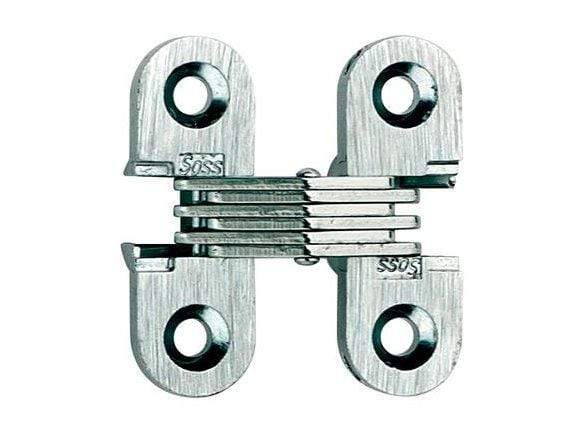

Satin Chrome


Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 3/4"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood
Packaging 2 / Card = 1 Pair
Packages Per Container 10 Pair
Price Per Pair

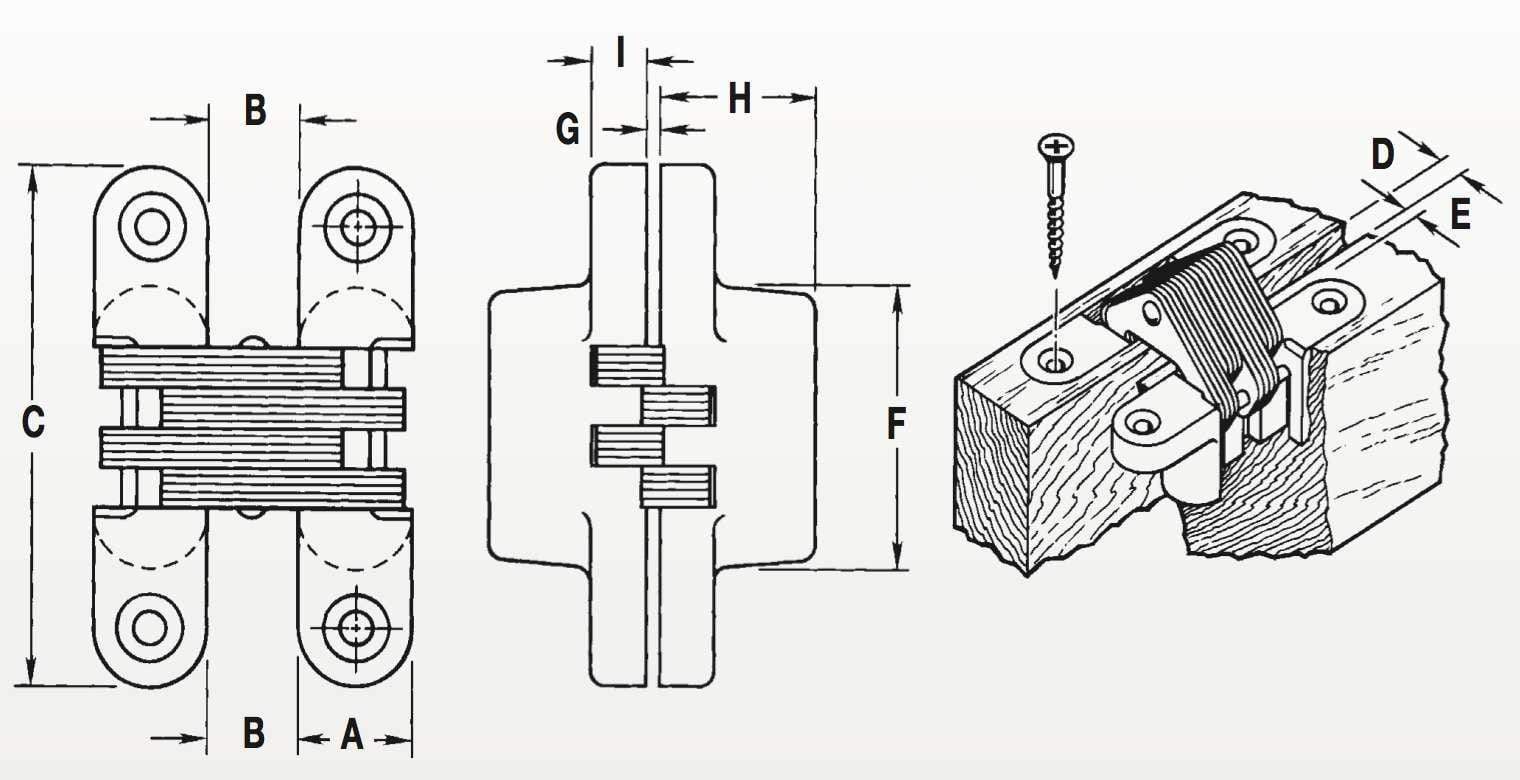

Dimensions

A 1/2" (12.70mm)
B 3/8" (9.53mm)
C 1-1/2" (38.10mm)
D 1/8" (3.18mm)
E 1/8" (3.18mm)
F 11/16" (17.46mm)
G 1/32" (0.79mm)
H 19/32" (15.08mm)
I 7/32" (5.56mm)
Min. Matl. Thickness 3/4" (19.05mm)
Wood Screw Sizes #6x1" (3.5x25mm)
Soft Wood Pilot Hole No. 52
Hard Wood Pilot Hole No. 44
Machine Screw Sizes #6-40x1/2"
Hinge Weight .09 lb.
