Concealed Cabinet Hinges - 3/8 Inch x 11/16 Inch - For Min Thick Door 1/2 Inch - Multiple Finishes Available - 2 Pack

Soss

$ 68.99
SKU: 101US10BL

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Details

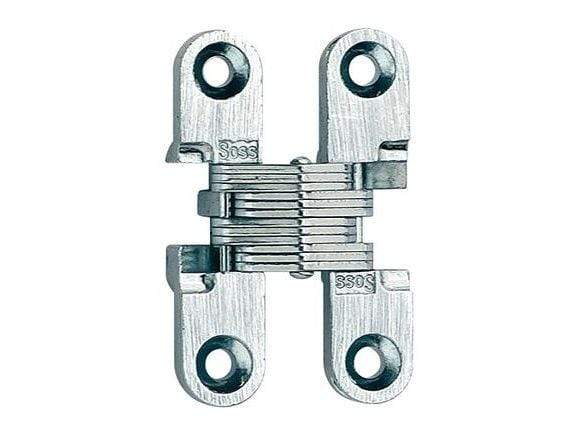

Our High Quality SOSS® Concealed Cabinet Hinge model #101 is for use in wood or metal applications.  These hinges are used where compact size, smooth operation, and flush fit are necessary  SOSS® Concealed Hinges open a full 180° and are a single action hinge.  Multiple Finishes Available!  |

Sold as 2 Pack       Click to see Official Soss Hinges Video

Available Finishes: Oil Rubbed Bronze, Satin Nickel, Black E-Coat, Satin Chrome, Satin Brass



Additional Information

Application Cabinet, Metal, Wood
Min. Material Thickness 1/2"
Fire Rating No
Power Transfer No
Spring Closer No
Counter Bored Screw Holes No
Screws Included Wood

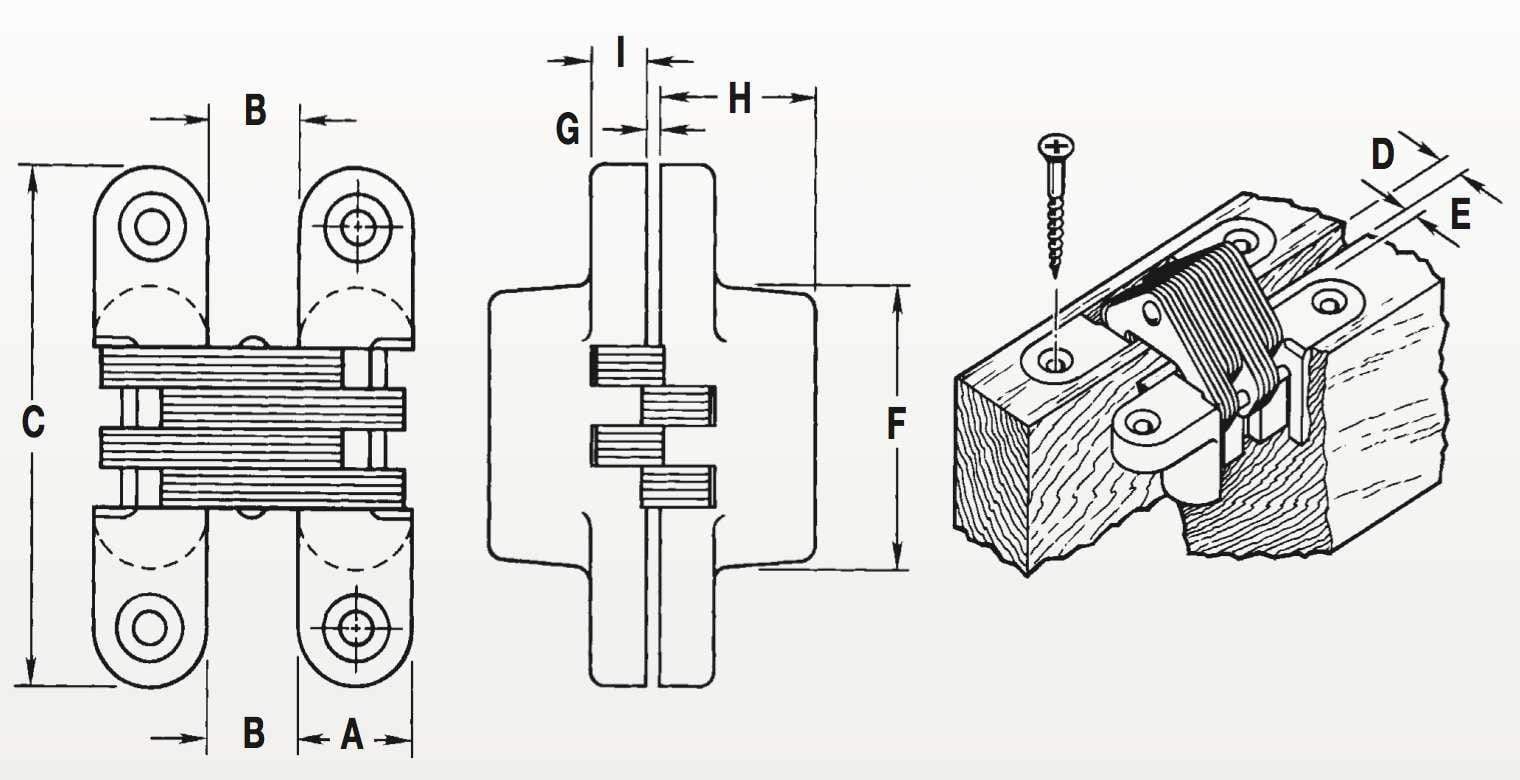

Dimensions

A 3/8” (9.53mm)
B 19/64" (7.54mm)
C 1-11/16" (42.86mm)
D 7/64" (2.78mm)
E 3/32" (2.38mm)
F 7/8" (22.23mm)
G 1/32" (0.79mm)
H 29/64" (11.51mm)
I 7/32" (5.56mm)
Min. Matl. Thickness 1/2" (12.70mm)
Wood Screw Sizes #5x3/4" (3.5x19mm)
Soft Wood Pilot Hole No. 53
Hard Wood Pilot Hole No. 47
Machine Screw Sizes #4-40x1/2"
Hinge Weight .07 lb.
