SKU: LOC-LMKQ3030V2LZILVVSZC

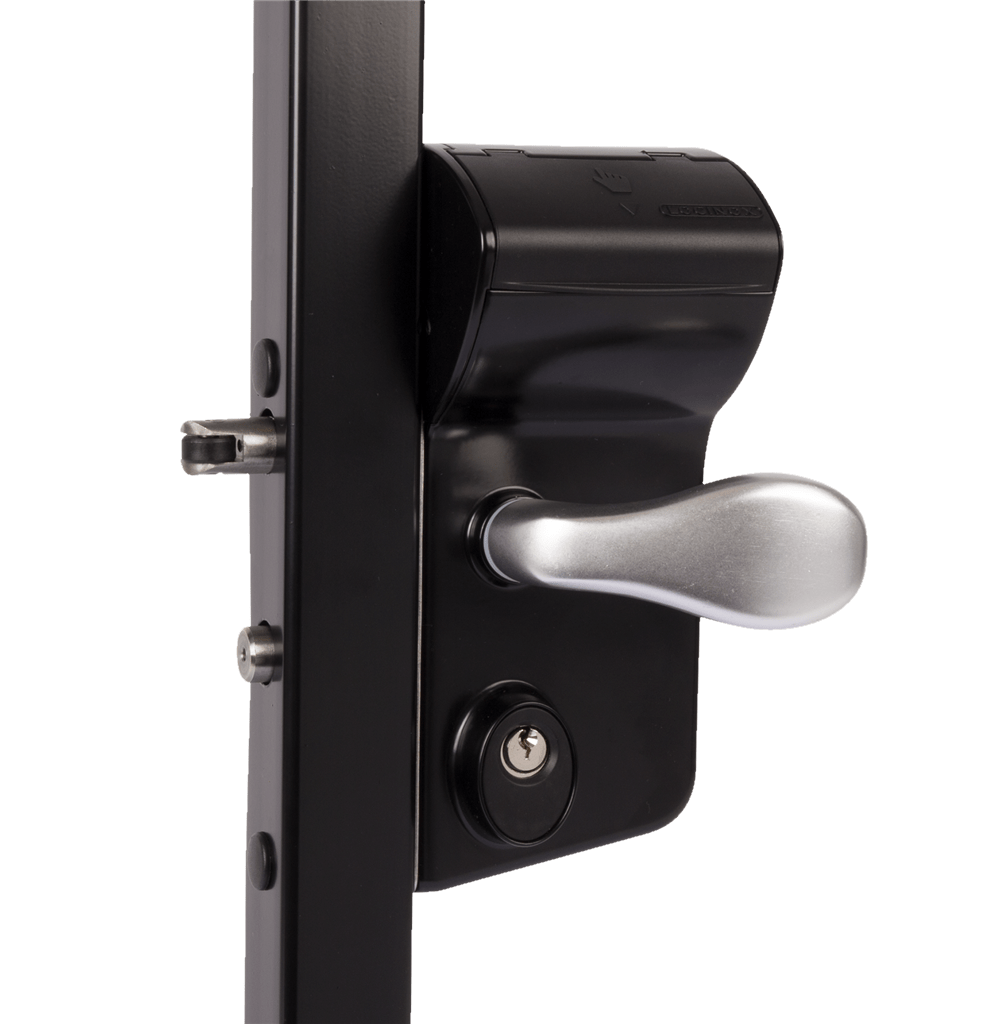

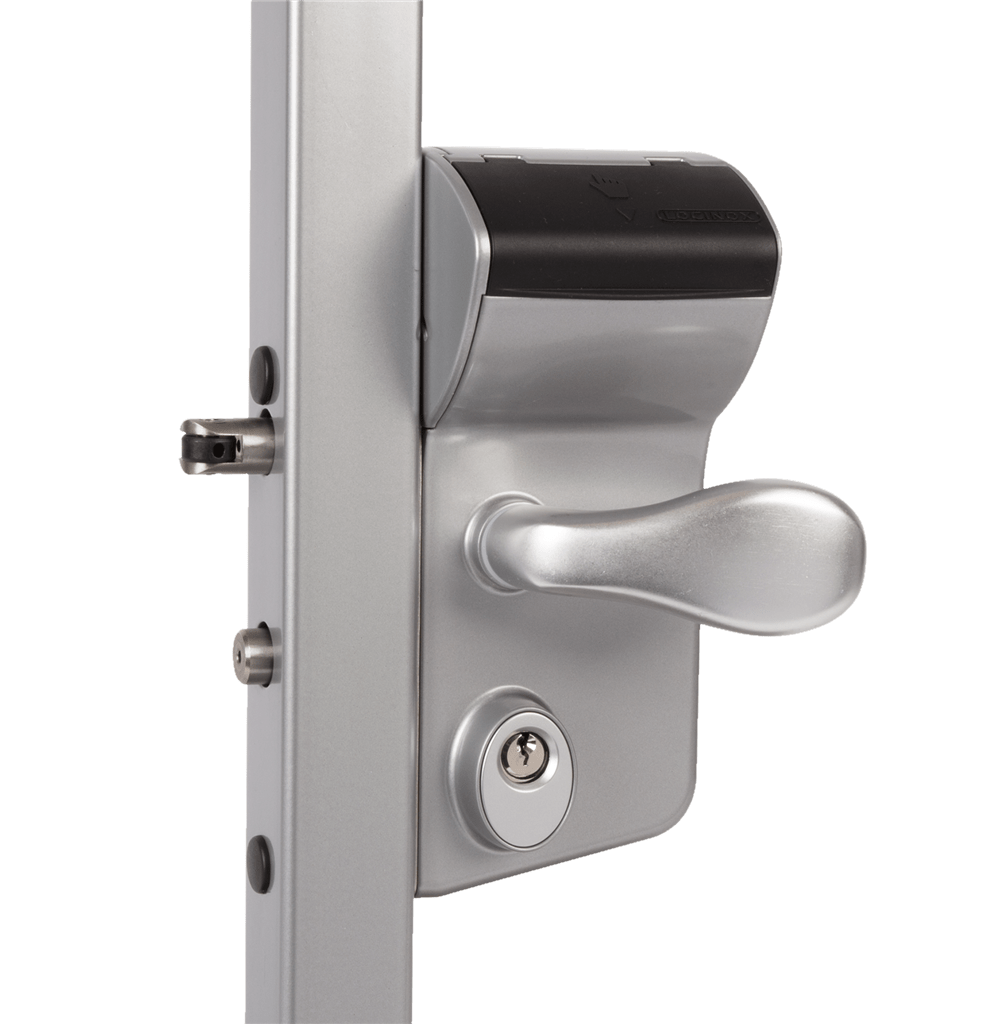

Locinox Vinci - Surface Mounted Mechanical Code Lock for Gates - For Square Profiles 1-1/4" to 3" - Multiple Finishes - Sold Individually

Profile Size
Finish

In stock, ready to ship

  • ✓ Qualifies for free shipping!
  • ✓ Easy 45 day returns
  • ✓ Typically ships in 1-2 business days

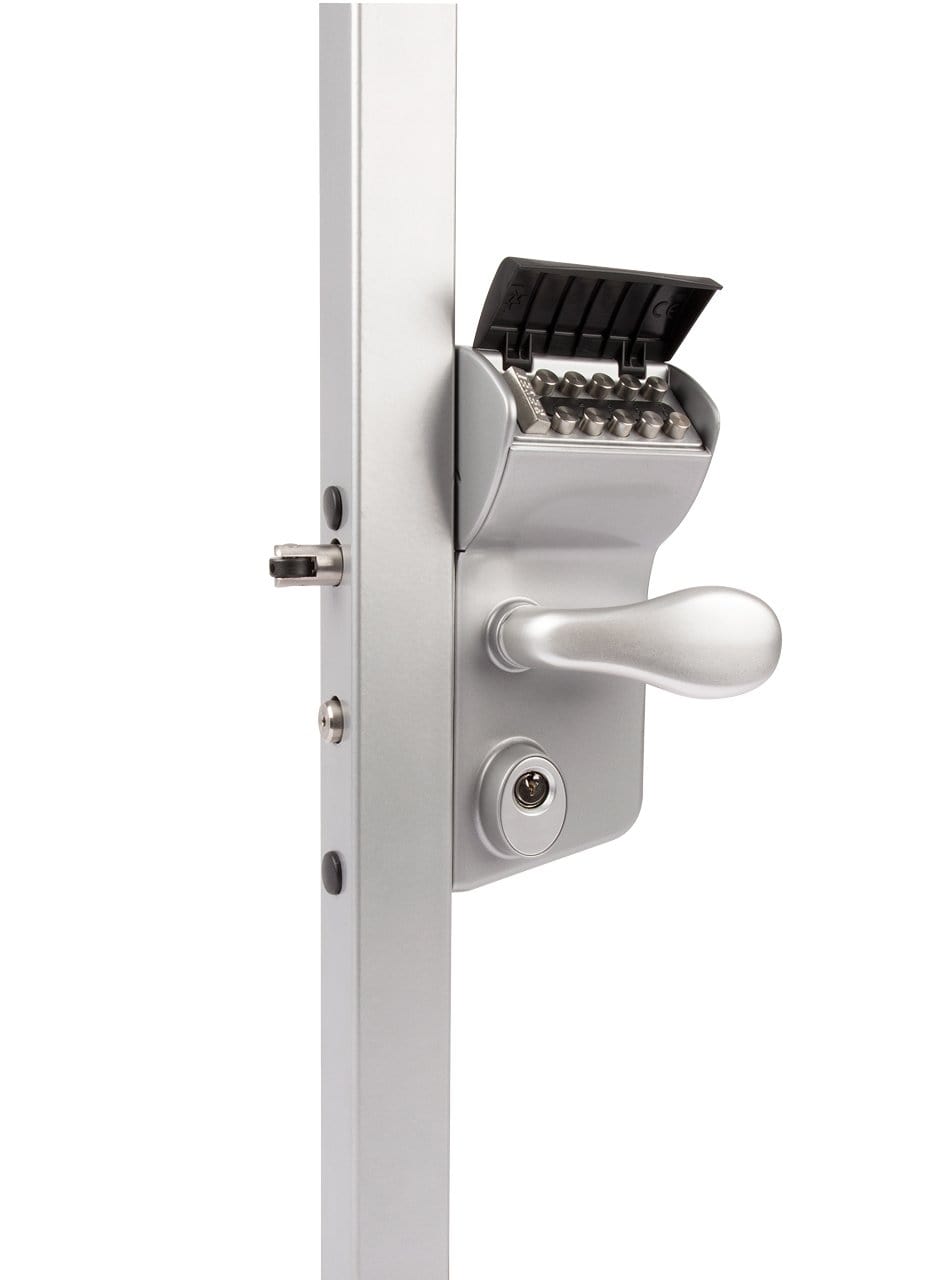

The Locinox Vinci is a high quality mechanical code lock for swing gates with aluminum housing and stainless steel mechanism. This lock is 100% mechanical, so no batteries or electricity are required, which makes it very easy to equip any gate with access control.

Product Specifications:

  • Locinox Vinci - Surface Mounted Mechanical Code Lock for Gates
  • For square profiles
  • Profile Size:
    • 1-1/4" to 2"
    • 1-1/2" to 2-1/2"
    • 2-1/2" to 3"
  • Finishes Available: Silver, Black
  • 100% mechanical
  • Aluminum housing and Stainless Steel mechanism
  • Dead bolt is used to override the code panel and secure the gate

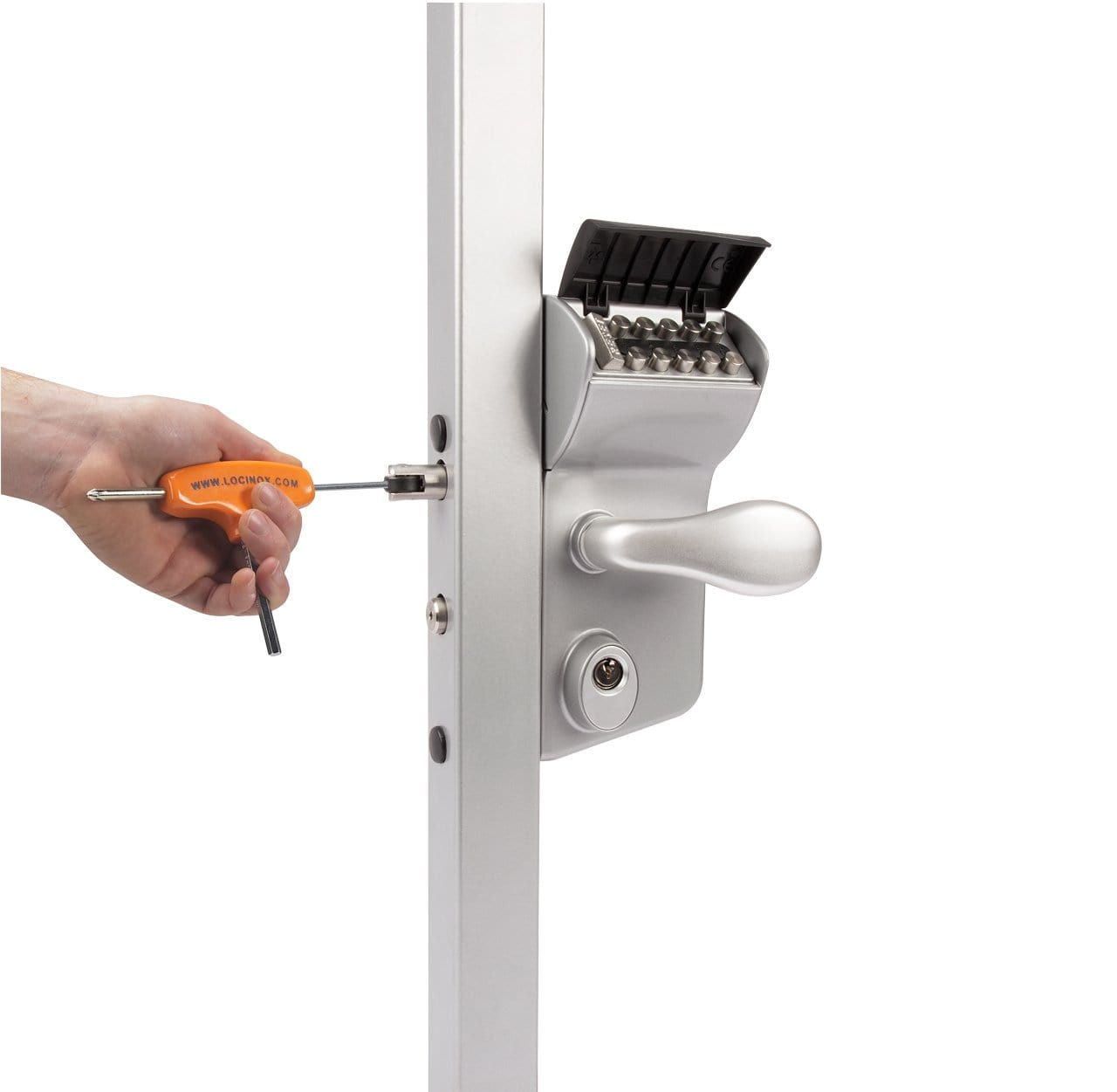

  • Latch and dead bolt have 3/4" continuous adjustment to allow perfect latching / locking of the mechanism
  • Stainless steel throw of 7/8" guarantees a secure locking
  • Latch gap required is keep dependent, but the standard and security keeps require a 1-1/4" latch gap
  • ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test

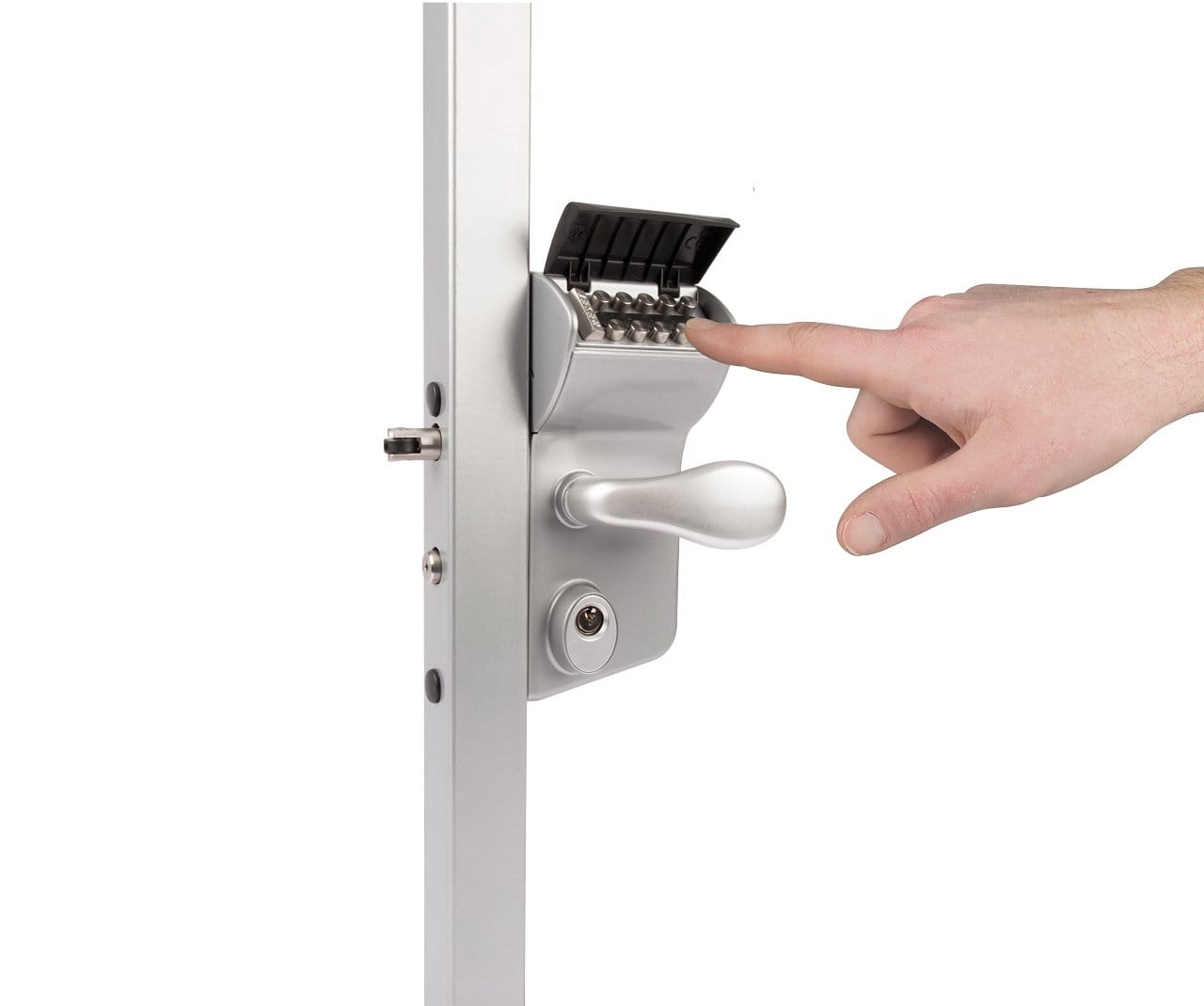

  • Operational code panel on both sides
  • Independent entrance and exit codes

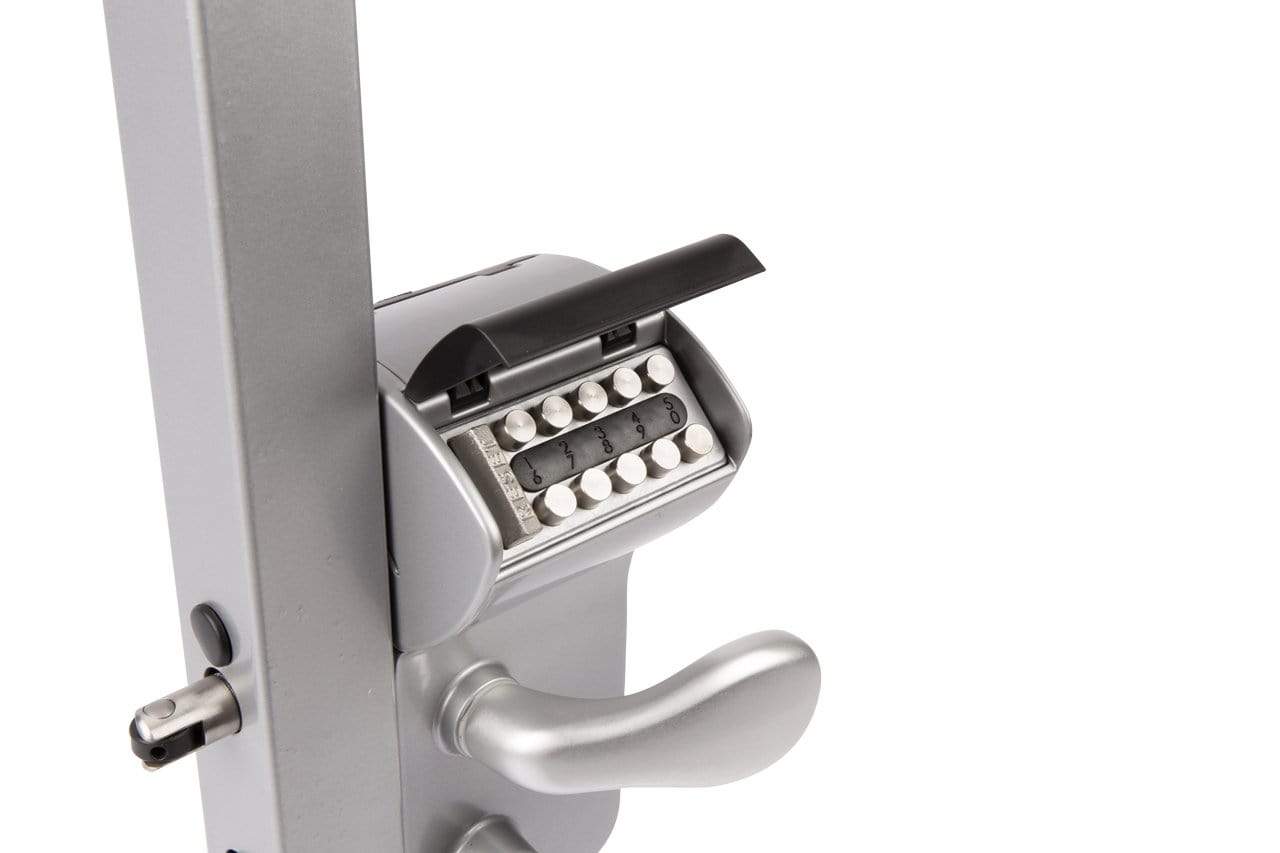

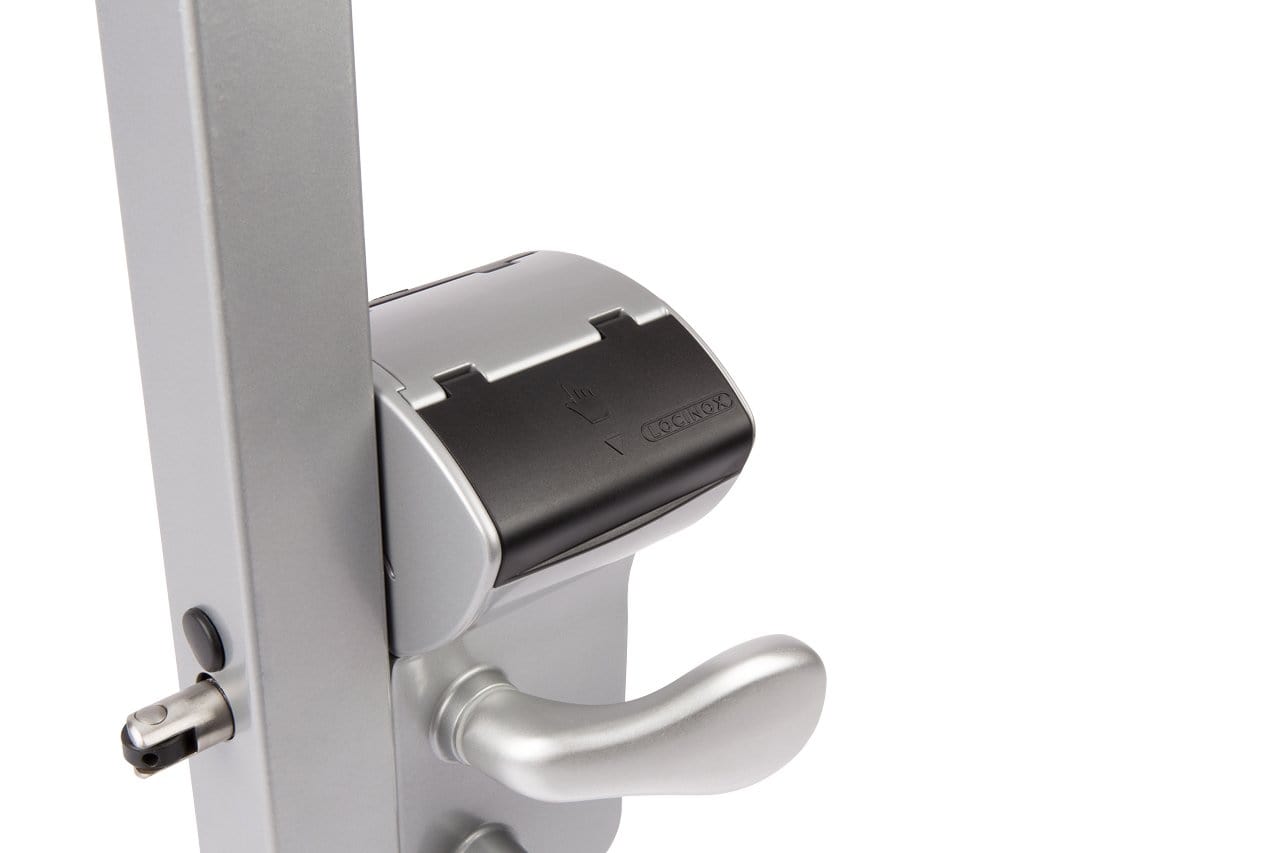

  • Polyamide rain and dust cover
  • Easy and fast set-up or modification of the access codes
  • With adjustable rollerbolt for easy closing
  • Extremely strong and user-friendly mechanism
  • Automatic code reset after opening by means of the handle
  • Anti-code detection with integrated security press plate
  • Interchangeable with all Locinox locks
  • Includes "Club" style handle pair

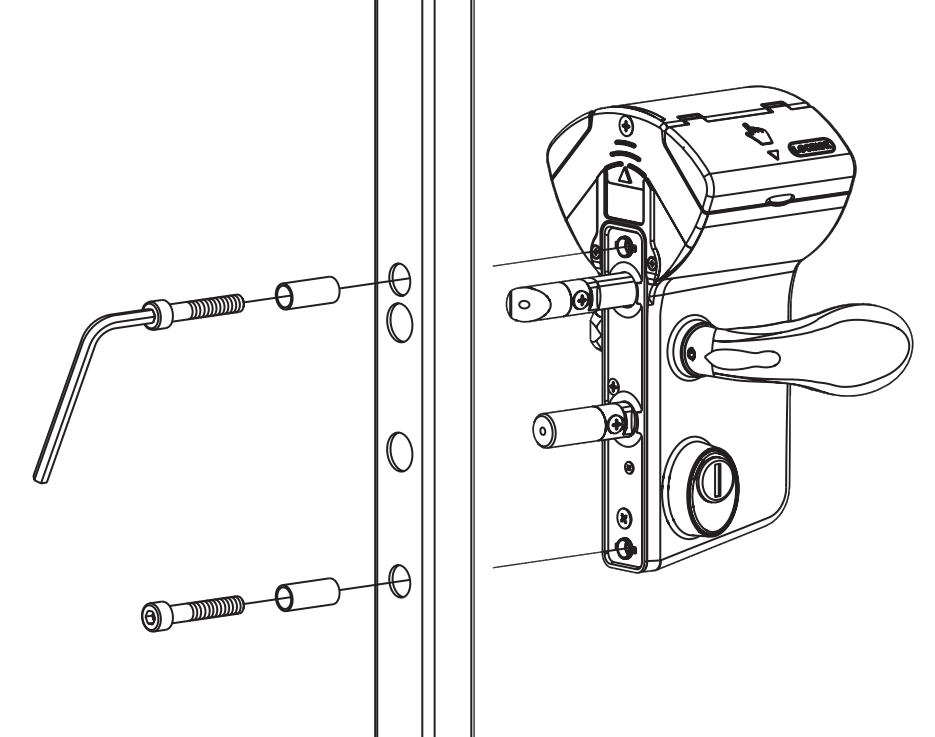

  • Installation Guide
  • Sold individually
