Lid Support Hinge and Stay - 8" Inches - Up to 20 lbs - Reversible for Left and Right - Sold Individually

Selby

$ 36.50
SKU: SE-SDELTA

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

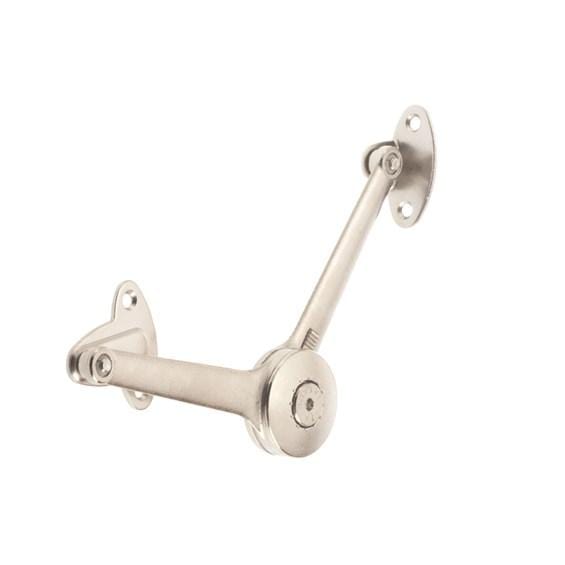

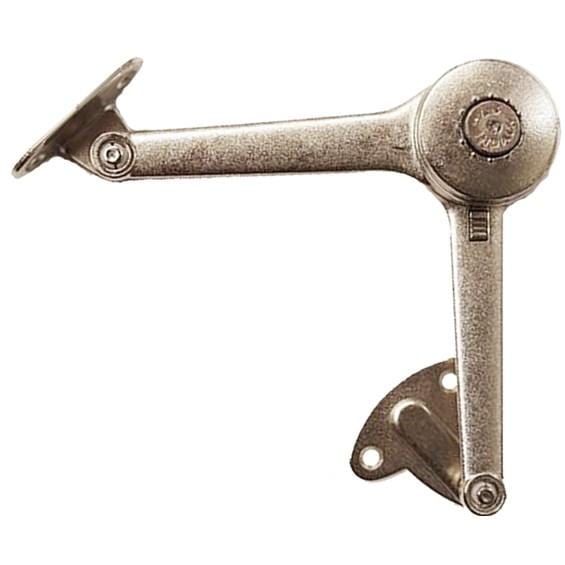

Our Delta Support and Stay is one of our best sellers and can be used for a variety of applications! Simply put, this is one of the top lid supports and stays on the market. For use with lids up to 20 lbs, it is only 8" overall, end-to-end. Application is simple and it can be used with 32mm systems. Lighter lids require only one stay. Additional straight and right angle brackets are available.

Product Specifications:

  • Delta Lid Supports and Stays
  • 8" Inches
  • For use with lids up to 20 lbs.
  • It is constructed of strong, die-cast, nickel plated zamak
  • 32 mm System Compatibility - All holes are on 32mm centers and can be placed either 28mm or 32mm from the leading edge for users of the 32mm combination drilling system
  • Sold Individually
  • Special Features:
    • Reversible - The Delta Support and Stay can be mounted left or right, interchangeably
    • Convertible - It can be installed as a lift-up stay (for lids) or a drop-down stay (for drop fronts) by reversing the tension direction
    • Adjustable - The Delta Support and Stay can adjust the angle of opening precisely from 75° to 90° by relocation of brackets. Also varies depending on type of hinge used
    • Demountable - Simple! The brackets can be mounted separately to the cabinet and then snap onto the fitting
  • Parts Available:
    • Lid Support/Stay (described above)
    • Straight Angle Bracket: Provides an additional bracket for use with the Delta Support and Stay. Highly recommended if you need an extra straight angle bracket for your lid stay.
    • Right Angle Bracket: Provides an additional 90° bracket for use with the Delta Support and Stay. Highly recommended if you need an extra right angle bracket for your lid stay
