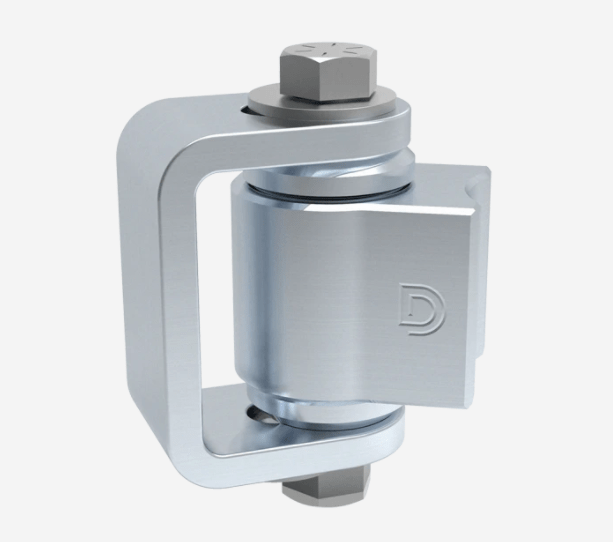

Heavy Duty Weld On BadAss Gate Hinge - Steel Body - Zinc Plating Up to 1000 lbs - Sold Individually

D&D

$ 94.97
SKU: CI3500

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

The Combo BadAss Gate Hinge was designed using the same technology as all our big hinges, but with the understanding that not all installations are exclusively steel or aluminum. The Combo BadAss is perfect for that high end installation where an aluminum gate is welded to a steel endpost in the field.

Product Specifications:

  • Combo BadAss Hinge with Solid Steel Body
  • Weld-On Installation
  • Zinc Plated
  • Two Sealed Maintenance Free Bearings (no greasing)
  • Adjustable Yoke For Perfect Installations
  • Ideal For Flat Post Installations
  • Load Ration: 3000 lbs
  • Maximum Gate Weight: Up to 1000 lbs
  • Limited Lifetime Warranty
Gate Application Pedestrian Gate, Driveway Gate - Double, Driveway Gate - Single, Pet Gate, Playground Gate, Public/Commercial Gate, Automated/Electric Gate, Security Gate, Privacy Gate
Gate Type Non Self-Closing
Gate Material Steel/Ornamental Iron
Approx Gate Size 6ft W x 8ft H (1.5m x 2m)
Gate Frame/Post Shape Square-to-Square, Square-to-Round
Min Post Size 1½"+ (38mm)
Ideal Gate Gap 2½ - 3" (61-74mm)
Fixing Method Weld-On
Colour/Finish Zinc
