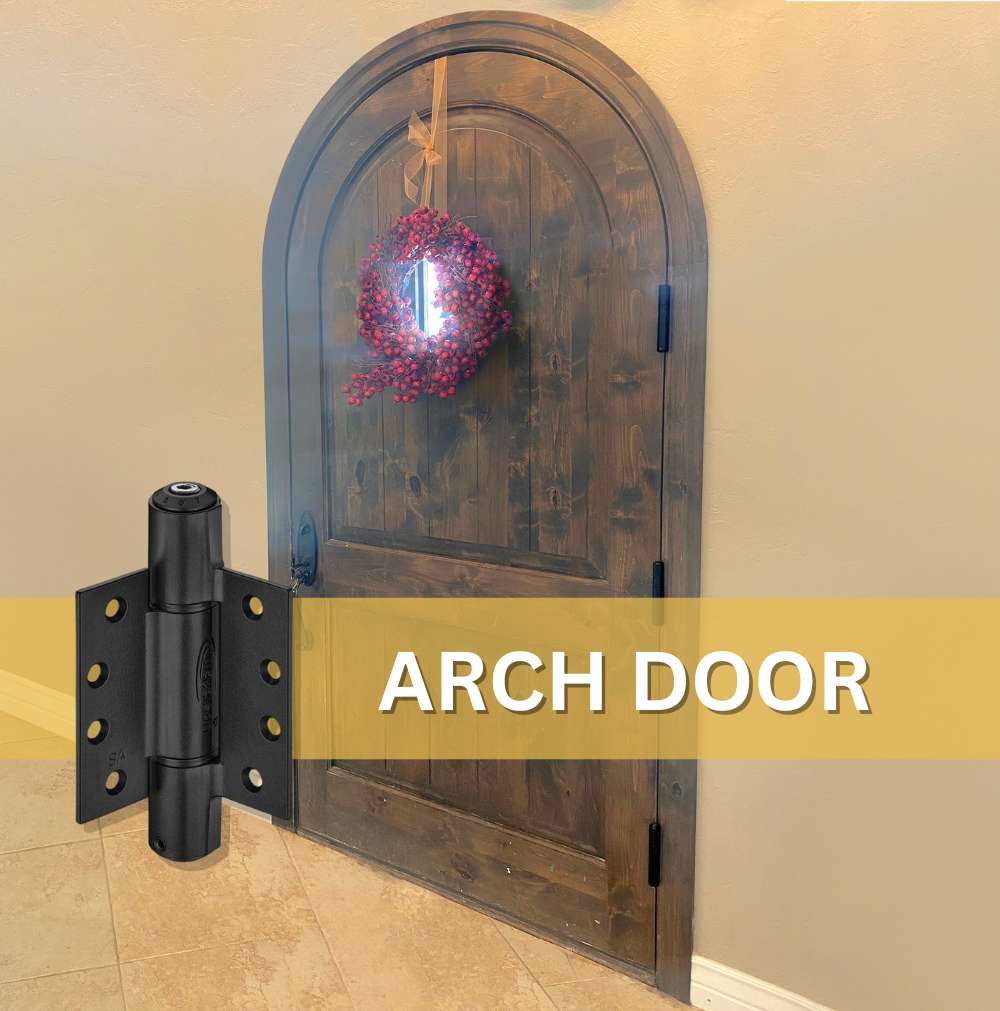

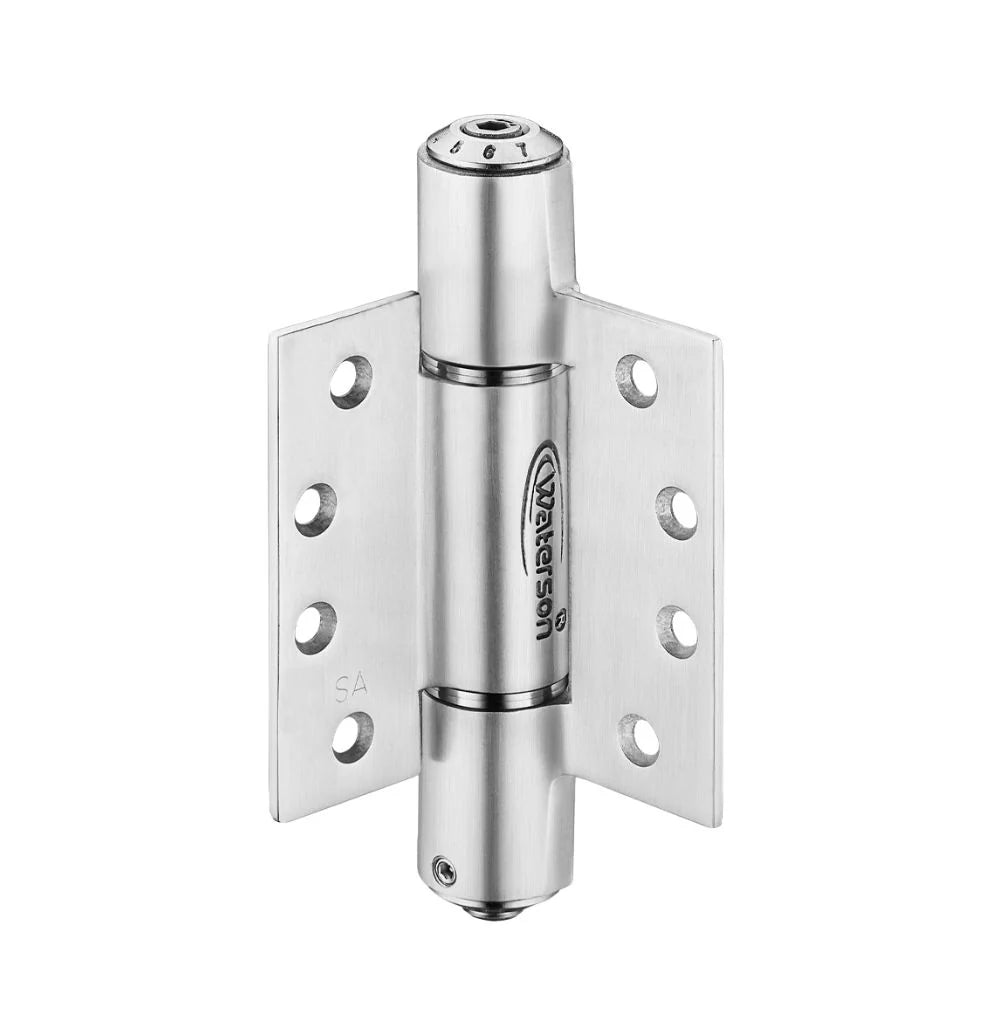

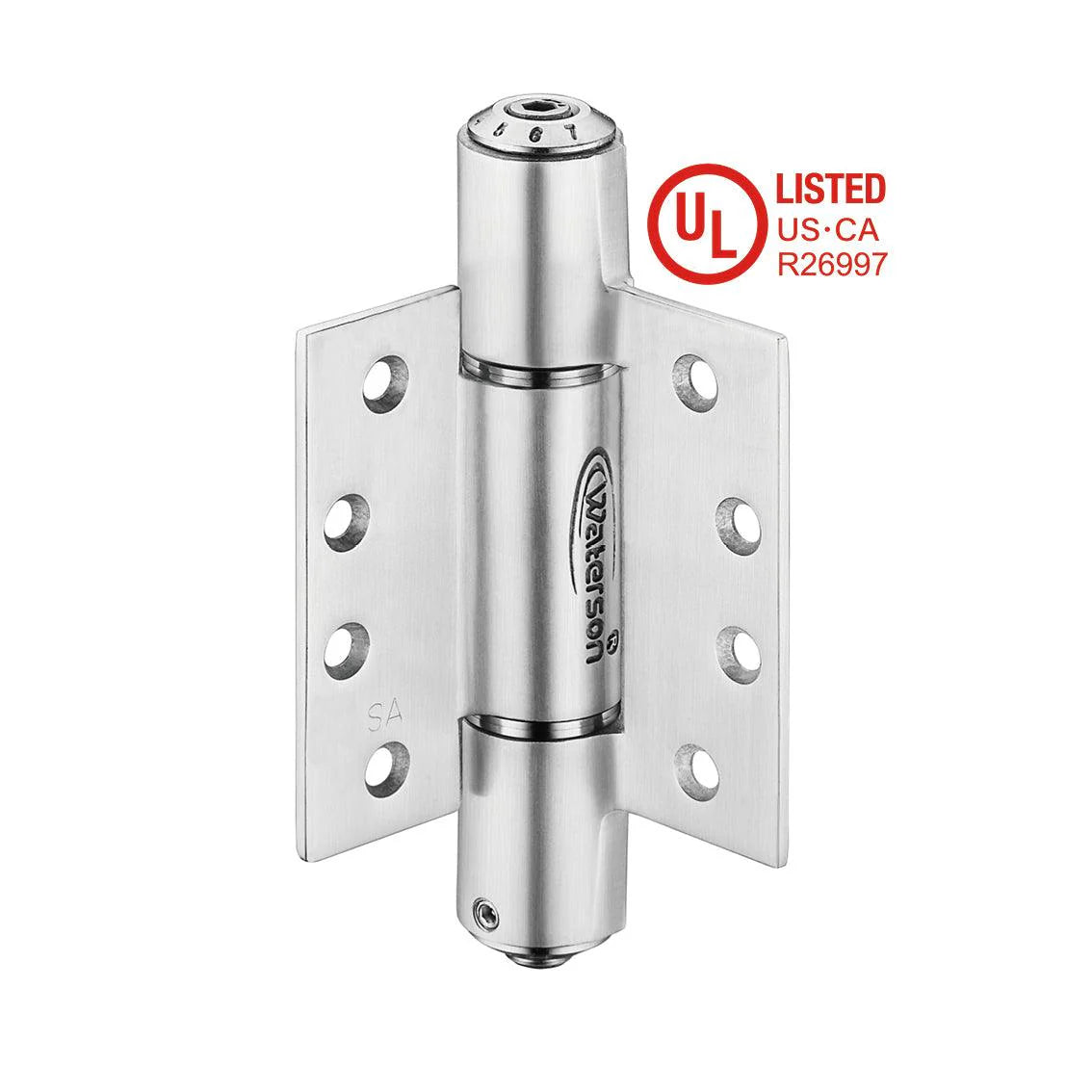

Heavy Duty Arch Door Closer - Self-Closing Spring Hinges - 4" x 4" Inch - Full Mortise - 304 Stainless Steel - For 1-3/4" Thick Doors up to 260 lbs. - 3 Pack

These Heavy Duty Self-Closing Spring Hinges / Door Closers offer superior speed control, adjustable power, and tension settings. They measure 4" x 4", have a weight capacity of 260 lbs., are full mortise, and are made of 304 Stainless Steel. They are available in Satin Stainless Steel, Flat Black, Satin Brass, and Dark Satin Bronze finishes. There are mechanical or hydraulic hybrid closing types available, as well as an option for 90° hold-open.

Product Specifications:

• Heavy Duty Self-Closing Spring Hinges /  Door Closers
• Size: 4" x 4"
• Full Mortise
• Material: 304 Stainless Steel
• Door Thickness: 1-3/4"
• Door Weight: Up to 260 lbs.
• Approximate Door Size: 4' x 7'

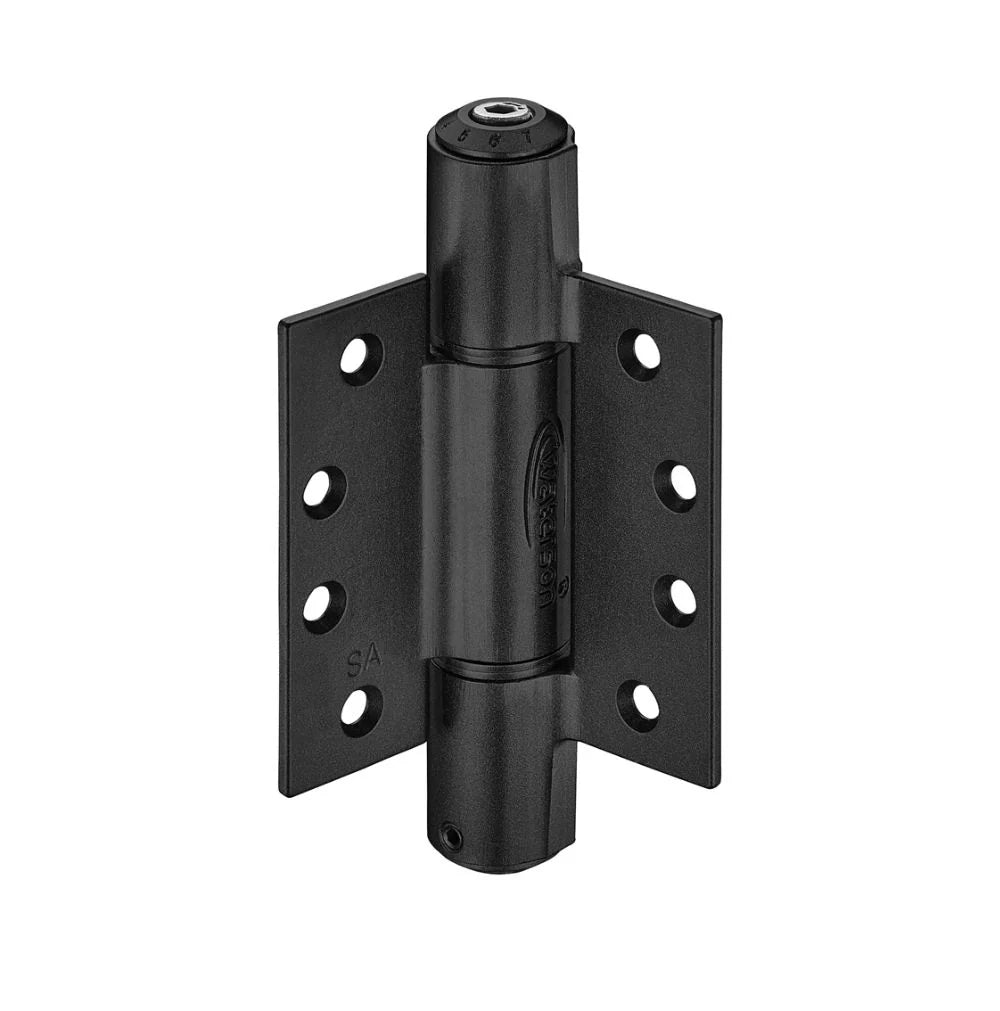

• Finishes: Satin Stainless Steel and Flat Black

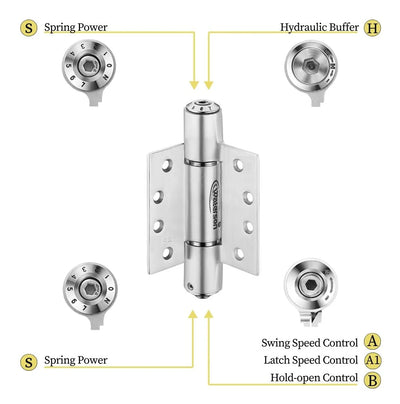

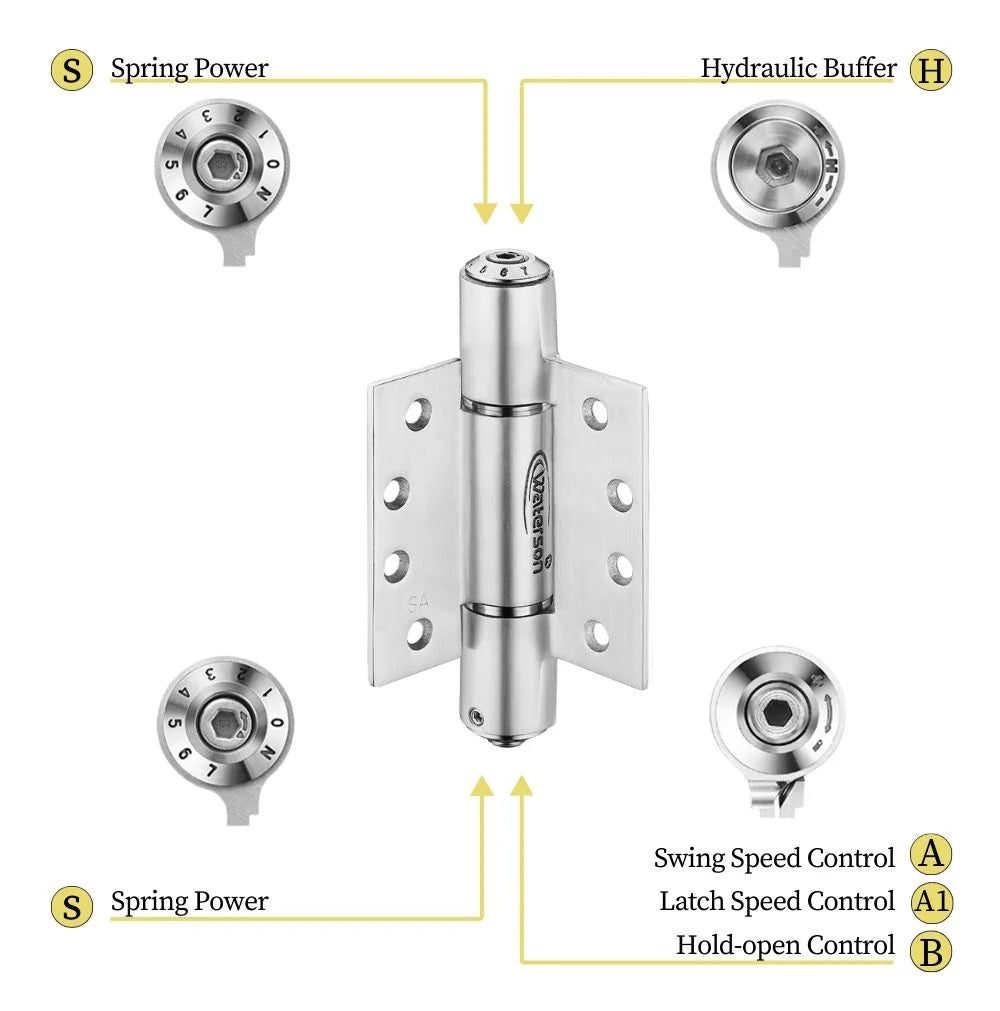

• Fully adjustable closing force and speed according to environment needs

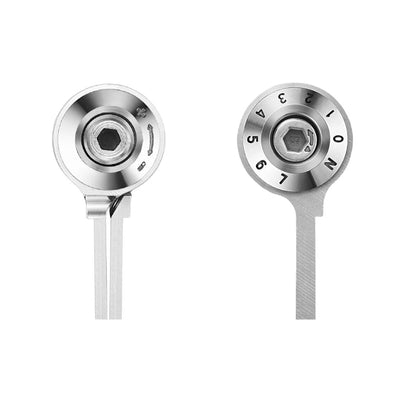

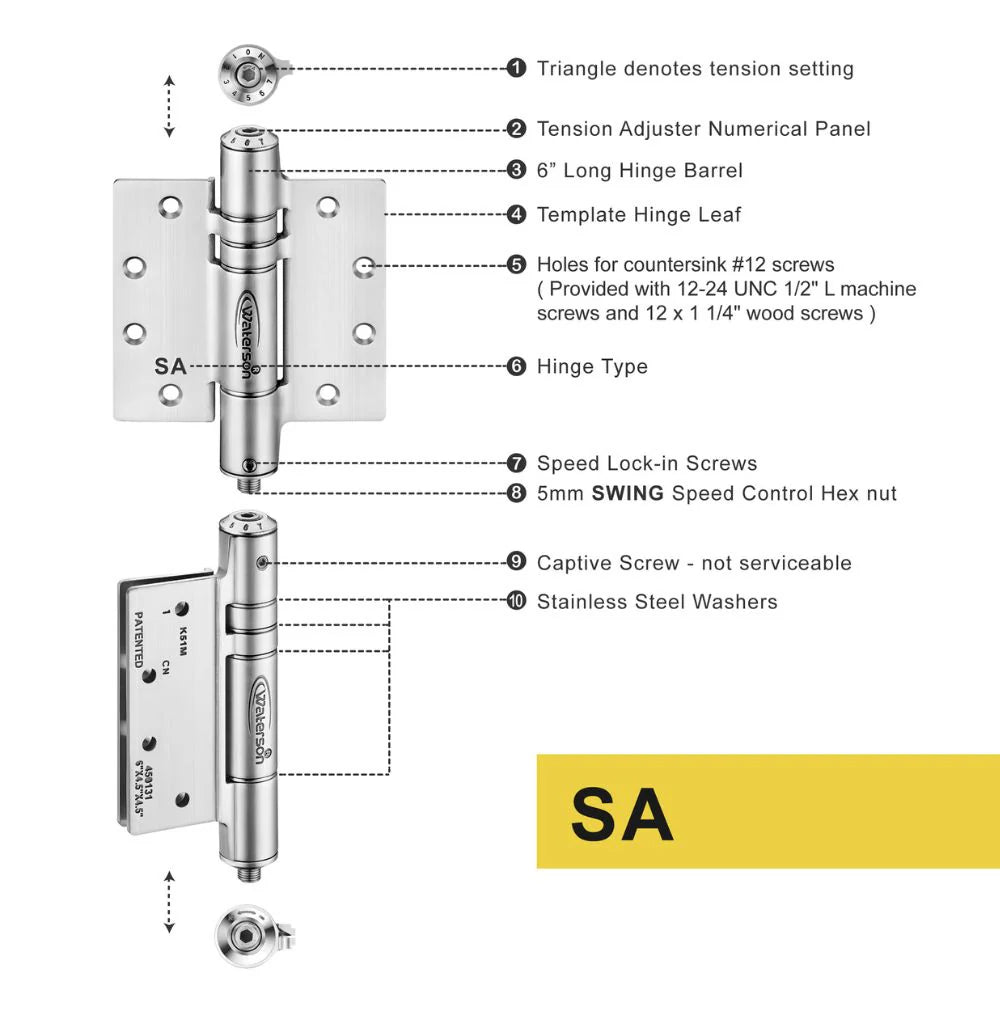

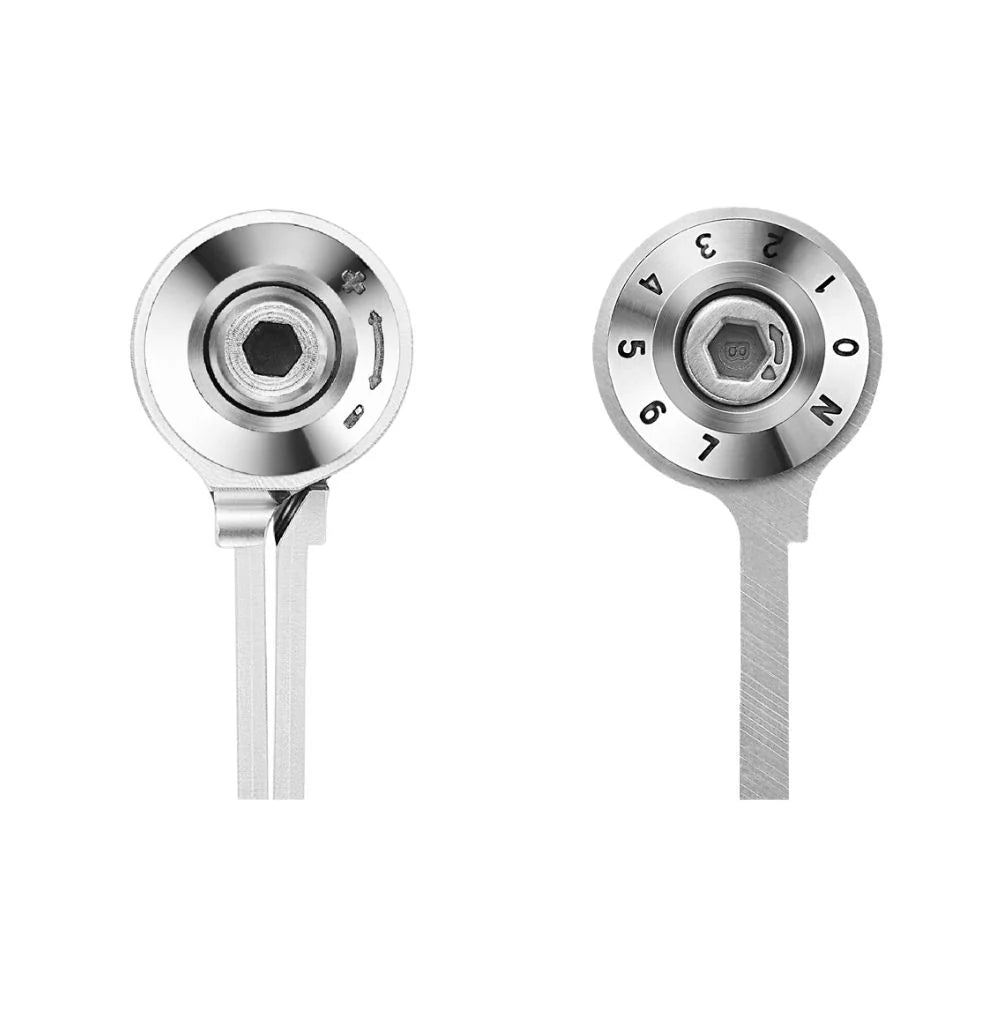

• Numerical adjustment panel on hinge end to set up precise tension
• Mechanical only mechanism supporting heavy duty and fully exterior
• Aesthetically pleasing compared to door closers -- without extrusive arms
• UL certified cycle testing ensures many years of low maintenance.
• Can be used for the following applications:
  • Hotel Rooms
  • 3Hr Fire-rated
  • Fully Exterior
  • Arch Top
  • Heavy Duty
  • Courtyard Style
• 3 Pack - 3 Hinges Per Door

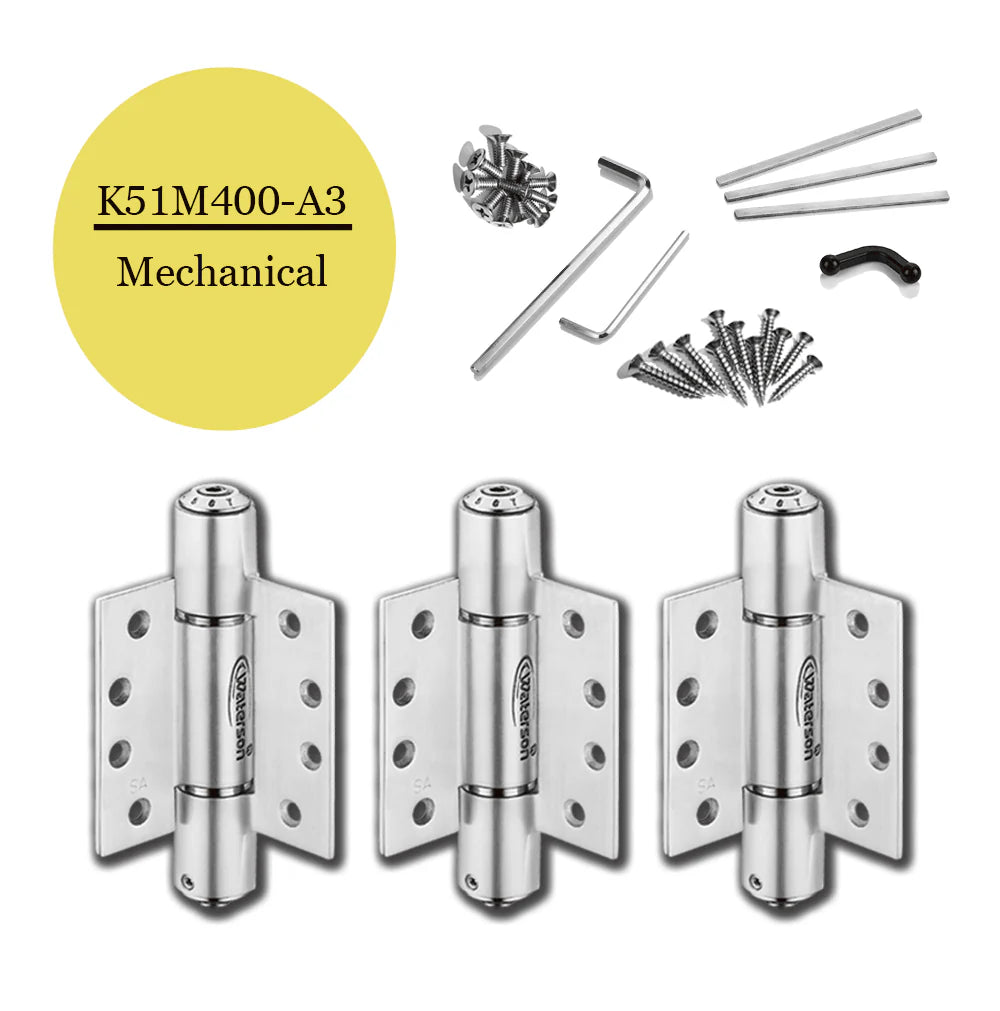

           Installation Kits

• • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

Compliance Standards

• • ANSI A156.17 Grade 1 : one million cycle testing
  • ANSI A156.7 Template Hinge : 4” x 4”
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
