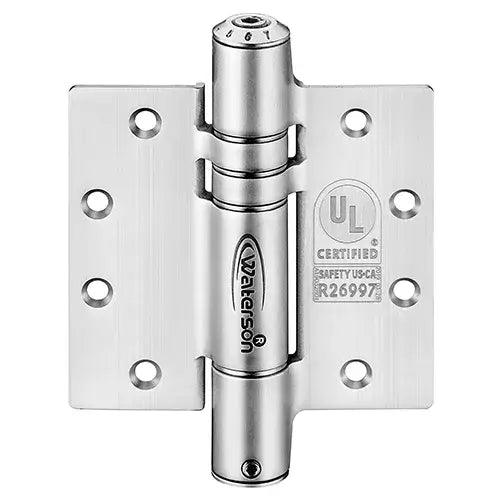

Heavy Duty No Slam Self-Closing Spring Hinge - 4 1/2" x 4 1/2" - Full Mortise - 304 Stainless Steel - For 1-3/4" Thick Doors up to 260 lbs. - 3 Pack

These Heavy Duty Self-Closing Spring Hinges / Door Closers offer superior speed control, adjustable power, and tension settings. They measure 4 1/2" x 4 1/2", have a weight capacity of 260 lbs., are full mortise, and are made of 304 Stainless Steel. They are available in Stainless Steel and Flat Black finish.

Product Specifications:

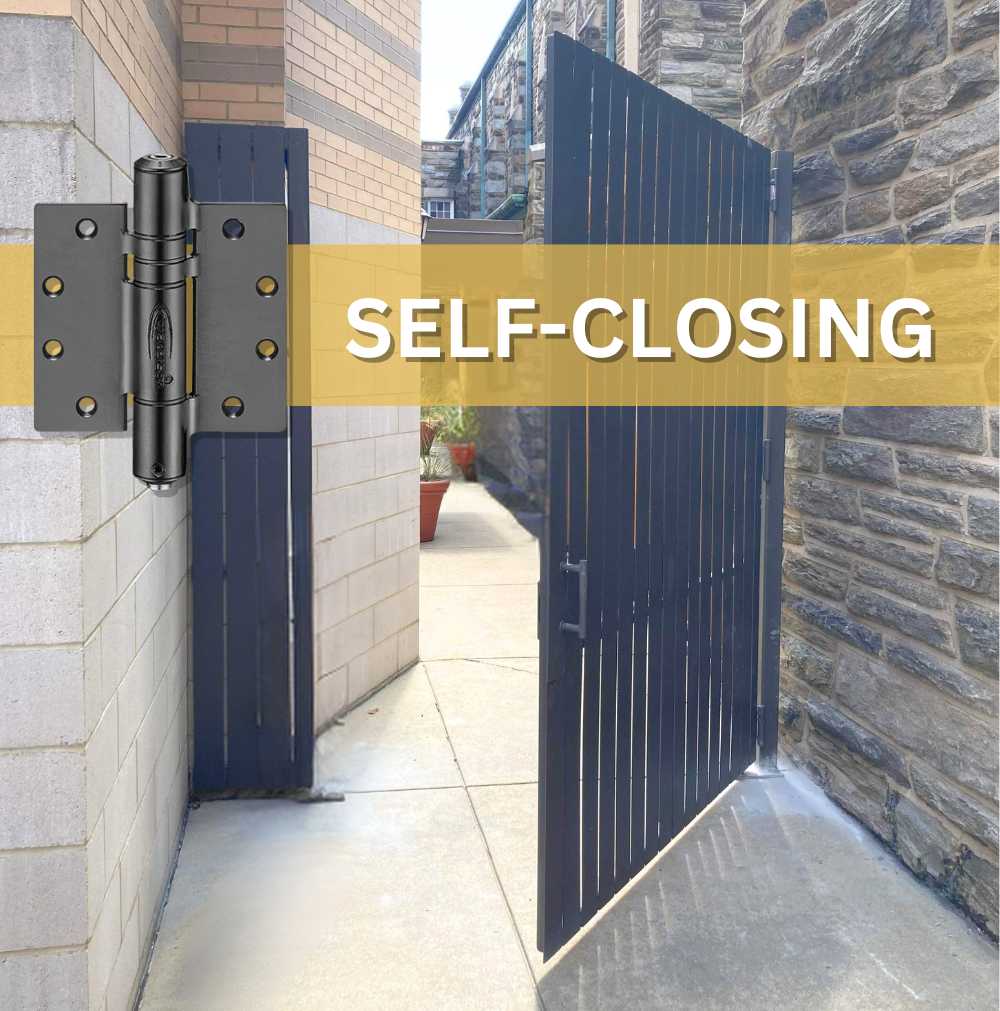

• Heavy Duty Self-Closing Spring Hinges /  Door Closers
• Size: 4 1/2" x 4 1/2"
• Full Mortise
• Material: 304 Stainless Steel
• Door Thickness: 1-3/4"
• Door Weight: Up to 260 lbs.
• Approximate Door Size: 4' x 7'

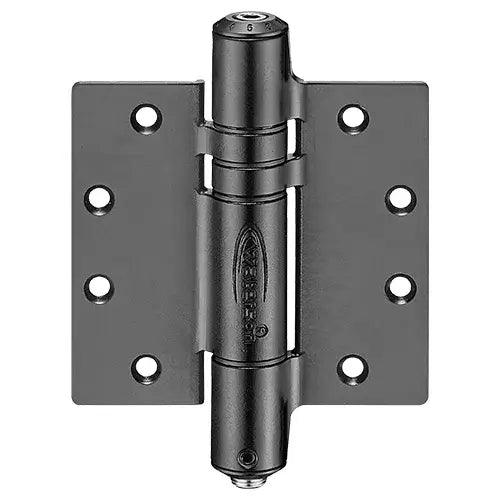

• Finishes: Satin Stainless Steel and Flat Black

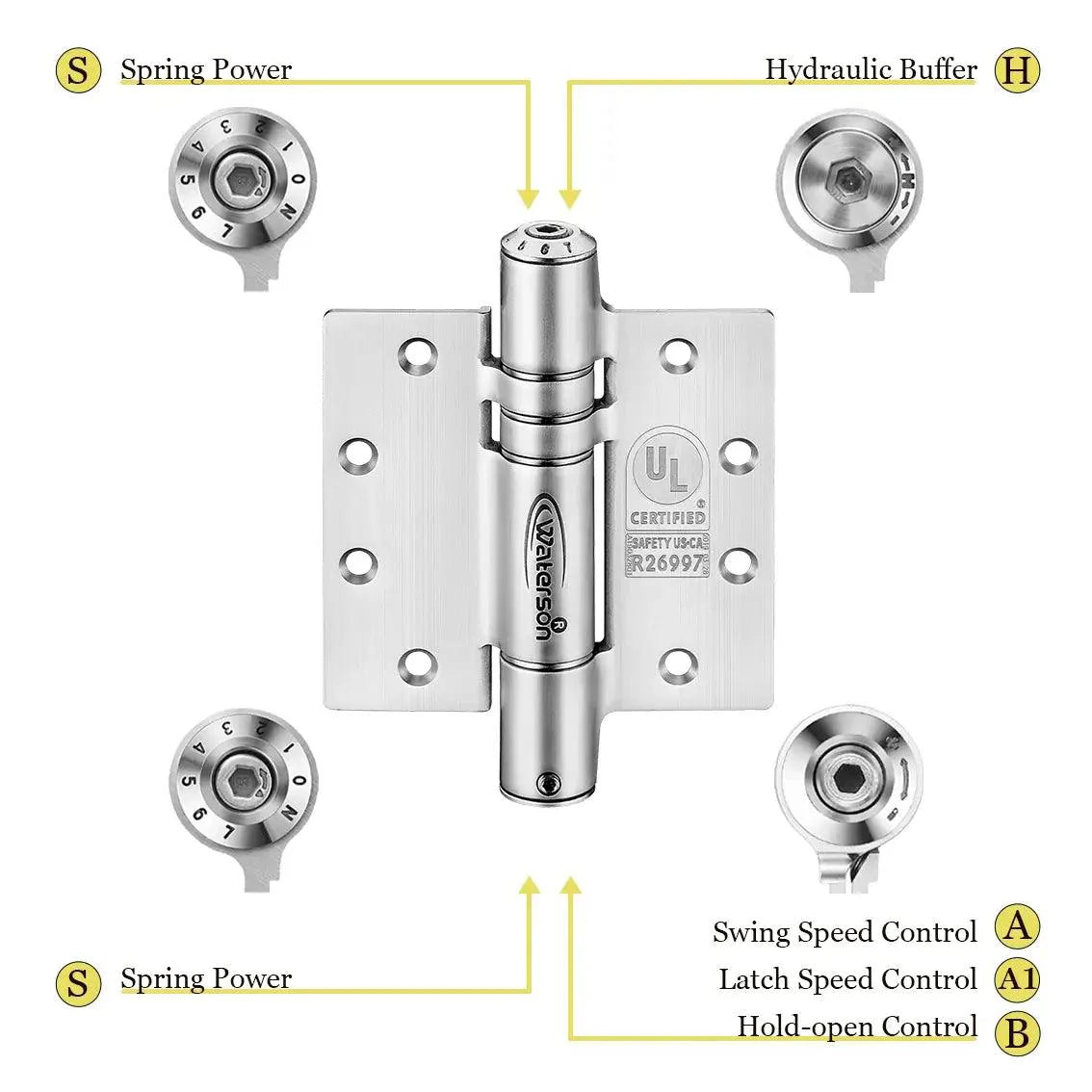

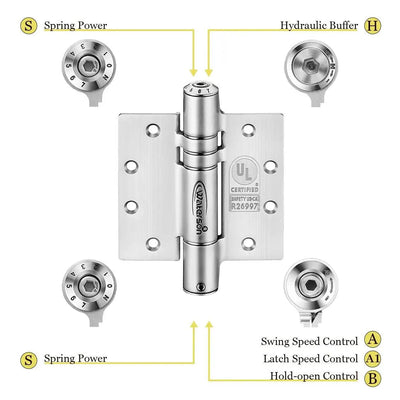

• Fully adjustable closing force and speed according to environment needs

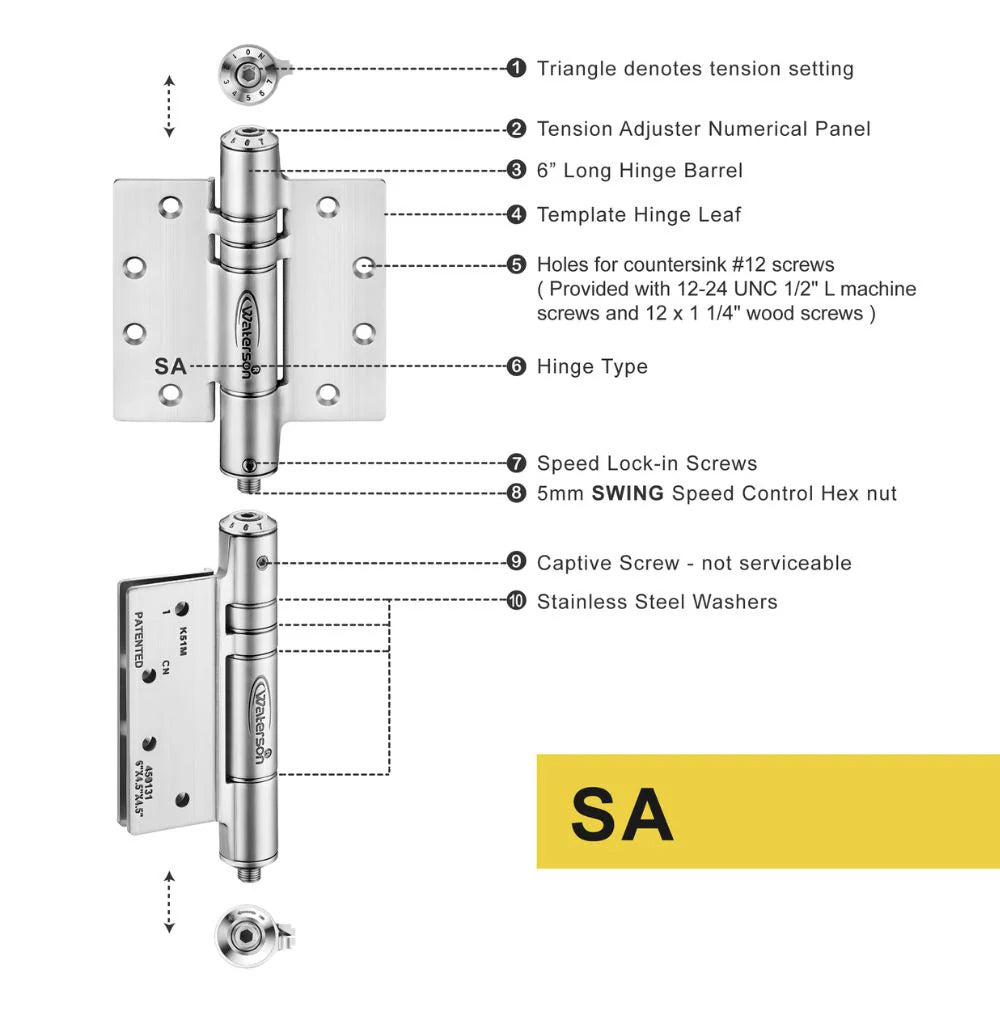

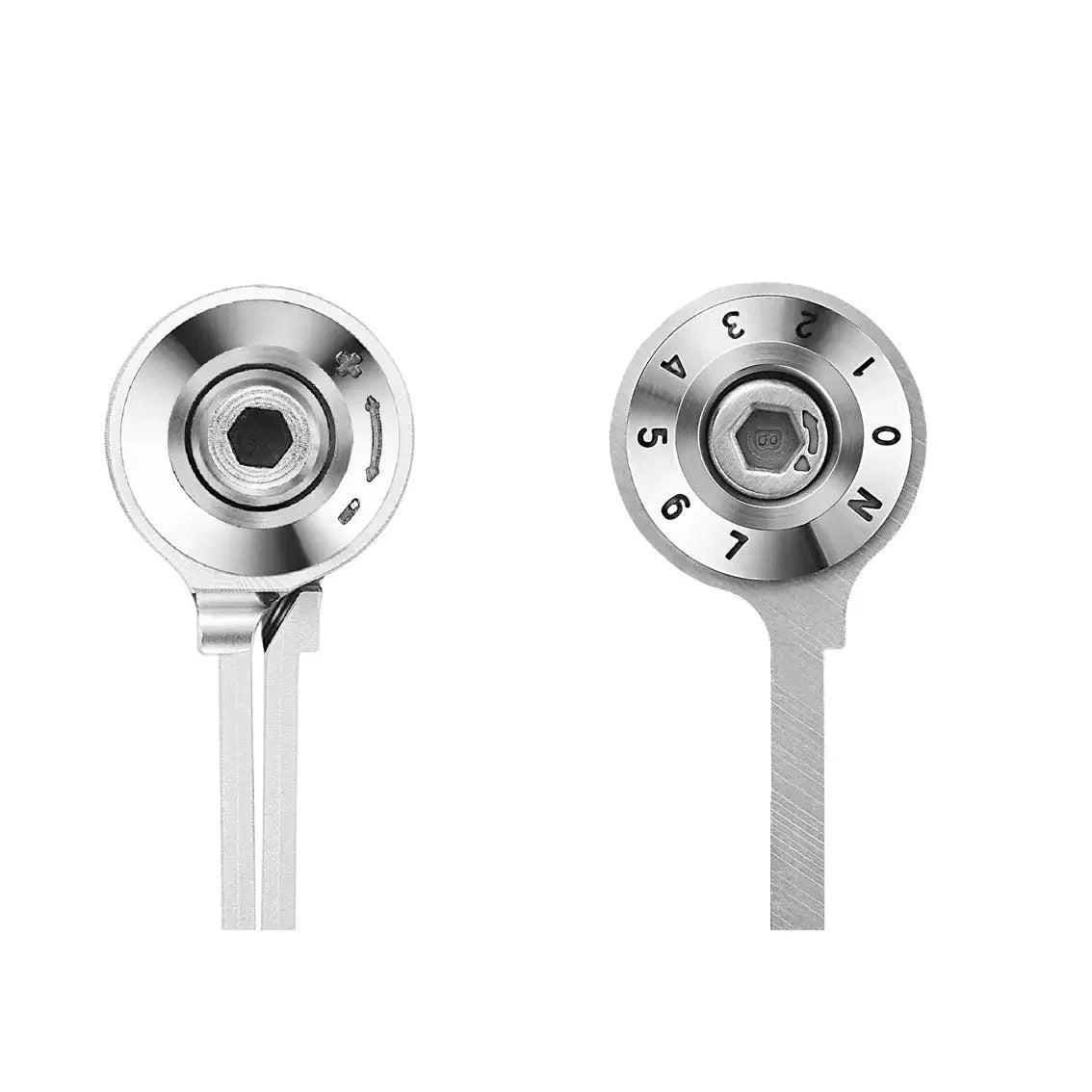

• Numerical adjustment panel on hinge end to set up precise tension
• Mechanical only mechanism supporting heavy duty and fully exterior
• Aesthetically pleasing compared to door closers -- without extrusive arms
• UL certified cycle testing ensures many years of low maintenance.
• Can be used for the following applications:
  • Hotel Rooms

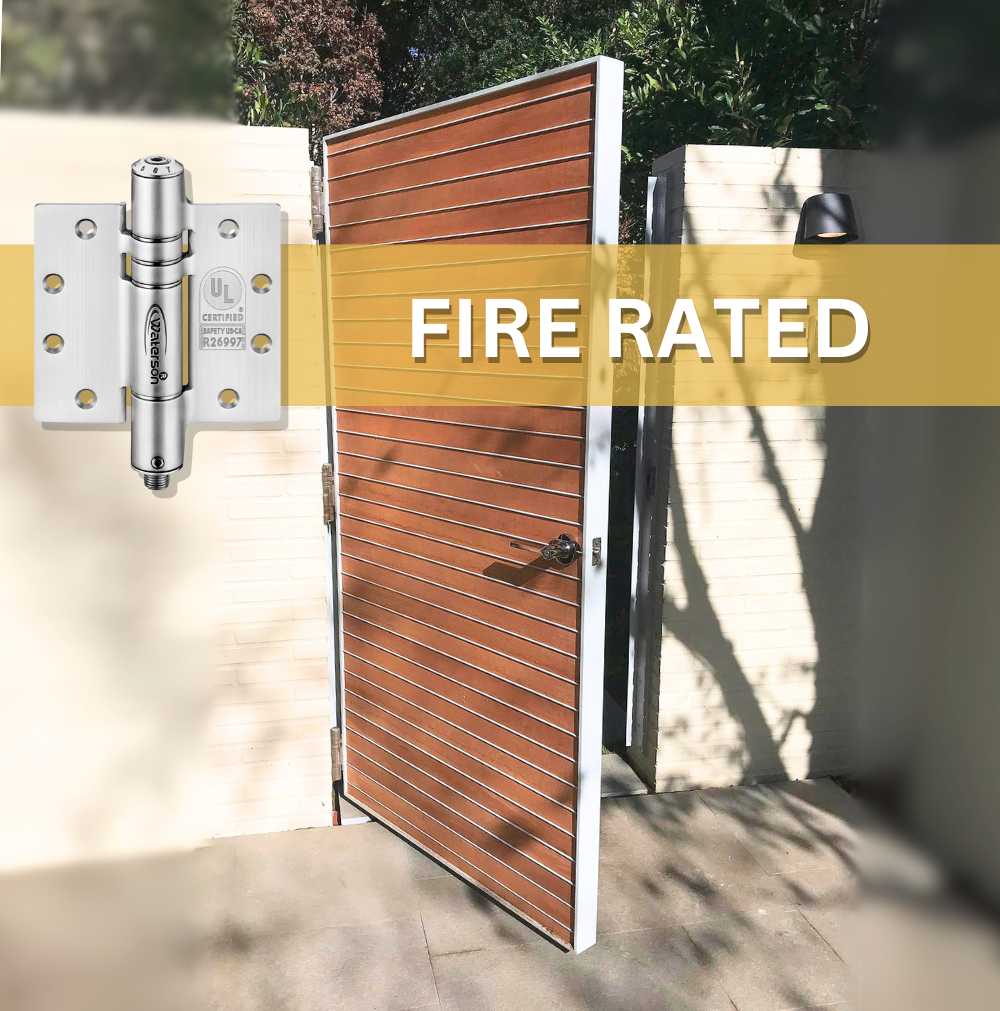

  • 3Hr Fire-rated
  • Fully Exterior
  • Arch Top
  • Heavy Duty
  • Courtyard Style

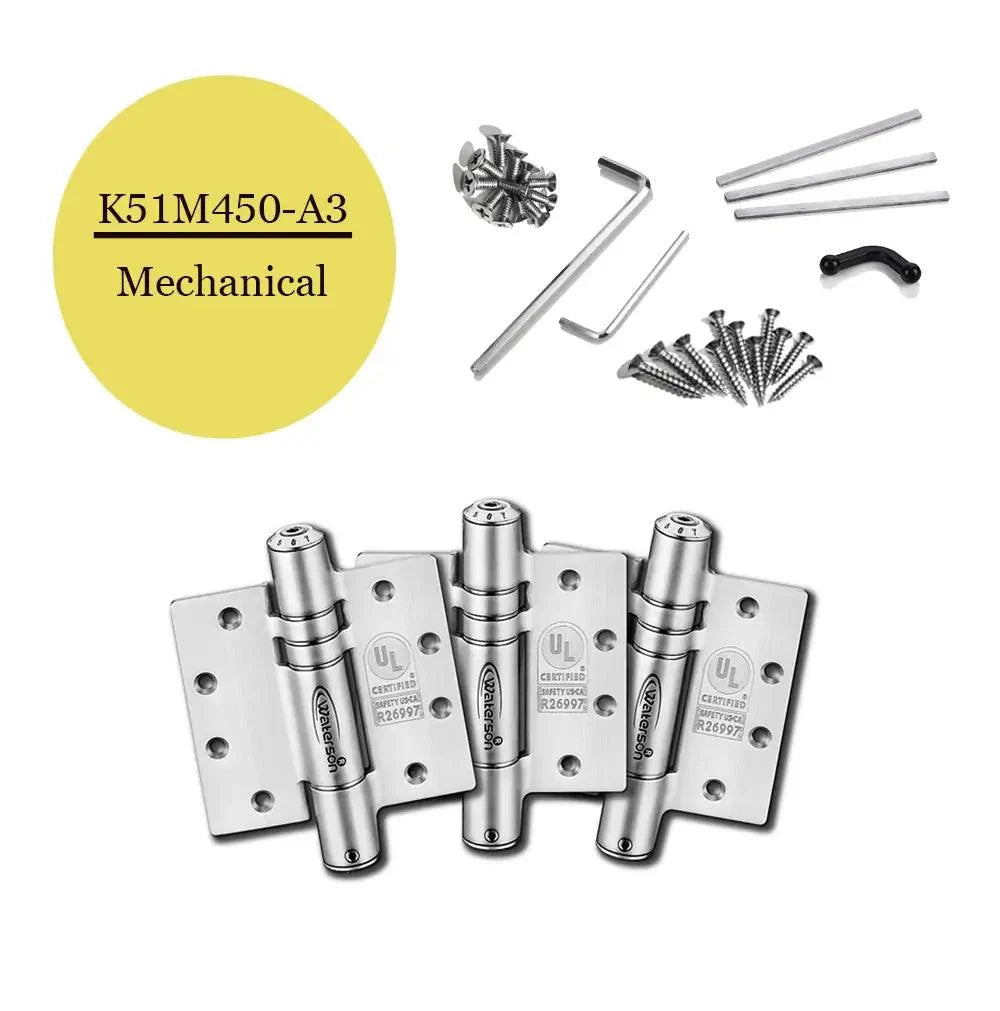

• 3 Pack - 3 Hinges Per Door

• Installation Kits

  • Both machined #12-24 UNC ½”L and wooden tapping #12 x 1 ¼” screws included -- eight (8) of each type per hinge. Pack contains five (5) spares as well.
  • Three steel adhesive shims for gap adjustment between door and frame as needed
  • Tension Crook: Keeps hinge open during installation
  • 5mm & 3mm hex allen wrenches

  Compliance Standards

  • ANSI A156.17 Grade 1 : one million cycle testing

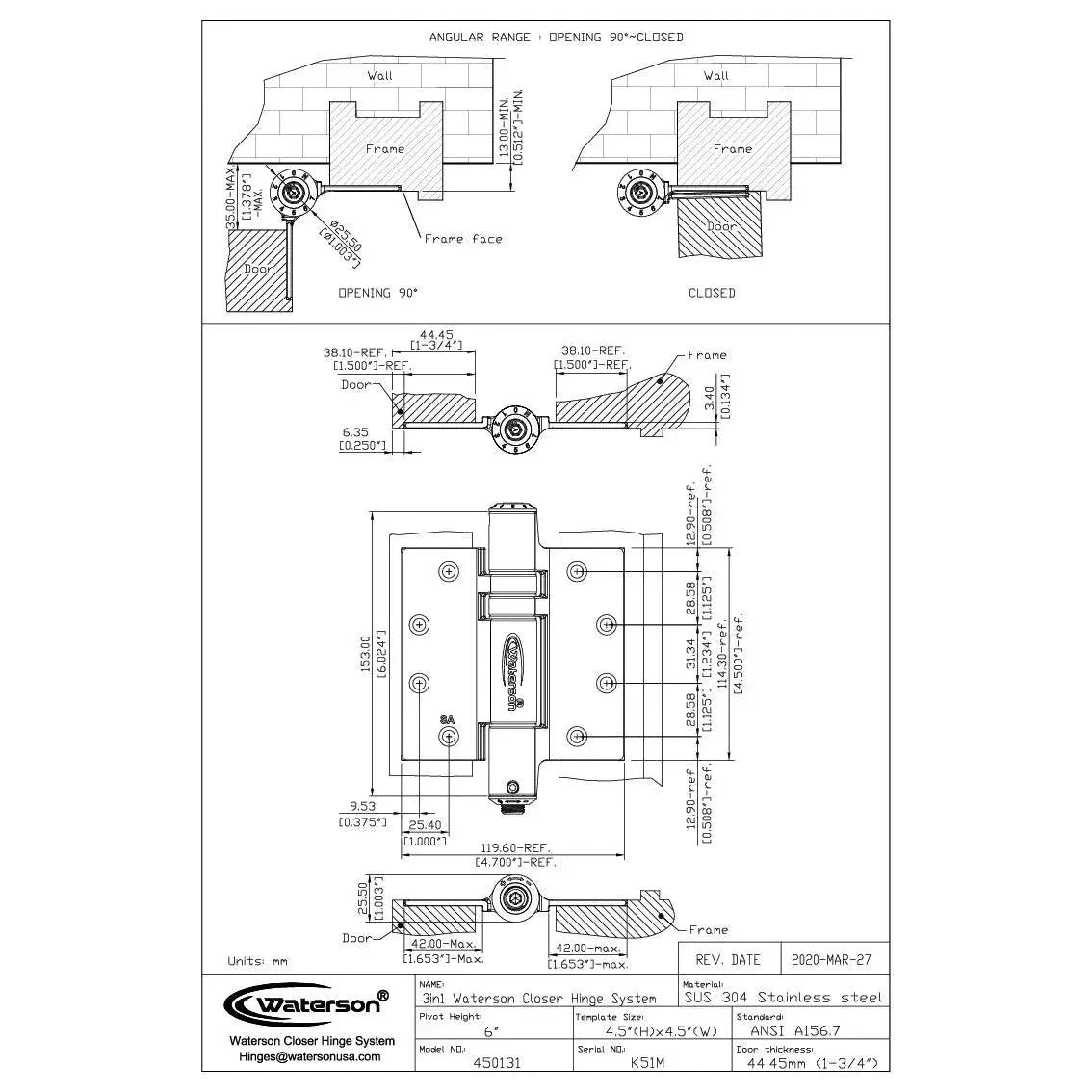

  • ANSI A156.7 Template Hinge : 4.5" x 4.5"
  • CSI Spec 08 7100 Door Hardware & 08 7808 Self-closing Hinges
  • ADA Force : opening force no more than 5 lbs
  • ADA Closing Speed: at least 5 sec to move from m 90° to 12°
  • ADA Vertical Clearance: Does not intrude into the doorway as do some overhead closers
