Heavy Duty Cylindrical Entrance Leverset/Deadbolt - Pioneer SL Grade 2 - Multiple Finishes Available

Cal Royal

$109.00
SKU: CAL-SL00-US26D-234

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Product Specifications:

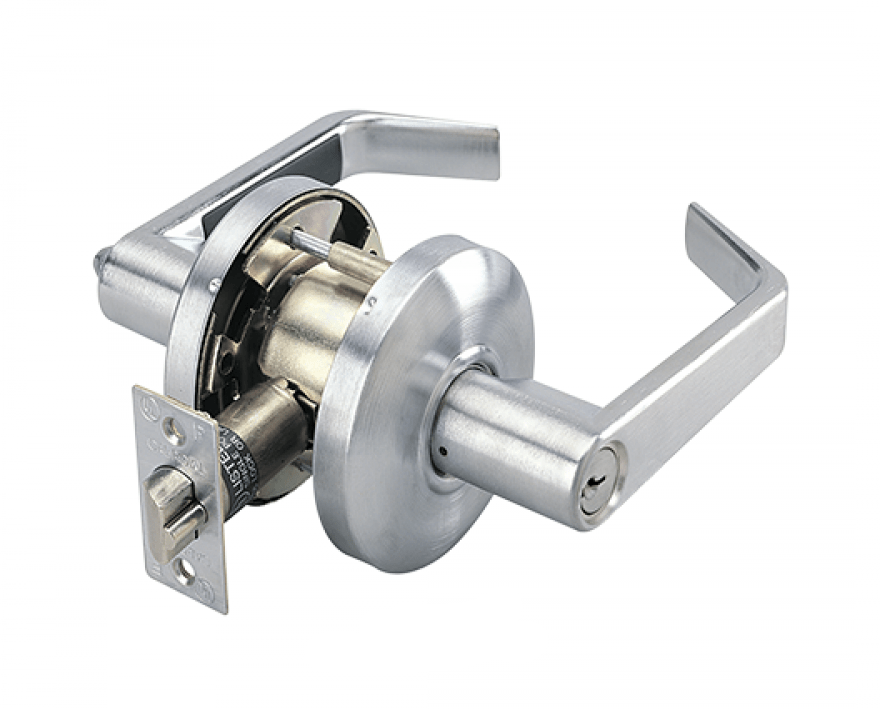

  • Heavy Duty Cylindrical Entrance Leverset/Deadbolt
  • Pioneer SL Series Grade 2
  • Non-clutch mechanism
  • ANSI Standards: Meets or exceeds requirements of BHMA / ANSI A156.2 Series 4000, Grade 2 (FF-H 106C), 400,000 cycles.
  • Cylinder & Keyway:  6 pin solid brass “C” keyway, Schlage E, Schlage C-K,
  • Interchangeable Core: Not Available
  • Strikes: ASA strike standard
  • Functions: Entrance, Office Lock
  • Exposed Trim: Wrought brass, bronze or stainless steel, levers are Zinc casting, plated to match trim finish
  • Latch Bolt: ½” Throw solid brass, reversible for RH or LH applications. UL Listed.
  • Latch Faceplate: 2 ¼” x 1 ⅛”, adjustable for flat or beveled doors ⅛” in 2”, for 2 ¾” backset
  • Door Range: 1 ⅜” to 1 ¾” thick

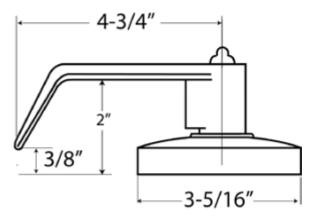

  • Lever Length: 4 3/4"
  • Meets ADA requirements Specially designed for Barrier Free Application Conforms with BHMA / ANSI A156.2 Series 4000, Grade 2 requirements Exceeds 400,000 cycles

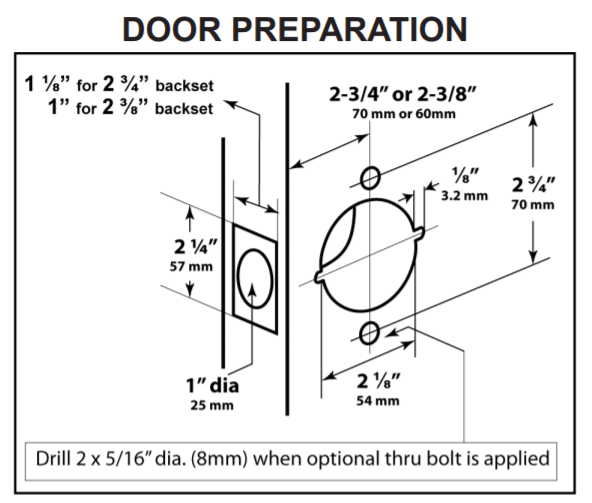

  • Template
  • Installation Guide

Product Options:

  • Type:
    • Entrance/Office Lock: Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned.
    • Entrance/Office Lock with Single Cylinder Deadbolt: 2 Packed Together: Turn / Push button locking. Pushing and turning button locks outside lever requiring use of key until button is manually unlocked. Pushing button locks outside lever until unlocked with key or inside lever is turned. Dead locking latch bolt retracted by key from outside or by thumb turn on inside. Adjustable 2 ⅜” or 2 ¾” backset.
  • Finishes Available: Satin Chrome, Polished Brass, Satin Nickel
  • Backset: 2 ¾” Inches (standard), 2 ⅜” Inches, 3 ¾” Inches, 5” Inches
