Hager Spring Hinges - 4" Inch x 4" Inch with 1/4" Inch Radius - Multiple Finishes - Sold Individually


SKU: HG-1744-US4

  • Free shipping on orders over $50
  • Easy 30 day returns
  • Typically ships in 1-2 business days

Hager Hinges are built on the true American Story.  Through hard work and an innovation, an immigrant from Germany built a product and American Brand known for their excellence.  They have a reputation of manufacturing high quality hinges for over 160 years.  We offer the Hager Spring Hinges in a variety of sizes and finishes.

Product Specifications:

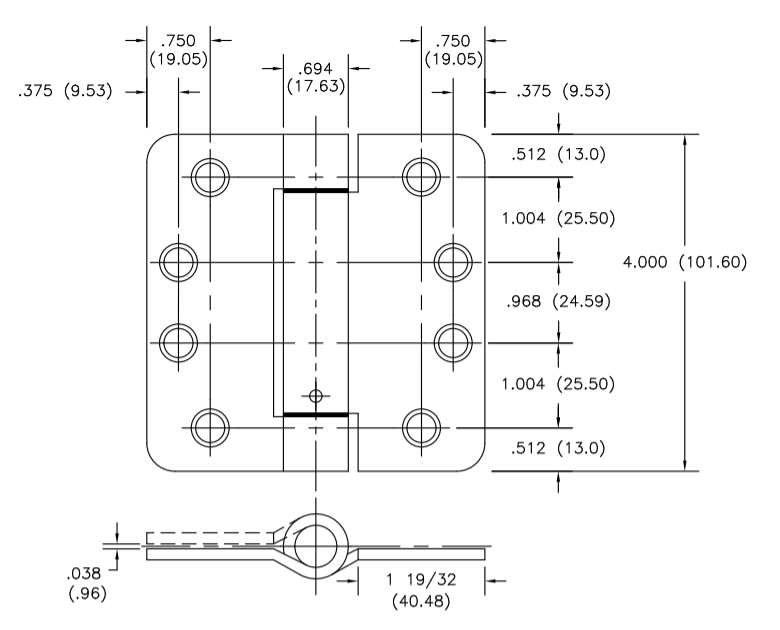

  • Size: 4" inch x 4" inch with 1/4" Radius (Template Hole Pattern)
  • Application: For maximum versatility, use all spring hinges or a combination of spring and ball bearing hinges. Do not use plain bearing hinges. Full spring tension may not be required on all hinges. Strong wind conditions, drafts, carpeting drag, twisted/misaligned frames, or weather stripping on doors may require additional spring hinges
  • Material: Steel with Steel components ANSI K81071F
  • Door Thickness: 1 5/8" to 1 3/4"

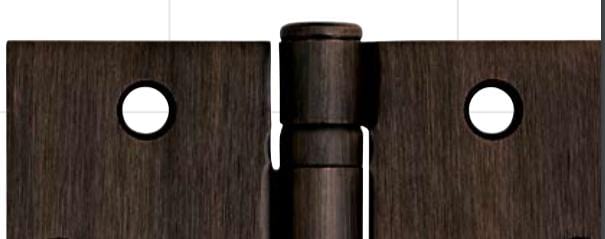

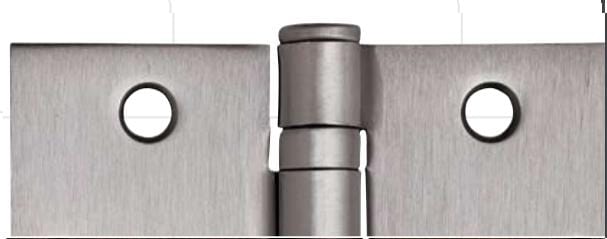

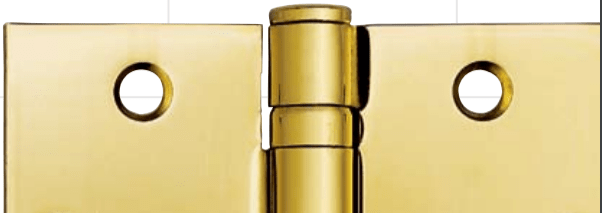

  • Available Finishes: Bright Brass, Satin Brass, Oil Rubbed Bronze Satin Chrome
  • All hinges are packed with screws, tension pin, and wrench to adjust the tension.
  • Certifications: BHMA Certified, ANSI 4156.17, Grade 1
  • Sold Individually
Spring Hinge Installation Instructions
